Product Overview

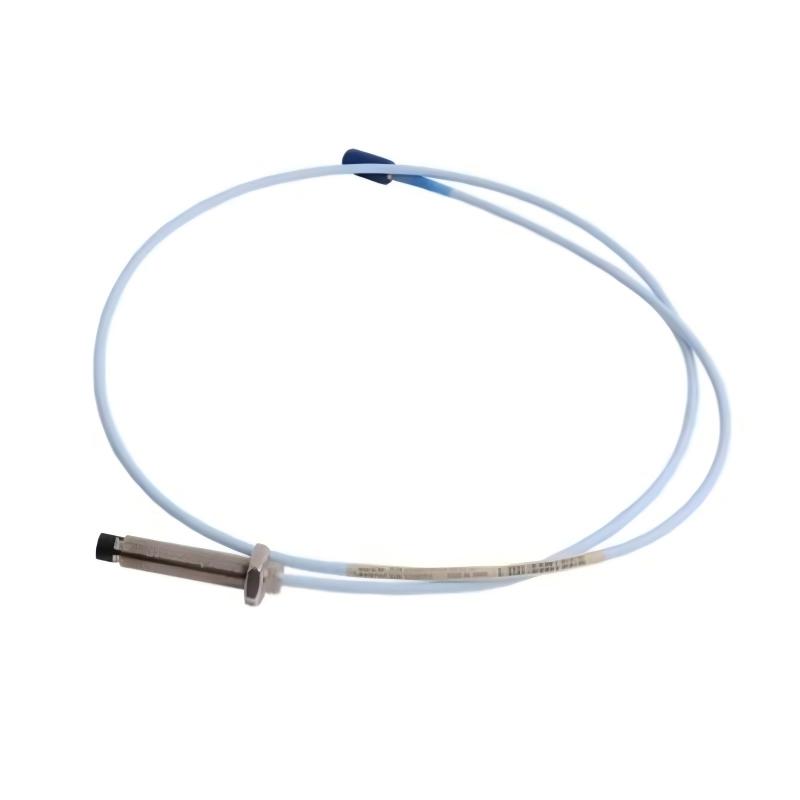

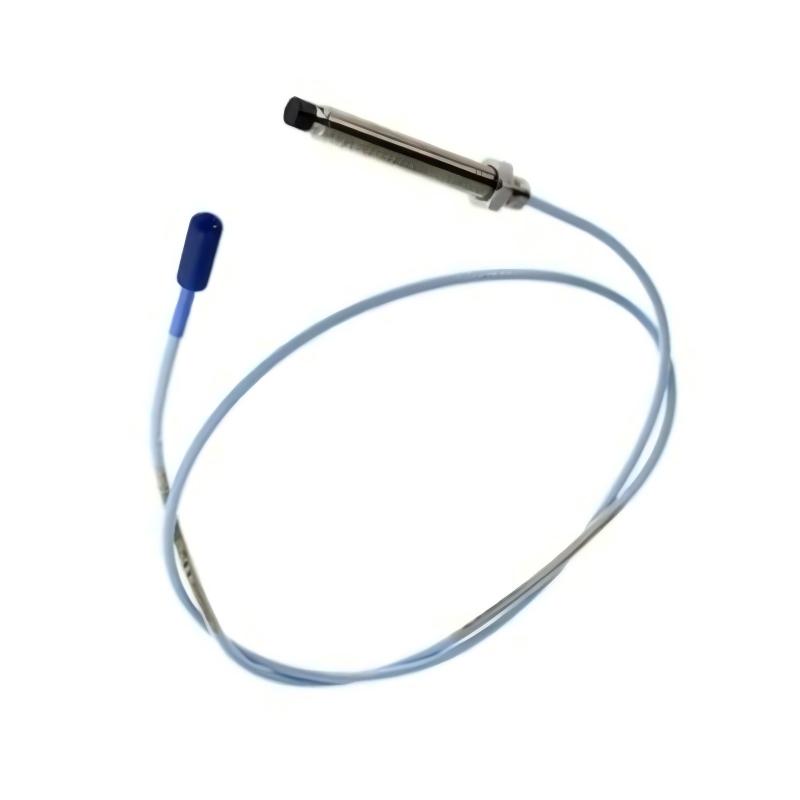

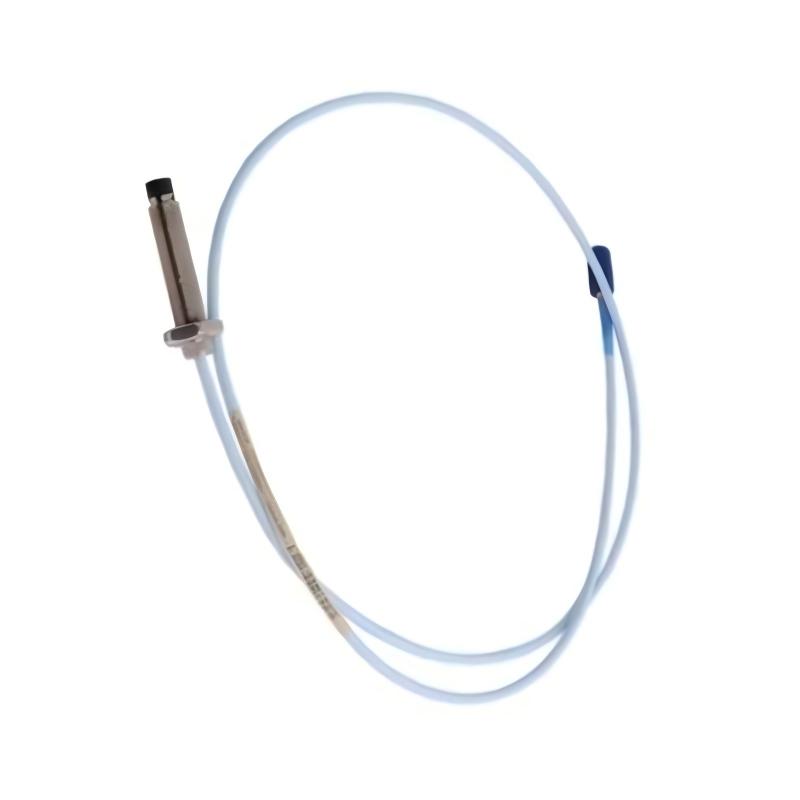

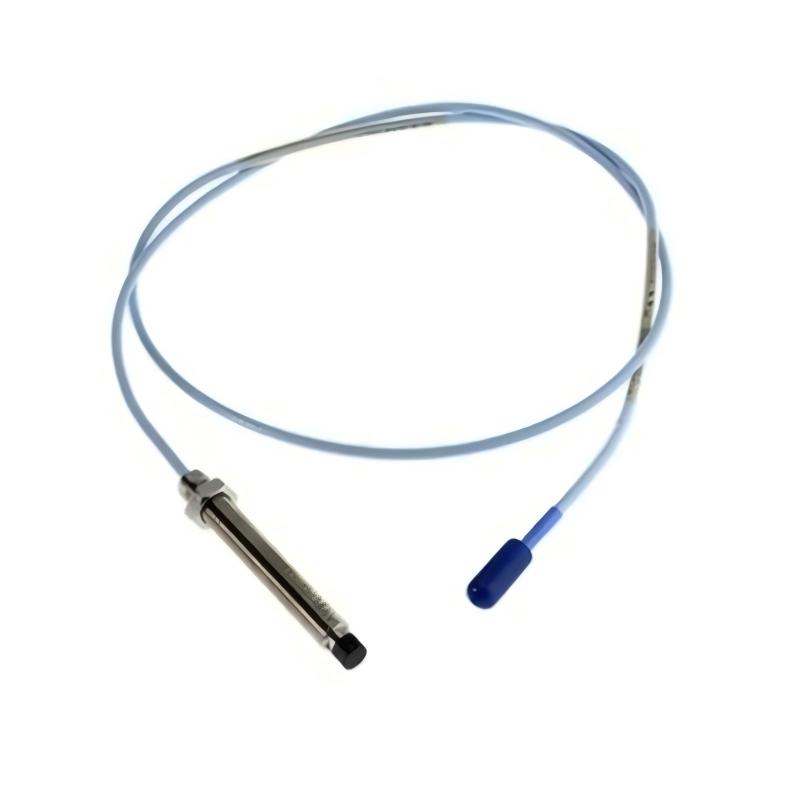

The Bently Nevada 330703-000-040-90-01-CN 3300 XL 11 mm Proximity Probe is a high-precision non-contact displacement sensor designed for monitoring the operating condition and protection of critical rotating machinery.
As an essential component of industrial machinery protection and predictive maintenance systems, this proximity probe provides accurate measurement of shaft vibration, radial displacement, and rotor position changes. The sensor uses eddy current technology to detect the distance between the probe tip and the rotating shaft without physical contact, ensuring reliable measurement performance during continuous operation.
The 330703-000-040-90-01-CN belongs to the 3300 XL 11 mm Proximity Probe, Metric product family and features a 9-meter total cable length, providing flexible installation capability for large industrial equipment where the monitoring system is located far from the machine.
This proximity probe is widely used in:
- Steam turbines
- Gas turbines
- Centrifugal compressors
- Power generation equipment
- Large industrial motors
- Pumps
- Gearboxes
- Rotating equipment monitoring systems
With a total length of 9 meters and a weight of 0.43 kg, the Bently Nevada 330703-000-040-90-01-CN provides reliable measurement performance for demanding industrial applications requiring extended cable installation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-040-90-01-CN |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Sensor Technology | Eddy Current Displacement Measurement |
| Installation Type | Metric Configuration |
| Total Cable Length | 9 meters |
| Measurement Method | Non-contact Shaft Measurement |
| Application | Shaft Vibration and Position Monitoring |
| Weight | 0.43 kg |
Function and Working Principle
The Bently Nevada 330703-000-040-90-01-CN Proximity Probe uses eddy current sensing technology to measure shaft displacement and vibration.
The working principle includes:
- The probe tip generates a high-frequency electromagnetic field.
- The rotating shaft changes the electromagnetic field according to the gap distance.
- The sensor detects changes caused by shaft movement.
- The signal is converted into electrical measurement data.
- The monitoring system analyzes the signal to determine vibration levels and shaft position.
Because the probe operates without physical contact with the rotating shaft, it avoids mechanical wear and provides stable measurement performance for long-term industrial operation.
Main Features
1. Extended 9-Meter Cable Design
The 9-meter cable length provides installation flexibility for large industrial machinery.
Key advantages:
- Suitable for large equipment layouts
- Supports remote monitoring cabinet installation
- Allows flexible sensor placement
- Reduces installation restrictions
This configuration is especially suitable for large power plants and process industry equipment.
2. High-Precision Shaft Vibration Measurement
The proximity probe provides accurate monitoring of rotating shaft conditions.
Measurement functions include:
- Radial shaft vibration detection
- Shaft displacement monitoring
- Rotor movement analysis
- Mechanical condition evaluation
Accurate vibration data helps maintenance teams identify abnormal operating conditions at an early stage.
3. Non-Contact Eddy Current Technology
The sensor uses electromagnetic measurement technology instead of mechanical contact.
Advantages:
- No physical wear
- Improved service life
- Stable measurement accuracy
- Suitable for high-speed rotating machinery
4. Reliable Industrial Performance
The 330703-000-040-90-01-CN is designed for continuous operation in industrial environments.
Benefits:
- Stable signal transmission
- Reliable measurement output
- Strong system compatibility
- Long-term operational stability
5. Supports Predictive Maintenance
The proximity probe provides important machine condition data for maintenance programs.
Applications include:
- Equipment health monitoring
- Early fault detection
- Vibration trend analysis
- Maintenance planning
Industrial Applications
Steam Turbine Monitoring
Steam turbines require accurate shaft monitoring to maintain safe and reliable operation.
The Bently Nevada 330703-000-040-90-01-CN can be applied for:
- Rotor vibration measurement
- Shaft displacement monitoring
- Turbine protection
- Bearing condition analysis
Continuous monitoring helps improve equipment availability and reduce unexpected shutdowns.
Gas Turbine Protection
Gas turbines operate under demanding conditions and require reliable vibration monitoring.
Typical applications include:
- Rotor position monitoring
- Shaft vibration measurement
- Mechanical fault detection
- Turbine protection systems
Compressor Condition Monitoring
Industrial compressors require continuous monitoring due to their high-speed operation.
The proximity probe supports:
- Centrifugal compressor monitoring
- Process compressor protection
- Rotor movement analysis
- Equipment condition evaluation
Generator Monitoring
Large generators require accurate shaft measurement to maintain operational stability.
Applications include:
- Generator rotor monitoring
- Bearing vibration measurement
- Rotating equipment protection
Motor and Pump Monitoring
The probe is suitable for industrial motors, pumps, and gearboxes.
Typical applications:
- Motor vibration analysis
- Pump shaft monitoring
- Drive system protection
- Predictive maintenance systems
Installation Guide
Mechanical Installation
Recommended installation steps:
- Confirm the correct probe model and cable length.
- Inspect the probe tip and cable condition.
- Install the probe into the designated mounting position.
- Adjust the probe gap according to equipment requirements.
- Secure the probe installation.
Correct mechanical installation is important for accurate measurement results.
Electrical Connection
Before operation, check:
- Probe wiring connection
- Cable routing
- Monitoring system compatibility
- Connector condition
- Grounding arrangement
Recommended practices:
- Protect the cable from mechanical damage.
- Keep cables away from strong electromagnetic interference.
- Ensure all connections are properly secured.
Commissioning Procedure
Typical commissioning steps:
- Install the 330703-000-040-90-01-CN proximity probe.
- Connect the sensor to the monitoring system.
- Verify signal output.
- Check vibration and displacement values.
- Adjust probe position if necessary.
- Confirm alarm and protection settings.
Proper commissioning ensures reliable monitoring performance.
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| No signal output | Cable connection failure | Check wiring and connectors |
| Incorrect vibration reading | Incorrect probe installation | Verify probe position |
| Signal instability | Electromagnetic interference | Improve cable routing |
| Sensor alarm | Probe or system fault | Inspect sensor condition |
| Intermittent signal | Loose connection | Secure connectors |
| High vibration alarm | Mechanical equipment problem | Inspect rotating machinery |
Maintenance Recommendations
To ensure long-term reliability:
- Inspect the probe regularly
- Check cable insulation condition
- Verify connector tightness
- Monitor signal quality
- Maintain proper installation conditions
- Perform periodic equipment inspections
Regular maintenance helps improve equipment reliability and reduce unexpected failures.
Advantages of Bently Nevada 330703-000-040-90-01-CN
- High-precision shaft displacement measurement
- Advanced eddy current sensing technology
- Flexible 9-meter cable installation
- Non-contact vibration monitoring
- Suitable for critical rotating machinery
- Stable signal performance
- Compact metric design
- Supports predictive maintenance applications
Technical FAQs
What is Bently Nevada 330703-000-040-90-01-CN?
The Bently Nevada 330703-000-040-90-01-CN is a 3300 XL 11 mm Proximity Probe designed for measuring shaft vibration and displacement in industrial rotating equipment.
What is the benefit of the 9-meter cable?
The 9-meter cable allows the sensor to be installed on large machines while maintaining connection with monitoring systems located at a greater distance.
What equipment uses this proximity probe?
It is commonly used in turbines, compressors, generators, motors, pumps, and other critical rotating machinery.
Why is non-contact measurement important?
Non-contact sensing eliminates mechanical wear between the probe and shaft, providing reliable measurement accuracy during continuous operation.
Conclusion
The Bently Nevada 330703-000-040-90-01-CN 3300 XL 11 mm Proximity Probe is a reliable industrial monitoring sensor designed for accurate shaft vibration and displacement measurement.
With advanced eddy current sensing technology, a flexible 9-meter cable design, stable signal performance, and strong compatibility with machinery protection systems, this proximity probe provides an effective solution for industrial condition monitoring.
For industries operating turbines, compressors, generators, and other critical rotating assets, the Bently Nevada 330703-000-040-90-01-CN helps improve equipment reliability, reduce maintenance risks, and enhance operational safety.
