- Bently Nevada
- 330703-000-040-50-02-05
- 3300 XL 11 mm Proximity Probe, Metric
- USA
- 5 meters
- 0.25 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

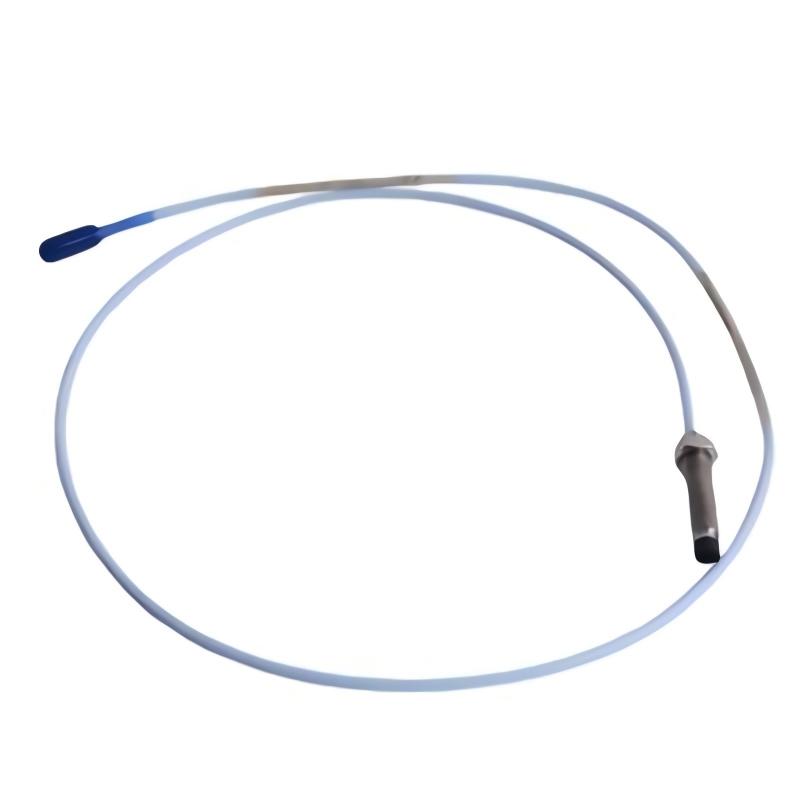

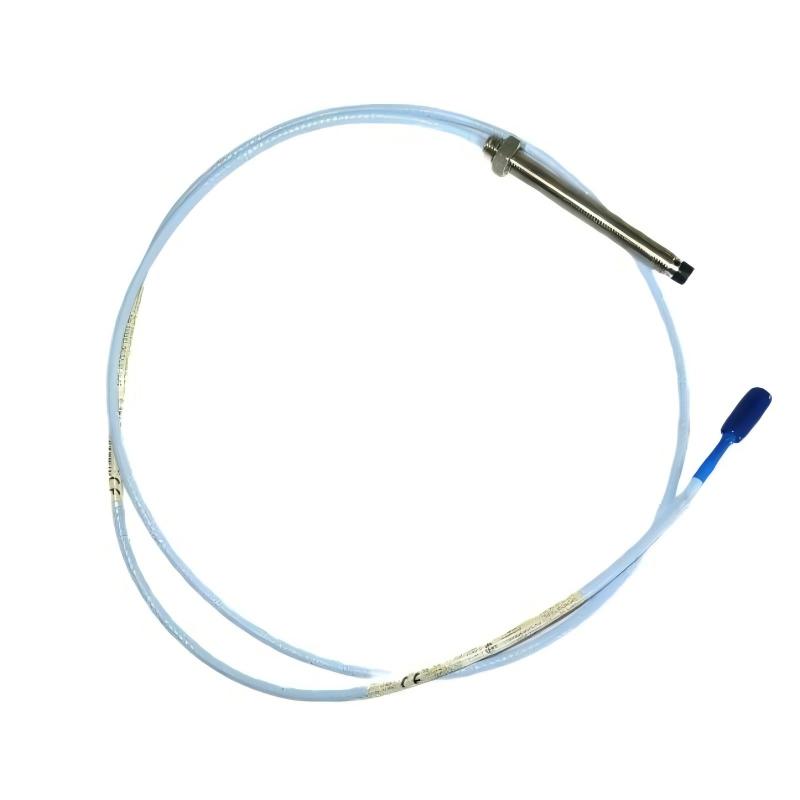

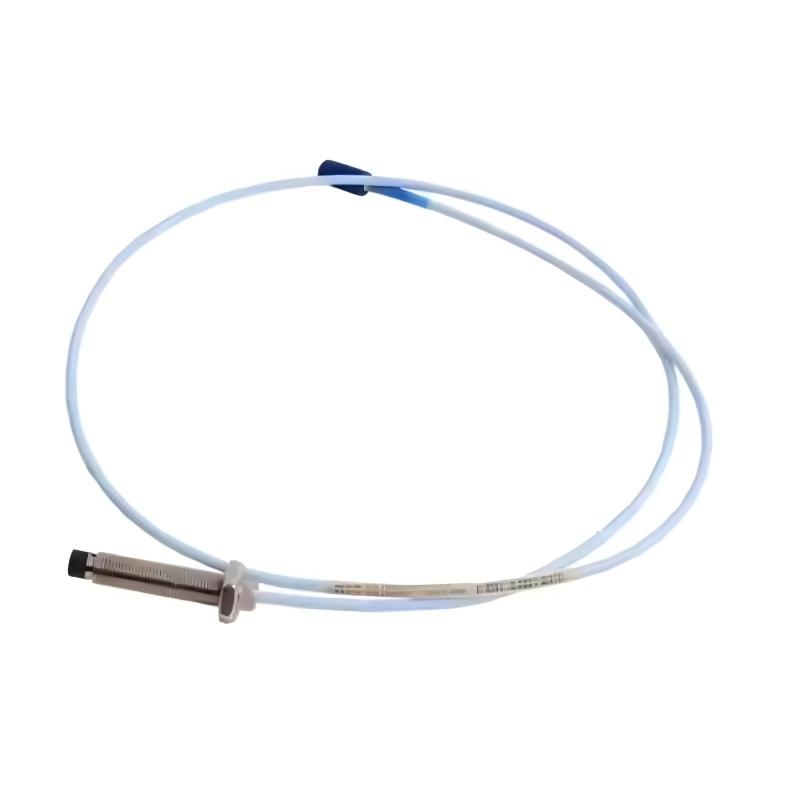

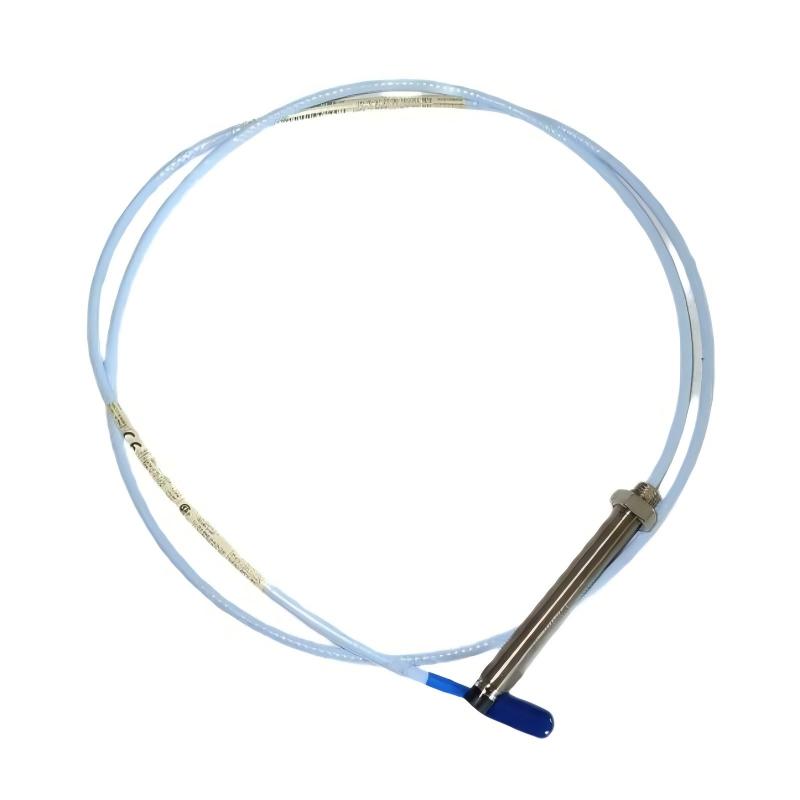

The Bently Nevada 330703-000-040-50-02-05 3300 XL 11 mm Proximity Probe is a high-performance non-contact displacement sensor designed for accurate monitoring of rotating machinery operating conditions.
As a key component in machinery protection and predictive maintenance systems, this proximity probe is used to measure shaft vibration, radial displacement, and position changes in critical industrial equipment. The sensor uses eddy current technology to detect the distance between the probe tip and the rotating shaft surface, providing reliable measurement signals for condition monitoring systems.
The 330703-000-040-50-02-05 belongs to the 3300 XL 11 mm Proximity Probe, Metric series and features a 5-meter total length, making it suitable for installations where longer cable routing distances are required between the machine monitoring point and the control or monitoring cabinet.
This proximity probe is commonly applied in:
- Steam turbines
- Gas turbines
- Centrifugal compressors
- Industrial generators
- Large motors
- Pumps
- Gearboxes
- Rotating equipment protection systems
With a total length of 5 meters and a weight of 0.25 kg, the Bently Nevada 330703-000-040-50-02-05 provides flexible installation capability for large industrial machinery monitoring applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-040-50-02-05 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Sensor Technology | Eddy Current Displacement Measurement |
| Mounting Type | Metric Configuration |
| Total Cable Length | 5 meters |
| Application | Shaft Vibration and Position Monitoring |
| Measurement Method | Non-contact Detection |
| Weight | 0.25 kg |
Function and Working Principle
The 330703-000-040-50-02-05 Proximity Probe operates by using eddy current sensing technology to measure shaft movement and displacement.
The working process includes:
- The probe generates an electromagnetic field at the sensing tip.
- The rotating shaft influences the electromagnetic field based on the distance between the shaft and probe.
- The sensor detects changes in the field caused by shaft movement.
- The measurement signal is transmitted to the monitoring system.
- The system analyzes the signal to determine vibration levels and shaft position.
The non-contact measurement method allows the probe to operate continuously without mechanical contact damage, making it suitable for high-speed rotating equipment.
Main Features
1. Extended 5-Meter Cable Design
The 5-meter total length provides additional installation flexibility for industrial equipment with larger physical distances between the machine and monitoring cabinet.
Advantages:
- Supports flexible equipment layouts
- Suitable for large rotating machinery
- Simplifies cabinet installation
- Reduces installation limitations
2. High-Precision Shaft Displacement Measurement
The proximity probe provides accurate measurement of shaft movement.
Main monitoring functions:
- Radial vibration detection
- Shaft position measurement
- Rotor movement analysis
- Machinery condition evaluation
Accurate measurement helps identify abnormal operating conditions early.
3. Non-Contact Eddy Current Technology
The probe uses electromagnetic sensing rather than physical contact.
Benefits:
- No mechanical wear
- Stable long-term operation
- High measurement reliability
- Suitable for high-speed applications
4. Reliable Industrial Signal Performance
The probe is designed for continuous operation in industrial environments.
Features:
- Stable signal output
- Reliable measurement accuracy
- Strong application flexibility
- Long operating life
5. Supports Predictive Maintenance Systems
The sensor provides important information for modern equipment maintenance strategies.
Applications include:
- Condition monitoring
- Fault diagnosis
- Vibration trend analysis
- Equipment protection
Industrial Applications
Steam Turbine Monitoring
Steam turbines require accurate shaft monitoring to maintain safe operation.
The Bently Nevada 330703-000-040-50-02-05 can be used for:
- Rotor vibration measurement
- Shaft displacement monitoring
- Turbine protection
- Bearing condition analysis
Continuous monitoring helps reduce unexpected equipment failures.
Gas Turbine Applications
Gas turbines operate under extreme speed and temperature conditions.
The proximity probe supports:
- Rotor position monitoring
- Vibration measurement
- Mechanical condition assessment
- Turbine protection systems
Compressor Condition Monitoring
Large compressors require reliable vibration monitoring to ensure stable operation.
Typical applications:
- Centrifugal compressors
- Process compressors
- Industrial compression systems
The sensor helps detect abnormal shaft movement and mechanical issues.
Generator and Motor Monitoring
The probe can be installed on large electrical rotating machines.
Applications include:
- Generator rotor monitoring
- Motor shaft vibration analysis
- Bearing condition monitoring
- Drive system protection
Pump and Gearbox Monitoring
Industrial pumps and gearboxes require continuous condition analysis.
Typical uses:
- Shaft displacement measurement
- Vibration monitoring
- Mechanical fault detection
- Predictive maintenance
Installation Guide
Mechanical Installation
Recommended installation steps:
- Verify the probe model and cable length requirements.
- Inspect the probe tip and cable condition.
- Install the probe into the designated mounting location.
- Adjust the probe position according to machinery requirements.
- Secure the probe properly.
Correct installation is essential for accurate vibration measurement.
Electrical Connection
Before startup, check:
- Probe connection
- Cable routing
- Monitoring system compatibility
- Signal wiring
- Grounding conditions
Installation recommendations:
- Protect the cable from mechanical damage.
- Avoid routing near strong electromagnetic interference sources.
- Ensure connectors are securely installed.
Commissioning Procedure
Typical commissioning process:
- Install the proximity probe.
- Connect the sensor to the monitoring system.
- Verify signal transmission.
- Adjust probe installation position.
- Check vibration and displacement values.
- Confirm alarm settings.
Proper commissioning ensures stable monitoring performance.
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| No signal output | Cable connection problem | Check wiring and connectors |
| Incorrect vibration measurement | Improper probe adjustment | Verify installation position |
| Signal instability | Electrical interference | Improve cable routing |
| Sensor alarm | Probe or system fault | Inspect sensor condition |
| Intermittent readings | Loose connection | Secure connectors |
| High vibration warning | Machinery abnormality | Inspect rotating equipment |
Maintenance Recommendations
To maintain reliable operation:
- Inspect the probe installation regularly
- Check cable insulation condition
- Verify connector connections
- Monitor signal quality
- Maintain proper installation environment
- Perform regular rotating equipment inspections
Routine maintenance helps improve equipment reliability and reduce downtime.
Advantages of Bently Nevada 330703-000-040-50-02-05
- High-precision shaft displacement measurement
- Non-contact eddy current sensing technology
- Extended 5-meter cable installation flexibility
- Suitable for large industrial machinery
- Reliable vibration monitoring performance
- Compact metric design
- Supports predictive maintenance
- Long-term industrial operation capability
Technical FAQs
What is Bently Nevada 330703-000-040-50-02-05?
The Bently Nevada 330703-000-040-50-02-05 is a 3300 XL 11 mm Proximity Probe designed for monitoring shaft vibration and displacement in rotating machinery.
What is the advantage of the 5-meter cable length?
The 5-meter cable provides greater installation flexibility, allowing the probe to be installed on large equipment while connecting to monitoring systems located farther away.
What equipment uses this proximity probe?
It is commonly used in turbines, compressors, generators, motors, pumps, and other critical rotating equipment.
Why is non-contact measurement important?
Non-contact measurement prevents mechanical wear between the sensor and shaft, improving reliability and extending sensor service life.
Conclusion
The Bently Nevada 330703-000-040-50-02-05 3300 XL 11 mm Proximity Probe is a reliable industrial sensor designed for accurate shaft vibration and displacement monitoring in critical rotating machinery.
With advanced eddy current sensing technology, a flexible 5-meter cable design, stable signal performance, and strong compatibility with industrial monitoring systems, this proximity probe provides an effective solution for equipment protection and predictive maintenance.
For industries requiring reliable monitoring of turbines, compressors, generators, and other high-value rotating assets, the Bently Nevada 330703-000-040-50-02-05 helps improve operational safety, maintenance efficiency, and equipment reliability.
