Product Overview

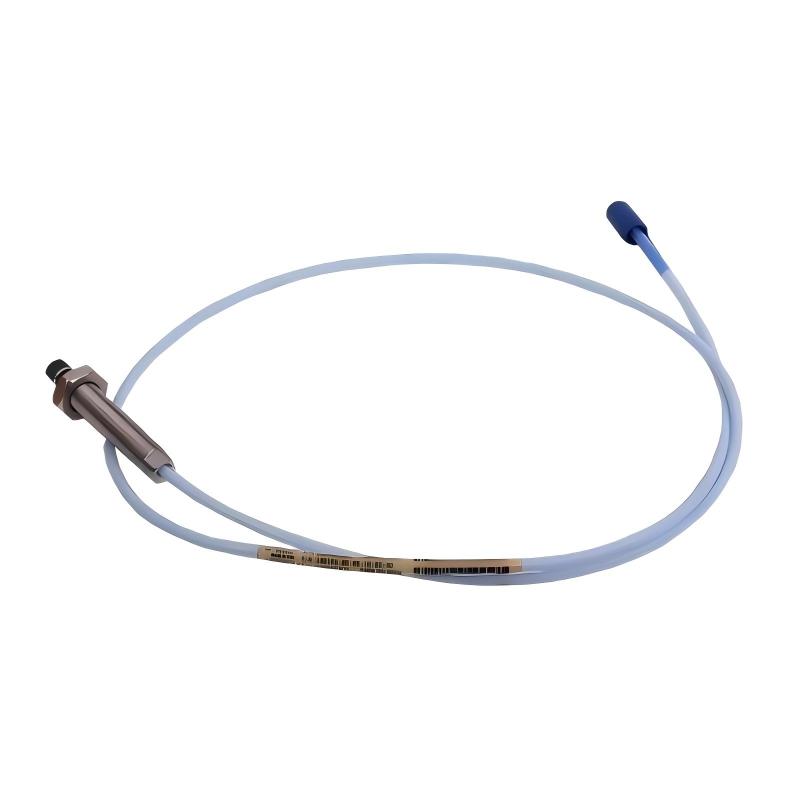

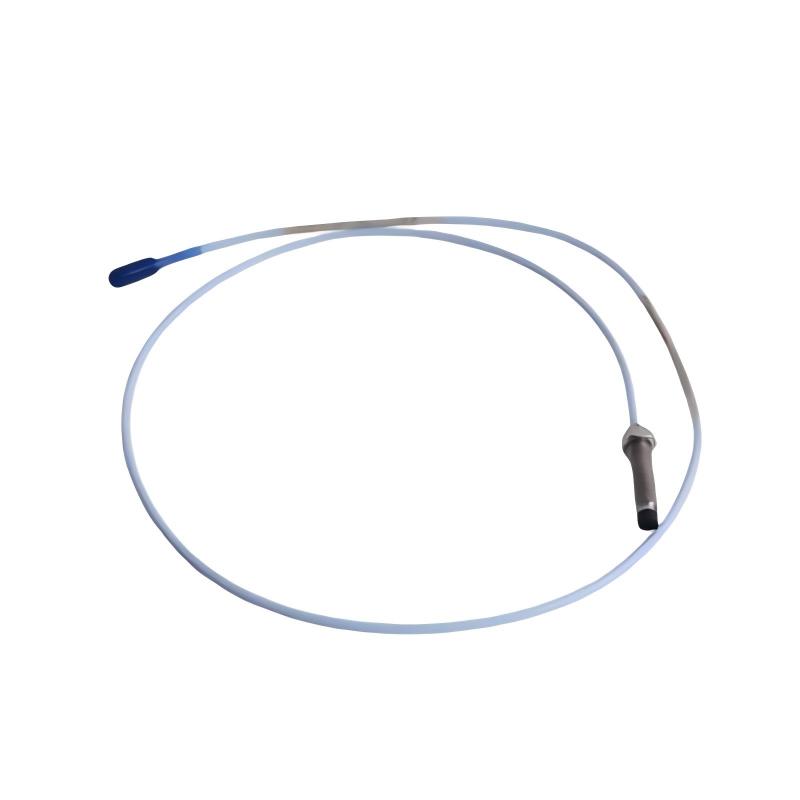

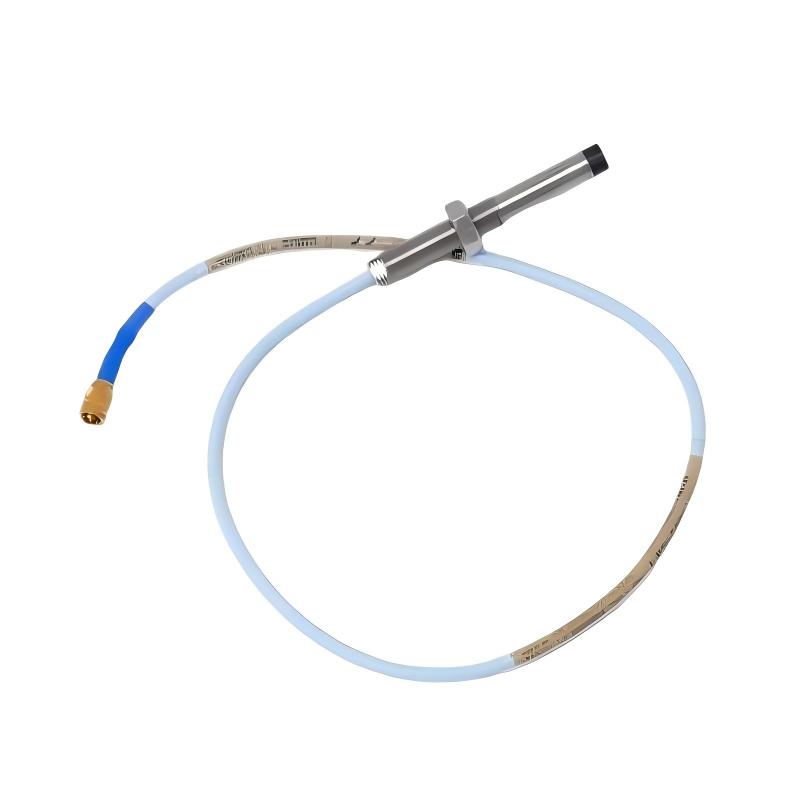

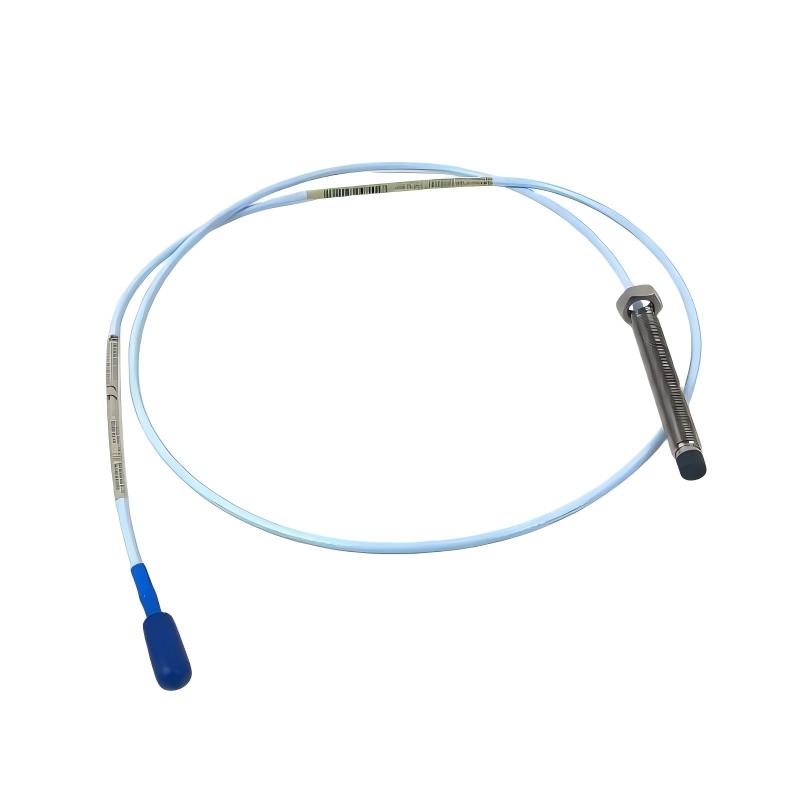

The Bently Nevada 330703-000-040-10-02-05 3300 XL 11 mm Proximity Probe is a high-precision non-contact displacement sensor designed for monitoring the condition and performance of critical rotating machinery.

As an important component of machinery protection and predictive maintenance systems, this proximity probe measures shaft vibration, radial displacement, and position changes without physical contact. It uses eddy current sensing technology to detect the distance between the probe tip and the rotating shaft, providing accurate vibration and position information for industrial monitoring systems.

The 330703-000-040-10-02-05 belongs to the 3300 XL 11 mm Proximity Probe family and is designed with a metric mounting structure. It features a 1 meter total cable length, compact design, and reliable signal transmission capability, making it suitable for various industrial rotating equipment applications.

The Bently Nevada 330703-000-040-10-02-05 is commonly used in:

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Industrial pumps
• Electric motors
• Generators
• Gearboxes
• Rotating machinery protection systems

With a total length of 1 meter and a weight of 0.07 kg, this proximity probe provides a lightweight and reliable monitoring solution for industrial equipment condition analysis.

Technical Specifications

Function and Working Principle

The 330703-000-040-10-02-05 Proximity Probe operates using eddy current measurement technology to detect changes in the position of rotating shafts.

The working principle includes:

1. The probe generates a high-frequency electromagnetic field at the sensing tip.
2. The rotating shaft affects the electromagnetic field according to the distance between the shaft and probe.
3. The sensor detects changes in the eddy current field.
4. The measurement signal is converted into an electrical output.
5. The monitoring system analyzes the signal to determine vibration levels and shaft movement.

Because the probe does not physically contact the rotating component, it avoids mechanical wear and provides stable long-term measurement performance.

Main Features

1. Non-Contact Vibration Measurement

The Bently Nevada 330703-000-040-10-02-05 provides accurate shaft displacement measurement without direct contact.

Advantages:

• No mechanical friction
• Reduced sensor wear
• Continuous monitoring capability
• Suitable for high-speed rotating equipment

This design improves measurement reliability in demanding industrial environments.

2. High Accuracy Shaft Position Monitoring

The proximity probe provides precise measurement of shaft movement.

Typical monitoring functions include:

• Radial vibration measurement
• Shaft displacement detection
• Rotor position monitoring
• Machinery condition analysis

Accurate measurement helps operators identify abnormal equipment conditions before serious failures occur.

3. Reliable Industrial Signal Transmission

The probe is designed for stable signal communication between the sensor and monitoring system.

Benefits:

• Consistent measurement output
• Reduced signal interruption
• Improved monitoring accuracy
• Reliable operation in industrial environments

4. Compact Metric Installation Design

The 330703-000-040-10-02-05 uses a compact industrial design suitable for machinery installation.

Advantages:

• Easy mechanical integration
• Space-saving installation
• Suitable for different equipment layouts
• Convenient maintenance

5. Suitable for Critical Machinery Protection

The proximity probe provides essential operating data for machinery protection systems.

Applications include:

• Early fault detection
• Predictive maintenance
• Equipment condition monitoring
• Reliability improvement

Industrial Applications

Steam Turbine Monitoring

Steam turbines require continuous vibration and shaft position monitoring.

The 330703-000-040-10-02-05 can be used for:

• Rotor vibration measurement
• Bearing condition monitoring
• Shaft displacement detection
• Turbine protection systems

Reliable monitoring helps prevent unexpected shutdowns and mechanical damage.

Compressor Applications

Industrial compressors operate under high-speed and heavy-load conditions.

The proximity probe supports:

• Rotor vibration monitoring
• Shaft movement analysis
• Machine protection
• Maintenance planning

Generator Monitoring Systems

Large generators require accurate shaft monitoring to maintain stable operation.

Typical applications:

• Generator rotor monitoring
• Bearing vibration analysis
• Rotating equipment protection

Pump and Motor Condition Monitoring

The probe can be applied to industrial pumps and motors.

Common uses:

• Motor shaft monitoring
• Pump vibration analysis
• Equipment health assessment

Installation Guide

Mechanical Installation

Recommended installation steps:

1. Confirm the correct Bently Nevada probe model.
2. Inspect the probe tip and cable condition.
3. Install the probe into the designated mounting location.
4. Adjust the probe position according to equipment requirements.
5. Secure the probe properly.

Correct mechanical installation ensures accurate measurement performance.

Electrical Connection

Before operation, check:

• Probe cable connection
• Monitoring system compatibility
• Connector condition
• Signal wiring
• Grounding condition

Recommended practices:

• Avoid cable damage during installation.
• Keep signal cables away from strong electromagnetic interference.
• Ensure connectors are properly secured.

Commissioning Procedure

Typical commissioning steps:

1. Install the proximity probe.
2. Connect the sensor to the monitoring system.
3. Verify signal output.
4. Adjust probe gap position.
5. Check vibration and displacement readings.
6. Confirm alarm settings.

Proper commissioning improves measurement accuracy and system reliability.

Common Fault Symptoms and Troubleshooting

Maintenance Recommendations

To maintain reliable operation:

• Check probe installation regularly
• Inspect cable condition
• Monitor signal stability
• Keep connectors clean
• Verify system alarm settings
• Perform regular machinery inspections

Preventive maintenance helps reduce equipment downtime and improves operational safety.

Advantages of Bently Nevada 330703-000-040-10-02-05

• High-precision displacement measurement
• Non-contact sensing technology
• Reliable vibration monitoring
• Suitable for critical rotating machinery
• Compact industrial design
• Stable signal transmission
• Supports predictive maintenance
• Long-term operational reliability

Technical FAQs

What is Bently Nevada 330703-000-040-10-02-05?

The Bently Nevada 330703-000-040-10-02-05 is a 3300 XL 11 mm Proximity Probe designed for measuring shaft vibration and displacement in rotating machinery.

What does this proximity probe measure?

It measures the distance between the probe tip and rotating shaft surface to monitor vibration and shaft position.

Where is the 330703-000-040-10-02-05 used?

It is commonly used in turbines, compressors, generators, pumps, motors, and other critical rotating equipment.

Why are proximity probes important in industrial systems?

Proximity probes provide real-time machine condition data, helping prevent equipment failures and supporting predictive maintenance strategies.

Conclusion

The Bently Nevada 330703-000-040-10-02-05 3300 XL 11 mm Proximity Probe is a reliable industrial sensor designed for accurate shaft vibration and displacement monitoring.

With non-contact measurement technology, stable signal performance, compact design, and strong compatibility with industrial machinery protection systems, this proximity probe helps improve equipment reliability and operational efficiency.

For industries requiring continuous monitoring of critical rotating equipment, the Bently Nevada 330703-000-040-10-02-05 provides an effective solution for condition monitoring and predictive maintenance applications.
