- Bently Nevada
- 330180-X1-CN 143416-42

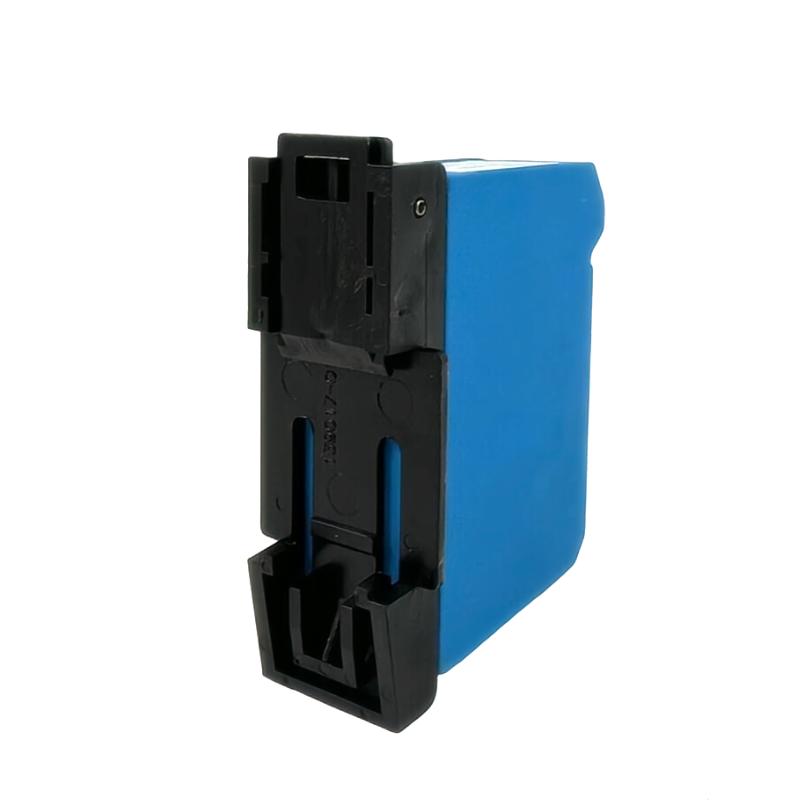

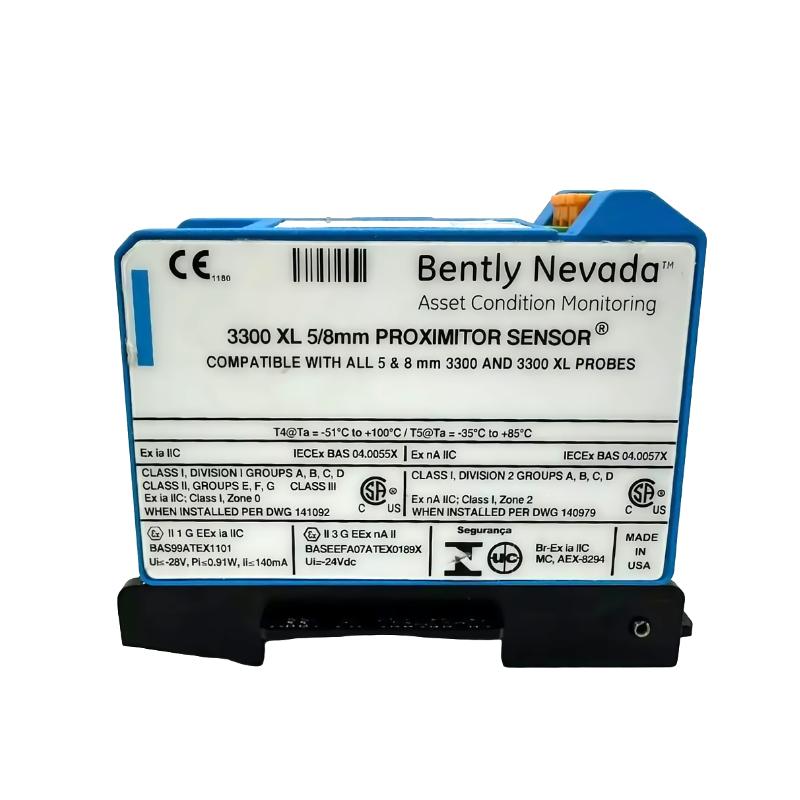

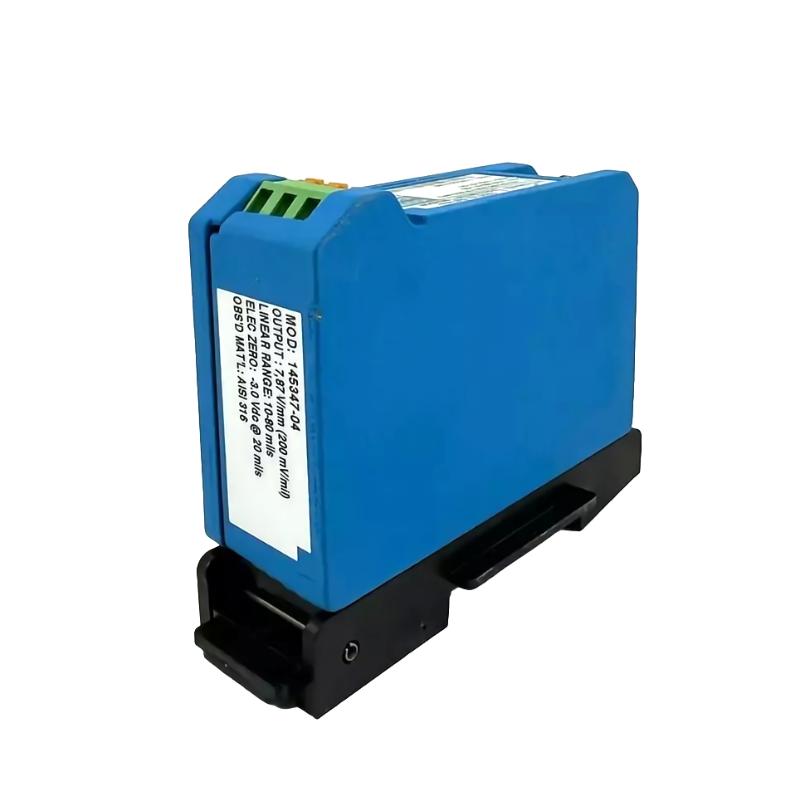

- 3300 XL Proximitor Sensor
- USA
- 82 × 62 × 64 mm
- 0.23kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 34
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Technical Product Report
Proximity Signal Conditioning Module – 330180-X1-CN + 143416-42
1. Brand and Series Information
| Item | Description |
|---|---|
| Brand | Industrial Machinery Monitoring and Protection Brand |
| Product Model | 330180-X1-CN + 143416-42 |
| Product Type | Proximitor Sensor Module |
| Product Family | 3300 XL Machinery Protection Platform |
| Product Series | 3300 XL Proximitor Sensor Series |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Primary Function | Shaft Vibration and Displacement Monitoring |
| Installation Type | Rack Mount / Panel Mount |
| Application Scope | Rotating Machinery Condition Monitoring |
| Operating Environment | Continuous Industrial Duty |
2. Product Introduction
The 330180-X1-CN + 143416-42 is a precision proximity signal conditioning module designed for industrial machinery protection and condition monitoring applications. It is part of the widely adopted 3300 XL Series, which is commonly used for monitoring rotating equipment in critical industrial systems.
This module works as a core component of an eddy-current proximity measurement system, which includes a probe, extension cable, and signal conditioning unit. It measures the gap between a conductive rotating shaft and the probe tip without physical contact, ensuring stable and accurate measurement over long operational periods.
The system converts raw probe signals into stable analog voltage outputs used by machinery protection systems, PLCs, DCS platforms, vibration monitoring systems, and predictive maintenance solutions.
Its rugged construction ensures reliable performance in harsh industrial environments such as vibration, humidity, oil contamination, temperature variation, and electromagnetic interference.
3. Product Features
High Precision Signal Processing
Converts eddy-current probe signals into accurate and stable linear output signals.
Non-Contact Measurement Technology
Ensures zero physical contact, reducing wear and increasing system life.
Industrial Reliability Design
Built for continuous operation in heavy industrial environments.
Stable Long-Term Output
Maintains consistent measurement performance over long service cycles.
Strong EMI/RFI Immunity
Reliable performance in electrically noisy environments.
Easy System Integration
Compatible with standard industrial monitoring and protection systems.
4. Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330180-X1-CN |
| Associated Configuration | 143416-42 |
| Product Series | 3300 XL |
| Product Category | Proximitor Sensor Module |
| Measurement Principle | Eddy Current Technology |
| Probe Compatibility | 8 mm Probe System |
| Measurement Method | Non-Contact |
| Target Material | Conductive Metallic Surfaces |
| Output Signal | Linear Analog Voltage |
| Measurement Range | 0 to 2.0 mm |
| Sensitivity | Approx. 7.87 V/mm |
| Frequency Response | 0 Hz to 10 kHz |
| Power Supply | 24 VDC Nominal |
| Resolution | Micron-Level Detection |
| Linearity | High Precision |
| Housing Material | Industrial Aluminum Alloy |
| EMC Protection | EMI/RFI Resistant |
| Mounting Method | Rack / Panel Mount |
| Operating Temperature | -52°C to +100°C |
| Storage Temperature | -55°C to +120°C |
| Humidity | Up to 95% Non-Condensing |
| Weight | Approximately 0.23 kg |
| Dimensions | Approximately 82 × 62 × 64 mm |
5. Product Applications
The 330180-X1-CN + 143416-42 is widely used in industries requiring continuous monitoring of rotating machinery.
Power Generation
- Steam turbines
- Gas turbines
- Generator rotor systems
- Hydroelectric turbines
Oil and Gas
- Compressor trains
- Pipeline pumping systems
- LNG facilities
- Offshore platforms
Petrochemical Industry
- Process compressors
- Refinery pumps
- Turbomachinery systems
- Reactor drives
Steel Industry
- Rolling mills
- Gearboxes
- Heavy-duty motors
- Production lines
Marine Industry
- Propulsion shafts
- Marine generators
- Auxiliary turbines
- Compressor systems
General Industrial Equipment
- Pumps
- Fans
- Blowers
- Compressors
- Motors
6. Product Advantages
High Measurement Accuracy
Ensures precise vibration and displacement monitoring for critical machinery protection.
Non-Contact Operation
Reduces mechanical wear and improves long-term reliability.
Continuous Industrial Stability
Suitable for 24/7 operation in harsh environments.
Stable Signal Output
Maintains reliable performance under electromagnetic interference.
Reduced Maintenance Requirement
Long service life reduces maintenance cycles.
Strong Environmental Resistance
Performs reliably under vibration, heat, and humidity conditions.
System Compatibility
Integrates easily with industrial monitoring systems.
7. Recommended Models from the Same Series
| Model | Description | Probe Size | Frequency Response | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| 330180-X1-05 | High sensitivity module | 8 mm | 10 kHz | 0.23 | 82 × 62 × 64 |
| 330180-X1-00 | Standard configuration module | 8 mm | 10 kHz | 0.20 | 80 × 61 × 63 |
| 330180-X0-05 | Basic industrial version | 8 mm | 10 kHz | 0.21 | 80 × 60 × 62 |
| 330180-50-05 | Extended configuration version | 8 mm | 10 kHz | 1.80 | 82 × 62 × 64 |
| 330180-51-05 | EMI enhanced protection version | 8 mm | 10 kHz | 0.24 | 83 × 63 × 65 |
8. Recommended Related Models
| Model | Type | Function | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|
| 330130-040-00-00 | Proximity Probe | Vibration monitoring | 0.14 | 75 × 12 × 12 |
| 330130-045-00-00 | Proximity Probe | Position monitoring | 0.15 | 76 × 12 × 12 |
| 330730-040-00-00 | Extension Cable | Signal transmission | 0.25 | 4000 × 5 × 5 |
| 330730-080-00-00 | Extension Cable | Long-distance transmission | 0.40 | 8000 × 5 × 5 |
| 330780-90-00 | Proximitor assembly | Integrated monitoring system | 0.35 | 95 × 70 × 65 |
9. Popular Models from the Same Brand
| Model | Category | Application | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|
| 3500/42M | Vibration monitor module | Shaft vibration monitoring | 1.10 | 241 × 24 × 242 |
| 3500/40M | Position monitor module | Shaft displacement monitoring | 1.00 | 241 × 24 × 242 |
| 3500/25 | Keyphasor module | Speed measurement | 0.95 | 241 × 24 × 242 |
| 3500/22M | Communication module | System integration | 0.85 | 241 × 24 × 242 |
| 3500/15 | Power supply module | Rack power support | 1.30 | 241 × 51 × 242 |
10. Typical Monitoring Functions
- Radial vibration monitoring
- Axial displacement measurement
- Rotor dynamic analysis
- Shaft eccentricity detection
- Bearing condition monitoring
- Misalignment detection
- Mechanical looseness detection
- Rotor imbalance detection
- Thermal expansion tracking
- Alarm and shutdown protection
- Predictive maintenance diagnostics
11. Conclusion
The 330180-X1-CN + 143416-42 is a robust proximity signal conditioning module within the 3300 XL Series, engineered for accurate and stable monitoring of rotating machinery in industrial environments.
Its eddy-current non-contact sensing technology, strong signal stability, EMI resistance, and durable design make it widely applicable in power generation, oil and gas, petrochemical, steel, marine, and general industrial sectors.
It provides reliable vibration and displacement data that enhances equipment reliability, supports predictive maintenance strategies, reduces downtime risks, and improves overall operational safety.
