- Bently Nevada
- 330180-X1-00 149032-08

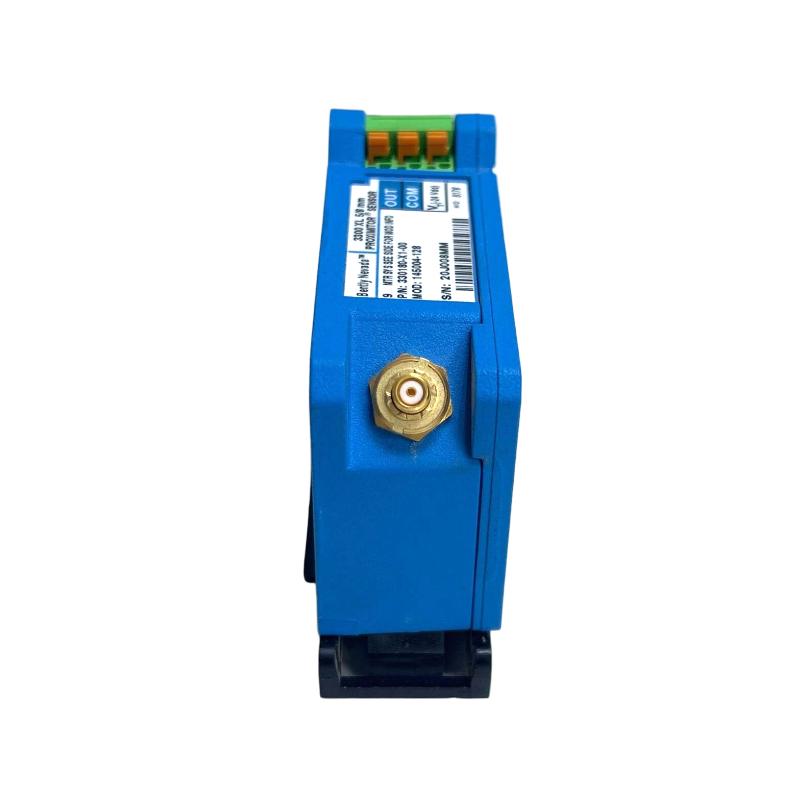

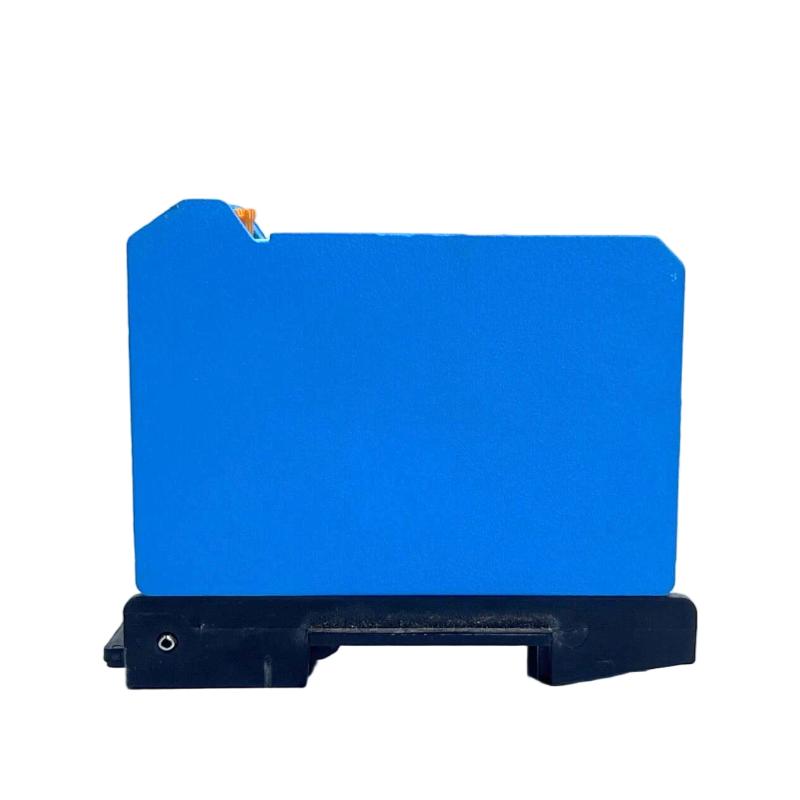

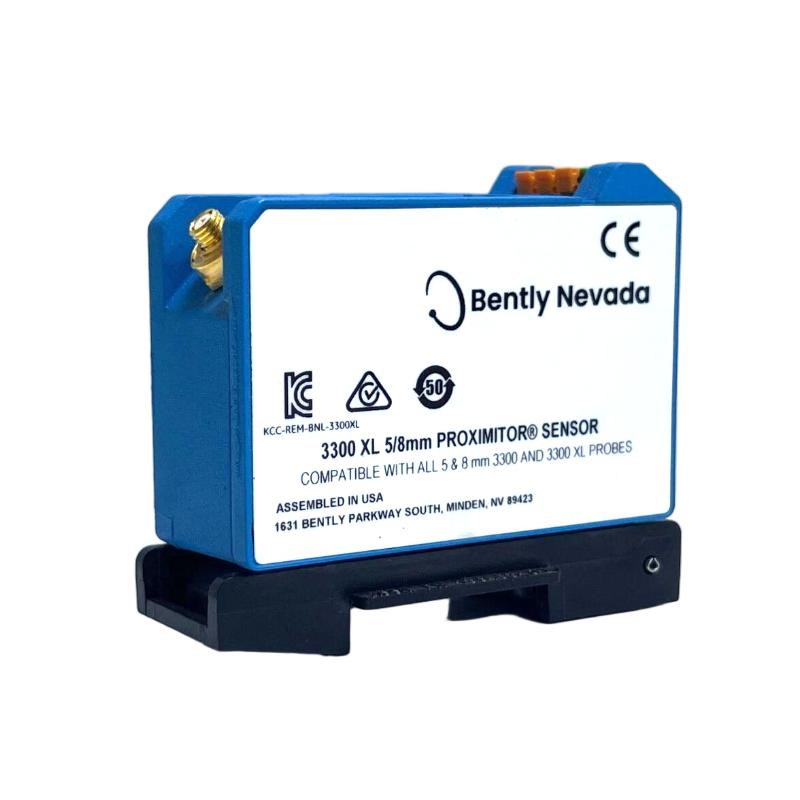

- 3300 XL Proximitor Sensor
- USA
- 100 mm × 160 mm × 25 mm
- 1.2kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 15
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Technical Product Report
Model: 330180-X1-00 / 149032-08 Proximity Probe Assembly
1. Product Introduction
The 330180-X1-00 / 149032-08 is an 8mm eddy current proximity probe system designed for high-precision measurement of shaft vibration, axial displacement, and rotor position in rotating machinery.
It is widely applied in industrial condition monitoring systems where continuous, non-contact measurement is required to ensure equipment stability and prevent unexpected failures.
The probe operates using electromagnetic eddy current principles. When positioned near a conductive target surface, it generates a proportional voltage signal corresponding to the distance between the probe tip and the target. This enables accurate monitoring of dynamic shaft movement in real time.
The system is typically used as part of a three-component measurement chain: probe, extension cable, and signal conditioning module.
2. Brand & Manufacturing Background
This product belongs to a globally recognized industrial monitoring technology line specializing in:
- Machinery protection systems
- Vibration and displacement monitoring
- Predictive maintenance instrumentation
- High-speed rotating equipment diagnostics
The product line is widely used in heavy industry sectors including power generation, petrochemical processing, marine propulsion, and large-scale mechanical drive systems.
3. Product Series
- Series Type: 3300 XL Proximity Transducer System
- Technology: Eddy current non-contact displacement measurement
- System Structure: Probe + Extension Cable + Signal Conditioner
- Measurement Target: Shaft vibration and position monitoring
This series is known for its stability, modular structure, and high resistance to industrial environmental interference.
4. Core Technical Parameters
| Parameter | Specification |
|---|---|
| Model | 330180-X1-00 / 149032-08 |
| Measurement Principle | Eddy current induction |
| Probe Type | 8 mm standard proximity probe |
| Measurement Range | Approx. 2.0 mm linear displacement |
| Output Signal | Analog voltage proportional output |
| Supply Voltage | ±18V to ±24V DC system supply |
| Frequency Response | Up to ~10 kHz (system dependent) |
| Sensitivity | High-resolution micron-level detection |
| Linearity Error | ≤ ±1% full scale |
| Operating Temperature | -40°C to +100°C |
| Storage Temperature | -55°C to +120°C |
| Electrical Protection | Shielded anti-interference design |
| Mounting Type | Threaded probe installation |
| Connection Type | Coaxial industrial connector system |
| Housing Material | Stainless steel / industrial alloy |
| Signal Type | Non-contact analog displacement signal |
5. Mechanical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Probe Length | Approx. 80–100 mm |
| Thread Size | Standard industrial mounting thread |
| Cable Length | Application dependent (up to several meters) |
| Sensor Weight | 0.18 – 0.25 kg |
| Full Assembly Weight | 0.20 – 0.30 kg |
| Packaging Weight | 0.5 – 1.2 kg (depending on configuration) |
6. Product Features
6.1 Non-Contact Measurement Design
The probe does not physically touch the rotating shaft, reducing wear and ensuring long operational life.
6.2 High Signal Stability
Advanced shielding technology minimizes electromagnetic interference in industrial environments.
6.3 High Resolution Output
Capable of detecting extremely small shaft displacement variations at micron level.
6.4 Strong Environmental Adaptability
Stable operation under high temperature, vibration, oil mist, and humidity conditions.
6.5 Modular System Compatibility
Can be integrated into standardized monitoring racks and protection systems.
7. Industrial Applications
This probe system is commonly deployed in the following equipment:
- Steam turbines
- Gas turbines
- Hydro turbines
- Centrifugal compressors
- Axial compressors
- High-speed electric motors
- Industrial gearboxes
- Marine propulsion shafts
- Refinery rotating machinery
- Large pump systems
It is primarily used for continuous condition monitoring and early fault detection.
8. Product Advantages
8.1 High Precision Detection
Accurate detection of rotor movement and vibration ensures early identification of mechanical imbalance.
8.2 Long Service Life
No physical contact with rotating parts significantly reduces mechanical wear.
8.3 Industrial Grade Reliability
Designed for continuous operation in harsh environments without signal degradation.
8.4 Fast Dynamic Response
Capable of tracking rapid shaft movement in high-speed rotating systems.
8.5 Easy System Integration
Compatible with standardized monitoring architectures used in industrial protection systems.
9. Recommended Models (Same Series / Related Types)
Table 1 – Related Probe System Models
| Model | Key Characteristics | Measurement Range | Temperature Range | Weight (kg) | Application Area |
|---|---|---|---|---|---|
| 330180-X1-00 | Standard 8mm proximity probe | ~2.0 mm | -40°C to +100°C | 0.20 | General turbine monitoring |
| 330180-X1-10 | Enhanced stability version | ~2.0 mm | -40°C to +110°C | 0.22 | High temperature machinery |
| 330130-040-00 | High sensitivity probe | ~2.0 mm | -40°C to +105°C | 0.21 | Precision rotor systems |
| 330101-XX-00 | Compact probe design | ~2.0 mm | -40°C to +100°C | 0.18 | Compressor applications |
| 330171-08-XX | Extended cable compatibility type | ~2.0 mm | -40°C to +120°C | 0.23 | Heavy industrial systems |
10. Recommended Models (Same Manufacturer Popular Line)
Table 2 – Widely Used Monitoring Modules
| Model | Function Type | Signal Type | Operating Range | Weight (kg) | Typical Use |
|---|---|---|---|---|---|
| 3500/42M | Vibration monitoring module | Analog/Digital | System dependent | 0.30 | Machinery protection |
| 3500/15 | Power supply module | DC regulated | Industrial standard | 0.45 | Rack power systems |
| 3500/32 | Relay protection module | Control signal output | – | 0.25 | Alarm and shutdown systems |
| 3500/22M | Data communication module | Digital network | Industrial protocol | 0.50 | System integration |
| 3500/92 | Communication gateway | Ethernet interface | Industrial networking | 0.60 | Control system connectivity |
11. Summary
The 330180-X1-00 / 149032-08 proximity probe system is a high-precision industrial sensing device designed for continuous monitoring of rotating machinery. It provides stable, non-contact measurement of shaft vibration and displacement, making it essential for predictive maintenance strategies.
Its advantages include high measurement accuracy, strong environmental resistance, long service life, and compatibility with standardized industrial monitoring systems.
The product is part of the 3300 XL-type probe system family, widely used in critical rotating equipment across heavy industry sectors.
