Product Overview

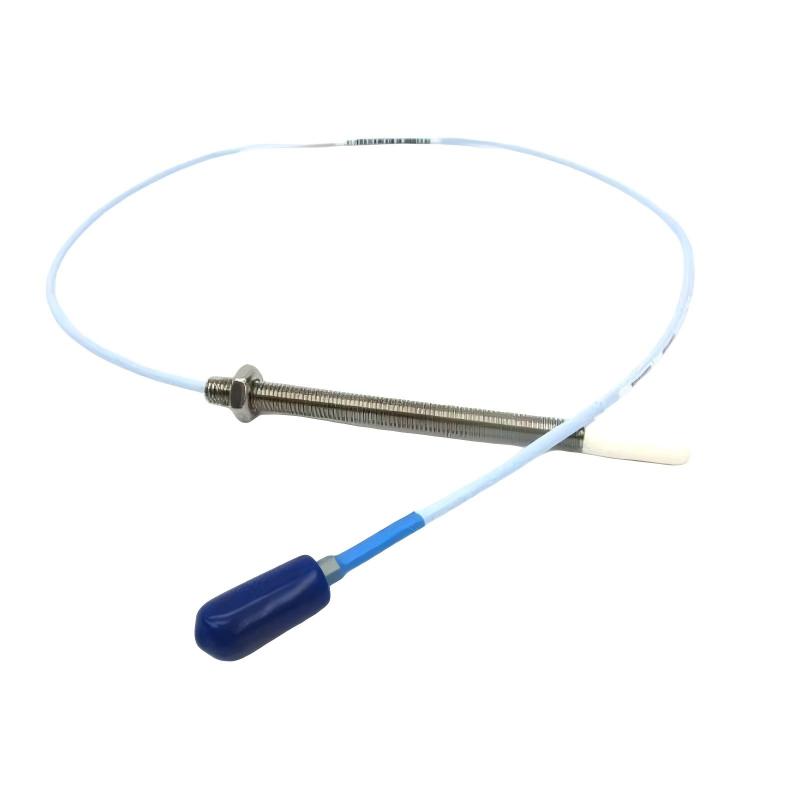

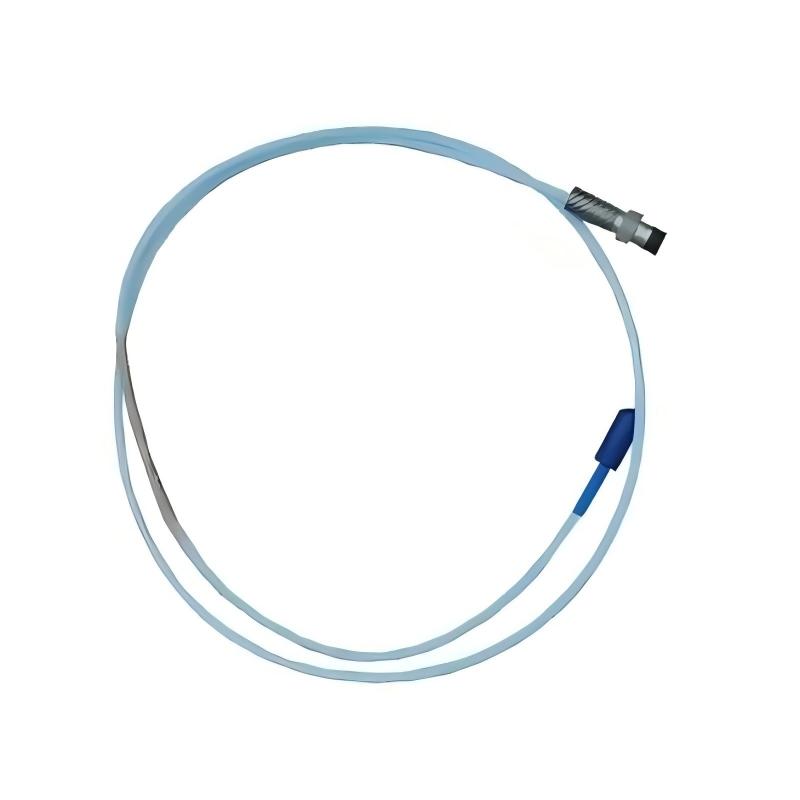

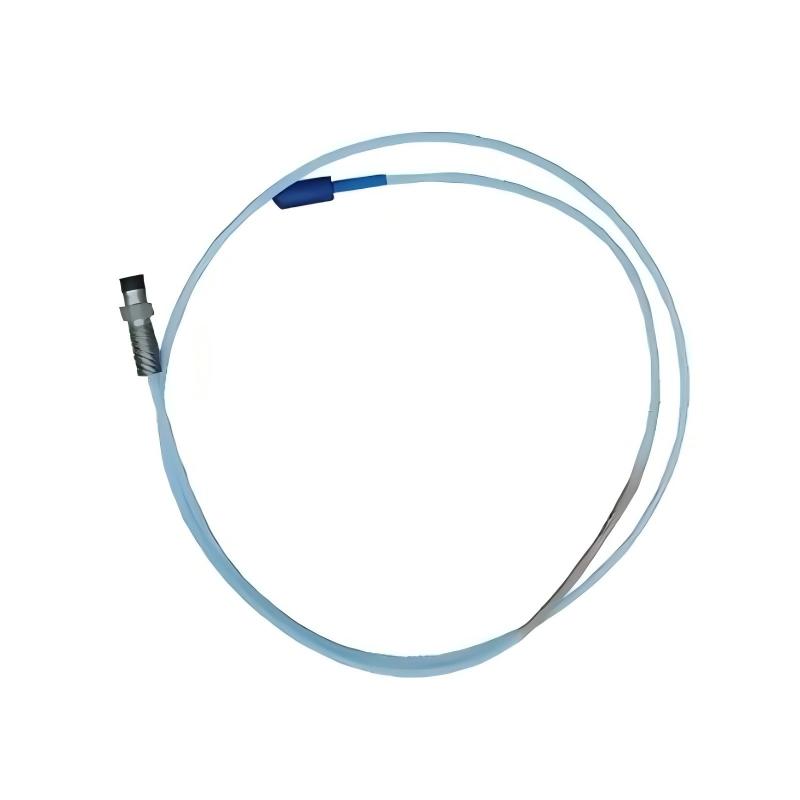

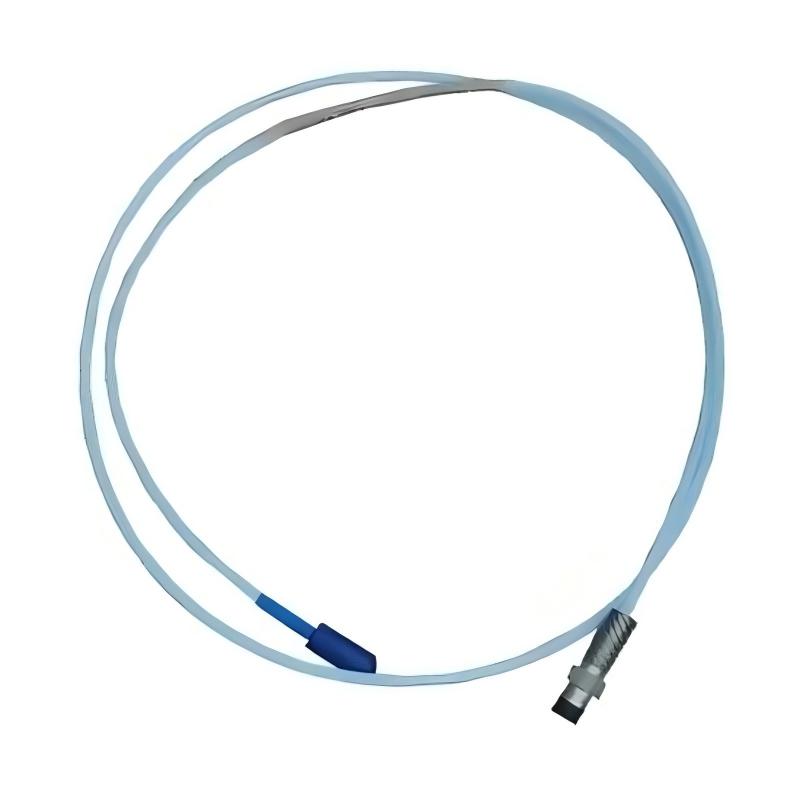

The Bently Nevada 330171-20-55-05-02-CN 3300 5 mm Proximity Probe is a precision non-contact displacement sensor designed for monitoring shaft vibration, rotor movement, and mechanical position changes in critical rotating equipment.
This proximity probe is an important component used in industrial machinery protection and condition monitoring systems. It uses eddy current sensing technology to measure the distance between the probe tip and the rotating shaft surface, providing accurate vibration and displacement information without direct mechanical contact.
The 330171-20-55-05-02-CN model is designed with a compact 0.5-meter total length configuration and is suitable for installations where shorter cable distance and reliable vibration measurement are required.
By continuously monitoring shaft movement, this proximity probe helps engineers detect abnormal operating conditions, improve equipment reliability, and support predictive maintenance strategies.
It is commonly applied in steam turbines, gas turbines, compressors, pumps, generators, and other industrial rotating machinery requiring continuous condition monitoring.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330171-20-55-05-02-CN |
| Product Series | 3300 5 mm Proximity Probe |
| Product Type | Eddy Current Proximity Probe |
| Measurement Function | Shaft vibration and displacement monitoring |
| Probe Diameter | 5 mm |
| Total Length | 0.5 meters |
| Cable Length | 0.5 meters |
| Weight | 0.162 kg |
| Sensor Technology | Eddy current sensing |
| Measurement Method | Non-contact displacement measurement |
| Thread Type | 1/4-28 UNF |
| Connector Type | Miniature coaxial ClickLoc connector |
| Installation Type | Threaded mounting |
| Application | Rotating machinery condition monitoring |
| Operating Environment | Industrial machinery protection systems |
Function and Working Principle
The Bently Nevada 330171-20-55-05-02-CN proximity probe operates using eddy current sensing technology.
The probe generates an electromagnetic field through the sensing tip. When the rotating shaft changes position, the distance between the shaft surface and the probe tip changes, causing variations in the electromagnetic field.
These changes are converted into electrical signals that represent shaft displacement and vibration movement. The monitoring system processes these signals to evaluate machine operating conditions.
Non-Contact Measurement Technology
The probe measures shaft movement without physical contact with rotating components.
Main advantages include:
- Eliminates mechanical wear
- Provides stable measurement accuracy
- Supports high-speed rotating equipment
- Reduces maintenance requirements
- Improves long-term monitoring reliability
Shaft Vibration Monitoring
The proximity probe continuously monitors shaft movement and helps identify abnormal mechanical conditions.
Typical monitoring functions include:
- Rotor vibration measurement
- Shaft displacement monitoring
- Mechanical imbalance detection
- Misalignment identification
- Machine condition evaluation
Position Measurement Capability
Besides vibration monitoring, the probe can also detect shaft position changes, making it suitable for machinery protection and operational analysis.
Role in Industrial Machinery Monitoring Systems
The Bently Nevada 330171-20-55-05-02-CN plays a key role in industrial rotating equipment monitoring systems.
It provides accurate shaft movement data that allows monitoring systems to evaluate machine performance and identify potential mechanical problems.
The probe is commonly integrated with:
- Proximity signal processing modules
- Vibration monitoring systems
- Machinery protection systems
- PLC control systems
- DCS automation platforms
- Industrial monitoring networks
Its main functions include:
- Real-time vibration measurement
- Early fault detection
- Equipment protection
- Predictive maintenance support
- Improved operational safety
Industrial Applications
Steam Turbine Monitoring
Steam turbines require accurate shaft vibration monitoring to maintain stable and safe operation.
The proximity probe helps monitor:
- Rotor vibration changes
- Shaft displacement
- Mechanical stability
- Abnormal operating conditions
Gas Turbine Systems
Gas turbines operate at high speed and require reliable vibration monitoring solutions.
The probe provides important shaft movement information for equipment protection and maintenance analysis.
Compressor Condition Monitoring
Industrial compressors rely on accurate shaft monitoring to detect mechanical issues.
Common applications include:
- Centrifugal compressors
- Process compressors
- High-speed rotating equipment
Pump Monitoring Systems
Industrial pumps use proximity probes to monitor shaft vibration and improve maintenance efficiency.
The sensor helps identify:
- Shaft movement changes
- Bearing-related problems
- Abnormal vibration conditions
Generator Monitoring
Generators use shaft displacement monitoring to maintain reliable operation and prevent unexpected failures.
Industrial Rotating Equipment
The probe is suitable for:
- Motors
- Turbines
- Compressors
- Pumps
- Generators
- Other critical rotating machinery
Installation and System Integration
Proper installation is essential to ensure accurate measurement performance.
Recommended installation procedures include:
- Install the probe at the correct monitoring location
- Ensure proper threaded mounting
- Adjust the probe position accurately
- Connect with compatible monitoring electronics
- Protect the cable from mechanical damage
- Verify signal stability during commissioning
During installation, engineers normally check:
| Configuration Item | Purpose |
|---|---|
| Probe Installation Position | Ensures correct shaft measurement |
| Probe Gap Adjustment | Provides accurate sensing distance |
| Cable Connection | Maintains stable signal transmission |
| Monitoring Channel Configuration | Defines alarm and protection settings |
| System Testing | Confirms proper operation |
Compatible System Components
The Bently Nevada 330171-20-55-05-02-CN proximity probe is commonly used with the following industrial components:
| Component | Function |
|---|---|
| Proximitor Sensor | Processes proximity probe signals |
| Extension Cable | Provides installation flexibility |
| Vibration Monitoring Module | Analyzes vibration data |
| Machinery Protection System | Provides equipment protection |
| PLC Controller | Integrates monitoring information |
| DCS System | Supports centralized monitoring |
Related Bently Nevada Accessories and Modules
| Model / Component | Type | Function |
|---|---|---|
| 3300 Proximitor Sensor | Signal Processing Module | Converts probe signals |
| 3300 Extension Cable | Signal Cable | Extends sensor connection distance |
| 3300 Monitoring Module | Protection Module | Provides machinery monitoring |
| 3300 System Components | Monitoring Platform | Complete condition monitoring solution |
| Probe Mounting Accessories | Installation Components | Supports sensor installation |
Recommended Alternative Bently Nevada Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 330171-20-55-05-02-CN | 3300 5 mm Proximity Probe | Compact 0.5-meter configuration | General rotating machinery monitoring |
| 330171-20-40-05-02-05 | 3300 5 mm Proximity Probe | Short cable design | Industrial vibration monitoring |
| 330171-15-45-05-11-RU | 3300 5 mm Proximity Probe | Compact installation option | Space-limited applications |
| 330171-13-40-05-01-RU | 3300 5 mm Proximity Probe | Lightweight configuration | Machinery condition monitoring |
| 3300 XL 8 mm Proximity Probe | Proximity Sensor | Larger measurement range | Large rotating equipment |
Key Advantages
High Precision Measurement
The Bently Nevada 330171-20-55-05-02-CN provides accurate shaft vibration and displacement measurement for critical industrial machinery.
Reliable Non-Contact Operation
The eddy current sensing principle ensures stable operation without physical contact with rotating parts.
Compact Installation Design
The 0.5-meter total length makes it suitable for installations requiring shorter sensor connection distances.
Strong Industrial Reliability
Designed for continuous operation in demanding industrial environments.
Supports Predictive Maintenance
Provides valuable machine condition information to help identify potential problems before equipment failure occurs.
Wide Application Compatibility
Suitable for turbines, compressors, pumps, generators, and other rotating equipment.
Technical FAQs
What is the Bently Nevada 330171-20-55-05-02-CN used for?
The Bently Nevada 330171-20-55-05-02-CN is a 3300 5 mm proximity probe used for shaft vibration and displacement monitoring.
How does this proximity probe work?
It uses eddy current sensing technology to measure the distance between the probe tip and rotating shaft without physical contact.
What is the total length of this model?
The total length of this proximity probe is 0.5 meters.
Where is this proximity probe commonly installed?
It is commonly installed on turbines, compressors, pumps, generators, and other industrial rotating equipment.
Why are proximity probes important?
They provide continuous machine condition information, helping improve reliability, reduce downtime, and support predictive maintenance programs.
Conclusion
The Bently Nevada 330171-20-55-05-02-CN 3300 5 mm Proximity Probe is a reliable industrial sensor designed for accurate shaft vibration and displacement monitoring.
With its eddy current sensing technology, compact 0.5-meter configuration, and stable measurement performance, it provides essential condition monitoring information for machinery protection systems.
Used in turbines, compressors, pumps, generators, and industrial automation environments, this proximity probe helps improve equipment reliability, optimize maintenance strategies, and enhance operational safety.
For automation engineers, maintenance professionals, and industrial system integrators, the Bently Nevada 330171-20-55-05-02-CN provides a dependable solution for advanced rotating machinery condition monitoring applications.
