Product Overview

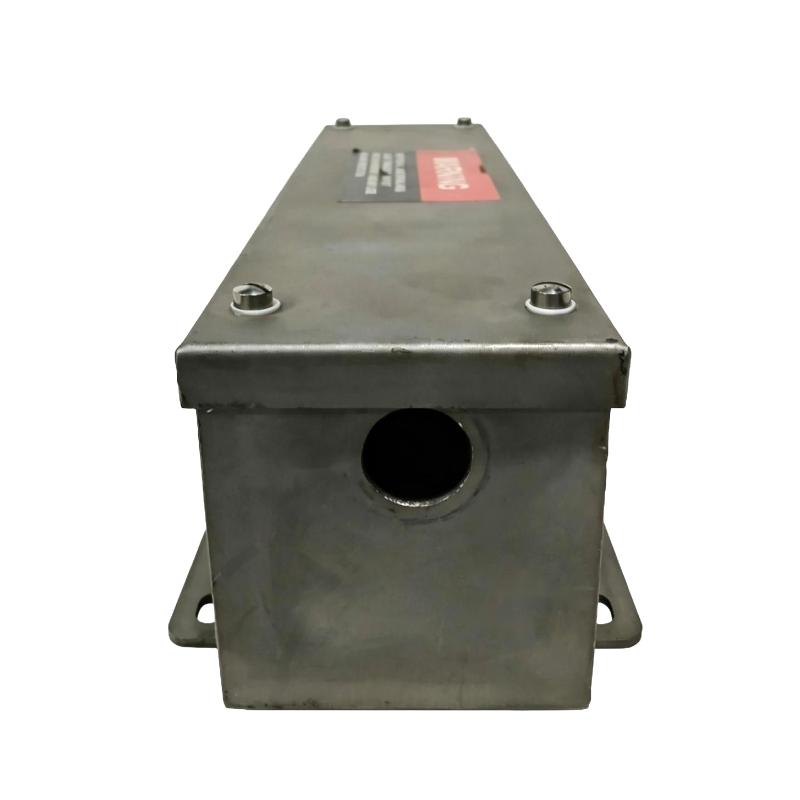

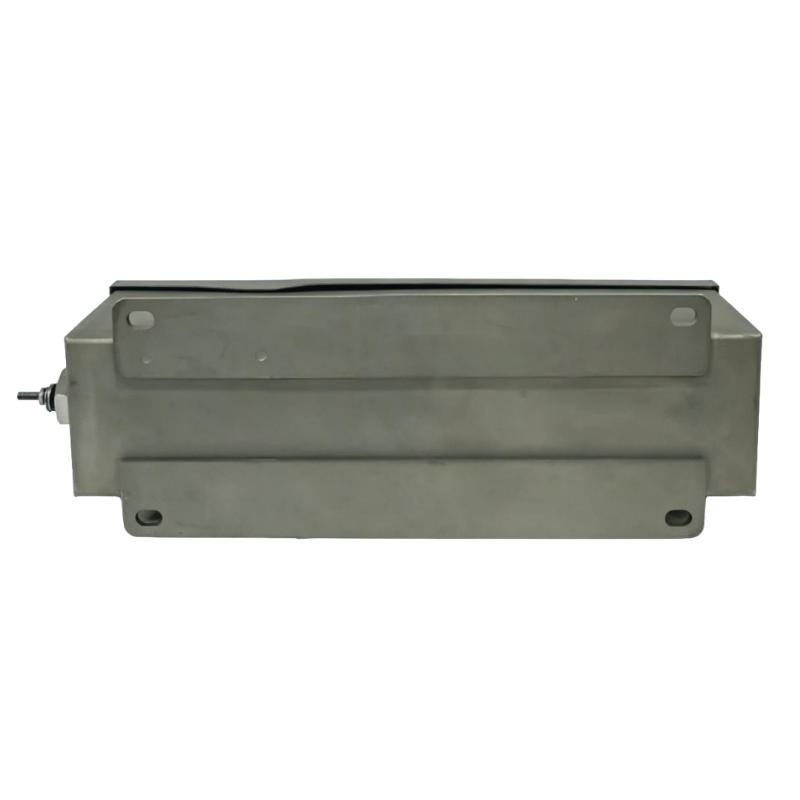

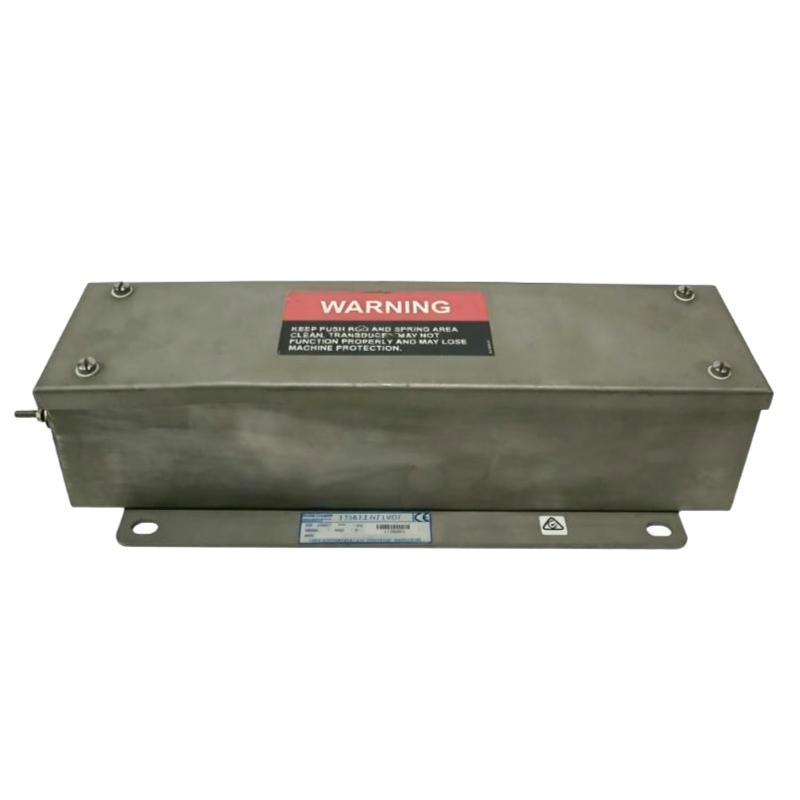

The Bently Nevada 135613-02-00 High Temperature Case Expansion Transducer Assembly is used in machinery monitoring applications to measure thermal expansion of a machine casing. In large rotating equipment, the casing and internal components expand as operating temperatures rise. Monitoring this movement helps engineers evaluate thermal behavior, assess clearances, and identify conditions that may affect machine operation.

Case expansion measurement is particularly relevant to steam turbines and other high-temperature machinery, where uneven heating or restricted thermal movement can place stress on structural components. A dedicated transducer assembly provides measurement information that can be incorporated into a compatible monitoring system for operating assessment and maintenance planning.

The assembly is intended for applications where case movement must be monitored under elevated-temperature conditions. Its suitability for a specific installation depends on the machine’s mounting arrangement, required measurement range, transducer characteristics, and compatibility with the associated monitoring electronics.

Technical Specifications

Product Features

• Case expansion monitoring: Measures machine casing movement associated with thermal expansion during operation.
• High-temperature application: Intended for installations where elevated machine temperatures are an important measurement consideration.
• Transducer assembly format: Provides a measurement component for integration into an appropriate machinery monitoring arrangement.
• Thermal movement assessment: Helps engineers observe casing displacement as operating conditions change.
• Condition monitoring support: Supplies measurement information that can be evaluated alongside other machinery operating parameters.
• Industrial machinery application: Suitable for consideration in monitoring systems used with large rotating equipment, subject to configuration verification.

Working Principle

As a machine warms up, thermal energy causes its casing and supporting structures to expand. The amount and direction of movement depend on the machine design, temperature distribution, mounting arrangement, and the location of fixed and sliding supports.

The case expansion transducer assembly detects movement at its designated measurement point. As the casing moves relative to the installed reference, the transducer responds to the change in position and produces a measurement signal for the compatible monitoring system. The monitoring electronics interpret this signal to indicate the extent of casing movement.

During startup, load changes, and shutdown, engineers can compare the measured movement with expected thermal behavior. Deviations may indicate uneven heating, mechanical restriction, mounting issues, or other changes that require further investigation. The measurement should be interpreted in conjunction with operating conditions and the machine manufacturer’s specified limits.

Role in a Machinery Thermal Monitoring Control Architecture

Industrial Applications

• Steam turbines: Monitoring casing expansion during startup, load changes, and shutdown.
• Power generation equipment: Assessing thermal movement in machinery operating through repeated temperature cycles.
• Large rotating machinery: Tracking structural displacement where thermal growth affects machine alignment or clearances.
• Industrial turbine installations: Supporting evaluation of casing movement under changing operating loads.
• Process plants: Monitoring thermal expansion in critical equipment where casing movement is part of the machinery condition assessment.
• High-temperature industrial systems: Providing measurement data for applications where thermal movement must be compared with established operating limits.
• Predictive maintenance programs: Supporting trend analysis of case expansion measurements to identify changes in normal thermal behavior.

Installation and Maintenance

1. Verify the model identification: Confirm that the transducer assembly matches the equipment documentation and the intended measurement channel.
2. Review the measurement requirements: Check the required measurement range, operating temperature conditions, and monitoring system specifications.
3. Inspect the assembly: Examine accessible components for shipping damage, corrosion, or other visible defects before installation.
4. Prepare the mounting point: Ensure the designated mounting surface is suitable and consistent with the machine’s installation requirements.
5. Confirm measurement alignment: Position the assembly according to the specified measurement direction and reference geometry.
6. Secure the mounting hardware: Ensure the assembly is firmly mounted without introducing unwanted mechanical stress or restricting the intended movement.
7. Check environmental suitability: Verify that the installation location and associated wiring are suitable for the expected temperature and operating conditions.
8. Inspect electrical connections: Confirm that wiring, connectors, and signal interfaces match the applicable installation documentation.
9. Verify the measurement chain: Check the transducer, associated signal conditioning, and monitoring channel together before commissioning.
10. Establish a baseline: Record initial readings and compare them with expected casing movement during the machine’s normal thermal cycle.
11. Review abnormal readings: Investigate unexpected changes, inconsistent movement, or deviations from the established thermal expansion trend.
12. Document maintenance activities: Record inspection results, mounting adjustments, signal checks, and replacement work for future reference.

Related Components

Recommended Related Models

Key Advantages

• Supports measurement of thermal casing movement.
• Helps engineers assess machine behavior during temperature changes.
• Provides data for thermal expansion trend analysis.
• Supports machinery monitoring and maintenance planning.
• Can be integrated into a compatible measurement system when installation requirements are met.

Technical FAQs

1. What does the Bently Nevada 135613-02-00 measure?

It is a high-temperature case expansion transducer assembly used to monitor movement of a machine casing. The resulting measurement helps engineers assess thermal expansion during changes in operating temperature and load.

2. Why is case expansion monitoring important for steam turbines?

Steam turbine casings expand as the machine heats up and contract during cooling. Monitoring this movement helps engineers evaluate whether thermal growth follows the expected pattern and identify possible restrictions or abnormal movement that could affect machine operation.

3. Can this assembly be replaced with a standard proximity probe?

It should not be treated as a direct replacement for a standard proximity probe. Case expansion and shaft displacement are different measurement applications, and their mounting arrangements, measurement ranges, and signal requirements may differ.

4. What should be checked if case expansion readings are abnormal?

Review the machine’s operating temperature and load, inspect the transducer mounting and measurement alignment, and check the signal connections and monitoring channel. Compare the readings with historical trends and the machine’s specified limits before determining whether further inspection is necessary.
