Product Overview

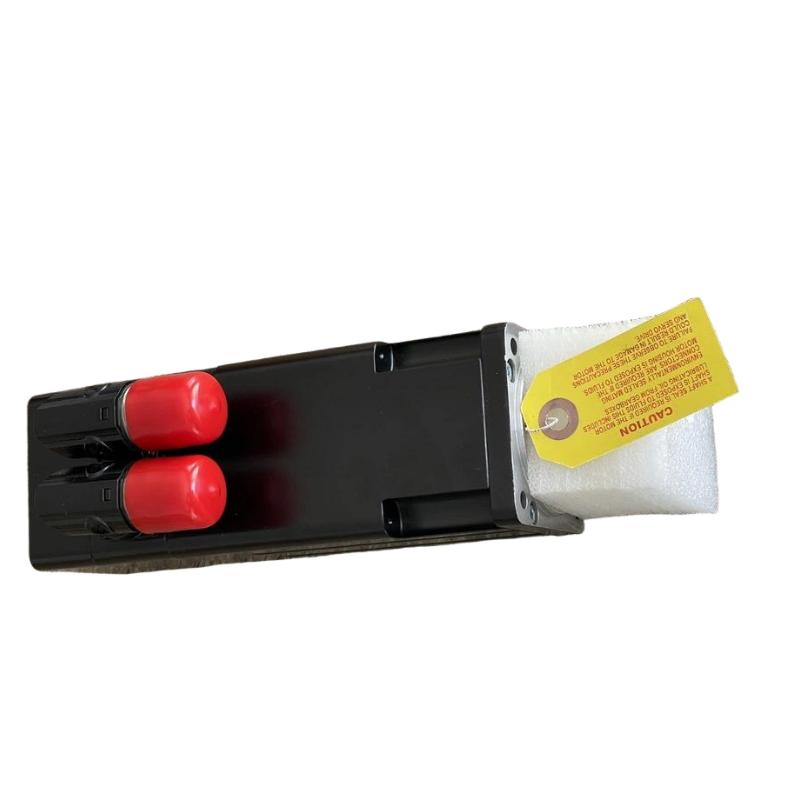

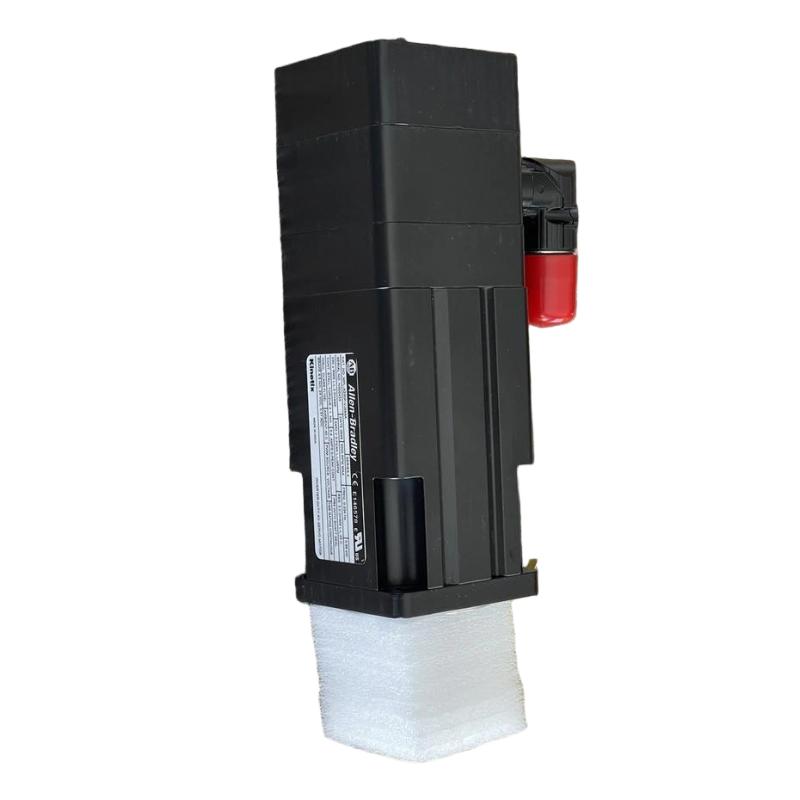

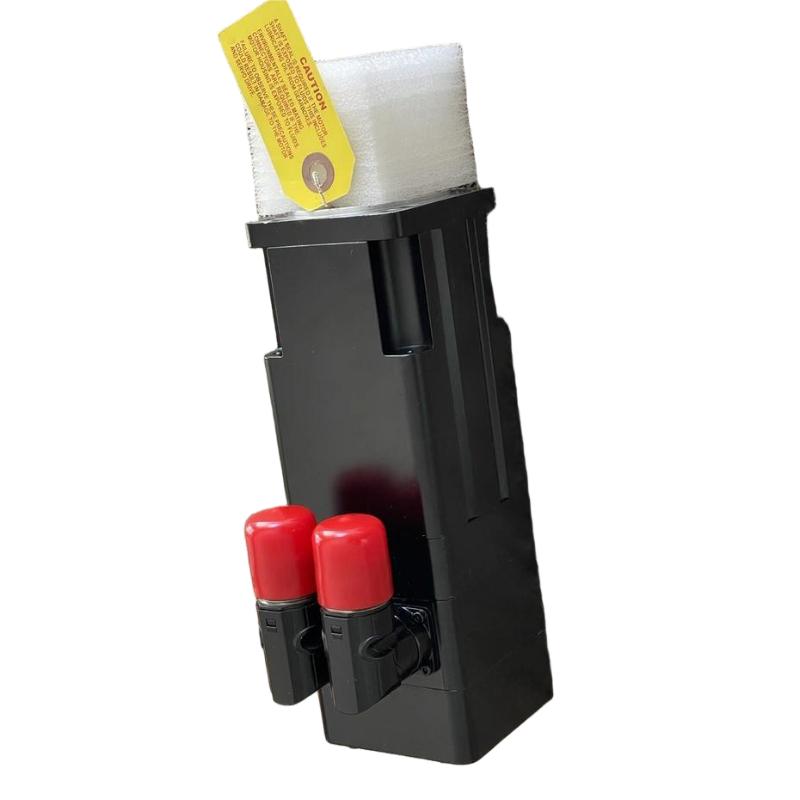

The Allen-Bradley MPL-A230P-VJ44AA Servo Motor is a premium MP-Series Low-Inertia Brushless AC Rotary Servo Motor designed for high-precision industrial motion control systems. As part of the Rockwell Automation MP-Series servo motor family, this motor combines high torque density, fast dynamic response, and exceptional positioning accuracy to meet the requirements of advanced automation equipment.

The MPL-A230P-VJ44AA features a 230 V AC voltage class, a 75 mm IEC metric frame size, a 76.2 mm magnet stack length, a 5000 RPM rated speed, a multi-turn absolute encoder, a keyed output shaft, a SpeedTEC right-angle rotatable DIN connector, and an integrated 24 V DC holding brake. The multi-turn absolute feedback system allows the controller to retain shaft position after power loss, eliminating the need for homing during machine startup and significantly reducing commissioning time.

Designed for seamless integration with Allen-Bradley Kinetix servo drive systems, the motor delivers accurate position, speed, and torque control while maintaining smooth motion and outstanding repeatability. Its compact construction allows machine builders to maximize performance while minimizing installation space.

With a 75 mm frame size and an approximate weight of 3.18 kg, the MPL-A230P-VJ44AA is widely used in robotics, packaging machinery, CNC equipment, semiconductor manufacturing, material handling systems, printing machinery, pharmaceutical production, and high-speed automated assembly lines.

Technical Specifications

Function and Working Principle

The Allen-Bradley MPL-A230P-VJ44AA converts electrical power supplied by a compatible servo drive into accurate rotary motion while continuously transmitting multi-turn absolute position feedback to the controller.

Typical Motion Control Architecture

Motion Controller

↓

Allen-Bradley Kinetix Servo Drive

↓

MPL-A230P-VJ44AA Servo Motor

↓

Mechanical Transmission

↓

Industrial Equipment

During operation, the servo motor performs several essential functions:

• Executes high-precision positioning
• Maintains stable speed regulation
• Delivers continuous torque output
• Provides multi-turn absolute position feedback
• Eliminates homing after power restoration
• Supports rapid acceleration and deceleration
• Holds vertical loads through the integrated brake
• Improves machine productivity and positioning repeatability

The low-inertia rotor enables rapid dynamic response while the absolute encoder continuously records shaft position, even after power interruptions, reducing machine downtime and improving production efficiency.

Role in Industrial Motion Control Systems

Within industrial automation systems, the MPL-A230P-VJ44AA serves as a precision motion actuator responsible for executing high-speed positioning commands while providing reliable absolute feedback.

Its primary functions include:

• Precision position control
• Closed-loop speed regulation
• Continuous torque production
• Multi-turn absolute feedback
• Vertical load holding
• Multi-axis synchronization
• Improved machine accuracy
• Increased production efficiency

The combination of absolute encoder technology and an integrated holding brake makes the motor particularly suitable for applications requiring high reliability and minimal startup time.

Industrial Applications

Packaging Machinery

Common applications include:

• Cartoning machines
• Filling systems
• Labeling equipment
• Wrapping machines
• Conveyor automation

Robotics

Widely used in:

• Pick-and-place robots
• Six-axis robotic systems
• Assembly robots
• Material handling robots
• Collaborative robots

CNC Manufacturing

Suitable for:

• CNC machining centers
• Precision milling machines
• Laser cutting equipment
• Multi-axis machine tools
• Automated machining cells

Semiconductor and Electronics Manufacturing

Applications include:

• PCB assembly
• Semiconductor production
• Precision positioning equipment
• Inspection systems
• Component placement machines

Printing and Converting

Ideal for:

• Digital printing presses
• Web handling systems
• Label converting
• Roll-to-roll machinery
• Paper processing equipment

Pharmaceutical and Food Processing

Typical installations include:

• Filling machinery
• Packaging systems
• Conveyor equipment
• Inspection machinery
• Automated production lines

Installation and System Integration

Before installation, engineers should verify:

• Kinetix servo drive compatibility
• Motor voltage requirements
• Brake wiring connections
• Encoder communication cable
• Motor power cable integrity
• Mechanical alignment
• Shaft coupling installation
• Proper grounding
• Cooling and ventilation

Recommended Installation Procedure

1. Disconnect system power.
2. Mount the servo motor securely.
3. Install the shaft coupling.
4. Connect the motor power cable.
5. Connect the encoder cable.
6. Connect the 24 V DC brake supply.
7. Configure the servo drive.
8. Perform motor identification.
9. Configure encoder parameters.
10. Verify brake operation.
11. Test motor movement.
12. Complete commissioning.

Compatible System Components

Recommended Alternative Models

Key Advantages

• MP-Series low-inertia brushless AC servo motor
• 230 V AC operation
• Multi-turn absolute encoder
• Integrated 24 V DC holding brake
• Compact 75 mm frame size
• High positioning accuracy
• Excellent dynamic response
• SpeedTEC quick-connect interface
• Keyed shaft configuration
• Reduced commissioning time through absolute feedback
• Compatible with Allen-Bradley Kinetix servo drives
• Approximate weight of 3.18 kg

Technical FAQs

What is the Allen-Bradley MPL-A230P-VJ44AA?

The MPL-A230P-VJ44AA is an MP-Series low-inertia brushless AC servo motor equipped with a multi-turn absolute encoder and an integrated 24 V DC holding brake.

What is the rated operating voltage?

The servo motor operates on 230 V AC, while the holding brake is powered by 24 V DC.

What is the rated speed?

The rated operating speed is 5000 RPM.

What type of encoder does the motor use?

The motor uses a multi-turn absolute encoder, allowing shaft position to be retained even after power loss.

Does the motor require homing after power restoration?

No. The multi-turn absolute encoder stores position information, eliminating the need for homing during startup.

Does this motor include a holding brake?

Yes. It includes an integrated 24 V DC electromagnetic holding brake for secure load holding during power-off conditions.

What is the frame size?

The motor features a 75 mm IEC metric frame size.

What is the approximate weight?

The motor weighs approximately 3.18 kg.

Which industries commonly use this servo motor?

It is widely used in robotics, CNC machining, packaging machinery, semiconductor manufacturing, printing equipment, pharmaceutical production, material handling systems, and automated assembly lines.

Which servo drives are compatible?

The MPL-A230P-VJ44AA is designed for integration with compatible Allen-Bradley Kinetix servo drive families for high-performance closed-loop motion control.

Conclusion

The Allen-Bradley MPL-A230P-VJ44AA Servo Motor provides an advanced motion control solution for demanding industrial automation systems. Combining a 230 V AC power rating, 75 mm frame size, 5000 RPM operating speed, multi-turn absolute encoder, and an integrated 24 V DC holding brake, it delivers exceptional positioning accuracy, fast response, and reliable long-term operation.

With an approximate weight of 3.18 kg, the MPL-A230P-VJ44AA is an ideal choice for machine builders and automation engineers seeking a compact, high-performance servo motor for robotics, CNC equipment, packaging machinery, semiconductor manufacturing, and other precision motion control applications.
