Product Overview

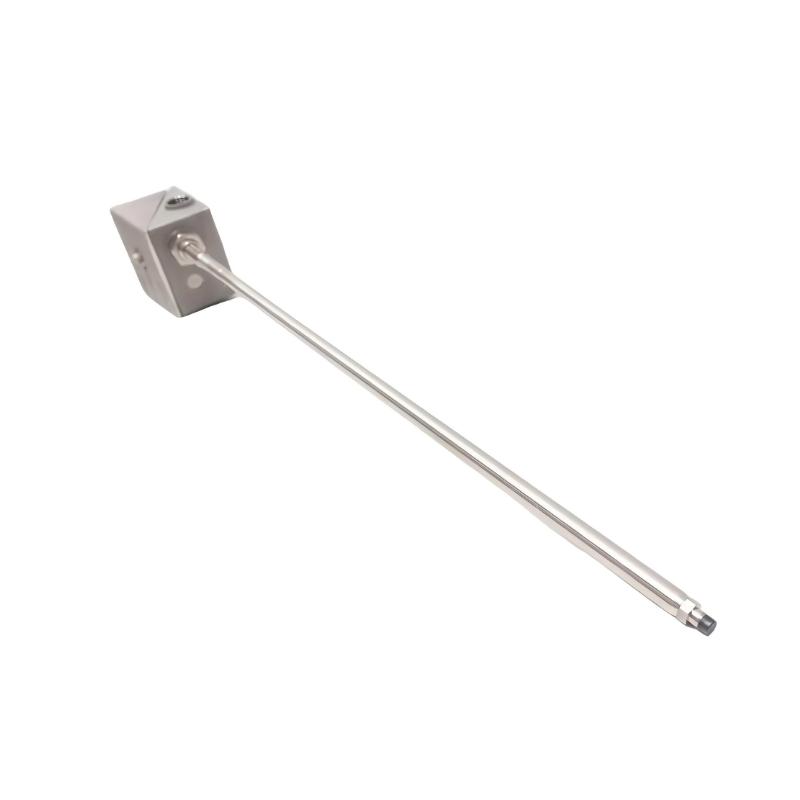

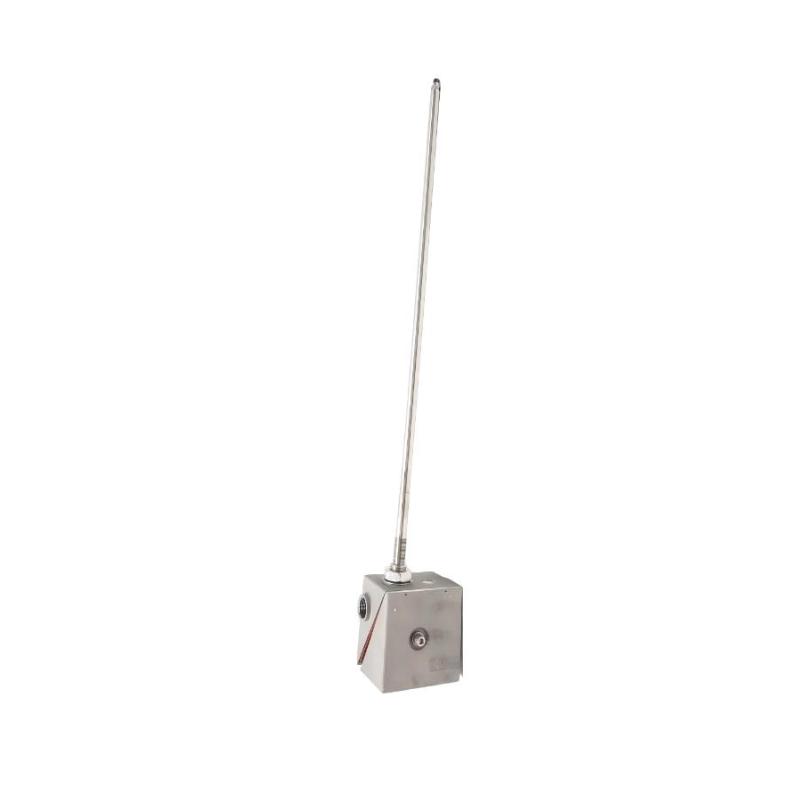

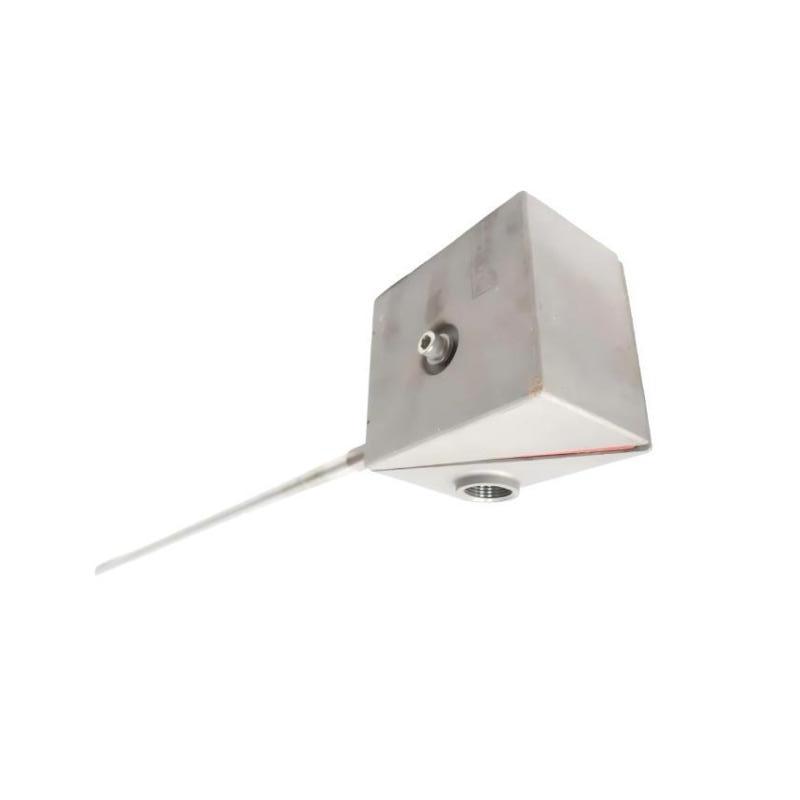

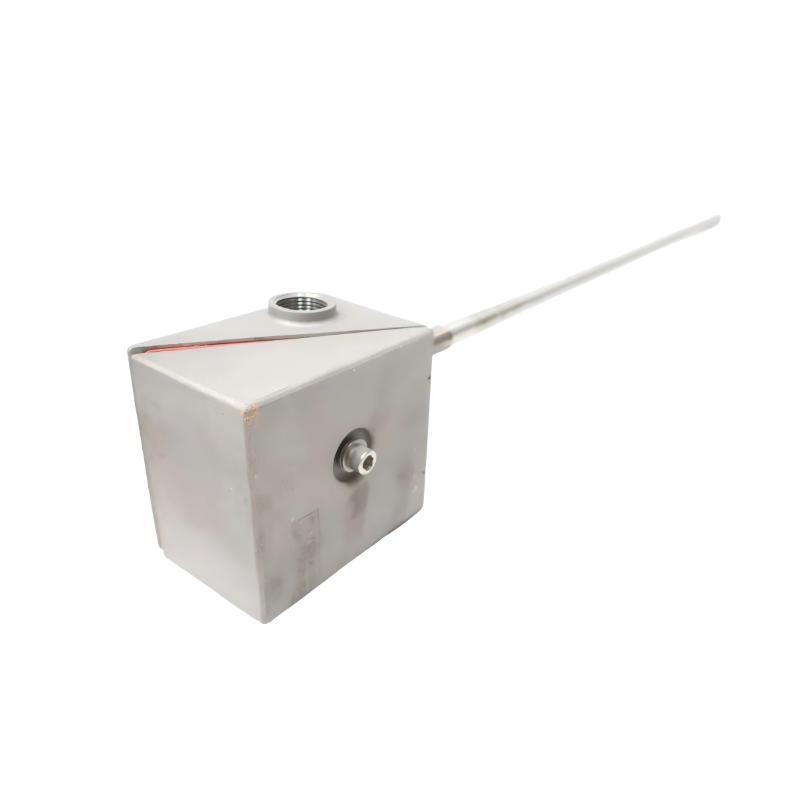

The Bently Nevada 26530-12-10-03-018-210-22-04-00 Dual Probe Transducer System combines a 3300 XL 8 mm proximity probe with a high-temperature, two-wire Seismoprobe in a common transducer housing. It is intended for rotating machinery installations where engineers need to monitor shaft displacement relative to its mounting point alongside vibration of the supporting machine structure.

The two sensing elements measure different aspects of machine movement. The proximity probe detects changes in the gap between its sensing tip and the conductive shaft surface. The Seismoprobe measures vibration of the bearing housing or casing, providing a separate reference for structural movement. When both signals are processed by compatible monitoring equipment, they help distinguish shaft-relative motion from vibration of the supporting structure.

This distinction is particularly relevant to large industrial compressors, steam turbines, and other rotating machinery operating under changing speed and load conditions. During startup, the shaft may respond to changing rotational forces while the bearing housing experiences structural vibration. A proximity measurement alone describes movement relative to the probe mounting point; the additional seismic measurement helps characterize the movement of that reference structure.

The specified assembly uses a 1-meter probe lead, a 3/4-14 NPT adapter connection, an 018 adapter-length option, and a 210 probe-penetration option. Its configuration also includes the high-temperature, two-wire Seismoprobe, a single 3/4-14 NPT plug fitting, and no optional probe support/oil seal. These selections establish the assembly’s mounting geometry and sensing arrangement.

The extended probe penetration is suitable for applications where the intended shaft target is positioned farther inside a bearing housing or machine casing. Installation planning must account for the mounting interface, probe reach, target clearance, and mechanical support. The probe needs to reach the designated sensing surface while maintaining the appropriate gap throughout the expected range of shaft movement.

The system supports four related measurement functions: shaft relative radial position, shaft relative radial dynamic motion, machine-casing absolute vibration, and shaft absolute motion calculated from the relevant signals. The last measurement depends on compatible monitoring equipment that processes the seismic signal and relative shaft displacement appropriately.

For maintenance teams, the combination of these measurements helps explain changes in machine behavior. An increase in shaft-relative vibration accompanied by a change in casing vibration presents a different diagnostic pattern from an increase in the proximity signal alone. Comparing the measurements helps narrow the investigation, although operating data and additional diagnostic checks may still be needed to establish the underlying cause.

The 26530 assembly forms part of a complete machinery monitoring installation. Suitable signal conditioning, electrical connections, mounting geometry, and monitoring-channel configuration are necessary for meaningful readings. Its function is to supply complementary sensor signals rather than independently diagnose faults or initiate a machinery shutdown.

Technical Specifications

Product Features

• Dual-transducer configuration: Combines shaft-displacement sensing and structural vibration measurement in a common housing.
• 3300 XL 8 mm proximity probe: Measures shaft movement relative to the probe mounting point through eddy-current sensing.
• High-temperature Seismoprobe: Supplies a structural vibration signal using the specified two-wire configuration.
• Extended probe penetration: Accommodates the specified sensing arrangement for a recessed shaft target.
• NPT mounting interface: Uses a 3/4-14 NPT adapter connection.
• Defined probe lead: Incorporates the specified 1-meter proximity probe lead.
• Separate measurement channels: Allows shaft-relative movement and casing vibration to be evaluated independently.
• Combined motion analysis: Supports shaft absolute-motion calculations through compatible monitoring equipment.
• Rotating machinery integration: Provides complementary measurement signals for condition-monitoring installations.

Working Principle

The Bently Nevada 26530 Dual Probe Transducer System combines eddy-current proximity sensing with seismic vibration measurement. Each sensing element responds to a different type of movement, allowing the connected monitoring equipment to evaluate shaft behavior and supporting-structure vibration separately.

The 3300 XL 8 mm proximity probe generates an electromagnetic field that interacts with the conductive shaft surface. Changes in the distance between the probe tip and the target alter the electrical response. Compatible signal-conditioning equipment converts this response into a displacement measurement relative to the probe mounting point.

The high-temperature, two-wire Seismoprobe measures vibration of the supporting structure. Unlike the proximity probe, which detects the shaft-to-probe gap, the Seismoprobe responds to vibration of the bearing housing or casing. This signal provides additional information when the probe’s mounting reference is moving.

Shaft Surface → 3300 XL 8 mm Probe → Relative Displacement Signal

Bearing Housing → High-Temperature Seismoprobe → Structural Vibration Signal

Compatible Monitoring Equipment → Signal Processing → Shaft Absolute-Motion Assessment

The proximity channel supplies information about shaft-relative position and dynamic movement. The seismic channel measures structural vibration. When the monitoring system appropriately integrates the seismic velocity signal into displacement and combines it with the relative shaft-displacement signal, it can calculate shaft absolute motion.

Consider a compressor experiencing increased vibration during a change in operating load. The shaft may move relative to the bearing housing while the housing itself responds to mechanical forces. The proximity probe records the relative shaft movement, and the Seismoprobe captures the housing vibration. Reviewing both signals helps engineers distinguish changes in rotor behavior from changes in the supporting structure.

The extended penetration configuration also affects the mechanical installation. The probe must reach the intended target without interference from surrounding components, and the mounting arrangement must maintain the required clearance. Because the probe extends into the machine housing, mechanical rigidity and the potential for resonance should be considered during installation planning.

The specified high-temperature Seismoprobe has an orientation range of 0° ± 100° and a minimum operating frequency of 600 cpm. These characteristics should be considered when selecting the mounting location and evaluating measurements during different operating conditions.

The assembly does not independently determine the cause of a vibration change. Fault identification, alarm decisions, and protective shutdown functions depend on the connected monitoring equipment, configured measurement channels, alarm limits, and machinery protection logic.

Role in a Rotating Machinery Monitoring System

The Bently Nevada 26530-12-10-03-018-210-22-04-00 supplies complementary sensor signals to a machinery monitoring system. The proximity channel follows shaft movement relative to the mounting point, while the velocity channel measures vibration of the supporting structure.

Shaft Movement → Proximity Measurement

Casing Vibration → Seismic Measurement

Monitoring Channels → Signal Processing → Operator Display and Alarm Logic

For radial-bearing diagnostics, two suitable assemblies can be positioned along perpendicular X-Y axes. When connected to appropriately configured monitoring equipment, this arrangement supports shaft orbit analysis and shaft centerline evaluation using measurements from both radial directions.

Industrial Applications

Installation and Maintenance

1. Confirm the measurement location: Select a mounting point that provides access to the intended shaft target and a suitable mechanical reference on the bearing housing or casing.
2. Check the adapter interface: Confirm that the machine mounting provision matches the specified 3/4-14 NPT adapter connection.
3. Review the mounting geometry: Account for the 1.8-inch adapter-length option and 21.0-inch nominal probe-penetration option when assessing the installation arrangement and available clearance.
4. Inspect the target surface: Ensure the shaft surface is suitable for eddy-current measurement and that the probe faces the intended measurement area.
5. Set the probe gap: Establish the initial clearance according to the applicable 3300 XL 8 mm installation procedure and the requirements of the connected signal-conditioning equipment.
6. Secure the assembly: Tighten the mounting hardware according to the applicable installation requirements to prevent unwanted movement of the sensor housing during operation.
7. Inspect the probe lead: Check the 1-meter lead for cuts, crushing, abrasion, and excessive strain before connecting the electrical circuit.
8. Connect the velocity transducer: Follow the wiring requirements for the high-temperature, two-wire Seismoprobe and its compatible receiving input.
9. Check sensor orientation: Position the velocity transducer within its specified orientation range and ensure that its measurement axis matches the intended monitoring function.
10. Verify signal conditioning: Confirm that the proximity and velocity signals are connected to suitable inputs with the correct scaling and measurement configuration.
11. Assess mechanical support: Check the extended probe mounting arrangement for adequate rigidity and potential resonance that could affect the measurement signals.
12. Establish baseline readings: Record shaft-relative displacement and casing vibration under known operating conditions, then compare subsequent readings with these baseline measurements.

During maintenance, inspect the probe gap, mounting security, lead condition, and electrical connections. If the proximity and velocity signals exhibit different trends, investigate the two measurement paths separately before attributing the change to rotor behavior or structural vibration.

Related Components

Recommended Related Models

Key Advantages

• Combines shaft-relative displacement and casing-vibration measurements in one assembly.
• Helps distinguish rotor movement from motion of the supporting structure.
• Uses a 3300 XL 8 mm proximity probe and a high-temperature, two-wire Seismoprobe.
• Supports shaft absolute-motion assessment through compatible signal processing.
• Accommodates the specified extended probe-penetration configuration.
• Supplies complementary measurement data for rotating machinery diagnostics.

Technical FAQs

How does this assembly help distinguish shaft vibration from bearing-housing vibration?

The proximity probe measures shaft movement relative to its mounting point, while the Seismoprobe measures vibration of the supporting structure. Comparing the signals helps compatible monitoring equipment distinguish relative shaft motion from casing vibration and calculate shaft absolute motion where supported.

What should be considered when installing the 21.0-inch probe-penetration configuration?

The extended penetration must suit the distance between the mounting interface and the intended shaft target. Installation planning should account for available clearance, probe-gap adjustment, mounting rigidity, and potential resonance. The specified adapter and penetration arrangement must also fit the machine’s actual mounting geometry.

Why is the high-temperature Seismoprobe important in this configuration?

The Seismoprobe supplies a structural vibration measurement that complements the proximity probe’s shaft-displacement signal. Its temperature range and mounting orientation must suit the application, and its two-wire output must be connected to compatible receiving instrumentation.

Can one 26530 assembly provide complete radial shaft orbit information?

A single assembly provides measurements from its installed sensing arrangement. Comprehensive radial-bearing orbit analysis generally requires two suitable assemblies positioned along perpendicular X-Y axes, together with monitoring equipment configured to process the corresponding signals.
