Product Overview

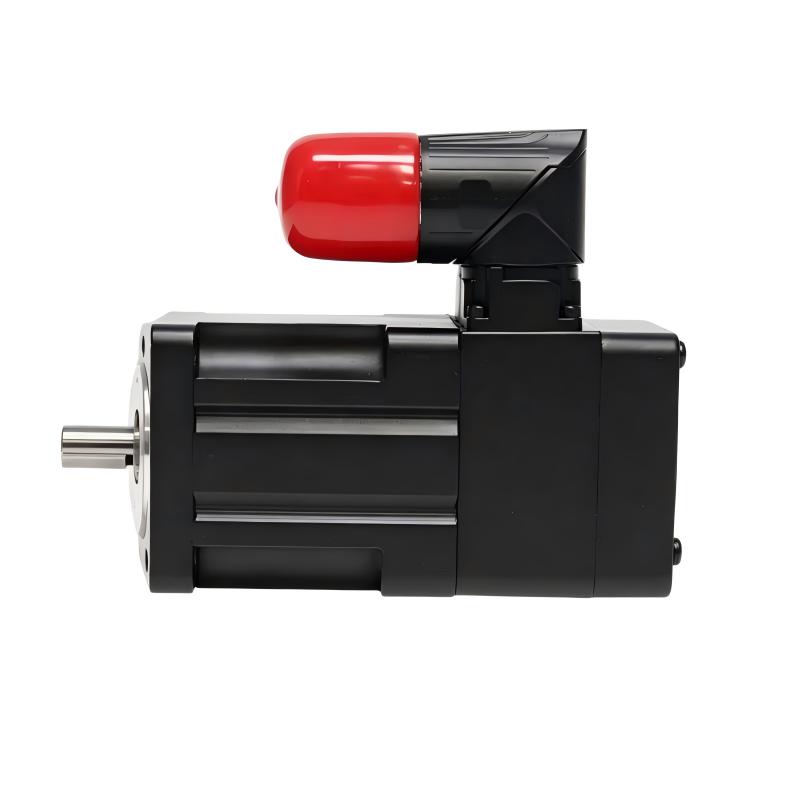

The Allen Bradley MPL-A1510V-HJ72AA Servo Motor is a high-performance Kinetix MPL low-inertia brushless AC servo motor designed for demanding industrial motion control applications requiring fast response, exceptional positioning accuracy, and reliable continuous-duty operation. As a member of the Allen Bradley MP-Series MPL family, this servo motor is optimized for use with Kinetix servo drive systems, providing outstanding dynamic performance for modern automation equipment. The HJ72AA configuration features a 2000-line incremental encoder, a SpeedTEC right-angle rotatable DIN connector, and no holding brake, making it ideal for high-speed horizontal-axis motion control.
Featuring a compact 63 mm frame size and an approximate weight of 1.0 kg, the MPL-A1510V-HJ72AA offers an excellent balance of power density and compact installation. The motor incorporates a low-inertia rotor and high-energy permanent magnets to provide rapid acceleration, smooth torque output, and excellent speed stability for precision manufacturing equipment.
Designed for continuous industrial operation, the motor withstands demanding production environments that involve frequent start-stop cycles, vibration, and high-speed positioning. It is widely used in packaging machinery, robotics, CNC equipment, semiconductor manufacturing, electronic assembly, printing machinery, pharmaceutical production, and automated material handling systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Model | MPL-A1510V-HJ72AA |
| Product Series | Kinetix MPL |
| Product Type | AC Servo Motor |
| Motor Type | Low-Inertia Permanent Magnet Servo Motor |
| Voltage Class | 230 VAC |
| Frame Size | 63 mm |
| Rated Maximum Speed | 8000 rpm |
| Feedback Device | 2000-Line Incremental Encoder |
| Brake | No Brake |
| Connector Type | SpeedTEC Right-Angle Rotatable DIN Connector |
| Shaft Type | Keyed Shaft Extension |
| Mounting Standard | IEC Metric Flange |
| Cooling Method | Natural Convection |
| Weight | Approximately 1.0 kg |
Function and Working Principle
The MPL-A1510V-HJ72AA converts electrical energy supplied by a compatible Kinetix servo drive into highly accurate rotary motion while continuously transmitting encoder feedback for closed-loop control.
Typical Motion Control Architecture
Motion Controller
↓
Kinetix Servo Drive
↓
MPL-A1510V-HJ72AA Servo Motor
↓
Mechanical Transmission
↓
Machine Axis
↓
Industrial Equipment
The incremental encoder continuously monitors shaft movement and sends feedback signals to the servo drive. The drive adjusts motor current in real time to achieve precise position, speed, and torque control.
Primary operating functions include:
- Precision positioning
- Closed-loop speed control
- Dynamic torque regulation
- High-speed indexing
- Rapid acceleration and deceleration
- Smooth low-speed operation
- Continuous encoder feedback
- Electronic cam synchronization
- Coordinated multi-axis motion
- Reliable industrial performance
The low-inertia rotor significantly improves dynamic response and reduces machine cycle times.
Role in Industrial Control Systems
Within industrial automation systems, the MPL-A1510V-HJ72AA functions as the precision motion actuator responsible for executing positioning commands generated by the machine controller.
Typical automation architecture:
ControlLogix PLC
↓
Motion Control Module
↓
Kinetix Servo Drive
↓
MPL-A1510V-HJ72AA Servo Motor
↓
Gearbox / Ball Screw / Timing Belt
↓
Machine Axis
↓
Production Equipment
The servo motor provides accurate and repeatable motion, enabling synchronized machine operation and high production efficiency.
Industrial Applications
Packaging Machinery
Typical applications include:
- Cartoning machines
- Filling equipment
- Labeling systems
- Wrapping machines
- Pick-and-place systems
Robotics
Suitable for:
- Industrial robot arms
- SCARA robots
- Delta robots
- Collaborative robots
- Assembly automation
CNC Machinery
Frequently installed in:
- Machining centers
- CNC milling machines
- Precision lathes
- Laser cutting systems
- Automated machining equipment
Semiconductor Manufacturing
Ideal for:
- Wafer handling equipment
- Precision positioning systems
- Inspection machines
- Electronic assembly equipment
- Cleanroom automation
Material Handling
Common applications include:
- Conveyor positioning
- Warehouse automation
- Sorting systems
- Automated storage systems
- Palletizing equipment
Food and Beverage Processing
Widely used in:
- Packaging lines
- Filling systems
- Conveyor automation
- Inspection equipment
- Production machinery
Installation and System Integration
Before installation, engineers should verify:
- Kinetix servo drive compatibility
- Mechanical mounting dimensions
- Shaft alignment
- Coupling selection
- Encoder cable connections
- Motor power wiring
- Grounding requirements
- Mechanical load capacity
- Environmental conditions
- Motion controller configuration
Recommended Installation Procedure
- Disconnect system power.
- Mount the servo motor securely.
- Align the motor shaft with the driven equipment.
- Install the coupling or transmission mechanism.
- Connect the motor power cable.
- Connect the encoder feedback cable.
- Verify protective grounding.
- Restore power.
- Configure motor parameters.
- Perform motor identification.
- Test rotation direction.
- Tune servo parameters.
- Verify positioning accuracy.
- Perform functional testing.
- Complete commissioning documentation.
Proper installation helps maximize positioning precision and extend motor service life.
Compatible System Components
| Component | Function |
|---|---|
| Allen Bradley Kinetix Servo Drive | Servo motor control |
| ControlLogix PLC | Motion controller |
| CompactLogix PLC | Machine automation |
| MPL-A1510V-HJ72AA | Precision servo motor |
| Motion Control Module | Multi-axis synchronization |
| EtherNet/IP Network | Industrial communication |
| PanelView HMI | Operator interface |
| Precision Gearbox | Torque transmission |
| Ball Screw Assembly | Linear positioning |
| Industrial Power Supply | System power |
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| MPL-A1510V-HJ72AA | AC Servo Motor | Incremental encoder motion control |
| MPL-A1510V-EJ72AA | AC Servo Motor | Single-turn encoder applications |
| MPL-A1510V-VJ72AA | AC Servo Motor | Multi-turn absolute encoder systems |
| MPL-A1510V-HJ74AA | AC Servo Motor | Incremental encoder with holding brake |
| Kinetix VP Series | AC Servo Motor | Advanced machine automation |
Key Advantages
- Compact 63 mm frame size
- Low-inertia rotor for rapid dynamic response
- Rated speed up to 8000 rpm
- Integrated 2000-line incremental encoder
- High positioning accuracy
- Smooth torque output
- SpeedTEC quick-connect rotatable connector
- Seamless integration with Allen Bradley Kinetix servo drives
- Rugged industrial construction
- Suitable for continuous industrial operation
- Approximate weight 1.0 kg
Technical FAQs
What is the Allen Bradley MPL-A1510V-HJ72AA?
The MPL-A1510V-HJ72AA is a Kinetix MPL low-inertia AC servo motor equipped with a 2000-line incremental encoder for high-performance industrial motion control.
What is its primary function?
Its primary function is to provide precise closed-loop control of position, speed, and torque in automated machinery.
What is the frame size?
The motor features a 63 mm frame size.
What is the approximate weight?
The servo motor weighs approximately 1.0 kg.
Does this model include a holding brake?
No. The MPL-A1510V-HJ72AA is supplied without a holding brake, making it suitable for applications where brake functionality is not required.
Which drive systems are compatible?
It is designed for use with compatible Allen Bradley Kinetix servo drives and Logix-based motion control platforms.
Which industries commonly use this servo motor?
Typical industries include packaging, robotics, semiconductor manufacturing, CNC machining, pharmaceutical production, food processing, material handling, and automated assembly.
What type of feedback does the motor use?
The motor uses a 2000-line incremental encoder, providing high-resolution feedback for accurate closed-loop motion control.
Where is the servo motor typically installed?
It is commonly installed on robotic axes, conveyor positioning systems, CNC machines, packaging equipment, and precision manufacturing machinery.
Why is a low-inertia servo motor important?
A low-inertia servo motor enables faster acceleration, shorter settling times, improved positioning accuracy, and higher overall machine productivity.
Conclusion
The Allen Bradley MPL-A1510V-HJ72AA Servo Motor is a compact and high-performance motion solution designed for demanding industrial automation applications. Featuring a 63 mm frame size, low-inertia rotor, 2000-line incremental encoder, and SpeedTEC quick-connect interface, it delivers outstanding positioning accuracy, fast dynamic response, and dependable long-term operation.
With an approximate weight of 1.0 kg, the MPL-A1510V-HJ72AA integrates easily into compact machine designs while providing reliable precision motion control. When combined with compatible Allen Bradley Kinetix servo drives, ControlLogix PLCs, motion controllers, and EtherNet/IP communication systems, it enhances machine performance, improves production efficiency, and supports long-term industrial reliability.
