Product Overview

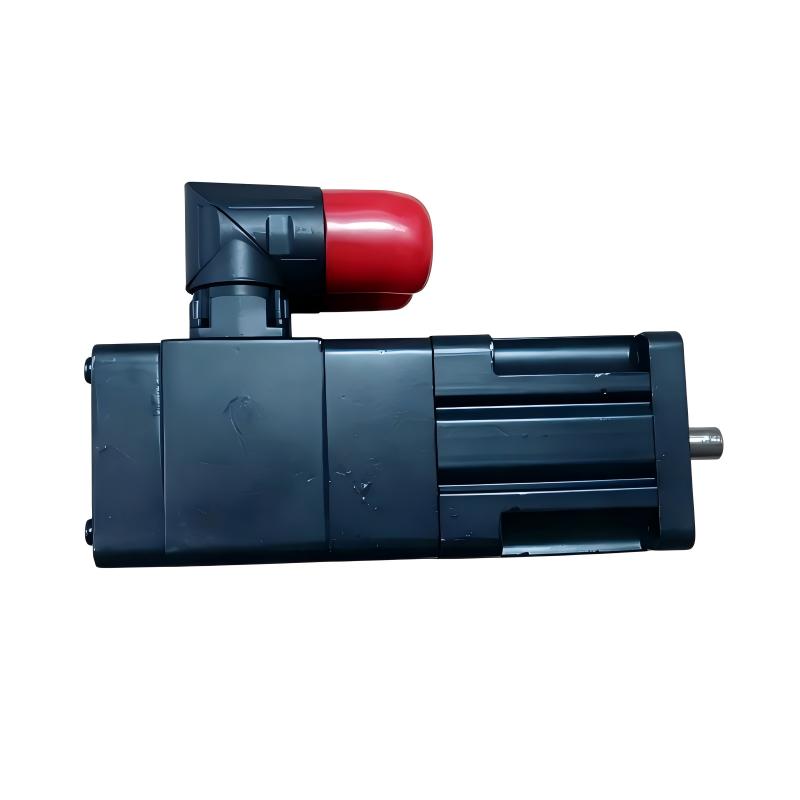

The Allen Bradley MPL-A1510V-EJ74AA Servo Motor is a high-performance Kinetix MPL low-inertia brushless AC servo motor engineered for precision motion control in advanced industrial automation systems. Designed for seamless integration with Allen Bradley Kinetix servo drives, the motor delivers exceptional positioning accuracy, rapid acceleration, and stable torque output for demanding machine applications. The EJ74AA configuration includes a 24 VDC holding brake, making it ideal for vertical-axis motion and applications requiring secure load holding during power loss or system shutdown.

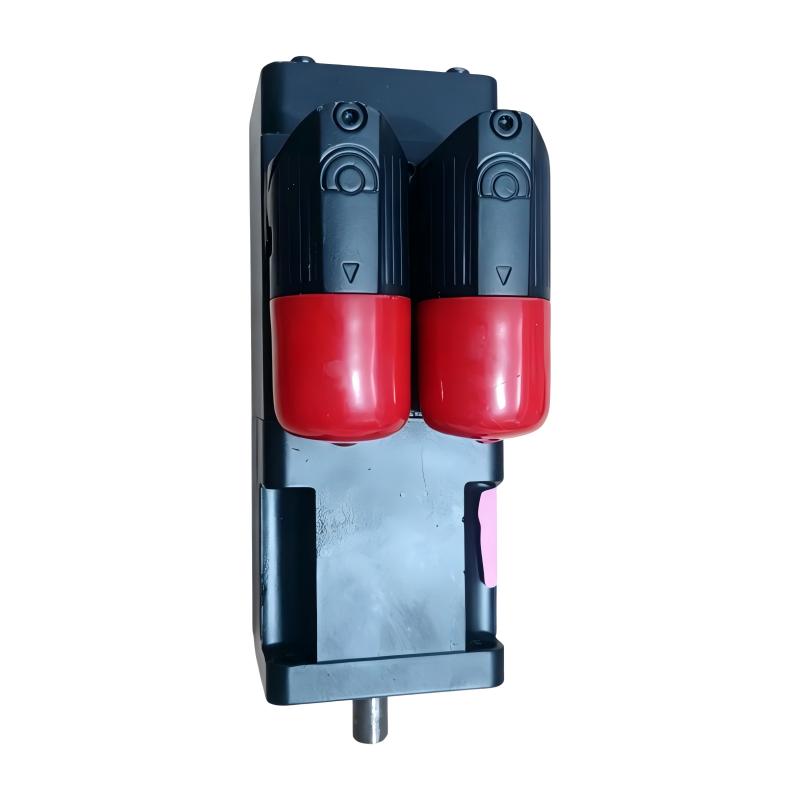

Featuring a compact 63 mm frame size and weighing approximately 1.0 kg, the MPL-A1510V-EJ74AA combines high power density with a space-saving mechanical design. The motor incorporates a low-inertia rotor, high-energy permanent magnets, and an integrated single-turn high-resolution absolute encoder, enabling outstanding dynamic response and repeatable positioning performance. It also utilizes a SpeedTEC right-angle rotatable DIN connector for simplified installation and maintenance.
Designed for continuous-duty industrial environments, this servo motor offers reliable operation under vibration, frequent acceleration cycles, and demanding production schedules. It is widely used in packaging machinery, robotics, semiconductor manufacturing, CNC equipment, automated assembly systems, pharmaceutical production, material handling equipment, and electronic manufacturing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Model | MPL-A1510V-EJ74AA |
| Product Series | Kinetix MPL |
| Product Type | AC Servo Motor |
| Motor Type | Low-Inertia Permanent Magnet Servo Motor |
| Voltage Class | 230 VAC |
| Frame Size | 63 mm |
| Rated Maximum Speed | 8000 rpm |
| Feedback Device | Single-Turn High-Resolution Absolute Encoder |
| Brake | 24 VDC Holding Brake |
| Connector Type | SpeedTEC Right-Angle Rotatable DIN Connector |
| Shaft Type | Keyed Shaft Extension |
| Mounting Standard | IEC Metric Flange |
| Cooling Method | Natural Convection |
| Weight | Approximately 1.0 kg |
Function and Working Principle
The MPL-A1510V-EJ74AA converts electrical energy supplied by a compatible servo drive into precise rotary motion while continuously transmitting encoder feedback for closed-loop motion control.
Typical Motion Control Architecture
Motion Controller
↓
Kinetix Servo Drive
↓
MPL-A1510V-EJ74AA Servo Motor
↓
Mechanical Transmission
↓
Machine Axis
↓
Industrial Equipment
The integrated encoder continuously reports motor position and speed to the servo drive, allowing the controller to adjust output current in real time for highly accurate positioning.
Primary operating functions include:
- High-precision position control
- Closed-loop speed regulation
- Dynamic torque control
- Rapid acceleration and deceleration
- Smooth low-speed operation
- High-speed indexing
- Electronic cam synchronization
- Encoder feedback monitoring
- Vertical-axis holding with 24 VDC brake
- Continuous industrial operation
The integrated brake helps maintain load position whenever drive power is removed, improving machine safety and positioning reliability.
Role in Industrial Control Systems
Within industrial automation systems, the MPL-A1510V-EJ74AA functions as a precision motion actuator responsible for executing complex positioning commands received from a motion controller.
Typical automation architecture:
ControlLogix PLC
↓
Motion Control Module
↓
Kinetix Servo Drive
↓
MPL-A1510V-EJ74AA Servo Motor
↓
Ball Screw / Gearbox / Timing Belt
↓
Machine Axis
↓
Production Equipment
The servo motor enables synchronized multi-axis motion, accurate positioning, and repeatable machine performance.
Industrial Applications
Packaging Machinery
Typical applications include:
- Cartoning machines
- Filling equipment
- Labeling systems
- Wrapping machines
- Pick-and-place equipment
Robotics
Suitable for:
- Six-axis industrial robots
- SCARA robots
- Delta robots
- Collaborative robots
- Automated assembly systems
CNC Machine Tools
Frequently installed in:
- CNC machining centers
- Milling machines
- Precision lathes
- Laser cutting systems
- Automated machining equipment
Semiconductor Manufacturing
Ideal for:
- Wafer handling systems
- Precision positioning stages
- Inspection equipment
- Pick-and-place machines
- Electronic assembly lines
Material Handling
Common applications include:
- Conveyor positioning
- Warehouse automation
- Sorting systems
- Palletizing equipment
- Logistics automation
Pharmaceutical and Food Processing
Widely used in:
- Packaging lines
- Filling systems
- Inspection equipment
- Conveyor automation
- Clean production machinery
Installation and System Integration
Before installation, engineers should verify:
- Kinetix servo drive compatibility
- Mechanical mounting dimensions
- Shaft alignment
- Coupling selection
- Encoder cable connections
- Brake wiring
- Power cable routing
- Grounding requirements
- Mechanical load capacity
- Environmental conditions
Recommended Installation Procedure
- Disconnect all electrical power.
- Mount the servo motor securely.
- Align the shaft with the driven mechanism.
- Install the coupling or transmission device.
- Connect the motor power cable.
- Connect the encoder feedback cable.
- Connect the 24 VDC brake wiring.
- Verify grounding.
- Restore system power.
- Configure motor parameters in the servo drive.
- Perform motor identification.
- Test brake operation.
- Tune servo parameters.
- Verify positioning accuracy.
- Complete commissioning documentation.
Proper installation maximizes positioning precision and extends motor service life.
Compatible System Components
| Component | Function |
|---|---|
| Allen Bradley Kinetix Servo Drive | Servo motor control |
| ControlLogix PLC | Machine automation controller |
| CompactLogix PLC | Motion control |
| MPL-A1510V-EJ74AA | Precision servo motor |
| Motion Control Module | Multi-axis synchronization |
| EtherNet/IP Network | Industrial communication |
| PanelView HMI | Operator interface |
| Precision Gearbox | Torque transmission |
| Ball Screw Assembly | Linear positioning |
| Industrial Power Supply | System power |
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| MPL-A1510V-EJ74AA | AC Servo Motor | Precision motion control with brake |
| MPL-A1510V-EJ72AA | AC Servo Motor | Precision motion control without brake |
| MPL-A1520U-EJ74AA | AC Servo Motor | Higher torque applications |
| VPL Series | Permanent Magnet Servo Motor | High-performance automation |
| Kinetix VP Series | AC Servo Motor | Advanced machine motion systems |
Key Advantages
- Compact 63 mm frame size
- Low-inertia rotor for rapid response
- Maximum speed up to 8000 rpm
- Integrated single-turn absolute encoder
- Built-in 24 VDC holding brake
- High positioning accuracy
- Smooth torque delivery
- SpeedTEC quick-connect rotating connector
- Compatible with Allen Bradley Kinetix servo drives
- Designed for continuous industrial operation
- Approximate weight 1.0 kg
Technical FAQs
What is the Allen Bradley MPL-A1510V-EJ74AA?
The MPL-A1510V-EJ74AA is a Kinetix MPL low-inertia AC servo motor with an integrated 24 VDC holding brake, designed for high-performance industrial motion control.
What is its primary function?
Its primary function is to provide precise closed-loop control of position, speed, and torque for automated machinery.
What is the frame size?
The motor features a 63 mm frame size.
What is the approximate weight?
The servo motor weighs approximately 1.0 kg.
Does this model include a holding brake?
Yes. The MPL-A1510V-EJ74AA includes an integrated 24 VDC holding brake for load holding and vertical-axis applications.
Which drive systems are compatible?
It is designed for use with compatible Allen Bradley Kinetix servo drives and Logix-based motion control systems.
Which industries commonly use this servo motor?
Typical industries include packaging, robotics, semiconductor manufacturing, CNC machining, pharmaceutical production, food processing, material handling, and automated assembly.
Does the motor provide encoder feedback?
Yes. It incorporates a single-turn high-resolution absolute encoder for precise closed-loop motion control.
Where is the servo motor typically installed?
It is commonly installed on robotic arms, indexing tables, conveyor positioning systems, CNC machine axes, and precision automation equipment.
Why is a low-inertia servo motor important?
A low-inertia servo motor enables faster acceleration, improved positioning accuracy, shorter machine cycle times, and enhanced overall motion control performance.
Conclusion
The Allen Bradley MPL-A1510V-EJ74AA Servo Motor is a compact, high-performance motion solution designed for demanding industrial automation applications. Its 63 mm frame size, low-inertia rotor, integrated single-turn absolute encoder, and 24 VDC holding brake provide outstanding positioning accuracy, fast dynamic response, and dependable load-holding capability.
With an approximate weight of 1.0 kg, the MPL-A1510V-EJ74AA integrates easily into compact machine designs while delivering reliable long-term performance. When combined with compatible Allen Bradley Kinetix servo drives, ControlLogix PLCs, motion controllers, and EtherNet/IP communication networks, it provides precise, efficient, and dependable motion control for a wide range of industrial automation systems.
