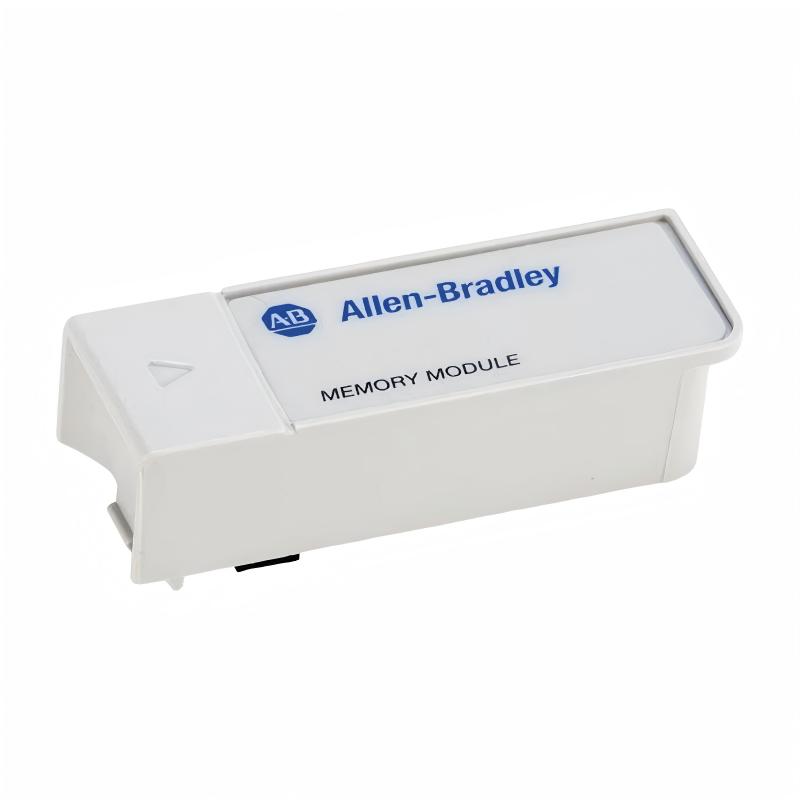

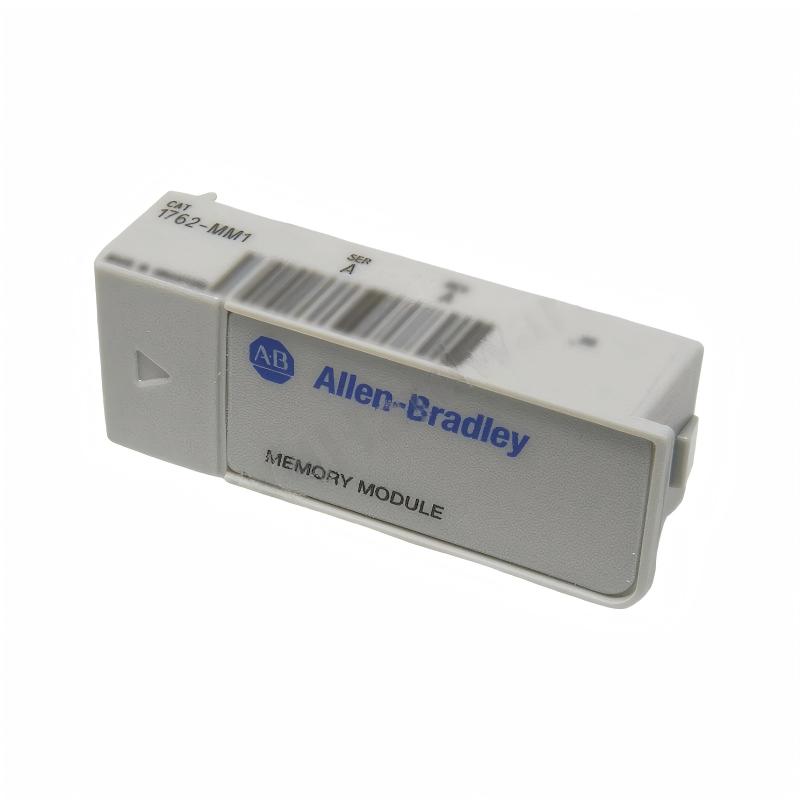

1. Product Overview

The Allen-Bradley 1762-MM1 MicroLogix 1200 Memory Module is a dedicated memory accessory designed for use with Allen-Bradley MicroLogix 1200 programmable logic controllers. It supports program and data backup functions, helping industrial users preserve important controller information and simplify maintenance activities.

In industrial automation systems, a PLC program contains the logic that controls machinery, monitors field signals, and coordinates production processes. Protecting this program is essential when performing maintenance, replacing equipment, or recovering from unexpected system problems. The 1762-MM1 provides an additional memory resource for supported MicroLogix 1200 applications.

This memory module supports functions such as user-program and data backup, program comparison, data-file download protection, and write protection. These capabilities can help maintenance personnel manage controller programs and reduce the risk of unintended changes during service work.

The 1762-MM1 is a compact accessory installed in the designated memory-module port of a compatible MicroLogix 1200 controller. It is not a digital input module, analog output module, or general-purpose expansion I/O device. Its primary purpose is to support controller memory management and program maintenance.

The module is particularly relevant to facilities that continue to operate legacy MicroLogix 1200 systems. Although the product is discontinued, compatible memory modules may still be needed for maintenance, spare-parts inventory, and restoration of existing automation equipment.

Before purchasing, users should verify the catalog number, hardware condition, compatibility with the target controller, and whether the required program data is available. Since this product is discontinued, supplier verification is especially important.

2. Technical Specifications

Note: Dimensions and weight are based on the supplied product information. Confirm physical measurements and included accessories with the supplier before purchase.

3. Functions and Working Principle

3.1 User Program Backup

The primary role of the 1762-MM1 is to support backup of user programs for compatible MicroLogix 1200 controllers.

A PLC program defines how a machine or process responds to input signals, executes control logic, and operates connected equipment. Losing or unintentionally modifying this program can cause downtime and require engineering work to restore the system.

A compatible memory module provides an additional means of preserving program information. When used according to the controller’s instructions, it can help maintenance teams restore or transfer supported program data during approved service procedures.

The memory module should not replace a complete backup strategy. Important projects should also be stored securely in an engineering workstation or another approved storage location, with appropriate version control.

3.2 Data Backup and Protection

In addition to program information, the module supports backup of relevant controller data. This is useful when the application relies on stored values, configuration information, or other supported data files.

The exact data that can be backed up depends on the controller, program structure, and applicable memory-module functions. Engineers should confirm which data files are included before relying on the module for recovery.

Data-file download protection and write protection help control certain memory operations. These functions can reduce the risk of accidental modification, but they should be used alongside documented procedures for program changes and maintenance.

3.3 Program Comparison

Program comparison allows supported program information to be checked against the controller’s existing program.

This can help technicians determine whether a program differs from a stored version. In a maintenance environment, comparison is valuable after equipment service, controller replacement, or an authorized program update.

Program comparison does not automatically prove that an entire machine is operating correctly. The program, configuration, field wiring, connected equipment, and operating conditions must still be verified as part of the commissioning process.

3.4 Memory Write Protection

Write protection helps guard against unintended changes to stored program information. This is particularly useful in plants where validated PLC logic should not be modified without authorization.

A controlled approach to write protection can support maintenance discipline and reduce the risk of accidental overwriting. Authorized personnel should still maintain access to approved recovery procedures and ensure that the correct backup is available when changes are required.

3.5 Compact Memory Accessory Design

The 1762-MM1 is a small accessory intended for the designated memory-module port on the MicroLogix 1200 controller. It does not occupy the same role as a standard expansion I/O module connected to the controller’s expansion bus.

Its compact design makes it suitable for installations where cabinet space is limited and where a dedicated memory accessory is required for program management.

4. Role in Industrial Control Systems

4.1 Supporting PLC Program Recovery

Industrial controllers often operate continuously as part of machinery, production lines, and process equipment. A damaged or missing program can interrupt operation and require a time-consuming recovery process.

The 1762-MM1 can form part of a recovery strategy for supported MicroLogix 1200 systems by preserving program information for approved backup and restoration procedures.

For critical equipment, the stored program should be checked for correctness and version compatibility. A backup that is outdated or configured for different hardware may not be suitable for immediate restoration.

4.2 Reducing Maintenance Downtime

When a controller requires service, having a verified backup can reduce the time needed to recover the control application.

The memory module may help maintenance teams preserve and manage supported program data, while a separate engineering backup provides another recovery option. Together with documented troubleshooting procedures, these practices can improve maintenance readiness.

Actual downtime reduction depends on the quality of the backup, technician familiarity, equipment condition, and the complexity of the control system.

4.3 Protecting Validated Control Logic

In manufacturing environments, PLC programs may contain carefully tested sequences, interlocks, timers, counters, and operating parameters.

Write protection and program comparison can support change control by helping personnel protect stored information and identify differences between program versions.

These features should be incorporated into a broader control-system management process that records authorized changes and retains verified program copies.

4.4 Maintaining Legacy Automation Equipment

Many industrial facilities continue to use established PLC platforms because their machines remain functional and replacing them would require significant engineering work.

The 1762-MM1 can be relevant to maintenance of existing MicroLogix 1200 installations where the original hardware remains in service. Since the module is discontinued, facilities should assess spare-parts availability and long-term support requirements as part of their maintenance planning.

5. Industrial Applications

5.1 Factory Automation

Manufacturing lines use PLCs to control conveyors, actuators, sensors, packaging equipment, and machine sequences.

In a MicroLogix 1200-based application, the 1762-MM1 can support program and data backup procedures. This helps maintenance teams prepare for controller servicing and manage changes to established machine logic.

5.2 Packaging Machinery

Packaging systems may rely on PLC logic for product counting, sequence timing, interlocks, and coordination between machine sections.

A verified memory backup can help support recovery when maintenance work affects the controller. The stored program should be checked against the installed machine configuration before being used for restoration.

5.3 Material Handling Systems

Conveyors, transfer stations, and small material-handling systems often use PLCs to coordinate motors, sensors, and actuators.

The 1762-MM1 can help preserve supported control-program information for compatible MicroLogix 1200 applications, contributing to more organized maintenance and recovery procedures.

5.4 Pump and Utility Control Panels

Small pump stations, utility skids, and auxiliary equipment may use MicroLogix controllers for start-stop sequences, status monitoring, and alarm logic.

Where the 1762-MM1 is part of the original system design, it can be retained as a memory accessory for supported program management tasks. Backup procedures should account for the equipment’s operating parameters and the consequences of restoring an older program.

5.5 OEM Machinery

Original equipment manufacturers may use MicroLogix 1200 controllers in compact machines supplied to industrial customers.

The memory module can support program-handling requirements for these legacy systems. OEMs and maintenance providers should maintain clear records of program versions, machine configuration, and any customer-specific modifications.

5.6 Legacy System Maintenance

For facilities that cannot immediately replace older PLC platforms, sourcing compatible accessories can help maintain existing equipment.

The 1762-MM1 may be useful as a maintenance spare where the installed controller and application require it. Because it is discontinued, purchasers should verify authenticity, condition, and the specific functions required by the application before ordering.

6. Installation and System Integration

6.1 Verify Controller Compatibility

Before installation, confirm that the target controller belongs to the MicroLogix 1200 family and supports the 1762-MM1.

Do not assume that a memory module for another Allen-Bradley controller family is interchangeable. For example, accessories with similar model numbers may be designed for different PLC platforms and may have different memory capacities or functions.

Check the catalog number on the module and compare it with the controller documentation.

6.2 Locate the Dedicated Memory Port

The MicroLogix 1200 controller includes a designated memory-module port with a protective cover. The 1762-MM1 is intended for this port rather than a standard expansion I/O slot.

Follow the manufacturer’s installation instructions when accessing the port. Do not force the module into the connector or attempt to modify the housing or contacts.

6.3 Confirm Program and Data Requirements

Before using the memory module, identify which program and data information must be backed up or restored.

For maintenance work, record the controller model, program version, relevant configuration details, and any application-specific settings. Confirm that the backup corresponds to the target machine and controller.

If the existing program has been modified since the last backup, determine whether the memory module contains the intended version before restoring data.

6.4 Follow Approved Installation Procedures

Use the applicable MicroLogix 1200 user manual to determine the correct procedure for inserting, removing, or using the memory module.

Although the memory module family supports certain insertion and removal operations under power, personnel should not assume that every procedure is appropriate in every operating condition. Follow the controller-specific instructions and the site’s electrical and operational safety procedures.

For machinery where unexpected operation could cause injury or equipment damage, place the system in the required safe state before performing maintenance.

6.5 Verify the Result

After performing a backup, comparison, or restoration operation, verify the result using the supported controller procedures.

Confirm that the intended program is present, the controller reports the expected status, and relevant application functions operate correctly. For production machinery, use the site’s approved test and commissioning process before returning the system to normal service.

6.6 Maintain Additional Backups

A memory module should be treated as one component of a wider backup strategy. Keep a separate copy of the approved PLC project in secure engineering storage and maintain records of changes.

For important applications, consider maintaining multiple verified backup copies, access controls, and a documented recovery procedure. This reduces dependence on a single physical accessory.

7. Compatible System Components

The 1762-MM1 is a dedicated memory accessory rather than an expansion I/O module. The following components and tools may be relevant to its use in a MicroLogix 1200 installation.

Always confirm the catalog number and required functions before selecting an accessory. A memory-only module, a clock-only module, and a combination memory/clock module serve different purposes.

8. Alternative Models and Replacement Considerations

When replacing a discontinued memory accessory, it is important to distinguish between functionally related modules and direct replacements.

These models are not automatically interchangeable. If the application requires a 1762-MM1, confirm the controller’s support for any proposed alternative and determine whether its memory capacity and functions meet the original requirement.

For discontinued equipment, an engineering review may be necessary to decide whether to source a verified original module, maintain an alternative backup process, or plan a longer-term controller migration.

9. Key Advantages of the Allen-Bradley 1762-MM1

9.1 Dedicated Memory Support

The module provides a dedicated memory accessory for compatible MicroLogix 1200 controllers, supporting program and data backup tasks.

9.2 Program Protection Features

Supported write-protection and data-file protection functions help reduce the risk of unintended changes to stored program information.

9.3 Program Comparison Capability

Program comparison helps maintenance teams check program differences during troubleshooting, servicing, and recovery preparation.

9.4 Compact Physical Design

Its small form factor makes it practical for installations where cabinet space is limited and a dedicated memory accessory is needed.

9.5 Useful for Legacy Equipment

For facilities operating existing MicroLogix 1200 controllers, the 1762-MM1 may help preserve the original maintenance workflow without requiring immediate changes to the control architecture.

9.6 Support for Recovery Planning

When used with verified engineering backups and documented procedures, the memory module can contribute to a more organized PLC recovery strategy.

10. Technical FAQs

Q1: What is the Allen-Bradley 1762-MM1?

The 1762-MM1 is a memory module designed for Allen-Bradley MicroLogix 1200 PLCs. It supports program and data backup and other memory-management functions.

Q2: What is the memory capacity of the 1762-MM1?

The manufacturer’s product information lists a memory size of 6 KB.

Q3: What functions does the module support?

Supported functions include program and data backup, program comparison, data-file download protection, and write protection.

Q4: Is the 1762-MM1 an I/O module?

No. It is a dedicated memory accessory. It does not function as a digital input, digital output, or analog I/O expansion module.

Q5: Which PLC family is it designed for?

It is designed for the Allen-Bradley MicroLogix 1200 controller family. Compatibility with other PLC families should not be assumed.

Q6: Is the 1762-MM1 discontinued?

Yes. Rockwell Automation lists the product as discontinued, with a discontinuation date of August 31, 2021. Buyers should confirm current stock and authenticity with their supplier.

Q7: Can the 1762-MM1 be replaced by the 1762-MM1RTC?

Not automatically. The 1762-MM1RTC combines memory and real-time clock functionality, while the 1762-MM1 is the memory-only version. Confirm the application’s requirements and controller compatibility before substituting the models.

Q8: Can a 1763-MM1 be used instead?

The 1763-MM1 is associated with the MicroLogix 1100 controller family. It should not be considered a direct replacement for the 1762-MM1 without explicit compatibility confirmation.

Q9: Does the memory module eliminate the need for a computer-based backup?

No. A separate, verified engineering project backup is strongly recommended. It provides another recovery option and helps maintain program version history.

Q10: What are the dimensions and weight?

The supplied product information lists dimensions of 25 × 25 × 25 mm and a weight of 0.02 kg. Confirm the actual unit dimensions and shipping weight with the supplier if they are needed for cabinet design or logistics.

11. Procurement and Maintenance Recommendations

Because the Allen-Bradley 1762-MM1 is discontinued, procurement should begin with a clear check of the required catalog number and intended application. Confirm whether the unit is new old stock, refurbished, or used, and ask the supplier to specify the condition in writing.

Where available, request clear photographs of the product label and connector, along with confirmation of the catalog number. For critical equipment, establish acceptance criteria for physical condition, functionality, warranty, and return arrangements before purchase.

Maintenance teams should retain a verified PLC project backup independently of the physical memory module. Record the controller model, program revision, relevant configuration information, and any changes made after the backup was created.

When a replacement module is introduced, verify the stored program and data according to the applicable controller instructions. Do not assume that a memory accessory contains the latest program simply because it is compatible with the controller.

For long-term support, facilities should assess spare-parts availability and the risks associated with continued use of discontinued components. A planned migration strategy may be appropriate where equipment criticality, downtime exposure, or parts availability makes long-term maintenance increasingly difficult.

12. Conclusion

The Allen-Bradley 1762-MM1 MicroLogix 1200 Memory Module is a compact memory accessory designed to support program and data backup, program comparison, and memory protection functions in compatible MicroLogix 1200 PLC systems.

Its role is different from that of an expansion I/O module: it supports controller program management rather than direct field signal acquisition. When integrated into a documented backup and maintenance process, it can help industrial users manage legacy PLC applications and prepare for controller servicing or recovery.

Since the 1762-MM1 is discontinued, careful sourcing and compatibility verification are essential. Confirm the exact catalog number, product condition, memory requirements, and target controller before purchasing. Maintaining separate engineering backups and following approved restoration procedures remain important for reliable industrial automation support.
