Product Overview

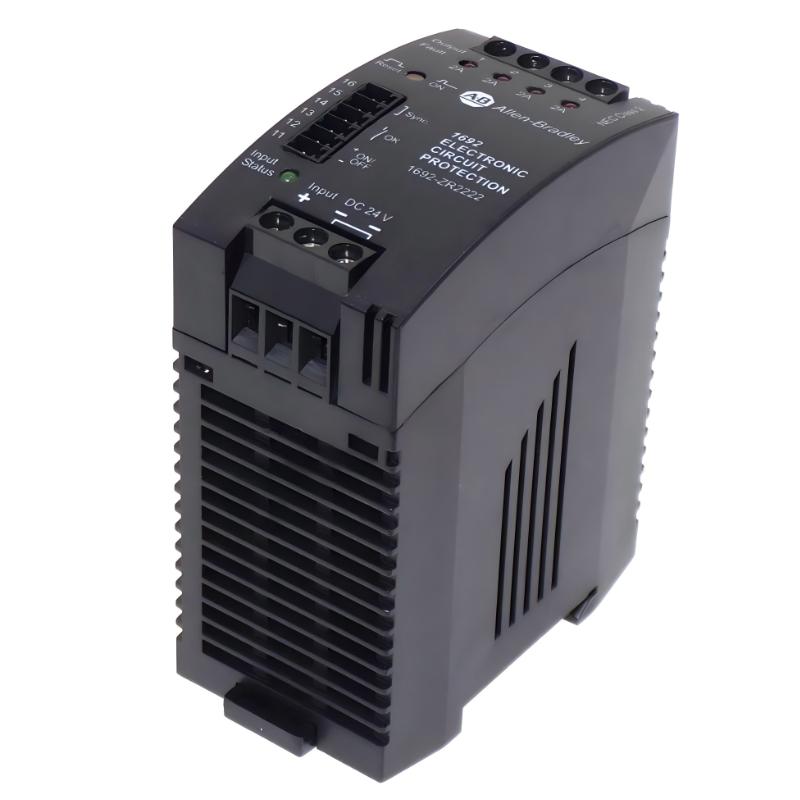

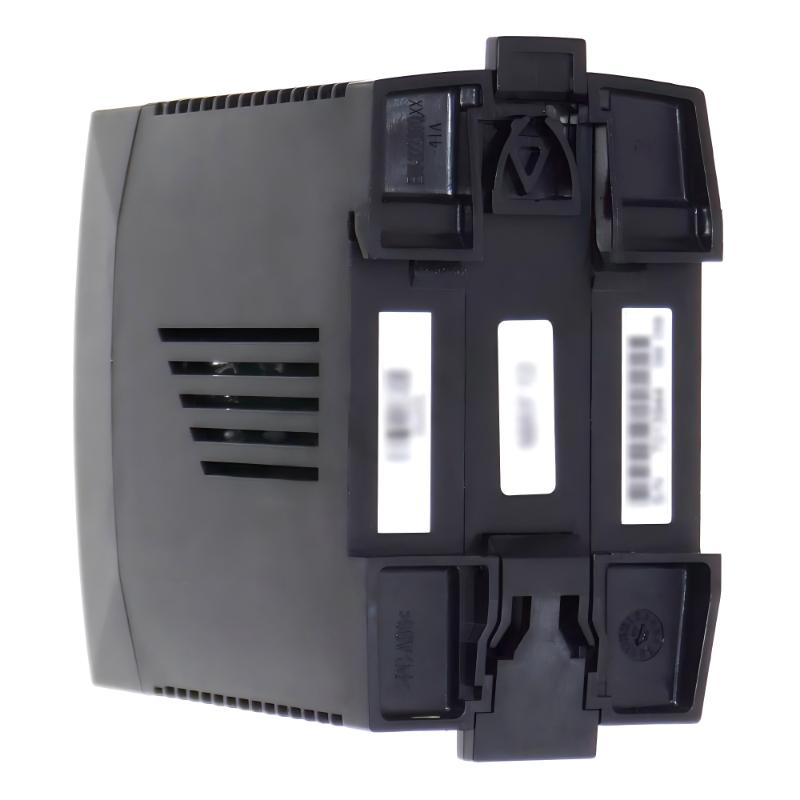

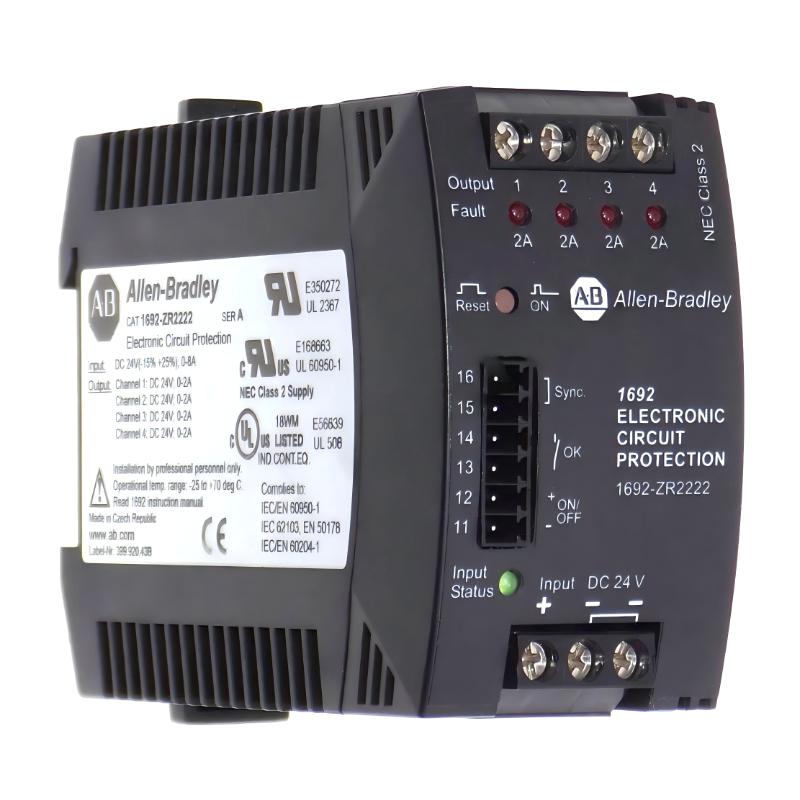

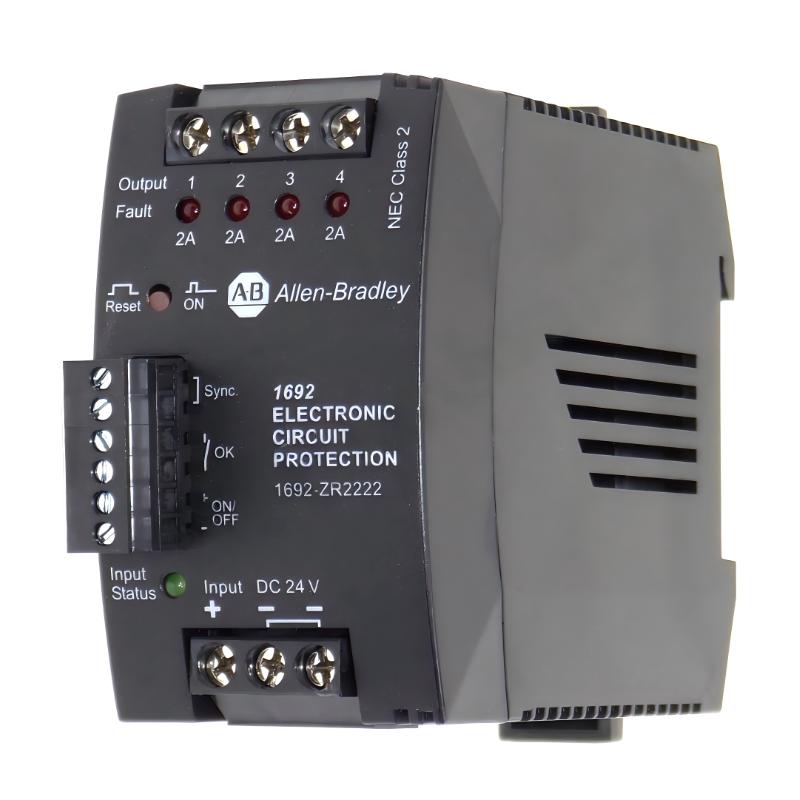

The Allen-Bradley 1692-ZR2222 Electronic Circuit Protection Module is a compact industrial protection device designed to provide reliable electronic protection for 24 V DC control circuits and automation systems. It is engineered to monitor and protect connected loads against overloads and short circuits while improving system reliability and reducing downtime in industrial environments.
As part of the Allen-Bradley 1692 electronic circuit protection series, the 1692-ZR2222 offers fast and selective protection for sensitive electronic equipment, distributed control systems, and industrial automation applications. Its compact DIN rail design makes it suitable for modern control cabinets where efficient space utilization and dependable circuit protection are essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1692-ZR2222 |
| Product Type | Electronic Circuit Protection Module |
| Function | Electronic overload and short-circuit protection |
| Input Voltage | 24 V DC |
| Output Channels | 4 Channels |
| Channel Current Rating | 2 A per channel |
| Mounting Type | DIN rail mounting |
| Protection Type | Electronic current limiting |
| Control Features | Channel monitoring and reset |
| Width | 45 mm |
| Dimensions | 104 × 45 × 75 mm |
| Weight | 0.12 kg |
| Operating Temperature | -25°C to +70°C |
| Operating Environment | Industrial automation systems |
| Reliability | Continuous-duty industrial operation |
Function and Working Principle
The 1692-ZR2222 Electronic Circuit Protection Module continuously monitors current flow in connected DC control circuits. When overload or short-circuit conditions occur, the module quickly disconnects the affected output channel while maintaining operation of the remaining circuits.
Unlike traditional mechanical breakers, the module uses electronic current limiting technology to provide faster and more precise protection for sensitive industrial equipment.
This enables:
Reliable overload protection
Fast short-circuit isolation
Selective fault protection for individual circuits
Reduced system downtime
Improved protection for sensitive electronic devices
Its intelligent electronic protection capability helps maintain stable operation in industrial automation systems.
Role in Industrial Control Systems
The 1692-ZR2222 plays an important role in industrial automation and control applications, supporting:
24 V DC control circuit protection
PLC and automation system protection
Distributed control architectures
Industrial monitoring systems
Sensor and actuator protection
Power distribution management
It helps improve operational reliability and simplifies troubleshooting in industrial control environments.
Industrial Applications
The Allen-Bradley 1692-ZR2222 is widely used in:
Industrial automation systems
PLC control panels
Manufacturing production lines
Packaging machinery
Process control systems
Distributed I/O systems
Industrial sensor and actuator networks
It is especially suitable for applications requiring selective electronic circuit protection for low-voltage DC systems.
Installation and System Integration
Proper installation ensures reliable protection performance:
Mounted on DIN rail inside industrial control cabinets
Integrated with 24 V DC power supply systems
Connected to PLC and automation equipment
Requires proper grounding and wiring practices
Should follow industrial electrical installation standards
Correct installation improves operational reliability and simplifies system maintenance.
Compatible System Components
The 1692-ZR2222 typically works alongside:
Allen-Bradley PLC systems
24 V DC power supplies
Industrial sensors and actuators
Distributed I/O modules
Industrial communication systems
Automation control panels
These components together form a complete industrial control and protection solution.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1692-ZR1111 | Electronic Protection Module | Lower channel configuration | Small control systems |
| 1692-ZG Series | Circuit Protection Module | Expanded protection features | Automation systems |
| Electronic Circuit Breakers | DC Protection Device | Selective fault isolation | Industrial control |
| DIN Rail Protection Modules | Electronic Protection Unit | Compact installation | Control cabinets |
| Industrial DC Protection Systems | Power Protection Device | Advanced monitoring | Automation networks |
Key Advantages
Fast electronic overload protection
Selective channel fault isolation
Compact DIN rail design
Improved protection for sensitive equipment
Reduced industrial system downtime
Suitable for demanding automation environments
Technical FAQs
What is the primary function of the 1692-ZR2222?
It provides electronic overload and short-circuit protection for 24 V DC industrial control circuits.
Where is this protection module commonly used?
It is commonly used in PLC systems, industrial automation panels, and distributed control systems.
Why is electronic circuit protection important in automation systems?
It improves protection accuracy, reduces downtime, and helps maintain stable operation of sensitive industrial equipment.
Conclusion
The Allen-Bradley 1692-ZR2222 Electronic Circuit Protection Module is a reliable and compact industrial protection solution designed for 24 V DC automation systems. Its fast electronic protection capability, selective fault isolation, and durable industrial construction make it suitable for demanding control applications.
For engineers and maintenance professionals, it provides an effective way to improve system reliability, protect sensitive electronic equipment, and maintain stable industrial automation operation.
