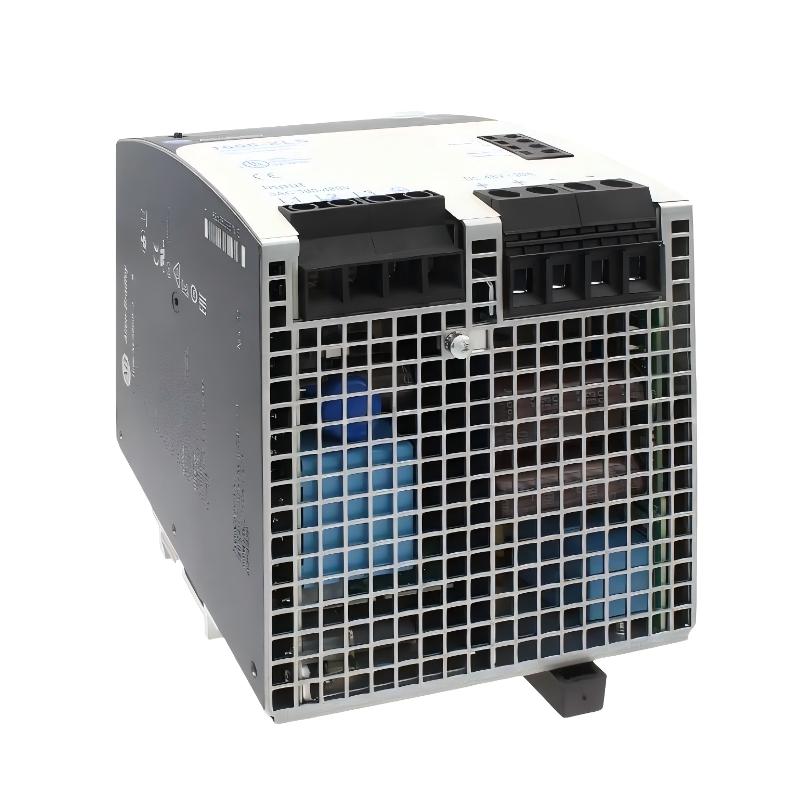

Allen Bradley 1606-XLS960E-3/A Power Supply — Detailed Technical Overview
1. Product Overview
The Allen Bradley 1606-XLS960E-3/A is a high-capacity switched-mode power supply designed for demanding industrial applications that require stable 24V DC output and three-phase input operation. The “/A” suffix indicates a revision within the same product platform, typically involving minor engineering or compliance updates without altering core functionality.
With a rated output of 960W and 40A, this unit is positioned in the upper range of industrial DIN rail power supplies. It is particularly suitable for large control panels, distributed automation systems, and applications where multiple loads must be powered reliably from a single unit.
The design emphasizes high efficiency, robust performance, and compact installation, making it well-suited for continuous operation in industrial environments.
2. Brand Information
Brand: Allen Bradley
This brand is widely used in industrial automation and is recognized for producing durable and high-performance power supply solutions compatible with complex control systems.
3. Series Information
Series: 1606 Switched Mode Power Supplies — XLS Series
The XLS series is a performance-class product family engineered for applications requiring higher efficiency, reliability, and advanced monitoring capabilities.
Key series characteristics include:
- High efficiency up to approximately 95%
- Power reserve capability up to 150%
- Integrated DC-OK relay for diagnostics
- Compact DIN rail mounting design
- Support for single-phase, three-phase, and DC input variants
The 960W models represent the high-power end of the XLS series, intended for large-scale industrial systems.
4. Technical Parameters
Main Specifications Table
| Parameter | Value |
|---|---|
| Model | 1606-XLS960E-3/A |
| Output Voltage | 24–28 V DC |
| Rated Output Voltage | 24 V DC |
| Output Current | 40 A |
| Output Power | 960 W |
| Input Voltage | 380–480 VAC (3-phase) / 450–780 V DC |
| Input Frequency | 47–63 Hz |
| Efficiency | ~95% |
| Power Factor | ~0.88–0.94 |
| Power Reserve | Up to 60 A (short duration) |
| Hold-up Time | ~20 ms |
| Ripple & Noise | ≤50–80 mV |
| Protection Rating | IP20 |
| Mounting Type | DIN Rail |
| Connection Type | Spring Clamp Terminal |
| Operating Temperature | -25°C to +70°C |
| Dimensions (W×H×D) | 110–120 × 124 × 127 mm |
| Weight (kg) | 1.50–1.90 |
5. Product Features
The 1606-XLS960E-3/A is designed to support high-load industrial systems with stable and efficient power delivery.
- Adjustable output voltage within 24–28V DC range
- Three-phase input for improved stability and efficiency
- Integrated DC-OK relay for output monitoring
- High efficiency design reducing heat generation
- Power boost capability up to 150% for handling peak loads
- Passive cooling (fanless design) for increased reliability
- Compact housing relative to output capacity
- Low ripple output suitable for precision equipment
- Built-in protections including overload, short circuit, and thermal shutdown
These features ensure long-term reliability and stable performance in demanding environments.
6. Product Applications
This model is widely used in industrial systems with high power requirements.
Typical applications include:
- Large PLC and distributed control systems
- Industrial automation production lines
- Robotics and motion control systems
- Process industries such as energy and chemical plants
- Conveyor systems and material handling equipment
- Industrial communication and network infrastructure
It is especially suitable for systems requiring high output power and three-phase input stability.
7. Product Advantages
High Power Capacity
Provides 960W output, supporting multiple devices and large systems.
Efficient Three-Phase Operation
Improves energy efficiency and reduces input current load.
Strong Power Reserve
Handles temporary overload conditions without system interruption.
Reliable Continuous Operation
Designed for industrial environments with long operating cycles.
Space Optimization
Compact design relative to power output helps reduce panel size.
8. Recommended Models — Same Series / Related Series
Table: XLS and Related Models
| Model | Output Voltage | Current | Power | Input Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLS120E/A | 24–28 V DC | 5 A | 120 W | 100–240 VAC | 40 × 124 × 117 | 0.62 |
| 1606-XLS240E/A | 24–28 V DC | 10 A | 240 W | 100–240 VAC | 50 × 124 × 117 | 0.95 |
| 1606-XLS480E/A | 24–28 V DC | 20 A | 480 W | 100–240 VAC | 65 × 124 × 127 | 1.15 |
| 1606-XLS480E-3/A | 24–28 V DC | 20 A | 480 W | 380–480 VAC | 65 × 124 × 127 | 1.10 |
| 1606-XLS960E | 24–28 V DC | 40 A | 960 W | 100–240 VAC | 120 × 124 × 124 | 2.00 |
9. Recommended Models — Same Brand Popular Models
Table: Popular Industrial Power Supply Models
| Model | Output Voltage | Current | Power | Input Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLP30B/A | 12 V DC | 3 A | 30 W | 100–240 VAC | 45 × 75 × 91 | 0.28 |
| 1606-XLP72E | 24 V DC | 3 A | 72 W | 100–240 VAC | 45 × 75 × 91 | 0.30 |
| 1606-XLB240E | 24 V DC | 10 A | 240 W | 85–264 VAC | 49 × 124 × 124 | 0.56 |
| 1606-XLE480EP | 24–28 V DC | 20 A | 480 W | 100–240 VAC | 60 × 124 × 117 | 1.10 |
| 1606-XLBUFFER | 24 V DC | — | Buffer Module | 24–28 V DC | 64 × 124 × 117 | 0.80 |
