Allen Bradley 1606-XLS480EE Full Technical Overview
1. Product Introduction

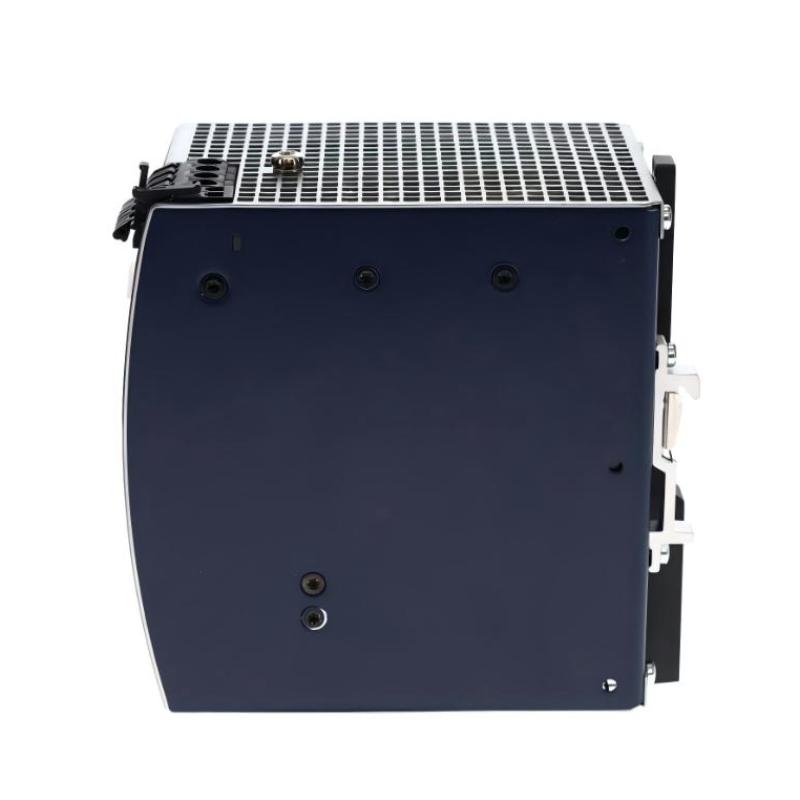

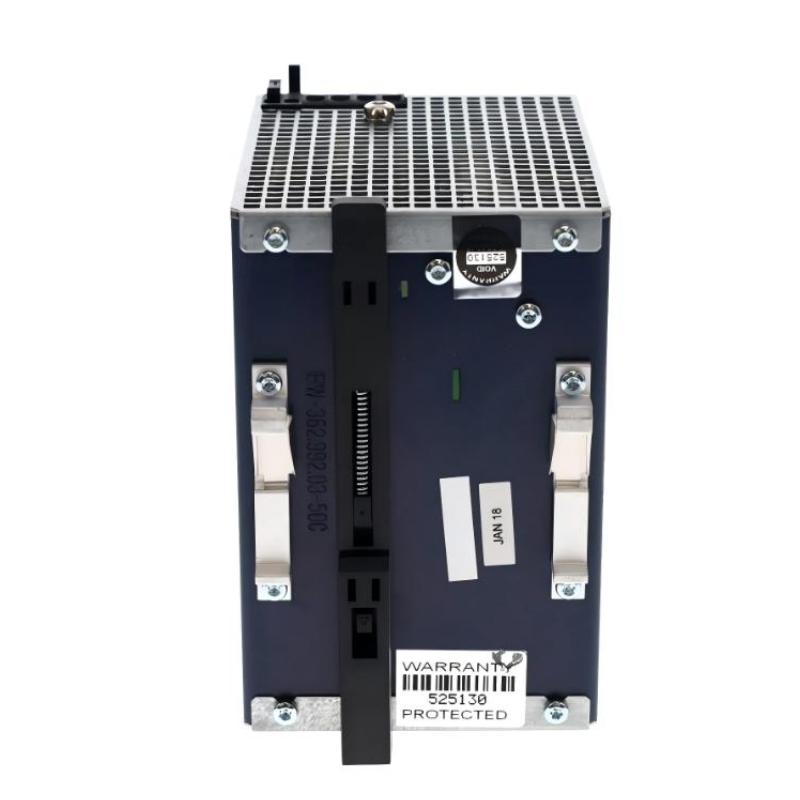

The model 1606-XLS480EE is a high-performance industrial DIN rail switching power supply designed to provide a stable and adjustable 24–28V DC output with a rated power of 480W. It is engineered for industrial automation systems that require reliable and continuous DC power under stable high-voltage input conditions.
This unit belongs to the 1606-XLS series, which is positioned as a performance-level product line within the 1606 family. The “EE” designation typically refers to a version optimized for 200–240V AC input, making it suitable for installations where a narrower, higher input voltage range is preferred.
The 1606-XLS480EE is widely applied in industrial control environments where consistent performance, strong load handling, and long-term durability are essential.
2. Brand and Series
- Brand: Allen Bradley
- Series: 1606-XLS Series (Performance Line – High Voltage Input Variant)
- Category: Industrial Switching Power Supply
- Mounting Type: DIN Rail
The XLS series focuses on high efficiency, advanced power reserve capabilities, and stable output for demanding industrial applications.
3. Technical Specifications
Main Parameters Table
| Parameter | Specification |
|---|---|
| Model | 1606-XLS480EE |
| Output Voltage | 24–28V DC (adjustable) |
| Output Current | 20 A |
| Rated Power | 480 W |
| Input Voltage (AC) | 200–240V AC |
| Input Voltage (DC) | 220–300V DC |
| Input Frequency | 47–63 Hz |
| Efficiency | approx. 93–94% |
| Power Factor | approx. 0.85–0.95 |
| Hold-up Time | 30–50 ms |
| Inrush Current | up to 35–40 A |
| Output Ripple | <100 mVpp |
| Power Boost | up to 150% (short duration) |
| Reserve Power | supports peak load conditions |
| Parallel Operation | Supported |
| Protection Functions | Overload, overvoltage, short circuit |
| Signal Output | DC OK relay contact |
| Cooling Method | Natural convection (fanless) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Mounting | DIN rail |
| Connection Type | Spring clamp terminals |
| Dimensions (mm) | approx. 70 × 124 × 127 |
| Weight (kg) | approx. 1.20–1.35 kg |
4. Product Features
The 1606-XLS480EE incorporates robust industrial design features:
- Optimized for 200–240V AC input systems
- Adjustable output voltage to meet different load requirements
- High efficiency reduces heat generation and improves energy usage
- Power boost capability supports high startup and dynamic loads
- Parallel operation enables system expansion and redundancy
- Integrated DC OK relay for system diagnostics and monitoring
- Compact design relative to power capacity
- Fanless cooling ensures quiet and reliable operation
- Stable output even under fluctuating load conditions
These features contribute to reliable and efficient operation in industrial systems.
5. Application Areas
The 1606-XLS480EE is widely used in various industrial sectors:
- Automation systems and PLC control panels
- Industrial machinery and production lines
- Robotics and motion control applications
- Conveyor and material handling systems
- Packaging and processing equipment
- Distributed control and monitoring systems
It is particularly suitable for installations where 200–240V AC input is standard and stable operation is required.
6. Product Advantages
1. Optimized Input Design
Tailored for high-voltage AC input, improving operational stability.
2. High Output Capability
Provides 480W power, supporting medium-to-high load applications.
3. Strong Overload Performance
Handles up to 150% load for short durations, ensuring reliability during startup.
4. Energy Efficiency
High efficiency reduces energy consumption and thermal stress.
5. Flexible System Integration
Parallel operation allows scalable and redundant system configurations.
7. Recommended Models (Same Series / Related Series)
Comparison Table – Same or Related Series

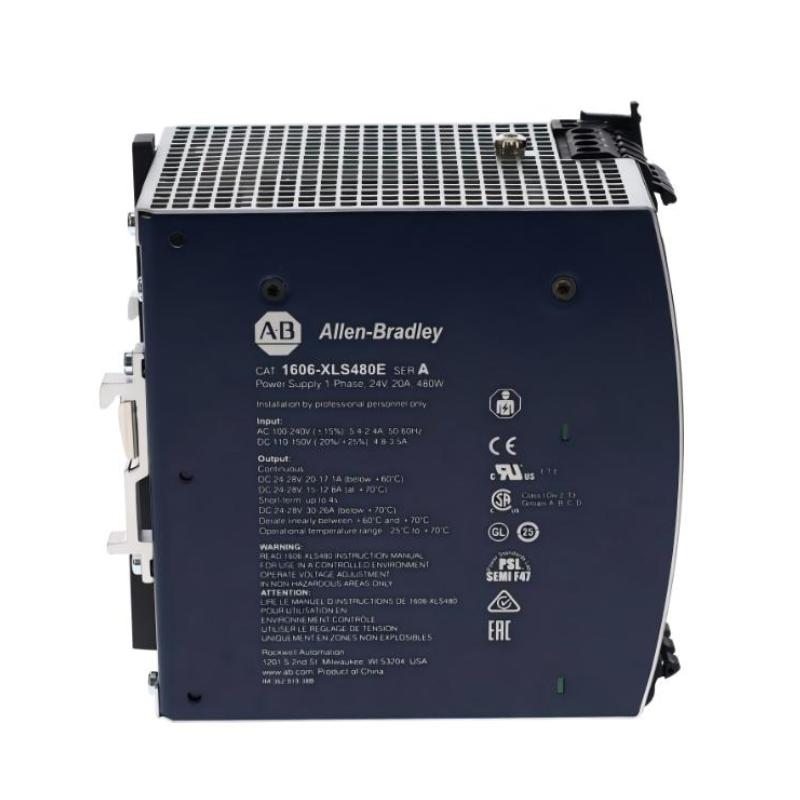

| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLS120E | 24–28V / 5A | 120W | 100–240VAC | ~92% | 40×124×117 | 0.62 |
| 1606-XLS240E | 24–28V / 10A | 240W | 100–240VAC | ~94% | 60×124×127 | 0.90 |
| 1606-XLS480E | 24–28V / 20A | 480W | 100–240VAC | ~94% | 84×124×127 | 1.25 |
| 1606-XLS480EE | 24–28V / 20A | 480W | 200–240VAC | ~94% | 70×124×127 | 1.30 |
| 1606-XLS960E | 24–28V / 40A | 960W | 100–240VAC | ~95% | 120×124×130 | 2.50 |
8. Recommended Popular Models (Same Brand)
Comparison Table – Popular Models
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLE240E | 24–28V / 10A | 240W | 100–240VAC | ~91% | 60×124×117 | 0.70 |
| 1606-XLE480E | 24V / 20A | 480W | 100–240VAC | ~92% | 85×124×130 | 1.30 |
| 1606-XLP100E | 24V / 4.2A | 100W | 100–240VAC | ~91% | 75×73×103 | 0.45 |
| 1606-XLS120E | 24–28V / 5A | 120W | 100–240VAC | ~92% | 40×124×117 | 0.62 |
| 1606-XL480EP | 24–28V / 20A | 480W | 100–240VAC | ~93% | 124×60×125 | 1.80 |
