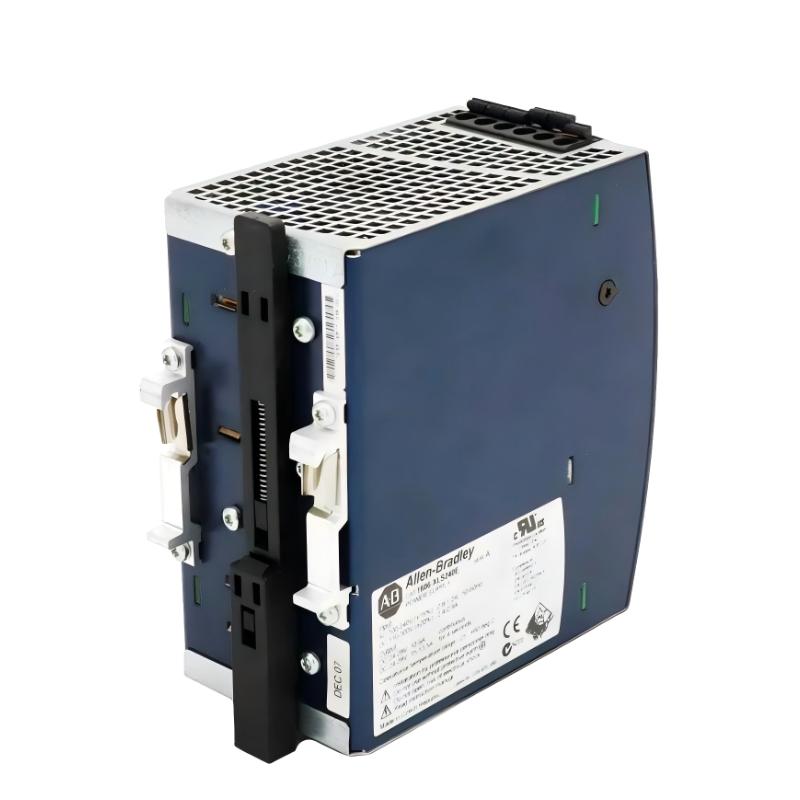

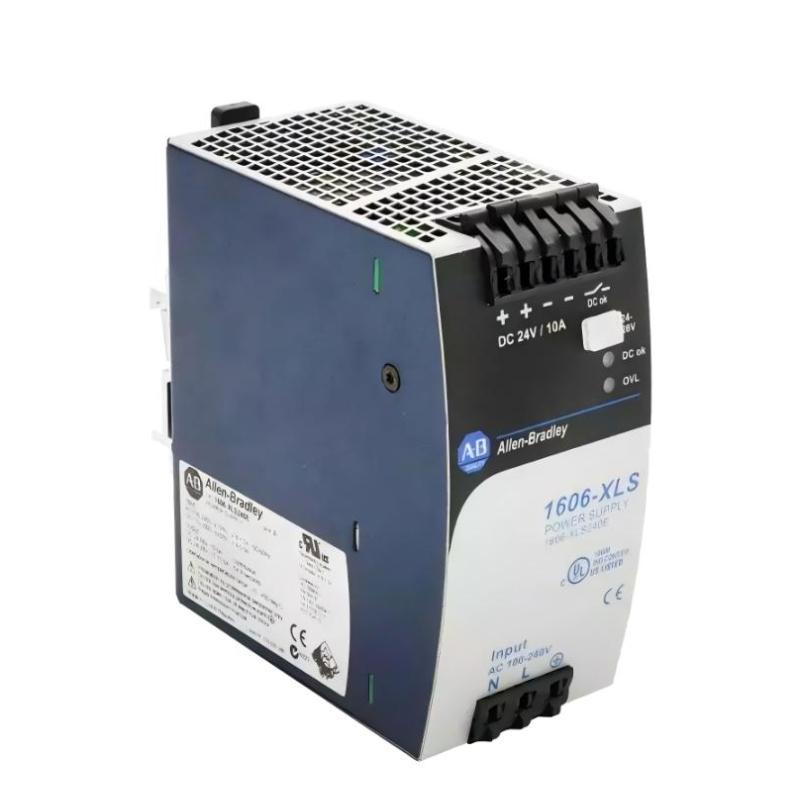

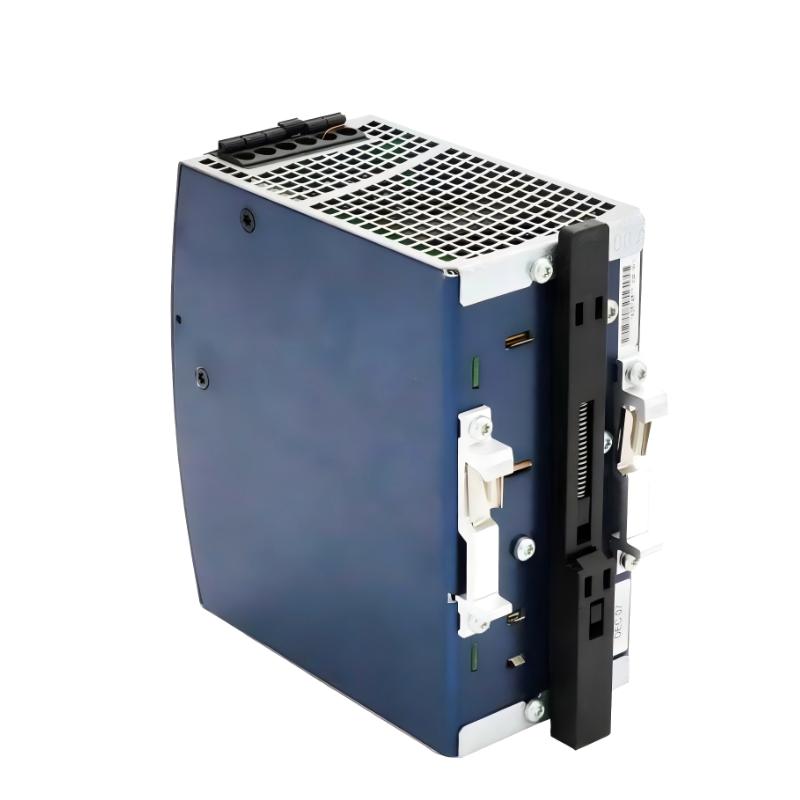

Allen Bradley 1606-XLS240EA Power Supply — Detailed Technical Overview
1. Product Overview
The Allen Bradley 1606-XLS240EA is a performance-class switched-mode power supply designed to provide stable 24V DC output for medium-load industrial automation systems. The “EA” designation indicates a specific revision or regional variant within the same product family, while maintaining identical electrical performance and core functionality.
This model delivers 240W output with a nominal current of 10A, making it suitable for powering PLC systems, I/O modules, and industrial communication equipment. It is built for continuous operation and includes advanced features such as power reserve capability and diagnostic signaling, ensuring reliable performance in demanding environments.
2. Brand Information
Brand: Allen Bradley
This brand is widely recognized in industrial automation. Its products are commonly used in control systems due to their durability, consistency, and compatibility with industrial standards.
3. Series Information
Series: 1606 Switched Mode Power Supplies — XLS Series
The XLS series is a high-performance product line within the 1606 family, designed for applications requiring enhanced reliability and monitoring capability.
Key characteristics include:
- High efficiency and reduced energy losses
- Integrated DC-OK relay for output status monitoring
- Power reserve capability up to 150% for short durations
- Wide input voltage range (AC/DC compatibility)
- Compact design with high power density
This series is typically used in critical automation systems where stable and monitored power is essential.
4. Technical Parameters
Main Specifications Table
| Parameter | Value |
|---|---|
| Model | 1606-XLS240EA |
| Output Voltage | 24–28 V DC |
| Rated Output Voltage | 24 V DC |
| Output Current | 10 A |
| Output Power | 240 W |
| Input Voltage | 100–240 VAC / 110–150 V DC |
| Input Frequency | 47–63 Hz |
| Efficiency | ~93–95% |
| Power Factor | ~0.92 |
| Power Reserve | Up to 150% (approx. 4 s) |
| Hold-up Time | ~27–40 ms |
| Ripple & Noise | ≤50 mV |
| Protection Rating | IP20 |
| Mounting Type | DIN Rail |
| Connection Type | Spring Clamp Terminal |
| Operating Temperature | -25°C to +70°C |
| Dimensions (W×H×D) | 60 × 124 × 117 mm |
| Weight (kg) | 0.90 |
Technical data aligned with XLS240E platform specifications
5. Product Features
The 1606-XLS240EA is designed for high reliability and performance in industrial environments.
- Adjustable output voltage (24–28V DC)
- Integrated DC-OK relay for real-time monitoring
- Active power factor correction (PFC)
- Power boost capability for startup loads
- High efficiency with reduced heat generation
- Low ripple output for sensitive electronics
- Passive cooling without internal fans
- Comprehensive protection: overload, short circuit, thermal
These features enable stable operation even in fluctuating load conditions.
6. Product Applications
This model is widely used in industrial automation systems requiring stable and continuous DC power.
Typical applications include:
- PLC and distributed control systems
- Industrial control cabinets
- Robotics and motion control systems
- Process automation equipment
- Communication and networking devices
- Conveyor and packaging systems
It is particularly suitable for applications requiring medium power with high reliability and monitoring capability.
7. Product Advantages
High Reliability
Engineered for continuous industrial operation with stable output performance.
Power Reserve Capability
Handles temporary overload conditions without voltage drop.
Advanced Monitoring
DC-OK relay enables easy integration into system diagnostics.
High Efficiency
Reduces energy consumption and improves thermal performance.
Flexible Input Range
Supports both AC and DC input for global applications.
8. Recommended Models — Same Series / Related Series
Table: XLS and Related Models
| Model | Output Voltage | Current | Power | Input Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLS120E/A | 24–28 V DC | 5 A | 120 W | 100–240 VAC | 40 × 124 × 117 | 0.62 |
| 1606-XLS480E/A | 24–28 V DC | 20 A | 480 W | 100–240 VAC | 80 × 124 × 124 | 1.20 |
| 1606-XLS960E/A | 24–28 V DC | 40 A | 960 W | 100–240 VAC | 120 × 124 × 124 | 2.00 |
| 1606-XLE240E | 24 V DC | 10 A | 240 W | 100–240 VAC | 60 × 124 × 124 | 0.70 |
| 1606-XLB240E | 24 V DC | 10 A | 240 W | 85–264 VAC | 49 × 124 × 124 | 0.56 |
9. Recommended Models — Same Brand Popular Models
Table: Popular Industrial Power Supply Models
| Model | Output Voltage | Current | Power | Input Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLP30B | 12 V DC | 3 A | 30 W | 100–240 VAC | 45 × 75 × 91 | 0.28 |
| 1606-XLP72E | 24 V DC | 3 A | 72 W | 100–240 VAC | 45 × 75 × 91 | 0.30 |
| 1606-XLB120E | 24 V DC | 5 A | 120 W | 85–264 VAC | 39 × 124 × 124 | 0.37 |
| 1606-XLE480EP | 24–28 V DC | 20 A | 480 W | 100–240 VAC | 60 × 124 × 117 | 1.10 |
| 1606-XLBUFFER | 24 V DC | — | 480 W | 24–28 V DC | 64 × 124 × 117 | 0.80 |
