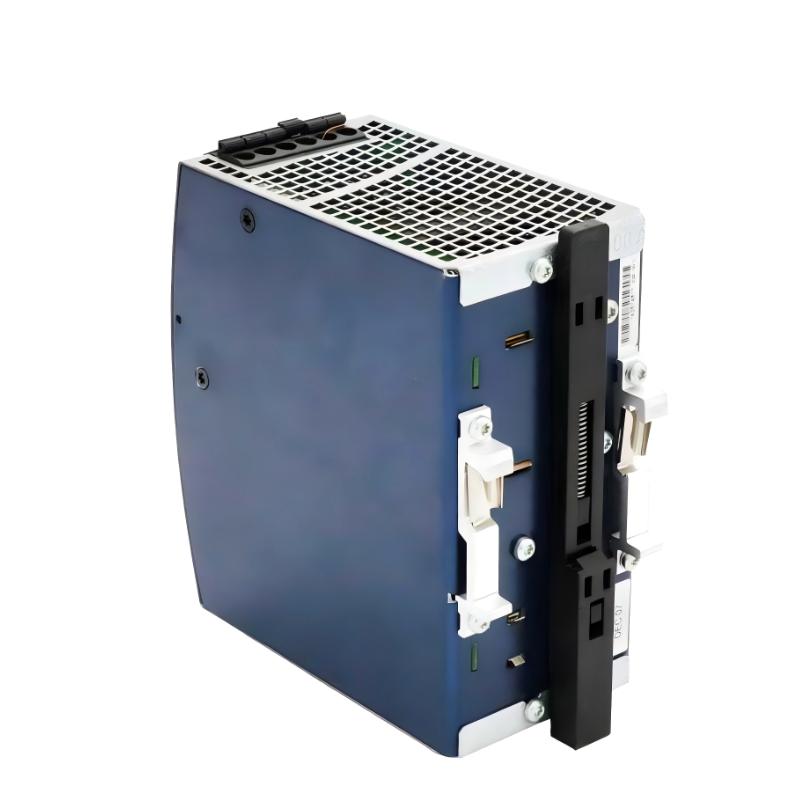

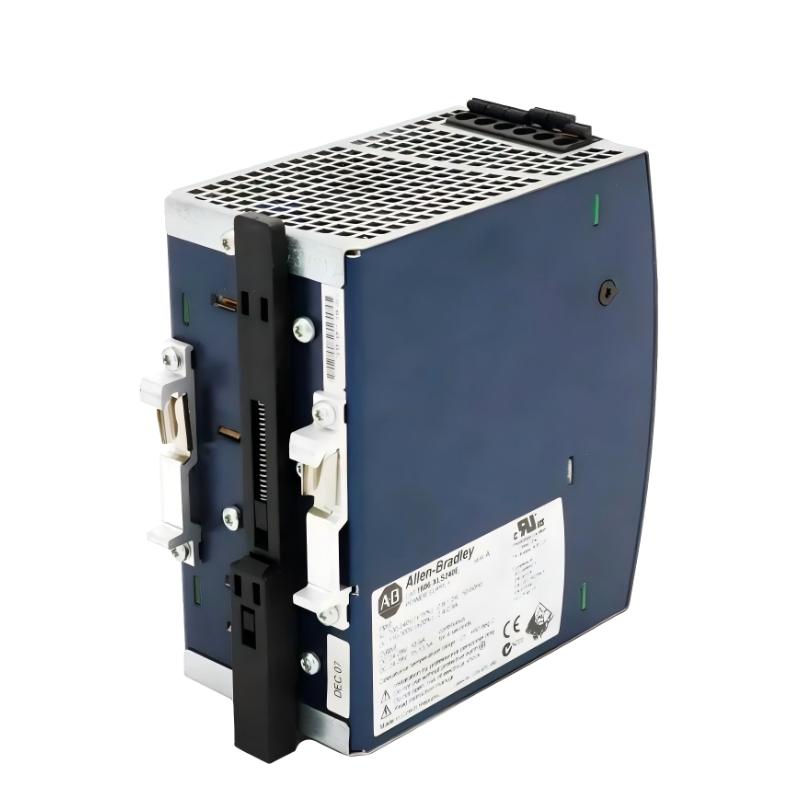

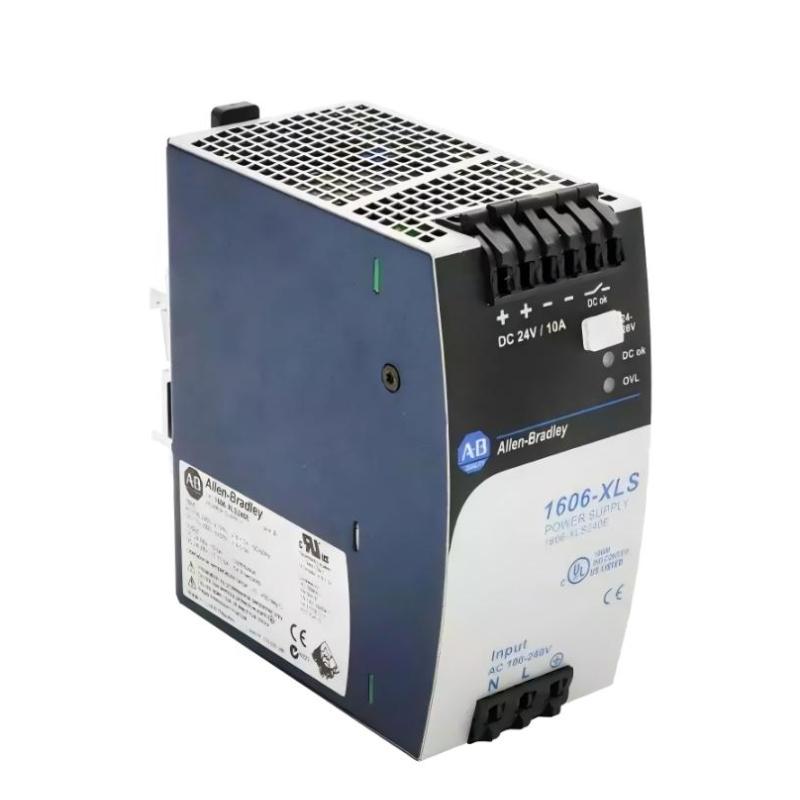

Allen Bradley 1606-XLS240E/A Power Supply — Detailed Technical Overview
1. Product Overview
The Allen Bradley 1606-XLS240E/A is a performance-class switched-mode power supply designed to provide stable 24V DC output for industrial automation systems with medium power demand. The “/A” designation represents a revision version, while the electrical and mechanical characteristics remain consistent with the core model.
With a rated output power of 240W and output current of 10A, this unit is suitable for powering PLC systems, distributed I/O, industrial communication devices, and control panels. It is designed for continuous operation and includes enhanced features such as diagnostic signaling and power reserve capability, making it suitable for more demanding environments compared to entry-level models.
2. Brand Information
Brand: Allen Bradley
This brand is widely used in industrial automation environments and is known for producing reliable electrical components that integrate seamlessly into control systems and industrial infrastructures.
3. Series Information
Series: 1606 Switched Mode Power Supplies — XLS Series
The XLS series is positioned as a high-performance product family, offering improved reliability, diagnostics, and electrical performance compared to XLP, XLB, and XLE series.
Key characteristics include:
- High efficiency and reduced energy loss
- Integrated DC-OK relay for output monitoring
- Power reserve capability for handling peak loads
- Wide AC and DC input voltage range
- Long service life and high reliability
This series is typically used in critical automation systems where stable power and monitoring are required.
4. Technical Parameters
Main Specifications Table
| Parameter | Value |
|---|---|
| Model | 1606-XLS240E/A |
| Output Voltage | 24–28 V DC |
| Rated Output Voltage | 24 V DC |
| Output Current | 10 A |
| Output Power | 240 W |
| Input Voltage | 100–240 VAC / 88–360 V DC |
| Input Frequency | 47–63 Hz |
| Efficiency | ~93–94% |
| Power Factor | ~0.94 |
| Power Reserve | Up to 150% (short duration) |
| Hold-up Time | ~35–60 ms |
| Ripple & Noise | ≤50 mV |
| Protection Rating | IP20 |
| Mounting Type | DIN Rail |
| Connection Type | Spring Clamp Terminal |
| Operating Temperature | -25°C to +70°C |
| Dimensions (W×H×D) | 50 × 124 × 117 mm |
| Weight (kg) | 0.95 |
5. Product Features
The 1606-XLS240E/A is designed for robust and reliable operation in demanding industrial environments.
- Adjustable output voltage within the 24–28V DC range
- Integrated DC-OK relay contact for system monitoring
- High efficiency operation with low thermal loss
- Power boost capability to handle startup currents
- Active power factor correction for improved input performance
- Low ripple output suitable for sensitive electronics
- Passive cooling design without fans
- Built-in protection against overload, short circuit, and overtemperature
These features allow the power supply to maintain stable output even under fluctuating load conditions.
6. Product Applications
This model is widely used in industrial automation systems requiring reliable and continuous DC power.
Typical applications include:
- PLC and distributed control systems
- Industrial control panels and cabinets
- Robotics and motion control systems
- Process automation equipment
- Industrial communication and networking devices
- Packaging and assembly lines
It is particularly suitable for systems requiring medium power with high reliability and monitoring capability.
7. Product Advantages
High Reliability
Designed for continuous industrial operation with stable performance over long periods.
Power Reserve Capability
Supports short-term overload conditions without voltage drop.
Advanced Monitoring
DC-OK relay allows integration into system diagnostics for real-time status feedback.
Energy Efficient
High efficiency reduces heat generation and energy consumption.
Flexible Input Range
Supports both AC and DC input, making it suitable for global applications.
8. Recommended Models — Same Series / Related Series
Table: XLS and Related Models
| Model | Output Voltage | Current | Power | Input Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLS120E/A | 24–28 V DC | 5 A | 120 W | 100–240 VAC | 40 × 124 × 117 | 0.62 |
| 1606-XLS480E/A | 24–28 V DC | 20 A | 480 W | 100–240 VAC | 80 × 124 × 124 | 1.20 |
| 1606-XLS960E/A | 24–28 V DC | 40 A | 960 W | 100–240 VAC | 120 × 124 × 124 | 2.00 |
| 1606-XLE240E/A | 24 V DC | 10 A | 240 W | 100–240 VAC | 60 × 124 × 124 | 0.70 |
| 1606-XLB240E/A | 24 V DC | 10 A | 240 W | 85–264 VAC | 49 × 124 × 124 | 0.56 |
9. Recommended Models — Same Brand Popular Models
Table: Popular Industrial Power Supply Models
| Model | Output Voltage | Current | Power | Input Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLP30B/A | 12 V DC | 3 A | 30 W | 100–240 VAC | 45 × 75 × 91 | 0.28 |
| 1606-XLP72E | 24 V DC | 3 A | 72 W | 100–240 VAC | 45 × 75 × 91 | 0.30 |
| 1606-XLB120E | 24 V DC | 5 A | 120 W | 85–264 VAC | 39 × 124 × 124 | 0.37 |
| 1606-XLE480EP | 24–28 V DC | 20 A | 480 W | 100–240 VAC | 60 × 124 × 117 | 1.10 |
| 1606-XLBUFFER | 24 V DC | — | 480 W | 24–28 V DC | 64 × 124 × 117 | 0.80 |
