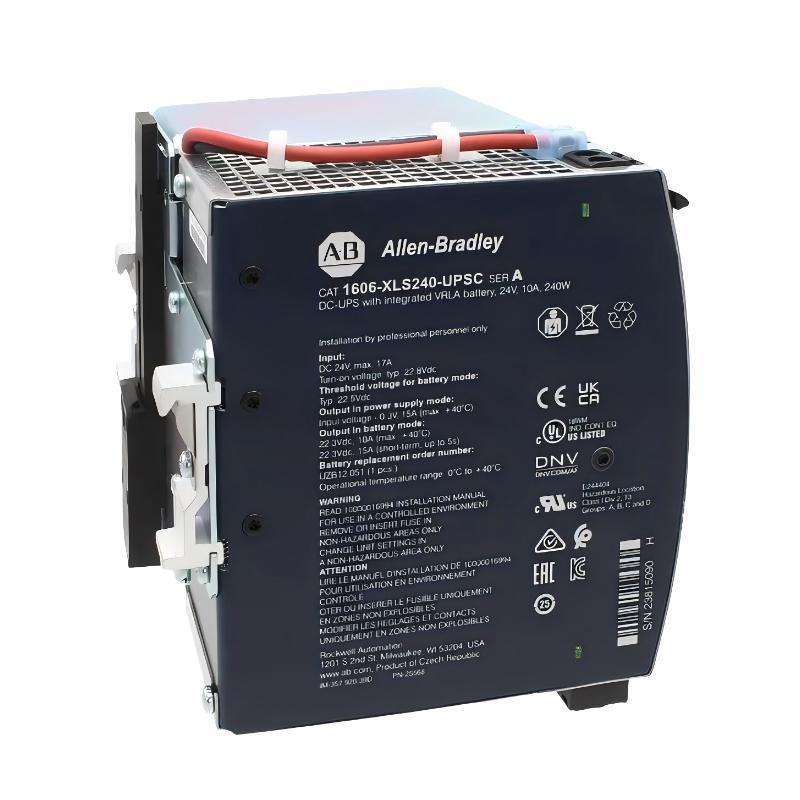

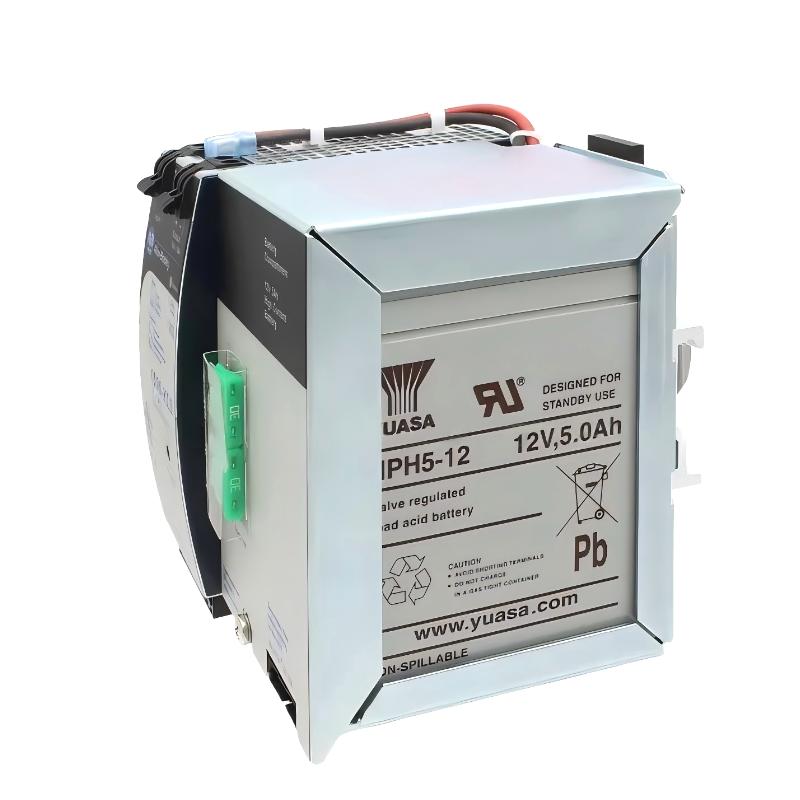

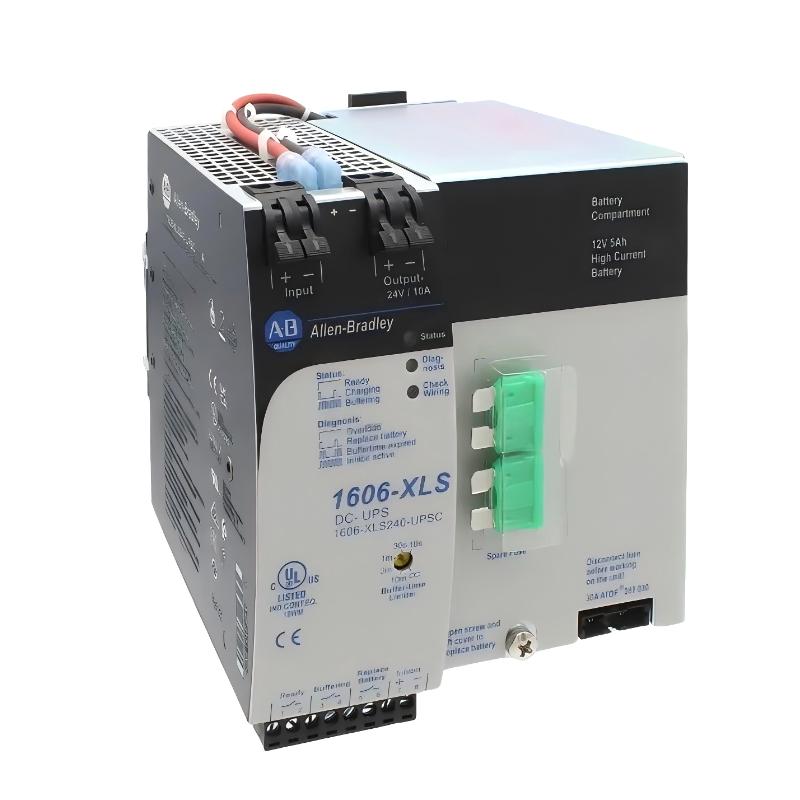

Allen Bradley 1606-XLS240-UPSC Full Technical Overview
1. Product Introduction
The model 1606-XLS240-UPSC is an advanced industrial DC UPS control module designed to work together with external power supplies and battery modules to ensure uninterrupted 24V DC output. With a rated capacity aligned to 240W systems (10A range), this unit acts as the intelligent control core of a DC UPS system rather than a standalone power supply.
Unlike standard UPS modules, the “UPSC” version emphasizes enhanced control, communication, and battery management functions. It is designed to monitor system status, manage charging cycles, and coordinate seamless transitions between normal operation and backup mode.
As part of the 1606-XLS performance series, this module is built for high-reliability industrial environments where power continuity is critical to avoid downtime, data loss, or operational risk.
2. Brand and Series
- Brand: Allen Bradley
- Series: 1606-XLS Series (Performance Line – UPS Control Module)
- Category: DC UPS Controller / Buffer Module
- Mounting Type: DIN Rail
The XLS series is known for combining high efficiency with advanced features such as redundancy, buffering, and UPS integration.
3. Technical Specifications
Main Parameters Table
| Parameter | Specification |
|---|---|
| Model | 1606-XLS240-UPSC |
| Function | UPS Controller Module |
| Nominal System Voltage | 24V DC |
| Output Voltage Range | 22.5–30V DC |
| Output Current | up to 10 A |
| Rated Power | 240 W (system dependent) |
| Input Voltage | 24V DC (from external power supply) |
| Battery Compatibility | External 24V battery modules |
| Efficiency | approx. 92–94% |
| Switching Time | 0 ms (seamless transition) |
| Charging Method | Intelligent multi-stage charging |
| Monitoring Interface | Status signals / diagnostics |
| Protection Functions | Overload, deep discharge, reverse polarity |
| Communication | Status outputs (DC OK / battery status) |
| Cooling Method | Natural convection (fanless) |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Mounting | DIN rail |
| Connection Type | Spring clamp terminals |
| Dimensions (mm) | approx. 60 × 124 × 127 |
| Weight (kg) | approx. 1.00–1.10 kg |
4. Product Features
The 1606-XLS240-UPSC is designed for intelligent power continuity management:
- Acts as a central UPS controller for 24V DC systems
- Seamless switching between main power and battery backup
- Advanced battery management with optimized charging cycles
- Real-time monitoring of system and battery status
- High efficiency minimizes energy loss during operation
- Compact DIN rail design for easy integration
- Compatible with multiple power supply configurations
- Built-in diagnostic outputs for system control
These features ensure stable and uninterrupted power delivery in critical systems.
5. Application Areas
The 1606-XLS240-UPSC is widely used in systems requiring continuous operation:
- PLC and automation control systems
- Industrial communication networks
- Data acquisition and processing systems
- Safety and emergency shutdown systems
- Production lines with high uptime requirements
- Critical infrastructure control panels
It is particularly suitable for applications where even short power interruptions are unacceptable.
6. Product Advantages
1. Intelligent UPS Control
Provides advanced monitoring and management of DC backup systems.
2. Seamless Power Transition
Zero switching delay ensures uninterrupted operation.
3. Enhanced Battery Protection
Extends battery life through optimized charging and discharge control.
4. Flexible System Integration
Compatible with various power supplies and battery modules.
5. High System Reliability
Reduces downtime and protects critical industrial processes.
7. Recommended Models (Same Series / Related Series)
Comparison Table – Same or Related Series
| Model | Function | Output | Power | Input Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLS120E | Power Supply | 24–28V / 5A | 120W | 100–240VAC | 40×124×117 | 0.62 |
| 1606-XLS240E | Power Supply | 24–28V / 10A | 240W | 100–240VAC | 60×124×127 | 0.90 |
| 1606-XLS240-UPS | UPS Module | 22.5–30V / 10A | 240W | 24V DC | 60×124×127 | 1.00 |
| 1606-XLS240-UPSC | UPS Controller | 22.5–30V / 10A | 240W | 24V DC | 60×124×127 | 1.05 |
| 1606-XLS480-UPS | UPS Module | 22.5–30V / 20A | 480W | 24V DC | 85×124×130 | 1.60 |
8. Recommended Popular Models (Same Brand)
Comparison Table – Popular Models
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLE240E | 24–28V / 10A | 240W | 100–240VAC | ~91% | 60×124×117 | 0.70 |
| 1606-XLE480E | 24V / 20A | 480W | 100–240VAC | ~92% | 85×124×130 | 1.30 |
| 1606-XLP100E | 24V / 4.2A | 100W | 100–240VAC | ~91% | 75×73×103 | 0.45 |
| 1606-XLS120E | 24–28V / 5A | 120W | 100–240VAC | ~92% | 40×124×117 | 0.62 |
| 1606-XL480E | 24–28V / 20A | 480W | 184–264VAC | ~92% | 124×60×125 | 1.80 |
