- Allen Bradley
- 1606-XLS180B
- Power Supply Module
- USA
- 60 × 124 × 117 mm
- 0.9kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 2
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |

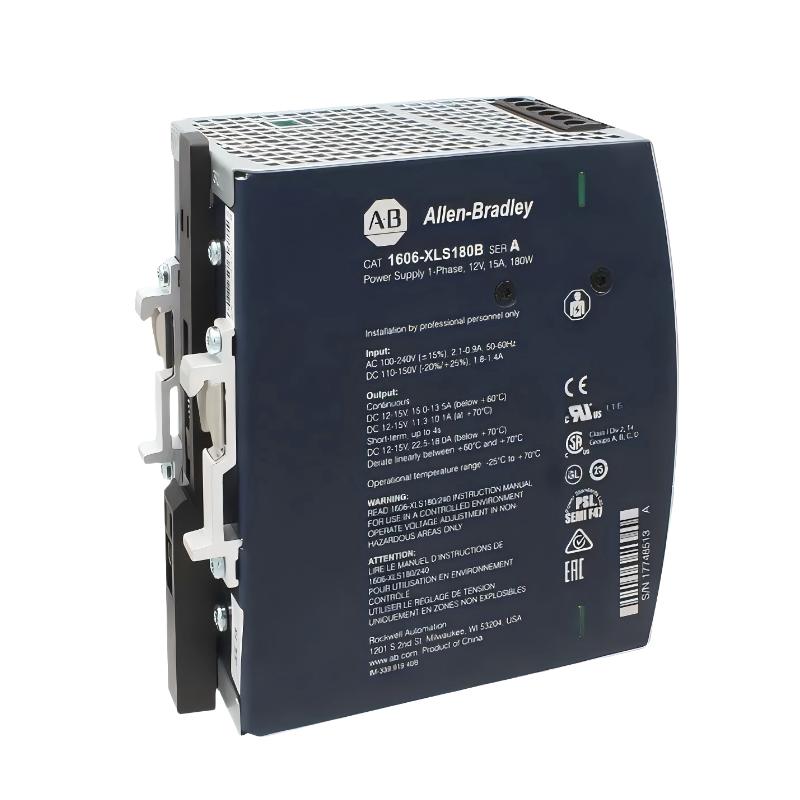

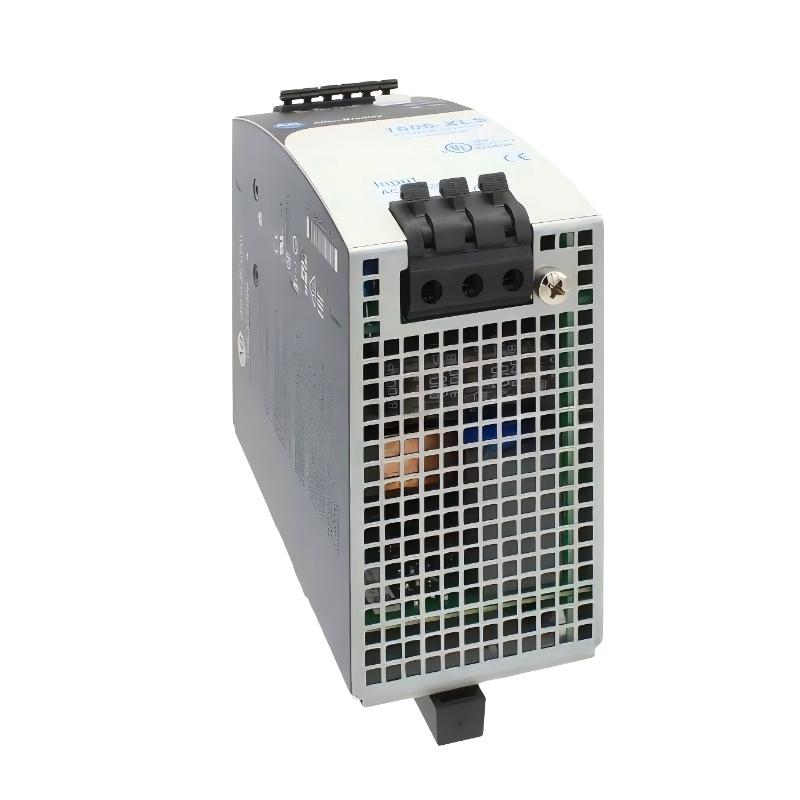

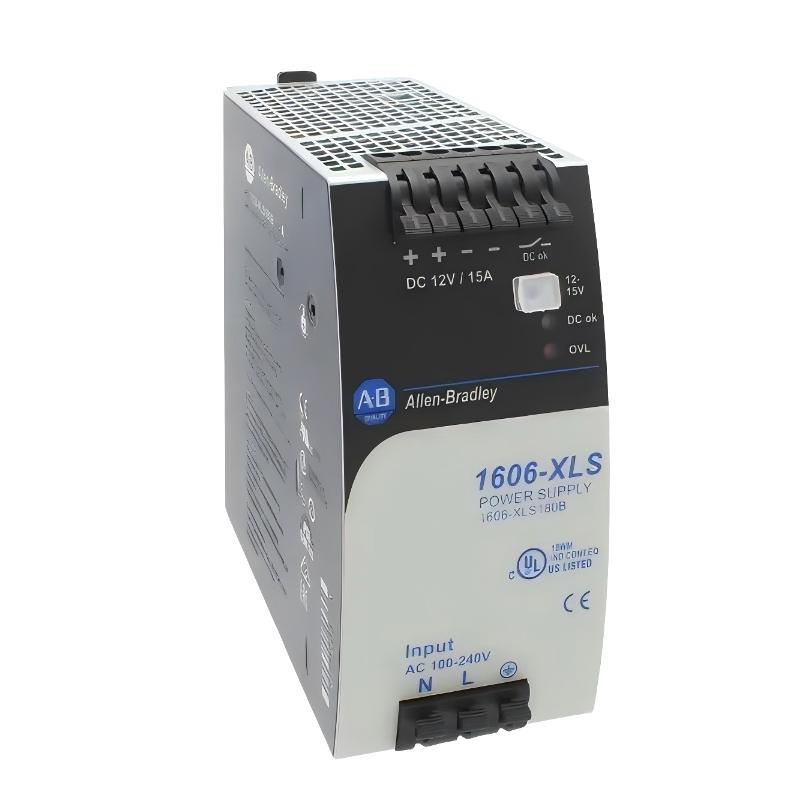

Allen Bradley 1606-XLS180B Full Technical Overview
1. Product Introduction
The model 1606-XLS180B is a high-performance industrial DIN rail switching power supply designed to deliver a stable 12–15V DC output with a rated power of 180W. It is engineered for applications that require lower DC voltage but higher current output, making it suitable for specialized industrial control systems and electronic equipment.
This unit belongs to the 1606-XLS series, which is positioned as a performance-level range within the 1606 family. Compared to basic or compact series, the XLS line offers improved efficiency, stronger overload capability, and enhanced monitoring features.
The 1606-XLS180B is designed for continuous industrial operation and is commonly used in control panels, communication systems, and automation environments where reliability and electrical stability are critical.
2. Brand and Series
- Brand: Allen Bradley
- Series: 1606-XLS Series
- Category: Industrial Switching Power Supply
- Mounting Type: DIN Rail
The 1606-XLS series focuses on high efficiency, advanced features, and robust performance for demanding industrial applications.
3. Technical Specifications
Main Parameters Table
| Parameter | Specification |
|---|---|
| Model | 1606-XLS180B |
| Output Voltage | 12–15V DC (adjustable) |
| Output Current | 15 A |
| Rated Power | 180 W |
| Input Voltage (AC) | 100–240V AC |
| Input Voltage (DC) | 110–300V DC |
| Input Frequency | 47–63 Hz |
| Efficiency | approx. 91–92% |
| Power Factor | approx. 0.9 |
| Output Ripple | <50–100 mVpp |
| Hold-up Time | ≥30 ms |
| Inrush Current | moderate |
| Power Boost | up to 150% (short duration) |
| Parallel Operation | Supported |
| Protection Functions | Overload, overvoltage, short circuit |
| Signal Output | DC OK relay contact |
| Cooling Method | Natural convection (fanless) |
| Operating Temperature | -25°C to +70°C (with derating above +60°C) |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Mounting | DIN rail |
| Connection Type | Spring clamp terminals |
| Dimensions (mm) | approx. 60 × 124 × 117 |
| Weight (kg) | approx. 0.90 kg |
4. Product Features
The 1606-XLS180B is designed to meet demanding industrial requirements:
- Adjustable 12–15V DC output for specialized applications
- High current output up to 15A for demanding loads
- High efficiency reduces energy consumption and heat generation
- Power boost capability supports startup and peak loads
- Parallel operation allows system scalability
- DC OK relay provides remote monitoring capability
- Wide AC/DC input range for flexible installation
- Fanless design ensures quiet and reliable operation
These features make it suitable for high-performance automation systems.
5. Application Areas
The 1606-XLS180B is used in a variety of industrial and technical applications:
- Industrial control panels and PLC systems
- Communication and networking equipment
- Industrial computers and embedded systems
- Sensors, actuators, and control devices
- Packaging and production machinery
- Systems requiring 12–15V DC high-current supply
It is particularly suitable for environments requiring stable low-voltage, high-current output.
6. Product Advantages
1. High Current Output Capability
Delivers up to 15A, suitable for demanding applications.
2. Advanced Performance Features
Includes power boost and parallel operation for flexibility.
3. Reliable and Stable Operation
Maintains consistent output under varying load conditions.
4. Efficient Energy Use
High efficiency reduces operational costs and heat.
5. Easy Monitoring and Integration
DC OK relay simplifies system diagnostics and control.
7. Recommended Models (Same Series / Related Series)
Comparison Table – Same or Related Series
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLS60E | 24V / 2.5A | 60W | 100–240VAC | ~91% | 32×124×102 | 0.45 |
| 1606-XLS120E | 24–28V / 5A | 120W | 100–240VAC | ~92% | 40×124×117 | 0.62 |
| 1606-XLS180B | 12–15V / 15A | 180W | 100–240VAC | ~92% | 60×124×117 | 0.90 |
| 1606-XLS240E | 24–28V / 10A | 240W | 100–240VAC | ~94% | 60×124×127 | 0.90 |
| 1606-XLS480E | 24–28V / 20A | 480W | 100–240VAC | ~94–95% | 85×124×130 | 1.40 |
8. Recommended Popular Models (Same Brand)
Comparison Table – Popular Models
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLE120E | 24V / 5A | 120W | 100–240VAC | ~90% | 40×125×113 | 0.50 |
| 1606-XLE240E | 24–28V / 10A | 240W | 100–240VAC | ~91% | 60×124×117 | 0.70 |
| 1606-XLE480E | 24V / 20A | 480W | 100–240VAC | ~92% | 85×124×130 | 1.30 |
| 1606-XLP100E | 24V / 4.2A | 100W | 100–240VAC | ~91% | 75×73×103 | 0.45 |
| 1606-XL240E | 24–28V / 10A | 240W | 100–240VAC | ~92% | 60×125×124 | 0.80 |
