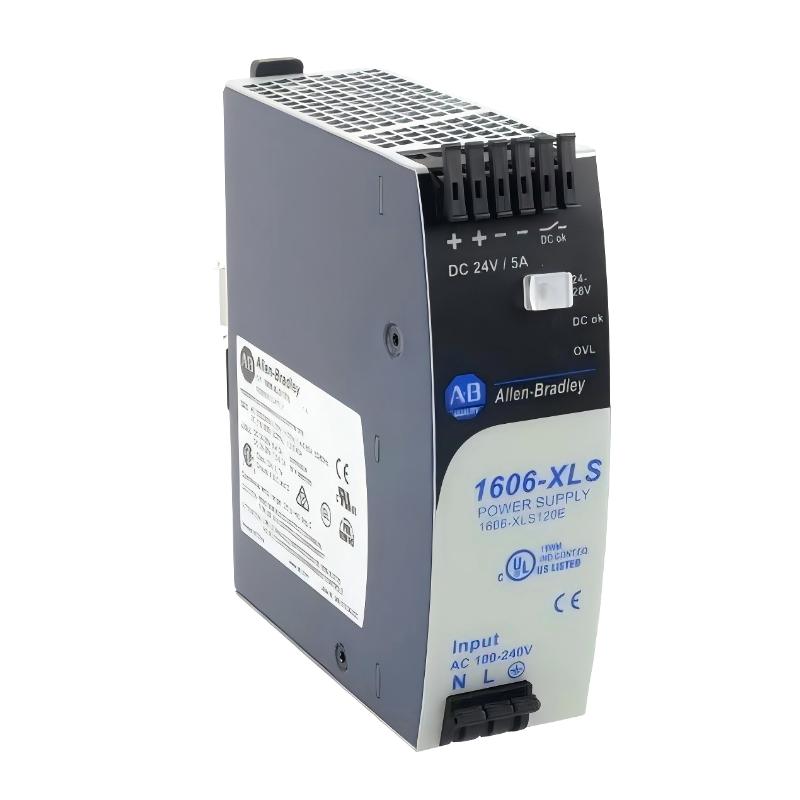

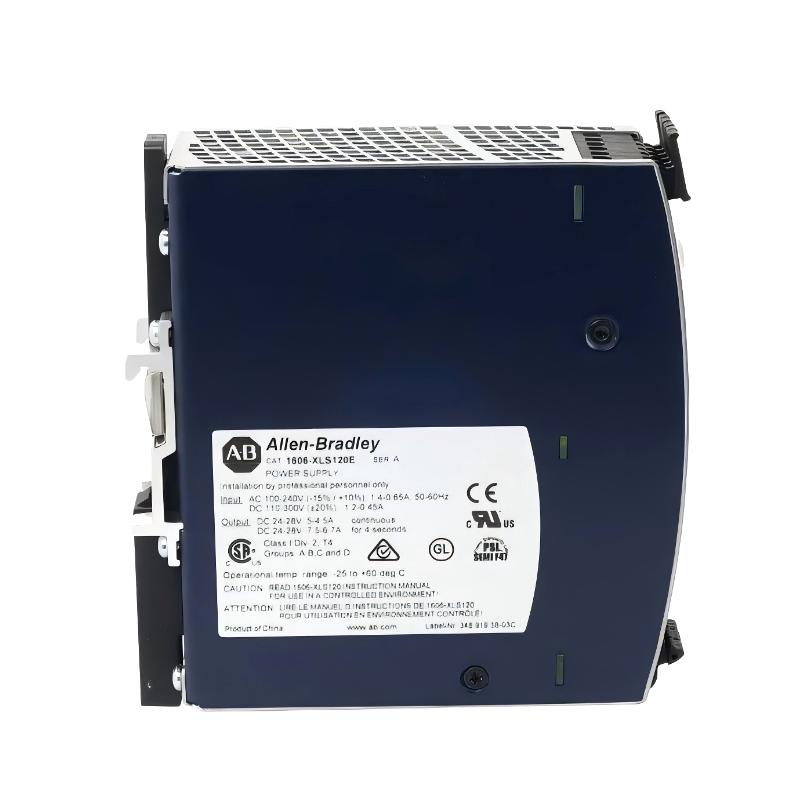

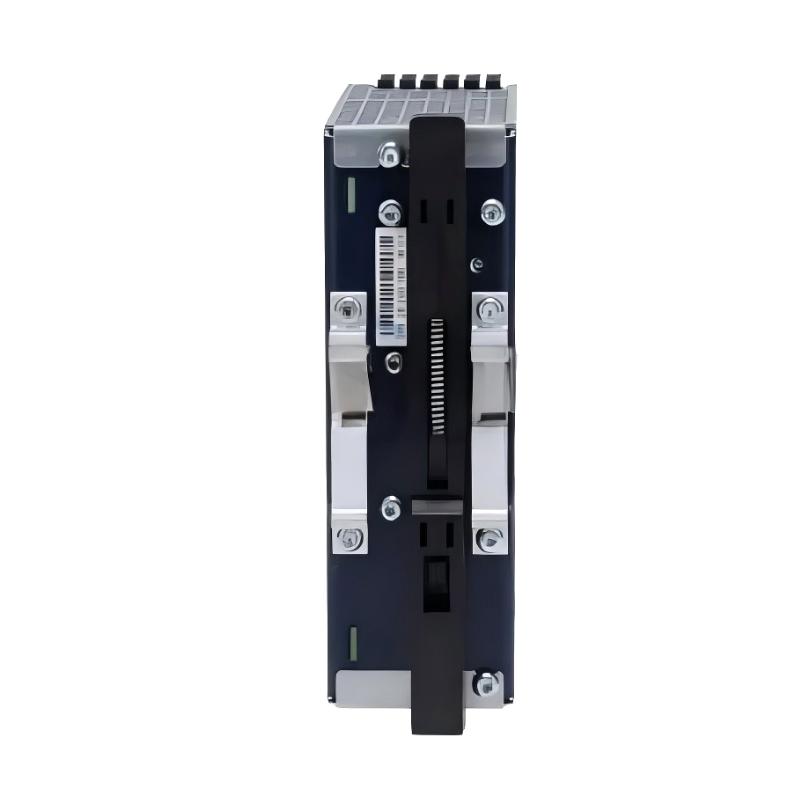

Allen Bradley 1606-XLS120E Full Technical Overview
1. Product Introduction
The model 1606-XLS120E is a high-performance industrial DIN rail switching power supply designed to deliver a stable and efficient 24–28V DC output with a rated power of 120W. It is widely used in automation systems where consistent voltage, high efficiency, and advanced electrical performance are required.
This unit belongs to the 1606-XLS series, which is positioned as a performance-level power supply line. Compared with essential or compact series, the XLS range offers enhanced efficiency, improved electrical characteristics, and additional features such as power boost capability and active power factor correction.
The 1606-XLS120E is particularly suitable for applications that demand higher reliability, extended service life, and stable output under fluctuating load conditions.
2. Brand and Series
- Brand: Allen Bradley
- Series: 1606-XLS Series (Performance Line)
- Category: Industrial Switching Power Supply
- Mounting Type: DIN Rail
The 1606-XLS series is designed for demanding industrial environments, offering higher efficiency and more advanced functionality than basic models.
3. Technical Specifications
Main Parameters Table
| Parameter | Specification |
|---|---|
| Model | 1606-XLS120E |
| Output Voltage | 24–28V DC (adjustable) |
| Output Current | 5 A (7.5A peak for short duration) |
| Rated Power | 120 W |
| Input Voltage (AC) | 100–240V AC |
| Input Voltage (DC) | 110–300V DC |
| Input Frequency | 47–63 Hz |
| Efficiency | approx. 92–93% |
| Power Factor | approx. 0.91 |
| Hold-up Time | 33–59 ms |
| Inrush Current | approx. 9–11 A |
| Output Ripple | <50 mVpp |
| Power Reserve | up to 150% (short duration) |
| Protection Functions | Overload, overvoltage, short circuit |
| Cooling Method | Natural convection (fanless) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Mounting | DIN rail |
| Connection Type | Spring clamp terminals |
| Status Indicator | LED + DC OK relay contact |
| Dimensions (mm) | approx. 40 × 124 × 117 |
| Weight (kg) | approx. 0.62 kg |
4. Product Features
The 1606-XLS120E offers advanced performance features:
- Adjustable 24–28V DC output for flexible applications
- High efficiency design reduces energy consumption
- Active PFC improves power quality and reduces harmonics
- Power boost capability supports high inrush loads
- Compact housing suitable for dense panel installations
- Fanless cooling ensures long-term reliability
- DC OK relay contact enables remote monitoring
- Wide AC/DC input range for global compatibility
These features make it suitable for demanding industrial environments.
5. Application Areas
The 1606-XLS120E is widely used across industrial automation sectors:
- PLC and control systems
- Industrial production lines
- Robotics and automation equipment
- Sensors and actuator networks
- Distributed I/O systems
- Packaging and material handling systems
It is particularly suitable for applications requiring high reliability and performance stability.
6. Product Advantages
1. High Efficiency Performance
Improves overall system efficiency and reduces energy costs.
2. Power Boost Capability
Handles temporary overloads and startup currents effectively.
3. Advanced Electrical Design
Active PFC ensures better input power quality.
4. Compact and Robust
Designed for industrial environments with limited space.
5. Reliable Monitoring
DC OK relay allows easy system diagnostics and status tracking.
7. Recommended Models (Same Series / Related Series)
Comparison Table – Same or Related Series
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLS60E | 24V / 2.5A | 60W | 100–240VAC | ~91% | 32×124×102 | 0.45 |
| 1606-XLS120E | 24–28V / 5A | 120W | 100–240VAC | ~92% | 40×124×117 | 0.62 |
| 1606-XLS240E | 24–28V / 10A | 240W | 100–240VAC | ~94% | 60×124×127 | 0.90 |
| 1606-XLS480E | 24–28V / 20A | 480W | 100–240VAC | ~94–95% | 85×124×130 | 1.40 |
| 1606-XLS960E | 24–28V / 40A | 960W | 100–240VAC | ~95% | 120×124×130 | 2.50 |
8. Recommended Popular Models (Same Brand)
Comparison Table – Popular Models
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLE120E | 24V / 5A | 120W | 100–240VAC | ~90% | 40×125×113 | 0.50 |
| 1606-XLE240E | 24–28V / 10A | 240W | 100–240VAC | ~91% | 60×124×117 | 0.70 |
| 1606-XLE480E | 24V / 20A | 480W | 100–240VAC | ~92% | 85×124×130 | 1.30 |
| 1606-XLP100E | 24V / 4.2A | 100W | 100–240VAC | ~91% | 75×73×103 | 0.45 |
| 1606-XL240E | 24–28V / 10A | 240W | 100–240VAC | ~92% | 60×125×124 | 0.80 |
