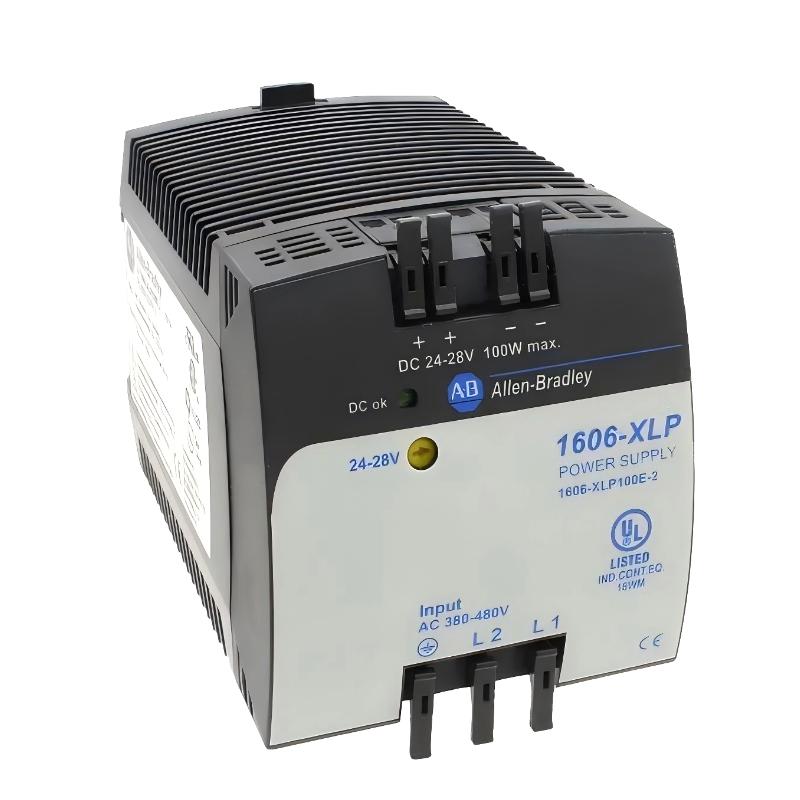

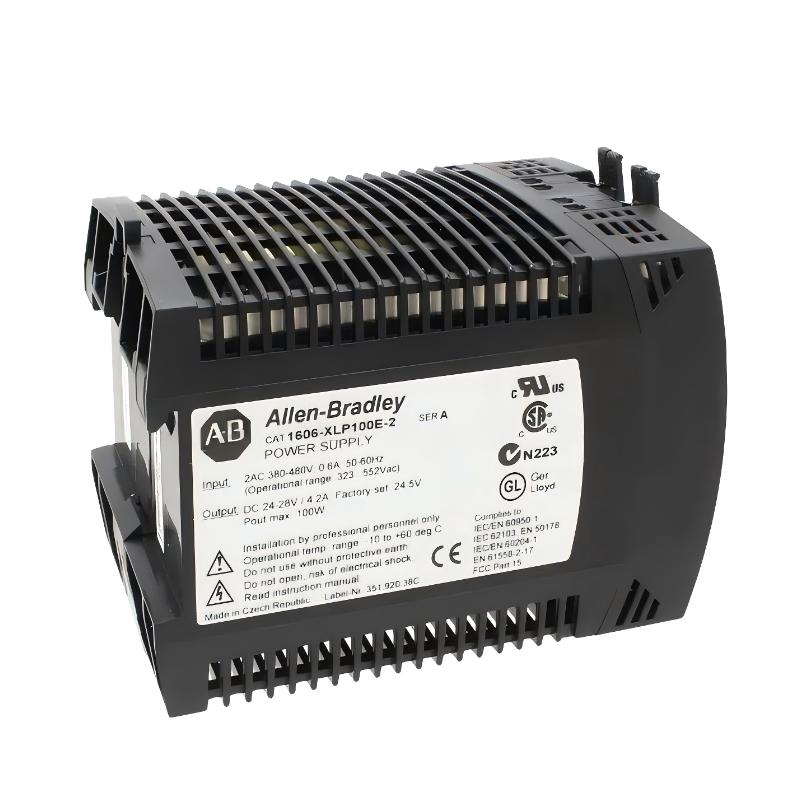

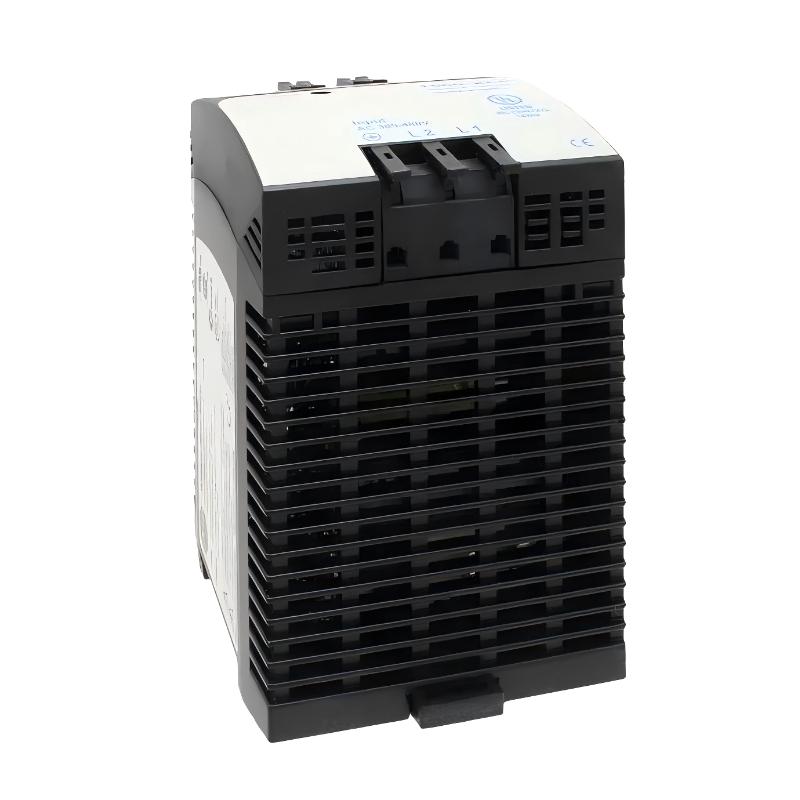

Allen Bradley 1606-XLP100E Full Technical Overview
1. Product Introduction
The model 1606-XLP100E is a compact industrial switching power supply designed to provide stable and efficient 24–28V DC output with a rated power of 100W. It is specifically developed for low-to-medium power industrial applications where space-saving design and reliable performance are key considerations.
This unit belongs to the 1606-XLP series, often referred to as the “compact” family within the 1606 power supply range. Compared with larger models, the XLP series emphasizes minimal footprint, simplified functionality, and cost efficiency, while still maintaining essential industrial-grade performance.
The 1606-XLP100E is widely used in control panels, automation cabinets, and distributed systems where consistent DC voltage is required for control electronics and field devices.
2. Brand and Series
- Brand: Allen Bradley
- Series: 1606-XLP Series (Compact Line)
- Category: Industrial Switching Power Supply
- Mounting Type: DIN Rail
The 1606-XLP series is designed for applications where panel space is limited, offering reliable performance in a compact housing.
3. Technical Specifications
Main Parameters Table
| Parameter | Specification |
|---|---|
| Model | 1606-XLP100E |
| Output Voltage | 24–28V DC (adjustable) |
| Output Current | 4.2 A |
| Rated Power | 100 W |
| Input Voltage (AC) | 100–120 / 200–240V AC |
| Input Voltage (DC) | 200–375V DC |
| Input Frequency | 50–60 Hz |
| Efficiency | approx. 90–91% |
| Power Factor | approx. 0.9 |
| Output Ripple | <50–100 mVpp |
| Hold-up Time | ≥40 ms |
| Inrush Current | low, controlled |
| Protection Functions | Overload, overvoltage, short circuit |
| Cooling Method | Natural convection (fanless) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Mounting | DIN rail |
| Connection Type | Spring clamp / screw terminals |
| Status Indicator | LED (DC OK) |
| Dimensions (mm) | approx. 75 × 73 × 103 |
| Weight (kg) | approx. 0.45–0.50 kg |
4. Product Features
The 1606-XLP100E is designed for efficient and compact industrial use:
- Compact housing ideal for space-constrained installations
- Adjustable 24–28V DC output for flexible system tuning
- Wide input voltage range supports global applications
- High efficiency reduces heat generation and energy loss
- Fanless design ensures quiet operation and long service life
- Integrated protection features enhance system safety
- LED indicator provides clear operational status
- Simple installation with DIN rail mounting
These features make it a practical solution for compact automation systems.
5. Application Areas
The 1606-XLP100E is commonly used in various industrial applications:
- PLC and small control systems
- Sensors and actuators power supply
- Distributed I/O modules
- Compact automation panels
- Packaging and assembly equipment
- Conveyor and light-duty machinery
It is particularly suitable for applications requiring reliable power in limited installation space.
6. Product Advantages
1. Space-Saving Design
Compact dimensions allow installation in small control cabinets.
2. Reliable Performance
Provides stable DC output for sensitive industrial devices.
3. Energy Efficient
High efficiency reduces operating costs and heat buildup.
4. Easy Integration
DIN rail mounting simplifies installation and wiring.
5. Low Maintenance
Fanless design reduces wear and extends operational lifespan.
7. Recommended Models (Same Series / Related Series)
Comparison Table – Same or Related Series
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLP50E | 24V / 2.1A | 50W | 100–240VAC | ~89% | 70×73×90 | 0.35 |
| 1606-XLP75E | 24V / 3.2A | 75W | 100–240VAC | ~90% | 75×73×100 | 0.40 |
| 1606-XLP100E | 24V / 4.2A | 100W | 100–240VAC | ~91% | 75×73×103 | 0.45 |
| 1606-XLP150E | 24V / 6.3A | 150W | 100–240VAC | ~91% | 90×80×110 | 0.60 |
| 1606-XLP240E | 24V / 10A | 240W | 100–240VAC | ~92% | 100×85×120 | 0.80 |
8. Recommended Popular Models (Same Brand)
Comparison Table – Popular Models
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLE120E | 24V / 5A | 120W | 100–240VAC | ~90% | 40×125×113 | 0.50 |
| 1606-XLE240E | 24–28V / 10A | 240W | 100–240VAC | ~91% | 60×124×117 | 0.70 |
| 1606-XLE480E | 24V / 20A | 480W | 100–240VAC | ~92% | 85×124×130 | 1.30 |
| 1606-XLS240E | 24–28V / 10A | 240W | 100–240VAC | 94% | 60×124×127 | 0.90 |
| 1606-XL120D | 24V / 5A | 120W | 85–264VAC | ~92% | 40×124×117 | 0.60 |
