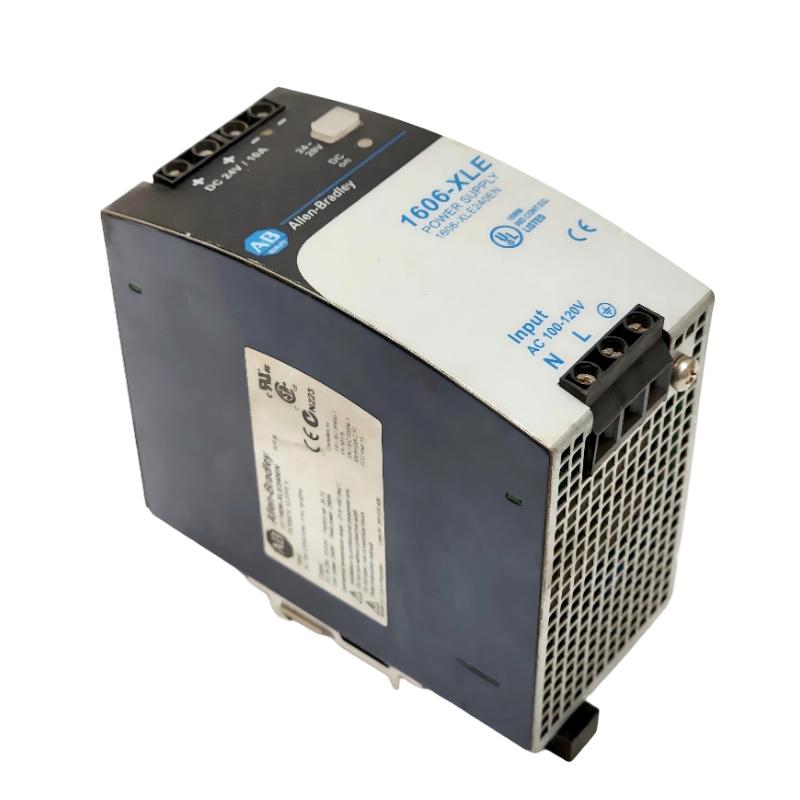

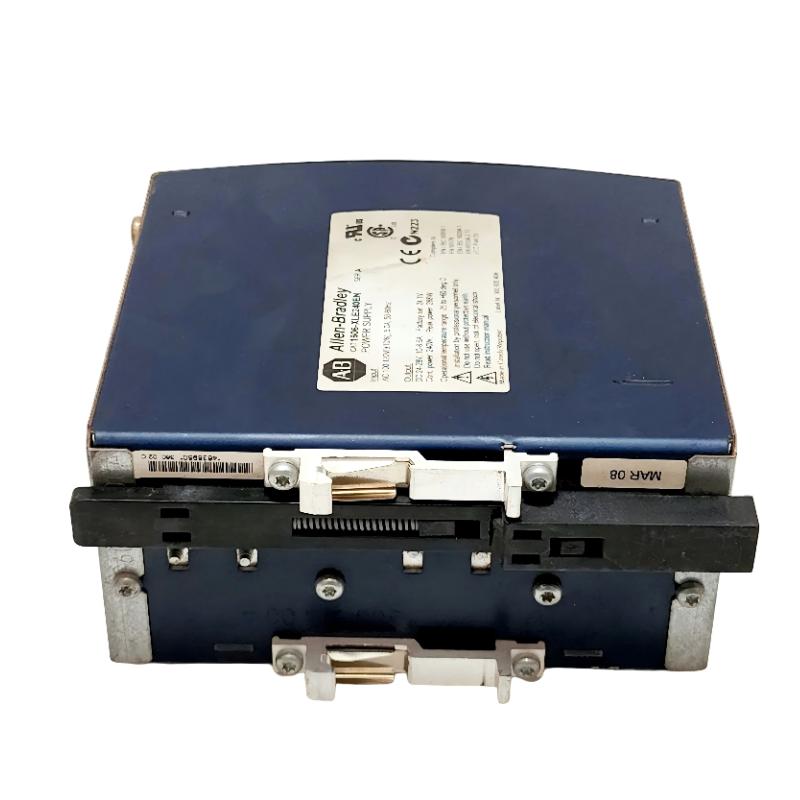

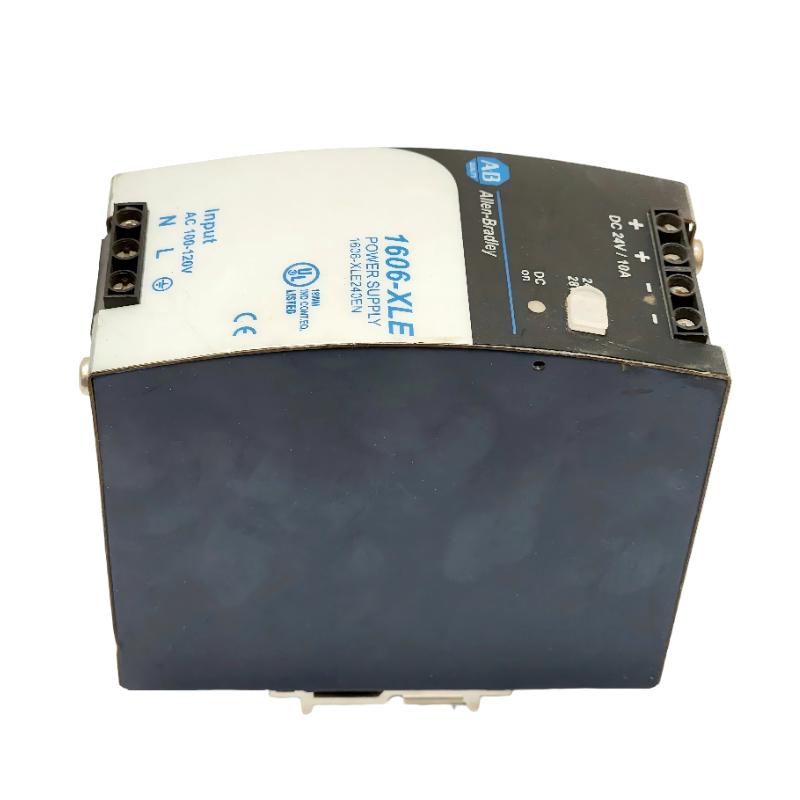

Allen Bradley 1606-XLE240EN Full Technical Overview
1. Product Introduction
The model 1606-XLE240EN is an industrial DIN rail switching power supply designed to deliver a stable 24–28V DC output with a rated power of 240W. It is intended for medium-power automation systems that require consistent voltage and reliable operation under continuous industrial conditions.
This unit is part of the 1606-XLE series, which represents an essential-level product line focused on simplicity, durability, and cost-effective performance. Compared to more advanced series, the XLE line is optimized for standard applications where dependable output and efficient design are the primary requirements.
The “EN” version typically reflects a variant adapted for specific input or certification requirements, while maintaining the same core electrical performance. It is widely used in industrial control cabinets and automation systems.
2. Brand and Series
- Brand: Allen Bradley
- Series: 1606-XLE Series
- Category: Industrial Switching Power Supply
- Mounting Type: DIN Rail
The 1606-XLE series is designed to provide reliable and efficient DC power for general industrial use, with a focus on ease of integration and long service life.
3. Technical Specifications
Main Parameters Table
| Parameter | Specification |
|---|---|
| Model | 1606-XLE240EN |
| Output Voltage | 24–28V DC (adjustable) |
| Output Current | 10 A |
| Rated Power | 240 W |
| Input Voltage (AC) | 100–240V AC |
| Input Frequency | 50–60 Hz |
| Efficiency | approx. 91–92% |
| Power Factor | approx. 0.9 |
| Inrush Current | low, controlled |
| Hold-up Time | ≥40 ms |
| Output Ripple | <50–100 mVpp |
| Power Reserve | up to 120% (short duration) |
| Protection Functions | Overload, overvoltage, short circuit |
| Cooling Method | Natural convection (fanless) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Mounting | DIN rail |
| Connection Type | Screw terminals |
| Status Indicator | DC OK LED |
| Dimensions (mm) | approx. 60 × 124 × 117 |
| Weight (kg) | approx. 0.70 kg |
4. Product Features
The 1606-XLE240EN is designed for stable and efficient industrial operation:
- Adjustable 24–28V DC output for flexible system configuration
- Wide AC input range supports global industrial standards
- Compact design reduces required panel space
- High efficiency minimizes energy loss and heat generation
- Fanless cooling ensures long-term reliability
- Integrated protection features enhance operational safety
- LED indicator provides clear output status
- Power reserve capability allows handling of temporary load peaks
These features ensure consistent performance in a wide range of automation systems.
5. Application Areas
The 1606-XLE240EN is widely used in industrial automation and control environments:
- PLC control systems and panels
- Industrial machinery and production lines
- Sensors and actuators power supply
- Distributed I/O systems
- Conveyor and material handling systems
- Packaging and assembly equipment
It is especially suitable for applications requiring stable 24V DC power at medium load levels.
6. Product Advantages
1. Reliable Output Stability
Ensures consistent voltage for sensitive control devices.
2. Cost-Effective Solution
Provides essential functionality without unnecessary complexity.
3. Compact Design
Optimizes space usage in industrial control cabinets.
4. Energy Efficiency
Reduces power consumption and heat generation.
5. Easy Installation
DIN rail mounting simplifies system integration and maintenance.
7. Recommended Models (Same Series / Related Series)
Comparison Table – Same or Related Series
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLE60E | 24V / 2.5A | 60W | 100–240VAC | ~89% | 32×124×102 | 0.40 |
| 1606-XLE120E | 24V / 5A | 120W | 100–240VAC | ~90% | 40×125×113 | 0.50 |
| 1606-XLE120EE | 24V / 5A | 120W | 200–240VAC | ~91% | 40×125×113 | 0.50 |
| 1606-XLE240E | 24–28V / 10A | 240W | 100–240VAC | ~91% | 60×124×117 | 0.70 |
| 1606-XLE480E | 24V / 20A | 480W | 100–240VAC | ~92% | 85×124×130 | 1.30 |
8. Recommended Popular Models (Same Brand)
Comparison Table – Popular Models
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLS240E | 24–28V / 10A | 240W | 100–240VAC | 94% | 60×124×127 | 0.90 |
| 1606-XLS480E | 24–28V / 20A | 480W | 100–240VAC | 94–95% | 85×124×130 | 1.40 |
| 1606-XLP100E | 24V / 4.2A | 100W | 100–240VAC | 91% | 40×124×117 | 0.55 |
| 1606-XL120D | 24V / 5A | 120W | 85–264VAC | ~92% | 40×124×117 | 0.60 |
| 1606-XL480E | 24–28V / 20A | 480W | 184–264VAC | ~92% | 124×60×125 | 1.80 |
