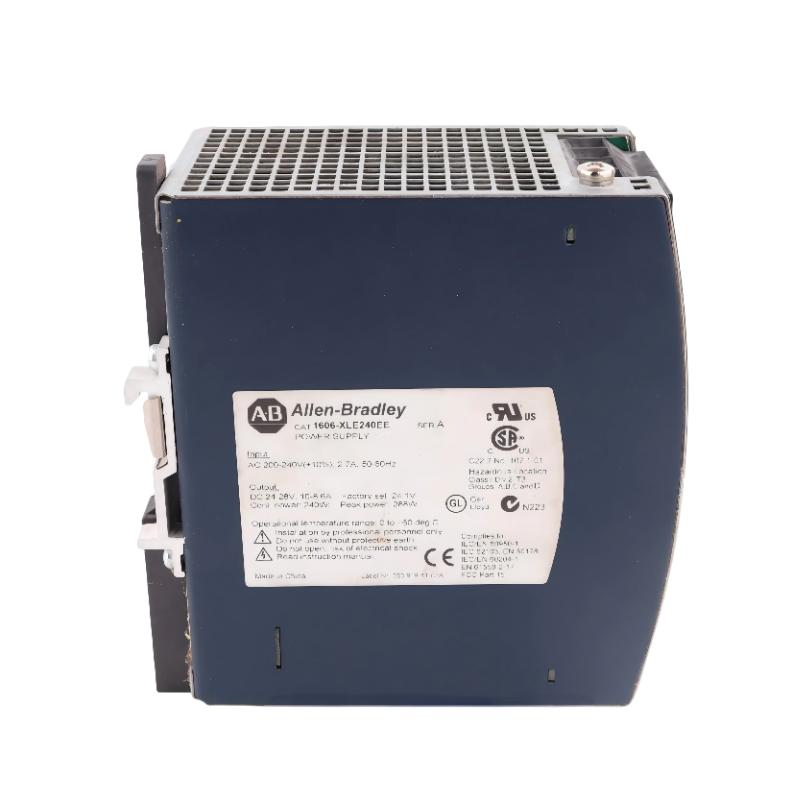

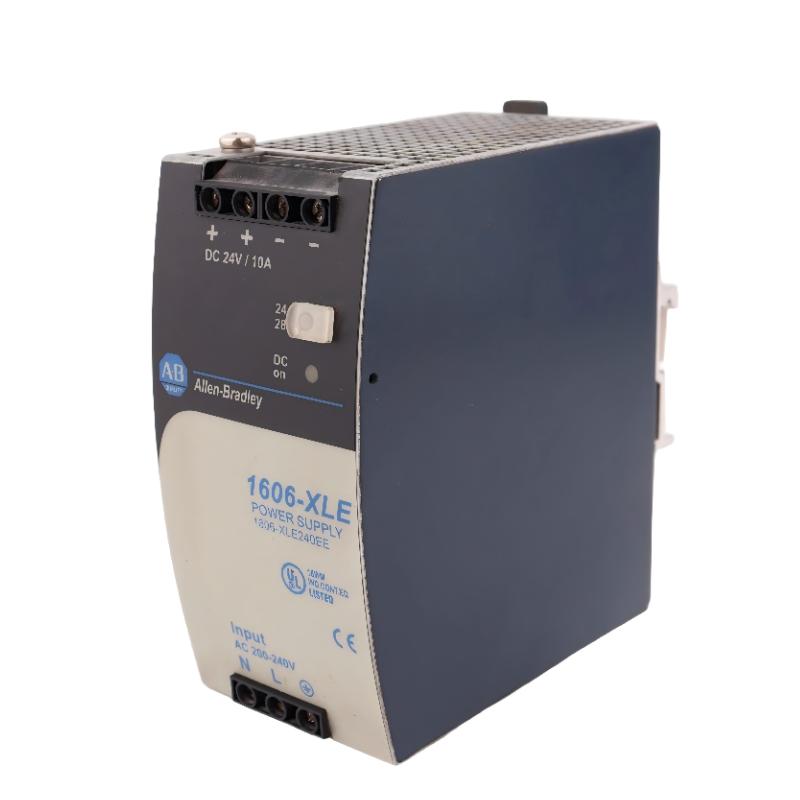

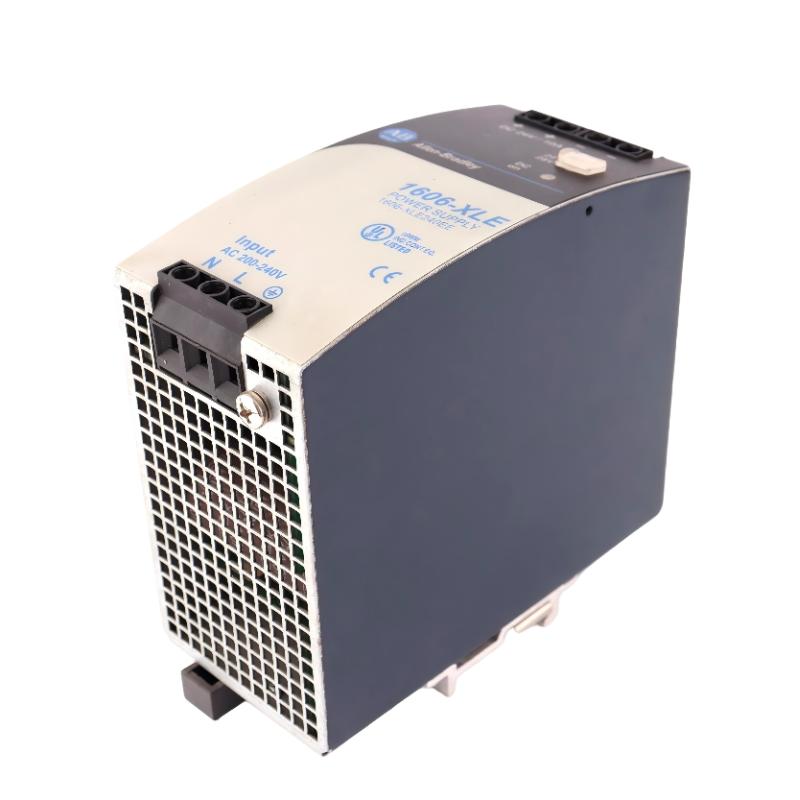

Allen Bradley 1606-XLE240EE Full Technical Overview
1. Product Introduction
The model 1606-XLE240EE is a compact industrial DIN rail switching power supply designed to provide a stable 24–28V DC output with a rated power of 240W. It is engineered for medium-load automation systems where consistent voltage, reliability, and cost efficiency are essential.
This unit is part of the 1606-XLE series, which represents an essential-level product line focused on simplified functionality and dependable operation. Compared with higher-end series, the XLE line reduces complexity while maintaining the core performance required for industrial control environments.
The “EE” variant typically reflects a refined version optimized for specific input ranges and improved electrical performance. It is designed for continuous operation in control panels and automation cabinets.
2. Brand and Series
- Brand: Allen Bradley
- Series: 1606-XLE Series
- Category: Industrial Switching Power Supply
- Mounting Type: DIN Rail
The 1606-XLE series is widely used in industrial applications due to its balance between performance, compact size, and cost-effectiveness.
3. Technical Specifications
Main Parameters Table
| Parameter | Specification |
|---|---|
| Model | 1606-XLE240EE |
| Output Voltage | 24–28V DC (adjustable) |
| Output Current | 10 A |
| Rated Power | 240 W |
| Input Voltage (AC) | 200–240V AC |
| Input Frequency | 50–60 Hz |
| Efficiency | approx. 91–92% |
| Power Factor | approx. 0.5–0.95 |
| Inrush Current | low to moderate |
| Hold-up Time | ≥40–50 ms |
| Output Ripple | <50–100 mVpp |
| Power Reserve | up to 120% (short duration) |
| Protection Functions | Overload, overvoltage, short circuit |
| Cooling Method | Natural convection (fanless) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Mounting | DIN rail |
| Connection Type | Screw terminals |
| Status Indicator | DC OK LED |
| Dimensions (mm) | approx. 60 × 124 × 117 |
| Weight (kg) | approx. 0.70 kg |
4. Product Features
The 1606-XLE240EE is designed for practical industrial use:
- Stable and adjustable 24V DC output
- Compact DIN rail design for efficient cabinet layout
- High efficiency reduces energy loss and heat generation
- Fanless cooling ensures quiet and reliable operation
- Built-in protection functions improve operational safety
- LED indicator allows quick status monitoring
- Short-term power boost supports peak loads
- Optimized for standard industrial environments
These features ensure dependable performance in everyday automation tasks.
5. Application Areas
The 1606-XLE240EE is suitable for a wide range of industrial applications:
- PLC control systems
- Automation panels and control cabinets
- Sensors and actuator power supply
- Distributed I/O systems
- Conveyor and logistics equipment
- Packaging and processing machinery
It is particularly useful in systems requiring stable 24V DC power with moderate load demand.
6. Product Advantages
1. Cost-Effective Performance
Provides reliable power supply without unnecessary advanced features.
2. Stable Output Voltage
Ensures consistent operation of sensitive industrial equipment.
3. Compact Structure
Allows efficient use of space in control cabinets.
4. Energy Efficient Design
Reduces overall energy consumption and operating costs.
5. Easy Installation and Integration
DIN rail mounting simplifies setup and maintenance.
7. Recommended Models (Same Series / Related Series)
Comparison Table – Same or Related Series
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLE60E | 24V / 2.5A | 60W | 100–240VAC | ~89% | 32×124×102 | 0.40 |
| 1606-XLE120E | 24V / 5A | 120W | 100–240VAC | ~90% | 40×125×113 | 0.50 |
| 1606-XLE120EE | 24V / 5A | 120W | 200–240VAC | ~91% | 40×125×113 | 0.50 |
| 1606-XLE240E | 24–28V / 10A | 240W | 100–240VAC | ~91% | 60×124×117 | 0.70 |
| 1606-XLE480E | 24V / 20A | 480W | 100–240VAC | ~92% | 85×124×130 | 1.30 |
8. Recommended Popular Models (Same Brand)
Comparison Table – Popular Models
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLS240E | 24–28V / 10A | 240W | 100–240VAC | 94% | 60×124×127 | 0.90 |
| 1606-XLS480E | 24–28V / 20A | 480W | 100–240VAC | 94–95% | 85×124×130 | 1.40 |
| 1606-XLP100E | 24V / 4.2A | 100W | 100–240VAC | 91% | 40×124×117 | 0.55 |
| 1606-XL120D | 24V / 5A | 120W | 85–264VAC | ~92% | 40×124×117 | 0.60 |
| 1606-XL480E | 24–28V / 20A | 480W | 184–264VAC | ~92% | 124×60×125 | 1.80 |
