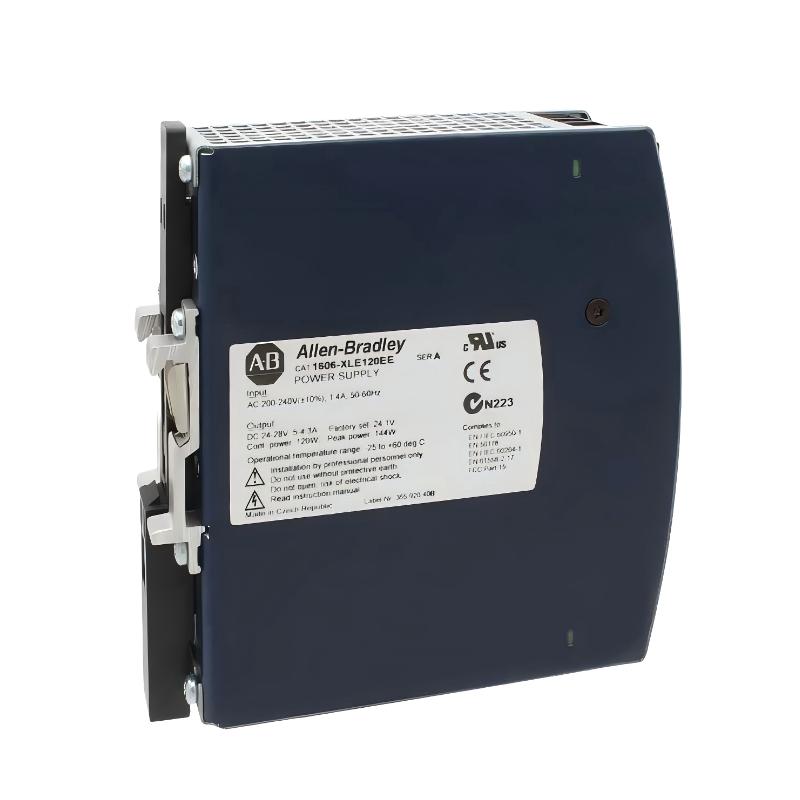

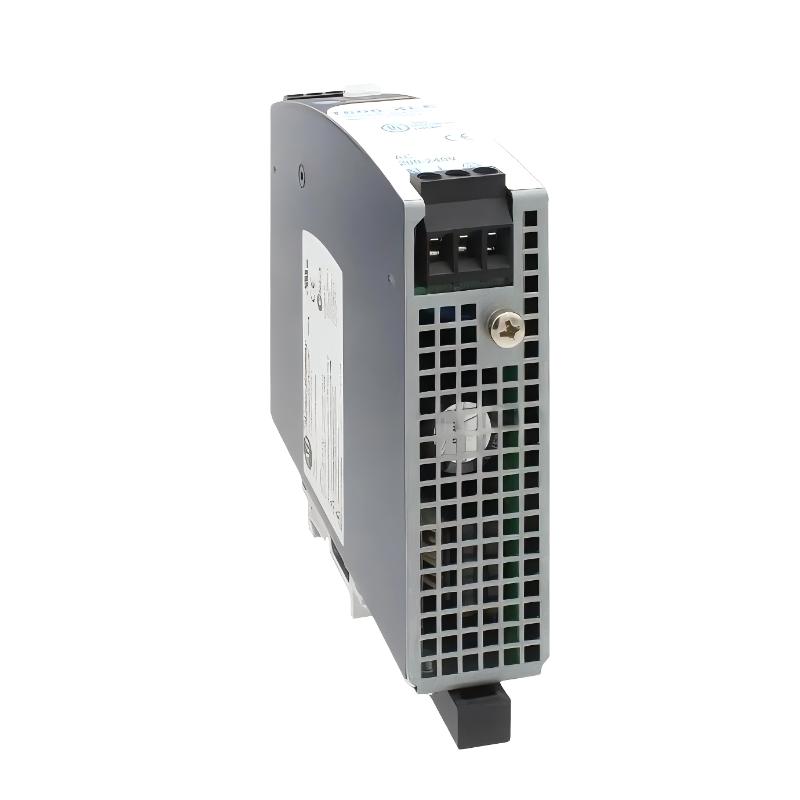

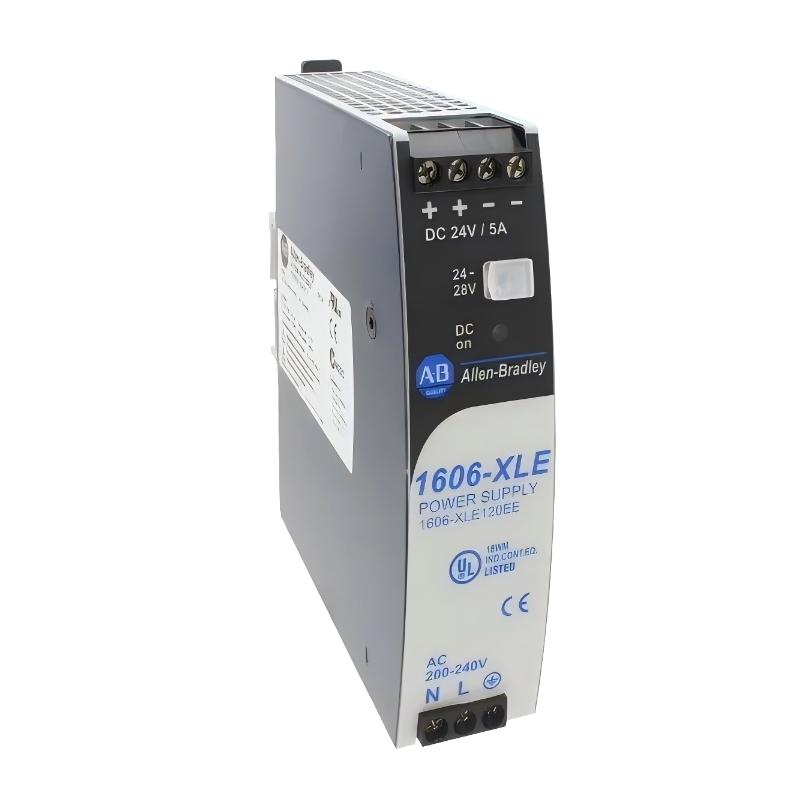

Allen Bradley 1606-XLE120EE Full Technical Overview
1. Product Introduction
The model 1606-XLE120EE is a compact and efficient industrial DIN rail switching power supply designed to deliver stable DC output for automation and control systems. It provides a regulated 24V DC output with a rated power of 120W, making it suitable for medium-load applications such as PLC systems, sensors, and distributed control devices.
This unit belongs to the 1606-XLE series, which is positioned as an energy-efficient line within the broader 1606 power supply family. Compared to standard models, the XLE series focuses on improved efficiency, reduced heat generation, and cost-effective performance for general industrial use.
The “EE” suffix typically indicates a refined version with enhanced electrical characteristics and optimized internal design, making it suitable for continuous industrial operation.
2. Brand and Series
- Brand: Allen Bradley
- Series: 1606-XLE Series
- Category: Industrial Switching Power Supply
- Mounting Type: DIN Rail
The 1606-XLE series is designed for general-purpose industrial applications, offering a balance between efficiency, reliability, and compact size.
3. Technical Specifications
Main Parameters Table
| Parameter | Specification |
|---|---|
| Model | 1606-XLE120EE |
| Output Voltage | 24V DC |
| Output Current | 5 A |
| Rated Power | 120 W |
| Input Voltage (AC) | 100–240V AC |
| Input Voltage (DC) | 110–150V DC |
| Input Frequency | 50–60 Hz |
| Efficiency | approx. 90–92% |
| Power Factor | approx. 0.9 |
| Output Ripple | <100 mVpp |
| Hold-up Time | ≥20 ms |
| Inrush Current | low, controlled |
| Protection Functions | Overload, overvoltage, short circuit |
| Cooling Method | Natural convection (fanless) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Mounting | DIN rail |
| Connection Type | Screw terminals |
| Status Indicator | LED (DC OK) |
| Dimensions (mm) | approx. 40 × 125 × 113 |
| Weight (kg) | approx. 0.50 kg |
4. Product Features
The 1606-XLE120EE is designed with efficiency and practicality in mind:
- Stable 24V DC output for industrial control applications
- High efficiency reduces energy loss and heat buildup
- Compact housing suitable for tight control panels
- Wide input voltage range for global use
- Fanless cooling ensures silent and reliable operation
- Integrated protection features enhance safety
- LED indicator provides clear operational status
- Easy DIN rail mounting for quick installation
These features make it a reliable and cost-effective solution for everyday industrial needs.
5. Application Areas
This model is widely used in various industrial automation scenarios:
- PLC control systems
- Sensors and actuators power supply
- Distributed I/O modules
- Packaging and assembly machines
- Conveyor and logistics systems
- Process monitoring and instrumentation
It is especially suitable for medium-power applications requiring stable and efficient DC supply.
6. Product Advantages
1. Energy Efficiency
Optimized design reduces power loss and improves overall system efficiency.
2. Compact Design
Slim form factor allows efficient use of cabinet space.
3. Reliable Performance
Stable output ensures consistent operation of connected devices.
4. Easy Integration
DIN rail mounting and simple wiring reduce installation complexity.
5. Low Maintenance
Fanless construction minimizes wear and extends service life.
7. Recommended Models (Same Series / Related Series)
Comparison Table – Same or Related Series
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLE60E | 24V / 2.5A | 60W | 100–240VAC | ~89% | 32×124×102 | 0.40 |
| 1606-XLE120E | 24V / 5A | 120W | 100–240VAC | ~90% | 40×125×113 | 0.50 |
| 1606-XLE120EE | 24V / 5A | 120W | 100–240VAC | ~91% | 40×125×113 | 0.50 |
| 1606-XLE240E | 24V / 10A | 240W | 100–240VAC | ~91% | 60×124×117 | 0.80 |
| 1606-XLE480E | 24V / 20A | 480W | 100–240VAC | ~92% | 85×124×130 | 1.30 |
8. Recommended Popular Models (Same Brand)
Comparison Table – Popular Models
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLS240E | 24–28V / 10A | 240W | 100–240VAC | 94% | 60×124×127 | 0.90 |
| 1606-XLS480E | 24–28V / 20A | 480W | 100–240VAC | 94–95% | 85×124×130 | 1.40 |
| 1606-XLP100E | 24V / 4.2A | 100W | 100–240VAC | 91% | 40×124×117 | 0.55 |
| 1606-XL120D | 24V / 5A | 120W | 85–264VAC | ~92% | 40×124×117 | 0.60 |
| 1606-XL240E | 24–28V / 10A | 240W | 100–240VAC | ~92% | 60×125×124 | 0.80 |
