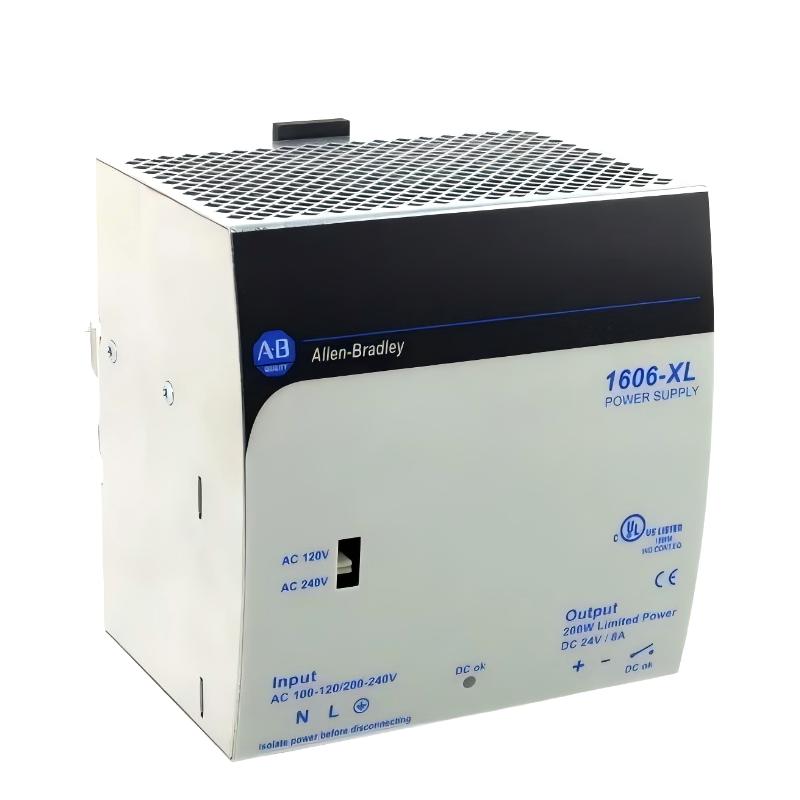

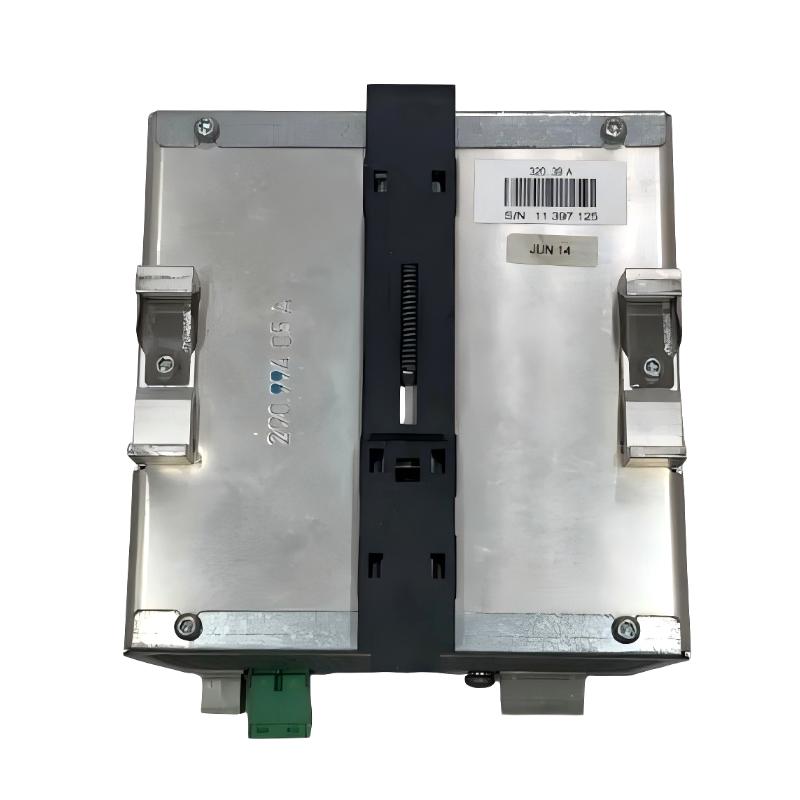

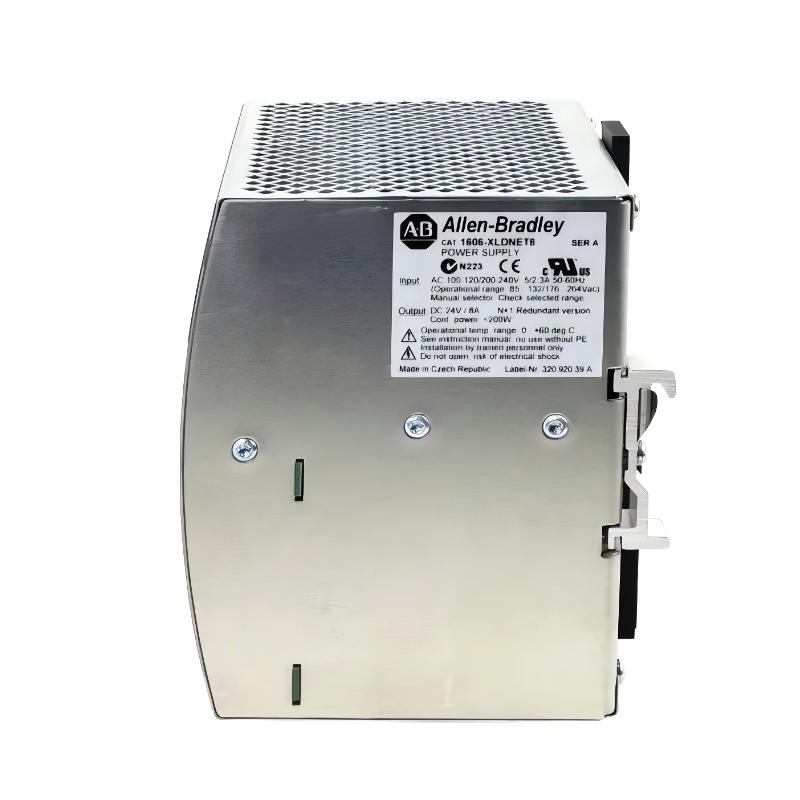

Allen Bradley 1606-XLDNET8 Full Technical Overview
1. Product Introduction
The model 1606-XLDNET8 is a specialized industrial switching power supply designed specifically for DeviceNet communication systems. It provides a stable 24V DC output with a rated current of 8A and approximately 192W power, ensuring reliable energy supply for network nodes and field devices.
Unlike general-purpose power supplies, this model is engineered to meet the electrical characteristics required by DeviceNet networks, including controlled output behavior, current limitation aligned with cable ratings, and stable voltage delivery over long distances.
It belongs to the 1606-XL series, a well-established family of industrial power solutions known for robust performance, compact design, and long-term reliability in automation environments.
2. Brand and Series
- Brand: Allen Bradley
- Series: 1606-XL Series
- Category: DeviceNet Industrial Power Supply
- Mounting Type: DIN Rail
The 1606-XL series includes both standard AC/DC power supplies and network-optimized variants, designed for flexibility in industrial control systems.
3. Technical Specifications
Main Parameters Table
| Parameter | Specification |
|---|---|
| Model | 1606-XLDNET8 |
| Output Voltage | 24V DC |
| Output Current | 8 A |
| Rated Power | approx. 192 W |
| Input Voltage (AC) | 100–120 / 200–240V AC |
| Input Voltage (DC) | 240–375V DC |
| Input Frequency | 47–63 Hz |
| Efficiency | approx. 90% |
| Output Ripple | <100 mVpp |
| Hold-up Time | ≥20 ms |
| Power Reserve | up to 120–150% (short duration) |
| Protection Functions | Overload, overvoltage, short circuit |
| Cooling Method | Natural convection (fanless) |
| Special Function | DeviceNet optimized output |
| Status Indicator | LED status indication |
| Mounting | DIN rail |
| Connection Type | Screw terminals |
| Operating Temperature | -25°C to +70°C |
| Protection Class | IP20 |
| Dimensions (mm) | approx. 127 × 102 × 127 |
| Weight (kg) | approx. 0.90 kg |
4. Product Features
The 1606-XLDNET8 is tailored for industrial network applications:
- Designed specifically for DeviceNet systems
- Stable 24V DC output optimized for communication reliability
- Current limiting aligned with network cable specifications
- High resistance to electrical noise and disturbances
- Compact DIN rail design for control cabinet installation
- Fanless cooling for increased durability
- Built-in LED indicators for quick status monitoring
- Wide input range supports flexible deployment
These features ensure reliable performance in network-critical environments.
5. Application Areas
This model is widely used in systems where DeviceNet communication is implemented:
- PLC-based automation networks
- Distributed I/O systems
- Manufacturing and assembly lines
- Conveyor and logistics systems
- Packaging machinery
- Industrial process control systems
It is particularly suitable for applications where stable network communication depends on reliable power delivery.
6. Product Advantages
1. Network-Specific Design
Optimized for DeviceNet, improving communication stability and reliability.
2. Stable Power Output
Maintains consistent voltage under varying load conditions.
3. Electrical Noise Immunity
Performs reliably in environments with high electrical interference.
4. Compact and Practical
Efficient use of panel space with simple installation.
5. Long Service Life
Fanless construction reduces wear and maintenance requirements.
7. Recommended Models (Same Series / Related Series)
Comparison Table – Same or Related Series
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLSDNET8 | 24V / 8A | 192W | 85–264VAC | ~92% | 125×65×124 | 0.90 |
| 1606-XL120D | 24V / 5A | 120W | 85–264VAC | ~92% | 40×124×117 | 0.60 |
| 1606-XL240E | 24–28V / 10A | 240W | 100–240VAC | ~92% | 60×125×124 | 0.80 |
| 1606-XL480E | 24–28V / 20A | 480W | 184–264VAC | ~92% | 124×60×125 | 1.80 |
| 1606-XLDC92D | 24V / 3.8A | 92W | 14–32V DC | ~90% | 32×124×102 | 0.50 |
8. Recommended Popular Models (Same Brand)
Comparison Table – Popular Models
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLS240E | 24–28V / 10A | 240W | 100–240VAC | 94% | 60×124×127 | 0.90 |
| 1606-XLS480E | 24–28V / 20A | 480W | 100–240VAC | 94–95% | 85×124×130 | 1.40 |
| 1606-XLP100E | 24V / 4.2A | 100W | 100–240VAC | 91% | 40×124×117 | 0.55 |
| 1606-XLE120E | 24V / 5A | 120W | 100–240VAC | 90% | 40×125×113 | 0.50 |
| 1606-XLE240E | 24V / 10A | 240W | 100–240VAC | 91% | 60×124×117 | 0.80 |
