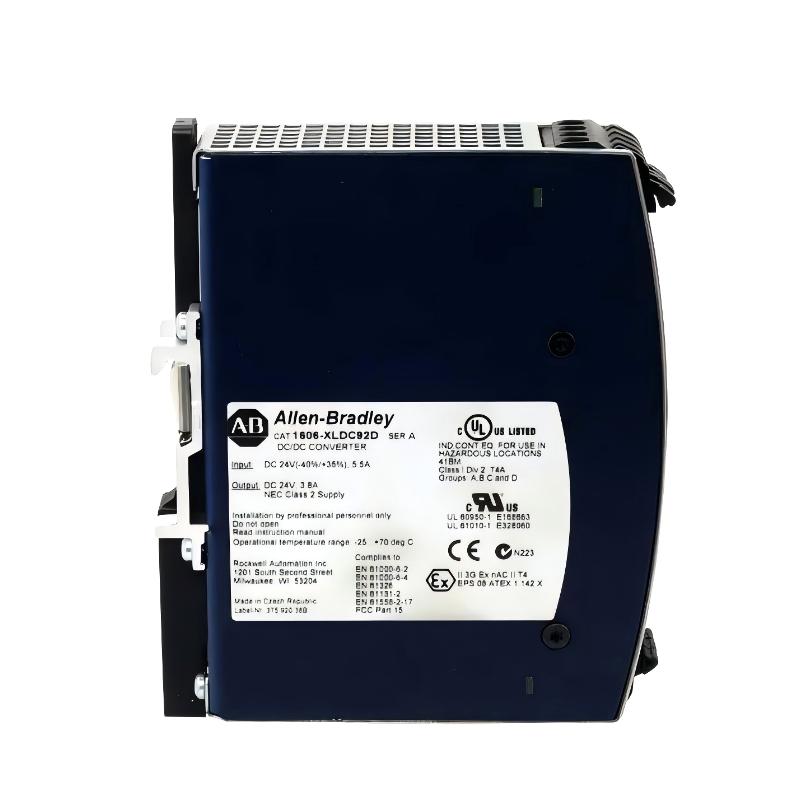

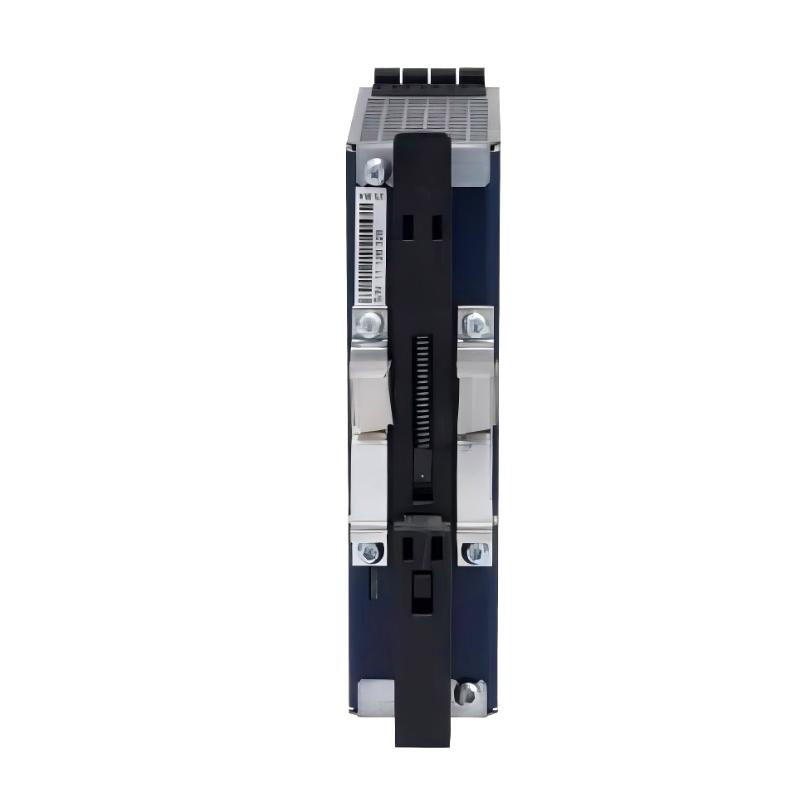

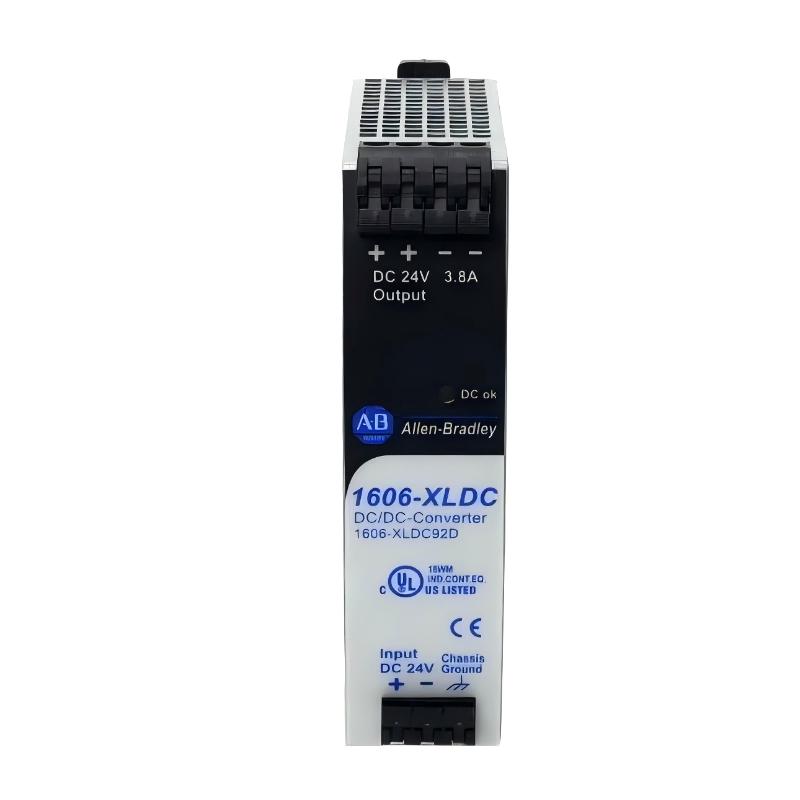

Allen Bradley 1606-XLDC92D Full Technical Overview
1. Product Introduction
The model 1606-XLDC92D is a compact DC/DC converter module designed for industrial control systems requiring stable and isolated DC voltage. Unlike standard AC/DC power supplies, this unit converts an existing DC input into a regulated 24V DC output, making it particularly useful in battery-powered systems or applications with unstable DC supply lines.
It delivers a rated output of approximately 92W with a 24V DC output, ensuring consistent voltage even over long cable runs or fluctuating input conditions. This makes it ideal for voltage stabilization and signal integrity in distributed systems.
The unit belongs to the 1606-XL series, a well-established family of industrial power solutions known for reliability, compact size, and robust design. It is widely used in industrial automation, especially in systems where DC buffering or isolation is required.
2. Brand and Series
- Brand: Allen Bradley
- Series: 1606-XL Series
- Category: DC/DC Converter Power Supply
- Mounting Type: DIN Rail
The 1606-XL series includes both AC/DC power supplies and DC/DC converter modules, designed for flexible industrial deployment.
3. Technical Specifications
Main Parameters Table
| Parameter | Specification |
|---|---|
| Model | 1606-XLDC92D |
| Output Voltage | 24V DC |
| Output Current | 3.8 A |
| Rated Power | 92 W |
| Input Voltage Range | 14–32.4V DC |
| Input Type | DC |
| Efficiency | up to ~90–91% |
| Output Ripple | <50 mVpp |
| Hold-up Time | dependent on input source |
| Power Boost | up to 120% (short duration) |
| Isolation | Galvanic isolation |
| Protection Functions | Overload, short circuit, overvoltage |
| Cooling Method | Natural convection (fanless) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Mounting | DIN rail |
| Connection Type | Spring clamp terminals |
| Status Signal | DC-OK signal |
| Dimensions (mm) | approx. 32 × 124 × 102 |
| Weight (kg) | approx. 0.50–1.36 kg (depending on version/packaging) |
4. Product Features
The 1606-XLDC92D is designed for specialized DC applications:
- Converts unstable or varying DC input into stable 24V DC output
- Provides galvanic isolation, preventing ground loop issues
- Compact housing allows installation in tight control cabinets
- High efficiency minimizes energy loss and heat generation
- Fanless design ensures long service life and low maintenance
- DC-OK signal output enables system monitoring
- Designed for battery-powered or DC distribution systems
These features make it a reliable solution for DC voltage conditioning and stabilization.
5. Application Areas
This model is widely used in applications where DC voltage needs conditioning or isolation:
- Battery-powered industrial systems
- DC distribution networks in automation
- Long cable runs requiring voltage stabilization
- PLC and remote I/O systems
- Renewable energy and storage systems
- Transportation and mobile equipment
It is particularly useful in scenarios where input DC voltage fluctuates or requires isolation from sensitive control circuits.
6. Product Advantages
1. DC Voltage Stabilization
Ensures consistent output even with fluctuating input voltage.
2. Electrical Isolation
Galvanic isolation protects equipment and prevents ground loop issues.
3. Compact Design
Slim housing allows installation in space-limited environments.
4. High Reliability
Fanless construction ensures long-term operation with minimal maintenance.
5. Flexible Application
Ideal for battery systems and distributed DC architectures.
7. Recommended Models (Same Series / Related Series)
Comparison Table – Same or Related Series
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLD92D | 24V / 3.8A | 92W | 14–32V DC | ~90% | 32×124×102 | 0.50 |
| 1606-XLDC92D | 24V / 3.8A | 92W | 14–32V DC | ~90% | 32×124×102 | 0.50 |
| 1606-XLDD240E | 24–28V / 10A | 240W | 24V DC | ~92% | 60×124×117 | 0.90 |
| 1606-XLDF120E | 24–28V / 5A | 120W | 48V DC | ~91% | 40×124×117 | 0.70 |
| 1606-XLDF240F | 48–56V / 5A | 240W | 48V DC | ~92% | 60×124×117 | 0.95 |
8. Recommended Popular Models (Same Brand)
Comparison Table – Popular Models
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLS240E | 24–28V / 10A | 240W | 100–240VAC | 94% | 60×124×127 | 0.90 |
| 1606-XLS480E | 24–28V / 20A | 480W | 100–240VAC | 94–95% | 85×124×130 | 1.40 |
| 1606-XLP100E | 24V / 4.2A | 100W | 100–240VAC | 91% | 40×124×117 | 0.55 |
| 1606-XLE120E | 24V / 5A | 120W | 100–240VAC | 90% | 40×125×113 | 0.50 |
| 1606-XLE240E | 24V / 10A | 240W | 100–240VAC | 91% | 60×124×117 | 0.80 |
