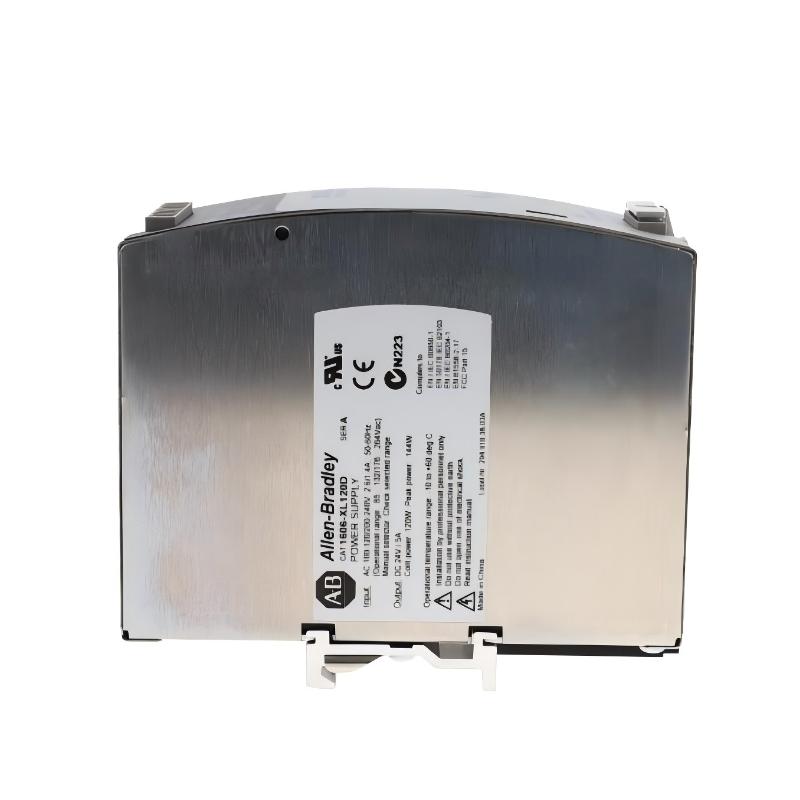

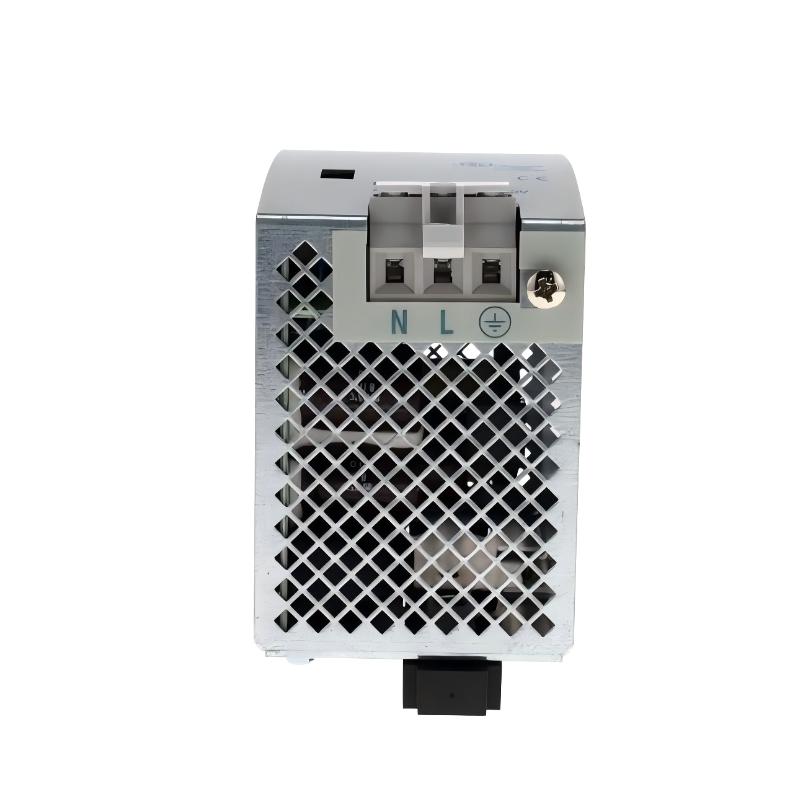

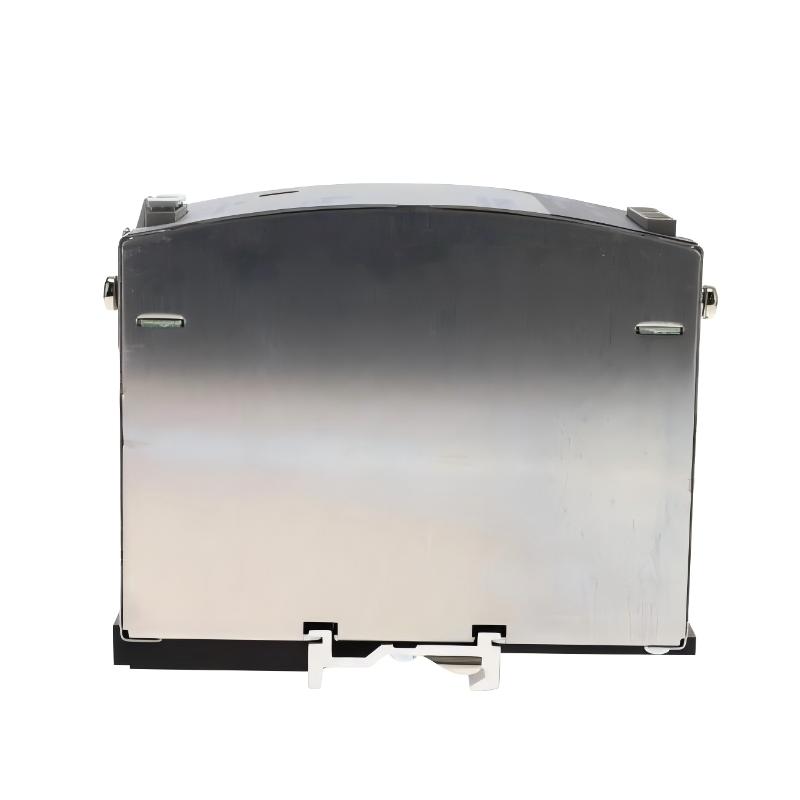

Allen Bradley 1606-XL120D Full Technical Overview
1. Product Introduction
The model 1606-XL120D is an industrial-grade DIN rail switching power supply designed for automation and control systems. It provides a stable and regulated 24V DC output with a rated power of 120W, making it suitable for powering PLCs, sensors, relays, and other industrial devices.
This model belongs to the 1606-XL series, which is positioned as a standard-performance power supply line known for robustness, compact design, and long service life in industrial environments.
The unit is engineered for continuous operation and supports a wide input voltage range, allowing it to be used globally without modification. It is commonly installed inside control cabinets where space efficiency and reliability are critical.
2. Brand and Series
- Brand: Allen Bradley
- Series: 1606-XL Series
- Category: Industrial Switching Power Supply
- Mounting Type: DIN Rail
The 1606-XL series represents a balance between cost and performance, targeting general-purpose industrial applications.
3. Technical Specifications
Main Parameters Table
| Parameter | Specification |
|---|---|
| Model | 1606-XL120D |
| Output Voltage | 24V DC |
| Output Current | 5 A |
| Rated Power | 120 W |
| Input Voltage Range | 85–264V AC / 90–375V DC |
| Input Frequency | 47–63 Hz |
| Efficiency | Up to 92% |
| Output Ripple | <100 mVpp |
| Inrush Current | Low, controlled |
| Hold-up Time | ≥20 ms |
| Protection Functions | Overload, overvoltage, short circuit |
| Cooling Method | Natural air convection |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Protection Class | IP20 |
| Installation | DIN rail mounting |
| Dimensions (mm) | approx. 40 × 124 × 117 |
| Weight (kg) | approx. 0.60 kg |
4. Product Features
The 1606-XL120D is designed with practicality and durability in mind:
- Wide voltage input supports global applications without adjustment
- High efficiency reduces energy consumption and internal heat buildup
- Compact housing saves valuable cabinet space
- Fanless design eliminates mechanical wear and reduces maintenance
- LED indicator provides clear operational status
- Built-in protections ensure safe operation under abnormal conditions
These features make it a reliable choice for long-term industrial use.
5. Application Areas
This power supply is widely used across various industries:
- Industrial automation systems
- PLC control panels
- Packaging and material handling equipment
- CNC machines
- Robotics systems
- Process control and monitoring systems
- Assembly lines and production equipment
It is particularly suitable for systems requiring stable 24V DC power distribution.
6. Product Advantages
1. Stability and Reliability
Designed for continuous operation in harsh industrial environments.
2. Global Compatibility
Wide input range allows use in different regions without modification.
3. Space Efficiency
Slim DIN rail design optimizes cabinet layout.
4. Energy Saving
High efficiency reduces operational cost and thermal stress.
5. Low Maintenance
Fanless structure minimizes failure points and extends service life.
7. Recommended Models (Same Series / Related Series)
Comparison Table – Same or Related Series
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLE120E | 24V / 5A | 120W | 100–240VAC | ~90% | 40×125×113 | 0.50 |
| 1606-XL240E | 24V / 10A | 240W | 100–240VAC | ~92% | 60×125×124 | 0.80 |
| 1606-XL480E | 24V / 20A | 480W | 100–240VAC | ~93% | 85×125×130 | 1.30 |
| 1606-XLS240E | 24–28V / 10A | 240W | 100–240VAC | ~94% | 60×124×127 | 0.90 |
| 1606-XLP100E | 24V / 4.2A | 100W | 100–240VAC | ~91% | 40×124×117 | 0.55 |
8. Recommended Popular Models (Same Brand)
Comparison Table – Popular Models
| Model | Output | Power | Input Voltage | Efficiency | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1606-XLS240E | 24V / 10A | 240W | 100–240VAC | 94% | 60×124×127 | 0.90 |
| 1606-XLS480E | 24V / 20A | 480W | 100–240VAC | 95% | 85×124×130 | 1.40 |
| 1606-XLP50E | 24V / 2.1A | 50W | 100–240VAC | 90% | 32×124×102 | 0.35 |
| 1606-XLE240E | 24V / 10A | 240W | 100–240VAC | 91% | 60×124×117 | 0.80 |
| 1606-XLE480E | 24V / 20A | 480W | 100–240VAC | 92% | 85×124×130 | 1.30 |
