Field Case: SMC-3 Motor Controller Startup Failure Analysis

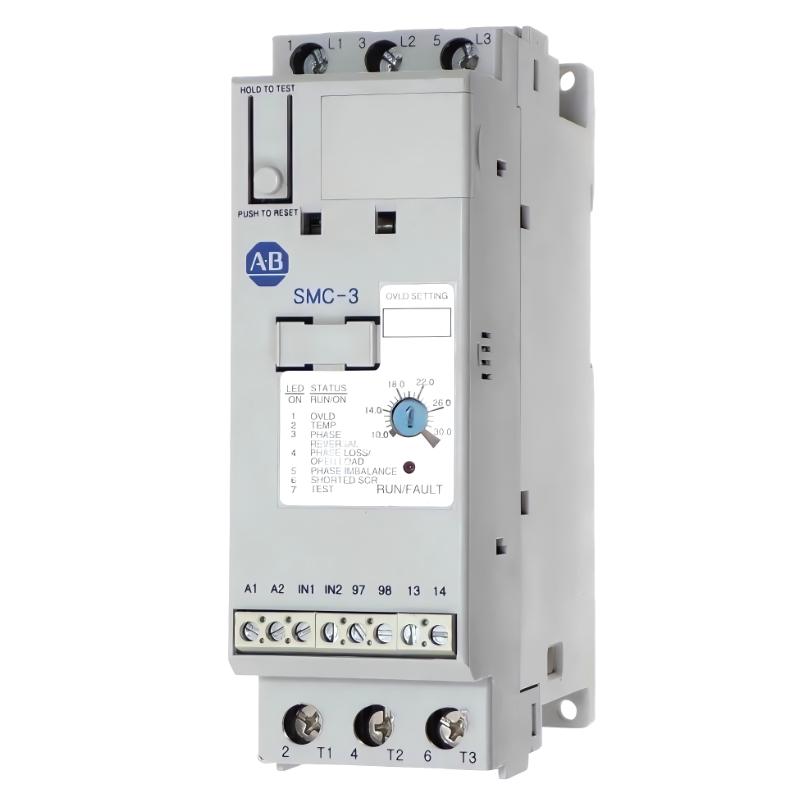

The Allen-Bradley 150-C30NBD SMC-3 Smart Motor Controller Troubleshooting process requires a systematic inspection of the complete motor control system. In one industrial conveyor application, operators reported that the motor could not complete the startup sequence and the controller entered a fault condition.

The maintenance team initially suspected a controller hardware problem. However, after checking the motor, power supply, and control circuit, engineers discovered that the main cause was an incorrect control signal connection combined with improper parameter settings.

This case shows that SMC-3 faults are not always caused by controller failure. A complete Fault Diagnosis process must include motor wiring, control signals, protection parameters, and operating conditions.

150-C30NBD Smart Motor Controller Fault Symptoms

Common fault symptoms found during troubleshooting include:

• Motor fails to start
• Controller stops during acceleration
• Unexpected fault indication
• Motor current abnormality
• Overload protection activation
• Control command not responding
• Repeated startup interruption

When these conditions occur, engineers should analyze the complete motor control system before replacing the SMC-3 controller.

SMC-3 Fault Diagnosis Process

A professional Fault Diagnosis process should follow these inspection steps:

1. Check incoming power condition
2. Verify motor connection status
3. Inspect control circuit signals
4. Review fault indications
5. Check protection settings
6. Verify parameter configuration
7. Perform controlled restart testing

This process helps determine whether the problem comes from the motor, electrical wiring, control system, or the 150-C30NBD controller itself.

Common Causes of 150-C30NBD Motor Controller Faults

The most common causes identified during field troubleshooting include:

• Incorrect power wiring
• Loose motor terminals
• Incorrect control input connection
• Motor overload condition
• Improper protection settings
• Insufficient power supply stability
• Excessive mechanical load
• Incorrect startup parameters

In practical industrial applications, many SMC-3 problems are related to external system conditions rather than internal controller damage.

150-C30NBD Troubleshooting Procedure

A structured troubleshooting workflow includes:

1. Record the current fault condition
2. Check controller status indicators
3. Inspect motor and power connections
4. Verify control commands
5. Review configuration parameters
6. Test motor operation after correction

SMC3_FAULT_DIAG

MODEL = 150-C30NBD
CHECK = POWER_STATUS
CHECK = MOTOR_CONNECTION
CHECK = CONTROL_SIGNAL
CHECK = PARAMETERS
CHECK = PROTECTION_STATUS

During one maintenance case, the motor repeatedly stopped during startup. Engineers checked the system and found that the acceleration setting was not suitable for the connected mechanical load. After adjusting the startup parameters, the motor completed the startup process successfully.

Motor Controller Repair and Recovery Actions

After identifying the fault source, engineers can perform the following corrective actions:

• Correct power and motor wiring
• Repair loose terminal connections
• Adjust motor protection parameters
• Correct control signal configuration
• Improve cabinet cooling conditions
• Restore normal operating settings

Many SMC-3 faults can be resolved through proper inspection and adjustment without replacing the complete motor controller.

Post-Repair Testing and System Verification

After completing troubleshooting, engineers should perform final verification:

• Confirm correct power supply operation
• Verify motor startup sequence
• Check controller status
• Test protection functions
• Monitor motor operation under load
• Record maintenance results

A complete verification process ensures that the motor control system operates reliably after fault recovery.

FAQs on 150-C30NBD Troubleshooting

Why does the 150-C30NBD motor controller fail to start the motor?

Possible causes include incorrect wiring, control signal problems, motor overload, power issues, or incorrect parameter settings.

Should the SMC-3 controller be replaced immediately after a fault?

No. Engineers should complete a full Fault Diagnosis process because many faults are caused by external conditions.

What is the most important troubleshooting step?

The most important step is identifying whether the fault originates from the power system, motor, control circuit, configuration, or controller hardware.

Engineering Summary

The Allen-Bradley 150-C30NBD SMC-3 Smart Motor Controller Troubleshooting process requires a complete understanding of motor control systems. Field experience shows that startup failures and protection alarms are often related to wiring, configuration, load conditions, or control signals. A structured Fault Diagnosis method can restore reliable operation while reducing unnecessary equipment replacement.
