- ABB
- ACS580-01-106A-4 3AUA0000080503
- Frequency Converter
- Sweden (SE)
- 732 x 203 x 295 mm
- 28.3 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

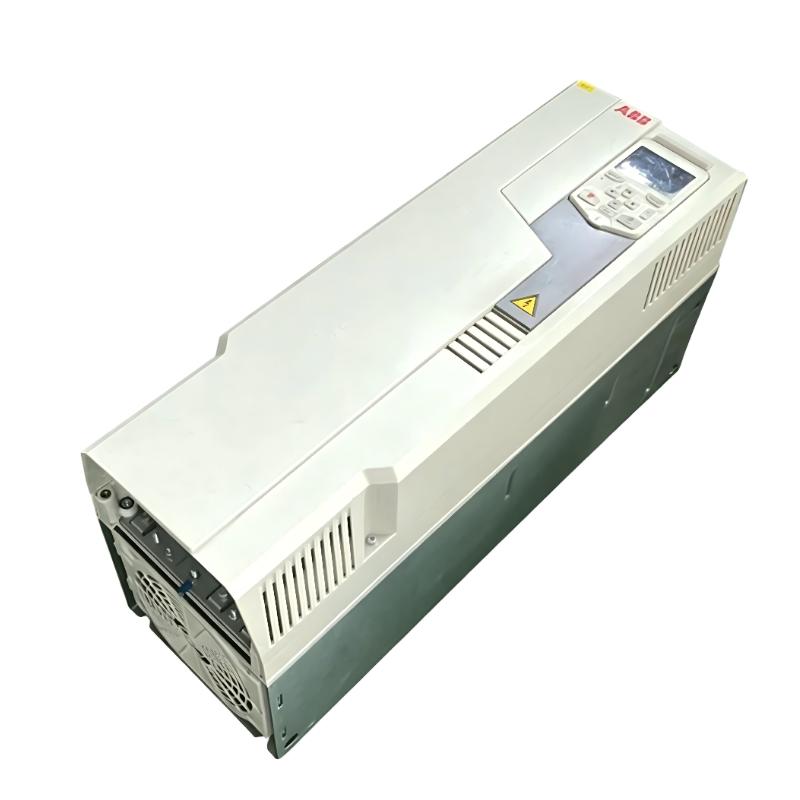

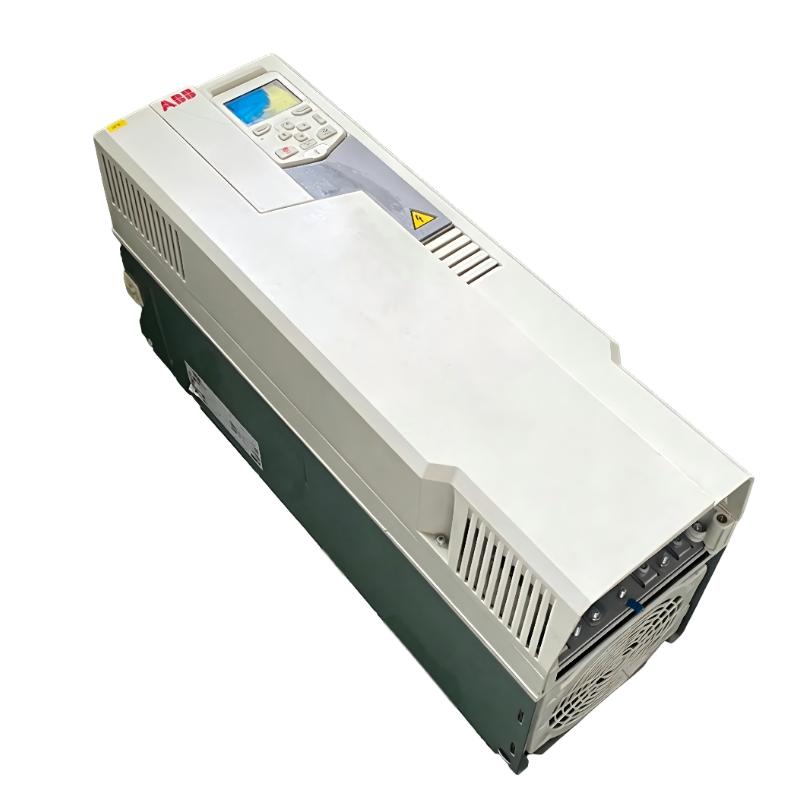

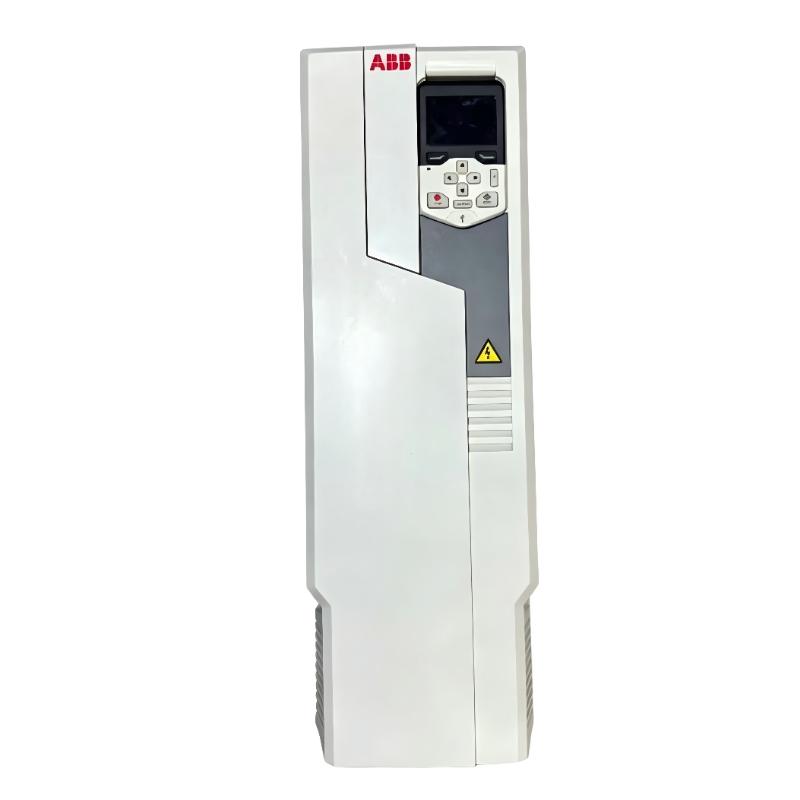

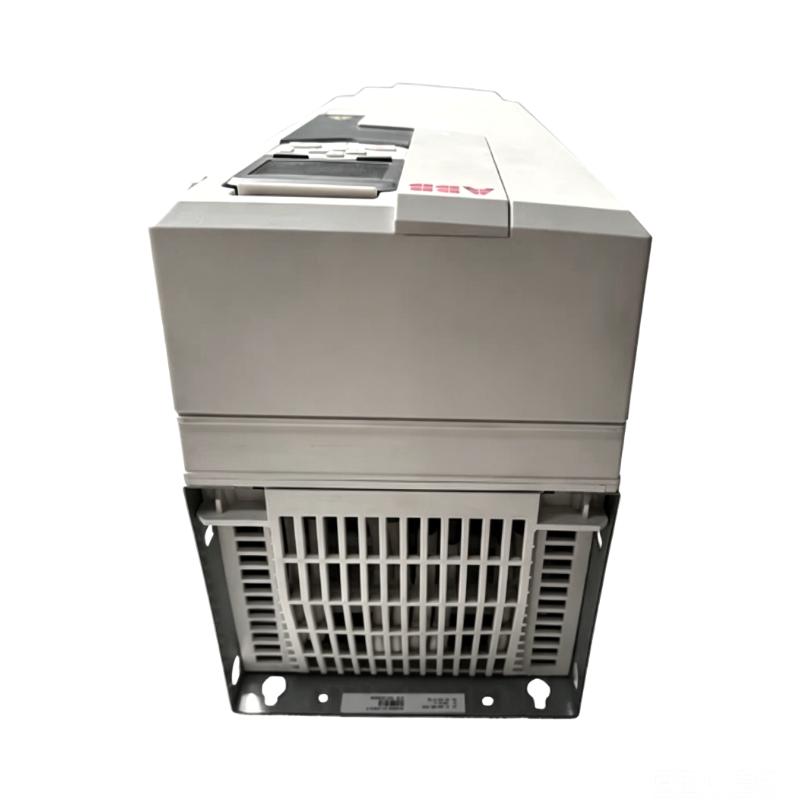

The ABB ACS580-01-106A-4 Frequency Converter with product code 3AUA0000080503 is a high-performance industrial AC drive designed for reliable motor control, energy-efficient operation, and flexible integration into industrial automation systems.
The ABB ACS580 series is a general-purpose frequency converter family designed for industrial applications requiring stable motor performance, accurate speed regulation, and simplified commissioning. The ACS580-01-106A-4 provides dependable control for medium-power motors used in pumps, fans, conveyors, compressors, mixers, extruders, centrifuges, and other industrial machinery.
With a rated output current of 106 A and a power rating of approximately 55 kW, the ABB ACS580-01-106A-4 delivers powerful variable-speed control for industrial equipment requiring continuous operation, reliable torque performance, and improved energy efficiency.
The ABB ACS580-01-106A-4 3AUA0000080503 Frequency Converter features a robust industrial wall-mounted design with dimensions of 732 × 203 × 295 mm and a weight of 28.3 kg, making it suitable for industrial control cabinets, automation systems, and large motor-driven equipment.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-106A-4 |
| Product Code | 3AUA0000080503 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Current | 106 A |
| Rated Power | 55 kW |
| Voltage Class | 400 V |
| Input Voltage | 380–480 V AC |
| Input Phase | Three Phase |
| Frequency | 50/60 Hz |
| Installation Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Protection Class | IP21 |
| Dimensions | 732 × 203 × 295 mm |
| Weight | 28.3 kg |
| Application | Industrial Motor Control |
Product Features
High Performance Motor Control
The ABB ACS580-01-106A-4 provides reliable variable-frequency motor control for industrial applications requiring stable operation and accurate process control.
Main advantages:
- High output current capability
- Stable motor speed control
- Accurate torque regulation
- Smooth acceleration and stopping
- Reduced mechanical stress
The drive helps maintain consistent motor performance even when operating conditions change.
Industrial Grade Construction
The ACS580-01-106A-4 is designed for demanding industrial environments where reliability and durability are essential.
Key design advantages:
- Strong industrial enclosure
- Efficient heat dissipation structure
- Reliable electrical components
- Long-term continuous operation capability
- Suitable for automation systems
The robust design allows the frequency converter to operate effectively in manufacturing plants and industrial facilities.
Simplified Commissioning Process
The ABB ACS580 series is designed to reduce installation complexity and improve startup efficiency.
Key features:
- Simple parameter configuration
- Fast commissioning procedures
- Integrated diagnostic functions
- Easy operation adjustment
- Convenient maintenance access
Engineers can quickly configure the drive according to different motor and application requirements.
Energy Saving Capability
The ABB ACS580-01-106A-4 improves energy efficiency by adjusting motor speed according to actual process demand.
Energy-saving benefits:
- Reduced unnecessary power consumption
- Improved motor efficiency
- Lower operating costs
- Better process optimization
Variable-speed operation helps industrial systems achieve higher efficiency compared with traditional fixed-speed motor control methods.
Working Principle
The ABB ACS580-01-106A-4 frequency converter controls motor operation by converting fixed-frequency AC power into adjustable-frequency output power.
The operating process includes:
- Three-phase AC power enters the converter.
- The rectifier section converts AC power into DC power.
- The DC intermediate circuit stabilizes the voltage.
- The inverter section converts DC power into variable-frequency AC output.
- The motor receives controlled voltage and frequency signals.
By adjusting output frequency and voltage, the drive controls motor speed, torque, and energy consumption.
Industrial Applications
Pump Control Applications
The ABB ACS580-01-106A-4 is widely used in industrial pumping systems.
Typical applications:
- Water treatment equipment
- Cooling circulation systems
- Process pumps
- Industrial fluid transportation
Benefits:
- Improved flow control
- Reduced energy consumption
- Smooth motor startup
- Extended pump lifetime
Fan and Ventilation Systems
The frequency converter provides efficient speed control for large industrial fans.
Applications include:
- Factory ventilation systems
- Cooling equipment
- Air handling systems
- Exhaust systems
Advantages:
- Adjustable airflow
- Reduced operating costs
- Stable ventilation performance
Conveyor Systems
The ACS580-01-106A-4 provides reliable speed regulation for industrial conveyors.
Typical applications:
- Material handling systems
- Packaging equipment
- Production lines
- Logistics equipment
Benefits:
- Smooth acceleration
- Accurate speed adjustment
- Reduced mechanical impact
Compressor Systems
The drive is suitable for industrial compressor applications.
Applications:
- Air compressors
- Process compressors
- Pressure control systems
Advantages:
- Stable operation
- Improved efficiency
- Better load control
Manufacturing Machinery
The ABB ACS580-01-106A-4 can be integrated into various industrial machines.
Applications:
- Extrusion equipment
- Mixing machines
- Centrifugal machines
- Processing systems
Benefits:
- Reliable motor control
- Flexible integration
- Improved production efficiency
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-106A-4, check:
- Correct three-phase power supply
- Compatible motor specifications
- Suitable installation environment
- Proper ventilation conditions
- Reliable grounding connection
Installation Steps
- Install the frequency converter vertically inside the electrical cabinet.
- Ensure sufficient space for cooling airflow.
- Connect incoming power cables.
- Connect motor output cables.
- Connect control terminals.
- Configure motor parameters.
- Perform startup testing.
Installation Precautions
During installation:
- Avoid high humidity environments
- Prevent dust accumulation
- Maintain proper ventilation
- Use correct cable specifications
- Tighten all electrical connections properly
Fault Diagnosis and Troubleshooting
Drive Does Not Start
Possible causes:
- Incorrect start command
- Missing control signal
- Incorrect parameter settings
- Motor connection failure
Solutions:
- Check control wiring
- Verify parameters
- Inspect motor cables
- Reset active alarms
Overcurrent Fault
Possible causes:
- Motor overload
- Short circuit in output cables
- Incorrect motor parameters
- Mechanical system blockage
Solutions:
- Check motor load
- Inspect output wiring
- Confirm motor data
- Check mechanical equipment
Overvoltage Fault
Possible causes:
- Short deceleration time
- Excessive regenerative energy
- Unstable power supply
Solutions:
- Increase deceleration time
- Check supply voltage
- Adjust drive parameters
Overheating Fault
Possible causes:
- Poor ventilation
- Blocked cooling path
- High ambient temperature
- Excessive operating load
Solutions:
- Improve cabinet airflow
- Clean cooling areas
- Check installation conditions
- Reduce load level
Communication Fault
Possible causes:
- Incorrect communication settings
- Damaged cables
- PLC configuration errors
Solutions:
- Check communication parameters
- Inspect network wiring
- Verify PLC settings
System Integration
| Component | Function |
|---|---|
| PLC System | Automatic motor control |
| DCS System | Process monitoring |
| HMI | Operator interface |
| Industrial Network | Data communication |
| Protection System | Motor safety monitoring |
Key Advantages
Powerful Drive Capability
The 106 A rated current provides reliable control for medium-power industrial motors.
Compact Industrial Installation
The 732 × 203 × 295 mm structure provides flexible cabinet installation.
Reliable Long-Term Operation
Designed for continuous industrial operation with stable performance.
Energy Efficient Control
Variable-speed operation helps reduce energy consumption.
Easy Maintenance
Diagnostic functions simplify troubleshooting and reduce downtime.
Technical FAQs
What is ABB ACS580-01-106A-4 used for?
The ABB ACS580-01-106A-4 is an industrial frequency converter designed for AC motor speed and torque control.
What is the rated current of ABB ACS580-01-106A-4?
The rated current is 106 A.
What is the rated power of ABB ACS580-01-106A-4?
The rated power is approximately 55 kW.
What is the product code of ABB ACS580-01-106A-4?
The product code is 3AUA0000080503.
What are the dimensions of ABB ACS580-01-106A-4?
The dimensions are 732 × 203 × 295 mm.
What is the weight of ABB ACS580-01-106A-4?
The approximate weight is 28.3 kg.
Conclusion
The ABB ACS580-01-106A-4 3AUA0000080503 Frequency Converter is a reliable industrial AC drive designed for efficient motor control, automation integration, and energy optimization.
With its powerful current capability, robust industrial design, flexible application range, and simplified commissioning features, it provides an effective solution for industrial motor control systems.
The ABB ACS580-01-106A-4 is widely suitable for pumps, fans, conveyors, compressors, mixers, extruders, and other industrial automation equipment requiring stable and efficient motor operation.
