Product Overview

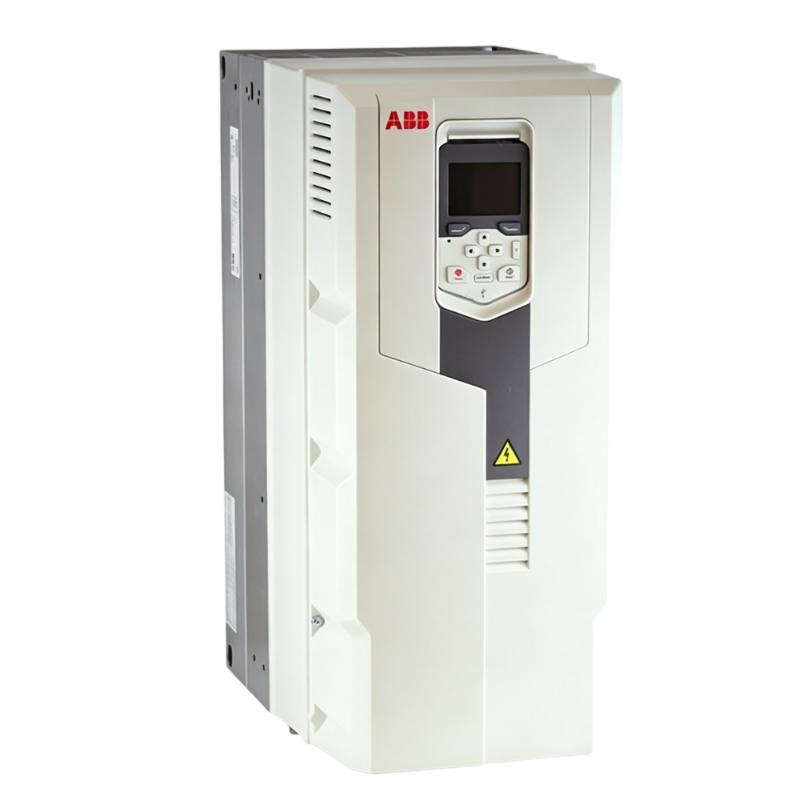

The ABB ACS580-01-145A-4 Frequency Converter with product code 3AUA0000080504 is a high-performance industrial AC drive designed for reliable motor speed control, energy-efficient operation, and flexible integration into industrial automation systems.
The ABB ACS580 series is a general-purpose frequency converter platform developed for industrial applications requiring stable motor performance, accurate speed regulation, and simplified commissioning. The ACS580-01-145A-4 provides dependable control capability for medium-power motor-driven equipment including pumps, fans, conveyors, compressors, mixers, extruders, centrifuges, and other industrial machinery.
With a rated output current of 145 A and a power rating of approximately 75 kW, the ABB ACS580-01-145A-4 delivers powerful variable-speed motor control for applications requiring continuous operation, stable torque performance, and optimized energy management.
The ABB ACS580-01-145A-4 3AUA0000080504 Frequency Converter features a robust wall-mounted industrial design with dimensions of 727 × 252 × 369 mm and a weight of 49.5 kg, making it suitable for large industrial control cabinets, production equipment, and heavy-duty automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-145A-4 |
| Product Code | 3AUA0000080504 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Current | 145 A |
| Rated Power | 75 kW |
| Voltage Class | 400 V |
| Input Voltage | 380–480 V AC |
| Input Phase | Three Phase |
| Frequency | 50/60 Hz |
| Installation Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Protection Class | IP21 |
| Dimensions | 727 × 252 × 369 mm |
| Weight | 49.5 kg |
| Application | Industrial Motor Control |
Product Features
High-Power Industrial Motor Control
The ABB ACS580-01-145A-4 provides powerful and stable control for medium and high-power industrial motors.
Main advantages:
- High output current capability
- Stable speed regulation
- Reliable torque control
- Smooth motor acceleration
- Reduced mechanical stress
The frequency converter maintains consistent motor operation even when the load changes during industrial processes.
Robust Industrial Construction
The ACS580-01-145A-4 is designed for demanding industrial environments requiring long-term reliability.
Key design advantages:
- Strong industrial housing
- Efficient cooling system
- Stable electrical performance
- Suitable for continuous operation
- Flexible cabinet installation
The rugged construction allows the drive to operate reliably in manufacturing plants and industrial facilities.
Simplified Commissioning and Maintenance
The ABB ACS580 series helps reduce installation complexity and maintenance requirements.
Key features:
- Easy parameter configuration
- Fast commissioning process
- Integrated diagnostic functions
- Simple operation adjustment
- Reduced troubleshooting time
The simplified design improves efficiency for system integrators and maintenance engineers.
Energy Efficient Drive Operation
The ABB ACS580-01-145A-4 improves system efficiency through advanced variable-speed motor control.
Energy-saving advantages:
- Reduced unnecessary energy consumption
- Improved motor efficiency
- Lower operating costs
- Optimized production processes
By adjusting motor speed according to actual demand, the drive helps reduce energy waste.
Working Principle
The ABB ACS580-01-145A-4 frequency converter controls AC motor operation by converting fixed-frequency electrical power into adjustable-frequency output power.
The operating process includes:
- Three-phase AC power enters the frequency converter.
- The rectifier converts AC power into DC power.
- The DC intermediate circuit stabilizes electrical energy.
- The inverter converts DC power into variable-frequency AC output.
- The motor receives controlled voltage and frequency signals.
Through precise output regulation, the frequency converter controls motor speed, torque, and energy consumption.
Industrial Applications
Pump Control Systems
The ABB ACS580-01-145A-4 is suitable for medium and large industrial pump applications.
Typical applications:
- Water treatment systems
- Cooling circulation pumps
- Process pumps
- Industrial fluid systems
Benefits:
- Improved flow regulation
- Reduced energy consumption
- Smooth startup operation
- Extended equipment lifetime
Fan and Ventilation Systems
The frequency converter provides efficient speed control for industrial ventilation equipment.
Applications include:
- Factory ventilation
- Cooling fans
- Air handling systems
- Exhaust equipment
Advantages:
- Adjustable airflow control
- Lower operating costs
- Stable ventilation performance
Conveyor Systems
The ACS580-01-145A-4 provides reliable control for heavy-duty conveyor applications.
Typical applications:
- Material handling systems
- Production conveyors
- Packaging lines
- Automated transport equipment
Benefits:
- Smooth acceleration
- Accurate speed control
- Reduced mechanical wear
Compressor Applications
The drive is suitable for industrial compressor systems requiring stable motor operation.
Applications:
- Air compressors
- Process compressors
- Industrial pressure systems
Advantages:
- Stable motor performance
- Improved energy efficiency
- Better process control
Heavy Industrial Machinery
The ABB ACS580-01-145A-4 can be integrated into various industrial machines.
Applications:
- Extrusion equipment
- Mixing systems
- Centrifugal machines
- Processing equipment
Benefits:
- Reliable operation
- Flexible automation integration
- Improved machine performance
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-145A-4, confirm:
- Correct three-phase power supply
- Compatible motor specifications
- Suitable installation environment
- Adequate ventilation space
- Proper grounding connection
Installation Steps
- Install the frequency converter vertically inside the electrical cabinet.
- Ensure sufficient clearance for cooling airflow.
- Connect incoming power cables.
- Connect motor output cables.
- Connect control and communication wiring.
- Configure motor parameters.
- Perform commissioning tests.
Installation Precautions
During installation:
- Avoid excessive moisture
- Prevent dust accumulation
- Maintain proper airflow
- Use correct cable specifications
- Tighten all electrical connections properly
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible causes:
- Incorrect start command
- Missing enable signal
- Incorrect parameter settings
- Motor wiring problems
Solutions:
- Check control signals
- Verify configuration parameters
- Inspect motor connections
- Reset active alarms
Overcurrent Fault
Possible causes:
- Motor overload
- Output cable short circuit
- Incorrect motor data
- Mechanical blockage
Solutions:
- Check motor load conditions
- Inspect output wiring
- Verify motor parameters
- Check mechanical equipment
Overvoltage Fault
Possible causes:
- Short deceleration time
- Excessive regenerative energy
- Unstable input voltage
Solutions:
- Increase deceleration time
- Check power supply conditions
- Adjust drive parameters
Overheating Fault
Possible causes:
- Insufficient ventilation
- Cooling path blockage
- High ambient temperature
- Excessive operating load
Solutions:
- Improve cabinet airflow
- Clean cooling areas
- Check installation conditions
- Reduce operating load
Communication Failure
Possible causes:
- Incorrect communication settings
- Damaged communication cables
- PLC configuration problems
Solutions:
- Verify communication parameters
- Inspect network connections
- Check PLC and HMI settings
System Integration
| Component | Function |
|---|---|
| PLC System | Automatic motor control |
| DCS System | Process monitoring |
| HMI | Operator interface |
| Industrial Network | Data communication |
| Motor Protection System | Equipment protection |
Key Advantages
Powerful Drive Capability
The 145 A rated current provides reliable control for 75 kW class industrial motors.
Stable Industrial Performance
Designed for continuous operation in demanding automation environments.
Energy Efficient Operation
Variable-speed technology improves system efficiency and reduces energy consumption.
Flexible Automation Integration
Suitable for PLC, DCS, HMI, and industrial control system applications.
Easy Maintenance
Diagnostic functions simplify fault identification and reduce downtime.
Technical FAQs
What is ABB ACS580-01-145A-4 used for?
The ABB ACS580-01-145A-4 is an industrial frequency converter designed for AC motor speed and torque control.
What is the rated current of ABB ACS580-01-145A-4?
The rated current is 145 A.
What is the rated power of ABB ACS580-01-145A-4?
The rated power is approximately 75 kW.
What is the product code of ABB ACS580-01-145A-4?
The product code is 3AUA0000080504.
What are the dimensions of ABB ACS580-01-145A-4?
The dimensions are 727 × 252 × 369 mm.
What is the weight of ABB ACS580-01-145A-4?
The approximate weight is 49.5 kg.
Conclusion
The ABB ACS580-01-145A-4 3AUA0000080504 Frequency Converter is a powerful industrial AC drive designed for reliable motor control, energy optimization, and automation system integration.
With its high current capability, robust industrial construction, stable control performance, and simplified commissioning features, it provides an effective solution for demanding motor applications.
The ABB ACS580-01-145A-4 is suitable for pumps, fans, conveyors, compressors, mixers, extruders, and other industrial automation equipment requiring efficient and dependable motor control.
