Product Overview

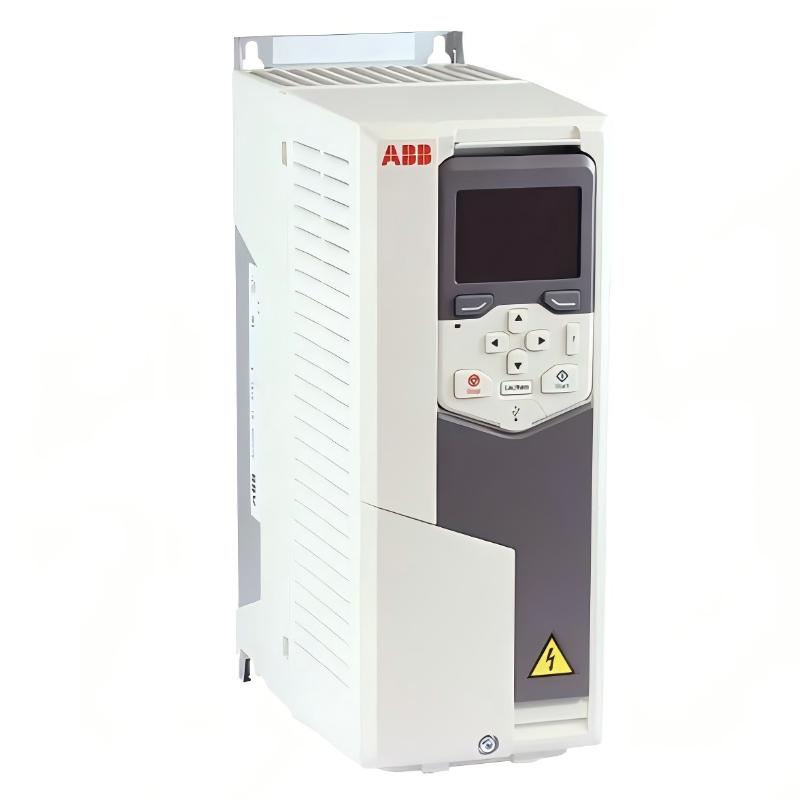

The ABB ACS580-01-12A7-4 Frequency Converter with product code 3AXD50000038953 is a compact and reliable AC drive designed for industrial motor control applications. It provides efficient speed regulation, stable torque performance, and simplified operation for modern automation systems.
The ABB ACS580 series is widely used in industrial environments where reliable variable-speed motor control is required. The ACS580-01-12A7-4 is suitable for applications including pumps, fans, conveyors, compressors, mixers, and other machinery requiring accurate motor speed adjustment.
With a rated current of 12.6 A and a power rating of approximately 5.5 kW, the ABB ACS580-01-12A7-4 provides efficient control for small and medium industrial motors. The drive helps improve equipment performance by optimizing motor operation, reducing mechanical stress, and supporting energy-saving operation.
The ABB ACS580-01-12A7-4 3AXD50000038953 Frequency Converter features a compact wall-mounted structure with dimensions of 373 × 125 × 223 mm and a weight of 4.6 kg, making it suitable for control cabinets, OEM equipment, and industrial automation systems with limited installation space.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-12A7-4 |
| Product Code | 3AXD50000038953 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Current | 12.6 A |
| Rated Power | 5.5 kW |
| Voltage Class | 400 V |
| Input Voltage | 380–480 V AC |
| Input Phase | Three Phase |
| Frequency | 50/60 Hz |
| Installation Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Protection Class | IP21 |
| Dimensions | 373 × 125 × 223 mm |
| Weight | 4.6 kg |
| Application | Industrial Motor Control |
Product Features
Compact Space-Saving Design
The ABB ACS580-01-12A7-4 provides powerful motor control performance while maintaining a compact installation size.
Main advantages:
- Reduced cabinet space requirements
- Flexible installation options
- Efficient cooling structure
- Easy integration into automation systems
- Suitable for OEM machinery
The compact design allows engineers to install the drive in applications where electrical cabinet space is limited.
Reliable Motor Control Performance
The ACS580-01-12A7-4 provides stable and accurate motor control for industrial equipment.
Key benefits:
- Smooth speed regulation
- Reliable torque control
- Controlled acceleration and deceleration
- Reduced mechanical stress
- Improved equipment reliability
The frequency converter ensures consistent motor operation under different load conditions.
Easy Commissioning and Operation
The ABB ACS580 series simplifies installation and commissioning for automation engineers.
Main features:
- Simple parameter setup
- Fast startup process
- Convenient adjustment
- Integrated diagnostic functions
- Easy maintenance
The user-friendly configuration helps reduce commissioning time and improves system efficiency.
Energy Efficient Motor Operation
The ABB ACS580-01-12A7-4 improves energy efficiency through variable-speed control technology.
Energy-saving advantages:
- Reduced unnecessary power consumption
- Optimized motor performance
- Lower operating costs
- Improved process efficiency
By adjusting motor speed according to actual requirements, the drive helps reduce energy waste.
Working Principle
The ABB ACS580-01-12A7-4 frequency converter controls motor operation by converting fixed-frequency AC power into adjustable-frequency output power.
The operating process includes:
- AC power enters the frequency converter.
- The rectifier converts AC power into DC power.
- The DC circuit stabilizes the electrical energy.
- The inverter converts DC power into variable-frequency AC output.
- The motor receives controlled voltage and frequency signals.
Through precise control of output frequency and voltage, the drive regulates motor speed, torque, and energy consumption.
Industrial Applications
Pump Systems
The ABB ACS580-01-12A7-4 is suitable for various industrial pumping applications.
Typical uses:
- Water circulation systems
- Cooling pumps
- Process pumps
- Fluid handling equipment
Advantages:
- Improved flow adjustment
- Reduced energy consumption
- Smooth motor startup
- Extended pump lifetime
Fan and Ventilation Equipment
The frequency converter provides efficient speed control for industrial fans.
Applications:
- Cooling fans
- Ventilation systems
- Air circulation equipment
- Exhaust systems
Benefits:
- Adjustable airflow control
- Stable operation
- Improved energy efficiency
Conveyor Systems
The ACS580-01-12A7-4 provides reliable motor control for conveyor applications.
Typical applications:
- Production lines
- Packaging machines
- Material handling equipment
- Automated transport systems
Benefits:
- Smooth acceleration
- Accurate speed control
- Reduced mechanical wear
Compressor Applications
The drive is suitable for compressor systems requiring stable motor control.
Applications:
- Air compressors
- Industrial compressors
- Pressure control equipment
Advantages:
- Stable operation
- Improved efficiency
- Better process management
Industrial Machinery
The ABB ACS580-01-12A7-4 can be integrated into various automated machines.
Applications:
- Mixing equipment
- Processing machines
- OEM machinery
- Manufacturing equipment
Benefits:
- Reliable operation
- Flexible integration
- Improved productivity
Installation Guide
Installation Preparation
Before installation, confirm:
- Correct three-phase power supply
- Compatible motor specifications
- Proper installation environment
- Adequate ventilation space
- Reliable grounding connection
Installation Steps
- Mount the frequency converter vertically inside the control cabinet.
- Ensure sufficient clearance for cooling airflow.
- Connect input power cables.
- Connect motor output cables.
- Connect control wiring.
- Configure motor parameters.
- Perform commissioning tests.
Installation Precautions
During installation:
- Avoid excessive moisture
- Keep the unit away from dust contamination
- Maintain proper airflow
- Use suitable cables
- Check terminal connections carefully
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible causes:
- Incorrect start command
- Missing enable signal
- Incorrect parameter settings
- Motor connection problems
Solutions:
- Check control signals
- Verify parameters
- Inspect motor wiring
- Reset alarms
Overcurrent Fault
Possible causes:
- Motor overload
- Short circuit
- Incorrect motor parameters
- Mechanical blockage
Solutions:
- Check motor load
- Inspect output cables
- Verify motor data
- Check mechanical equipment
Overvoltage Fault
Possible causes:
- Fast deceleration settings
- Power supply fluctuation
- Excessive regenerative energy
Solutions:
- Increase deceleration time
- Check power supply
- Adjust drive parameters
Overheating Fault
Possible causes:
- Poor ventilation
- Blocked cooling path
- High ambient temperature
- Excessive load
Solutions:
- Improve airflow
- Clean cooling areas
- Check installation conditions
- Reduce operating load
Communication Failure
Possible causes:
- Incorrect communication settings
- Damaged cables
- PLC configuration errors
Solutions:
- Check communication parameters
- Inspect wiring
- Verify PLC settings
System Integration
| Component | Function |
|---|---|
| PLC | Automatic motor control |
| DCS | Process monitoring |
| HMI | Operator interface |
| Industrial Network | Data communication |
| Protection System | Motor protection |
Key Advantages
Compact Installation
The 373 × 125 × 223 mm design allows flexible installation in compact automation cabinets.
Reliable Performance
Provides stable motor speed and torque control for industrial applications.
Energy Optimization
Variable-speed operation improves efficiency and reduces energy consumption.
Easy Maintenance
Diagnostic functions simplify troubleshooting and reduce downtime.
Wide Application Range
Suitable for pumps, fans, conveyors, compressors, mixers, and industrial machinery.
Technical FAQs
What is ABB ACS580-01-12A7-4 used for?
The ABB ACS580-01-12A7-4 is a frequency converter designed for industrial AC motor control applications.
What is the rated current of ABB ACS580-01-12A7-4?
The rated current is 12.6 A.
What is the rated power of ABB ACS580-01-12A7-4?
The rated power is approximately 5.5 kW.
What is the product code of ABB ACS580-01-12A7-4?
The product code is 3AXD50000038953.
What are the dimensions of ABB ACS580-01-12A7-4?
The dimensions are 373 × 125 × 223 mm.
What is the weight of ABB ACS580-01-12A7-4?
The approximate weight is 4.6 kg.
Conclusion
The ABB ACS580-01-12A7-4 3AXD50000038953 Frequency Converter is a compact, efficient, and reliable industrial drive designed for modern automation applications.
With its stable motor control capability, energy-saving operation, compact structure, and simplified commissioning process, it provides an effective solution for industrial equipment requiring precise and dependable motor management.
The ABB ACS580-01-12A7-4 is suitable for pumps, fans, conveyors, compressors, mixers, and various industrial automation systems.
