Product Overview
The ABB ACS580-01-09A5-4 Frequency Converter with product code 3ABD50000038952 is a compact industrial AC drive designed for reliable motor speed control, energy-efficient operation, and easy integration into industrial automation systems.
The ABB ACS580 series is a general-purpose frequency converter family developed for applications requiring stable motor performance, accurate speed regulation, and simplified commissioning. The ACS580-01-09A5-4 is designed to control motors in various industrial applications, including pumps, fans, conveyors, compressors, mixers, and other variable-speed equipment.
With a rated output current of 9.4 A and a power rating of approximately 4 kW, the ABB ACS580-01-09A5-4 provides efficient motor control for industrial machines that require stable operation, reduced energy consumption, and improved process performance.

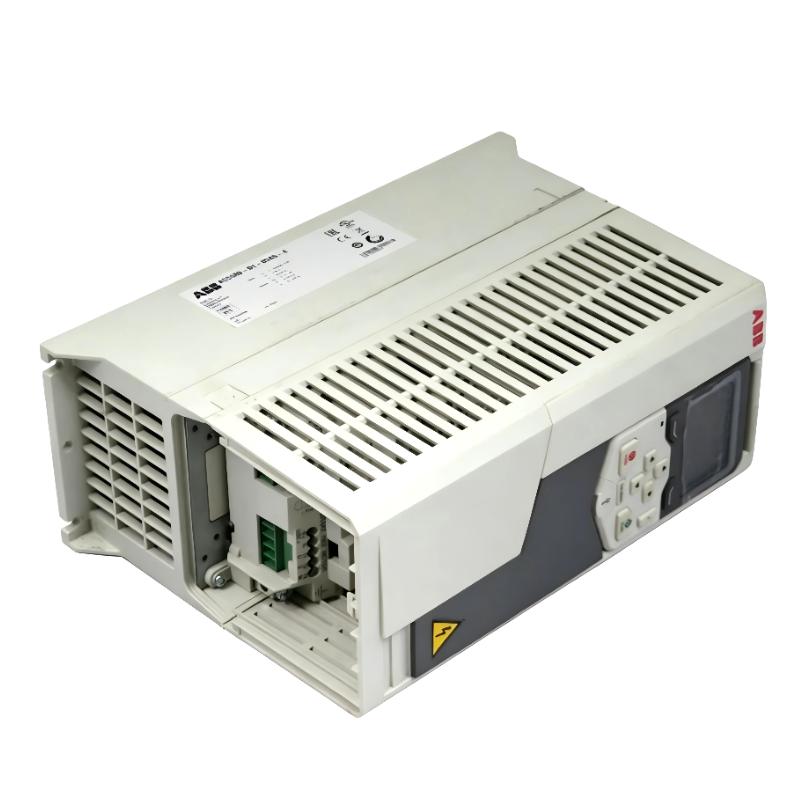

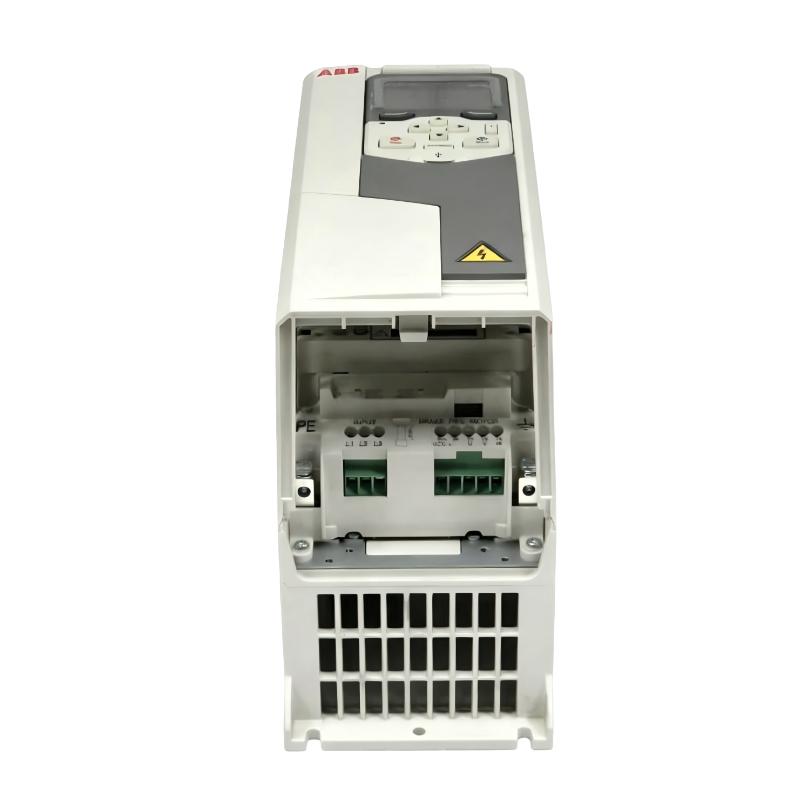

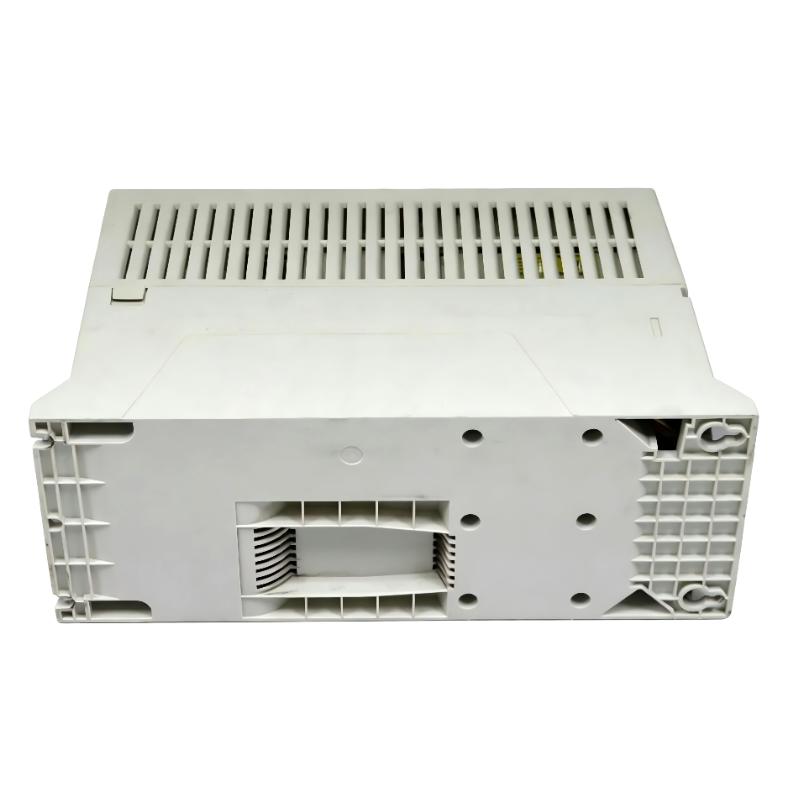

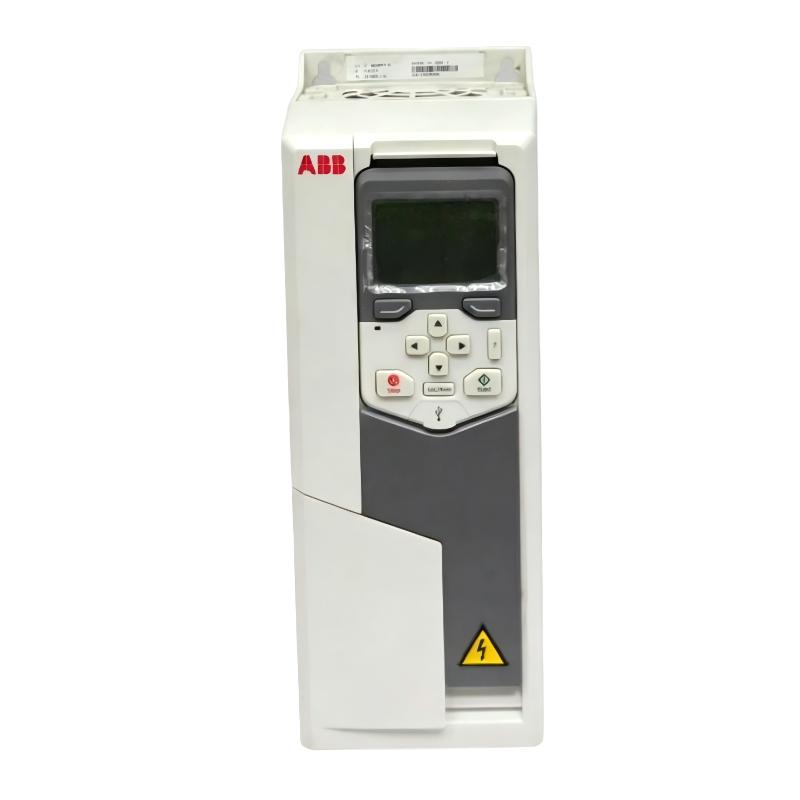

The ABB ACS580-01-09A5-4 3ABD50000038952 Frequency Converter features a compact wall-mounted design with dimensions of 303 × 125 × 223 mm and a weight of 4.6 kg, making it suitable for compact control cabinets, OEM machinery, and automation systems with limited installation space.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-09A5-4 |
| Product Code | 3ABD50000038952 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Current | 9.4 A |
| Rated Power | 4 kW |
| Voltage Class | 400 V |
| Input Voltage | 380–480 V AC |
| Input Type | Three Phase AC |
| Frequency | 50/60 Hz |
| Installation Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Protection Class | IP21 |
| Dimensions | 303 × 125 × 223 mm |
| Weight | 4.6 kg |
| Application | Industrial Motor Control |
Product Features
Compact Industrial Drive Design
The ABB ACS580-01-09A5-4 provides powerful motor control capability in a compact housing design.
Main advantages:
- Space-saving installation
- Flexible cabinet mounting
- Efficient heat dissipation
- Reliable industrial performance
- Suitable for OEM applications
The compact structure allows easy installation in automation panels where space availability is limited.
Reliable Motor Control Performance
The ACS580-01-09A5-4 provides accurate control of AC motors through variable frequency technology.
Key benefits:
- Precise speed regulation
- Smooth motor acceleration
- Stable torque control
- Reduced mechanical stress
- Improved equipment reliability
The frequency converter helps maintain stable motor operation under different load conditions.
Simplified Commissioning
The ABB ACS580 series is designed to make drive setup and commissioning easier for engineers.
Key features:
- Simple parameter configuration
- Fast startup process
- Built-in diagnostic functions
- Easy operation adjustment
- Reduced commissioning time
The straightforward configuration helps improve system installation efficiency.
Energy Efficient Operation
The ABB ACS580-01-09A5-4 improves energy efficiency by adjusting motor speed according to actual application requirements.
Energy-saving benefits:
- Reduced unnecessary power consumption
- Improved motor efficiency
- Lower operating costs
- Optimized machine performance
Variable-speed control helps industrial equipment operate more efficiently compared with traditional fixed-speed motors.
Working Principle
The ABB ACS580-01-09A5-4 frequency converter controls AC motor operation by converting fixed-frequency input power into adjustable-frequency output power.
The operating process includes:
- Three-phase AC power enters the frequency converter.
- The rectifier converts AC power into DC power.
- The DC circuit stabilizes electrical energy.
- The inverter generates variable-frequency AC output.
- The motor receives controlled voltage and frequency signals.
By adjusting output frequency and voltage, the drive controls motor speed, torque, and energy consumption.
Industrial Applications
Pump Control Applications
The ABB ACS580-01-09A5-4 is suitable for small and medium industrial pump systems.
Typical applications:
- Water circulation pumps
- Cooling systems
- Process pumps
- Fluid handling equipment
Benefits:
- Improved flow adjustment
- Reduced energy consumption
- Smooth startup operation
- Extended equipment lifetime
Fan and Ventilation Systems
The frequency converter provides efficient speed control for industrial ventilation equipment.
Applications include:
- Cooling fans
- Air circulation systems
- Factory ventilation
- Exhaust equipment
Advantages:
- Flexible airflow control
- Improved energy efficiency
- Stable operation
Conveyor Systems
The ACS580-01-09A5-4 provides reliable speed regulation for conveyor applications.
Typical applications:
- Packaging equipment
- Production conveyors
- Material handling systems
Benefits:
- Smooth acceleration
- Accurate speed adjustment
- Reduced mechanical wear
Industrial Machinery
The compact frequency converter is suitable for various automated machines.
Applications:
- Mixers
- Processing machines
- Small compressors
- Production equipment
Advantages:
- Easy integration
- Reliable operation
- Flexible motor control
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-09A5-4, confirm:
- Correct three-phase power supply
- Compatible motor specifications
- Suitable installation environment
- Adequate ventilation space
- Proper grounding connection
Installation Steps
- Install the frequency converter vertically inside the control cabinet.
- Ensure sufficient airflow clearance.
- Connect input power cables.
- Connect motor output cables.
- Connect control wiring.
- Configure motor parameters.
- Perform commissioning tests.
Installation Precautions
During installation:
- Avoid excessive moisture
- Prevent dust accumulation
- Maintain proper ventilation
- Use suitable electrical cables
- Ensure secure terminal connections
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible causes:
- Incorrect start command
- Missing enable signal
- Incorrect parameter settings
- Motor connection problems
Solutions:
- Check control signals
- Verify drive parameters
- Inspect motor wiring
- Reset alarms
Overcurrent Fault
Possible causes:
- Motor overload
- Output short circuit
- Incorrect motor data
- Mechanical blockage
Solutions:
- Check motor load
- Inspect output cables
- Verify motor parameters
- Check mechanical equipment
Overvoltage Fault
Possible causes:
- Short deceleration time
- Excessive regenerative energy
- Unstable input voltage
Solutions:
- Increase deceleration time
- Check supply voltage
- Adjust drive parameters
Overheating Fault
Possible causes:
- Poor ventilation
- Cooling obstruction
- High ambient temperature
- Excessive operating load
Solutions:
- Improve airflow
- Clean cooling channels
- Check installation conditions
- Reduce load demand
Communication Failure
Possible causes:
- Incorrect communication settings
- Damaged cables
- PLC configuration errors
Solutions:
- Verify communication parameters
- Inspect wiring
- Check PLC and HMI settings
System Integration
| Component | Function |
|---|---|
| PLC System | Automatic motor control |
| DCS System | Process monitoring |
| HMI | Operator interface |
| Industrial Network | Data communication |
| Motor Protection System | Equipment protection |
Key Advantages
Compact Installation
The 303 × 125 × 223 mm design allows installation in small automation cabinets.
Reliable Motor Control
Provides accurate speed and torque regulation for industrial applications.
Energy Optimization
Improves system efficiency through variable-speed operation.
Easy Maintenance
Diagnostic functions simplify troubleshooting and reduce downtime.
Wide Application Compatibility
Suitable for pumps, fans, conveyors, mixers, compressors, and OEM machinery.
Technical FAQs
What is ABB ACS580-01-09A5-4 used for?
The ABB ACS580-01-09A5-4 is a frequency converter designed for industrial AC motor control applications.
What is the rated current of ABB ACS580-01-09A5-4?
The rated current is 9.4 A.
What is the rated power of ABB ACS580-01-09A5-4?
The rated power is approximately 4 kW.
What is the product code of ABB ACS580-01-09A5-4?
The product code is 3ABD50000038952.
What are the dimensions of ABB ACS580-01-09A5-4?
The dimensions are 303 × 125 × 223 mm.
What is the weight of ABB ACS580-01-09A5-4?
The approximate weight is 4.6 kg.
Conclusion
The ABB ACS580-01-09A5-4 3ABD50000038952 Frequency Converter is a compact and reliable industrial AC drive designed for efficient motor control and automation applications.
With its compact structure, stable performance, energy-saving operation, and simplified commissioning process, it provides an effective solution for modern industrial drive systems.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS580-01-09A5-4 delivers dependable performance for pumps, fans, conveyors, compressors, mixers, and other industrial motor-driven equipment.
