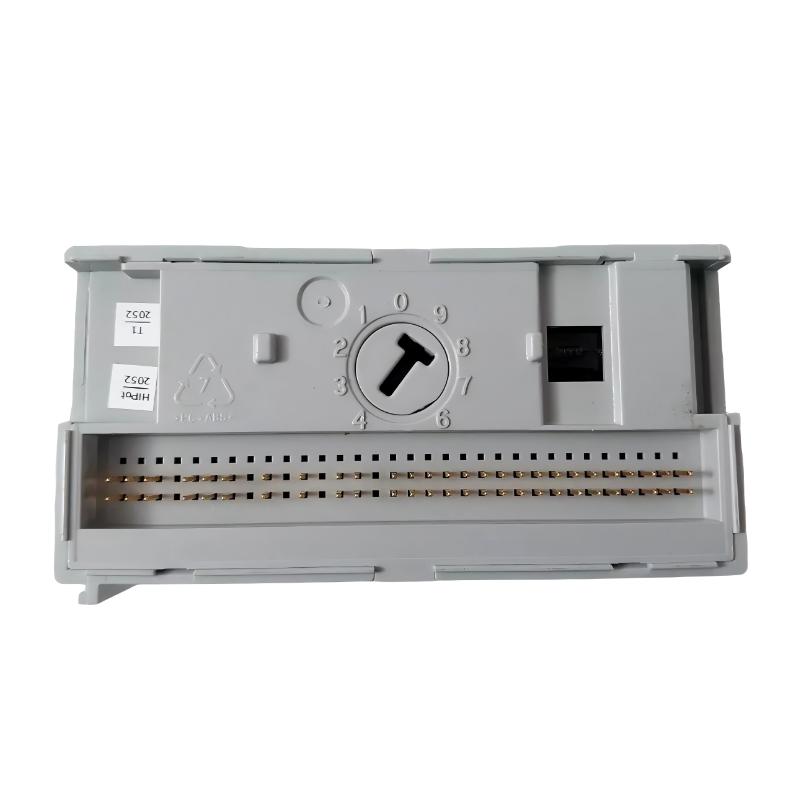

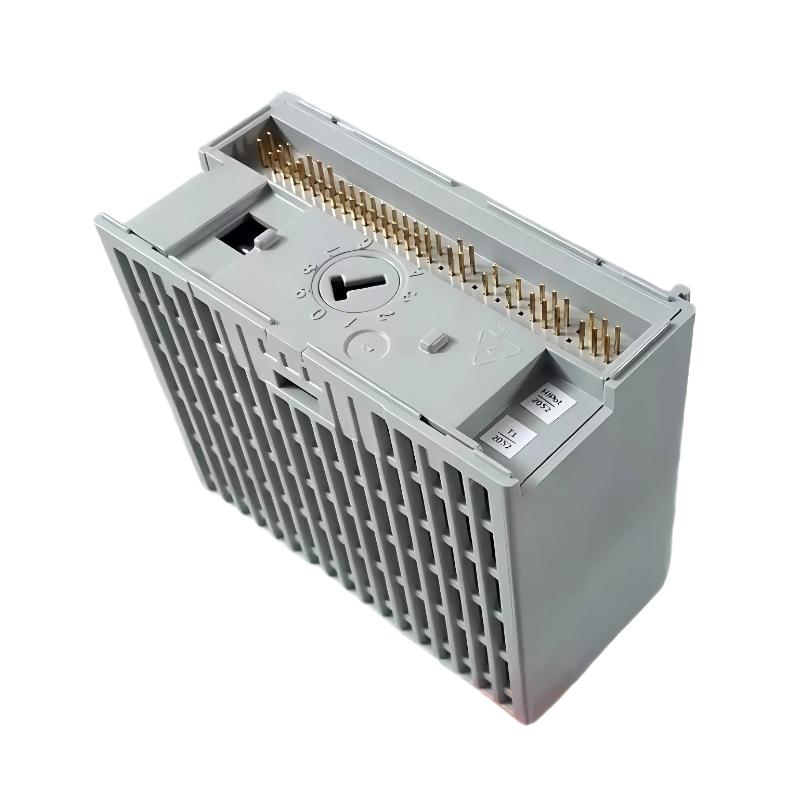

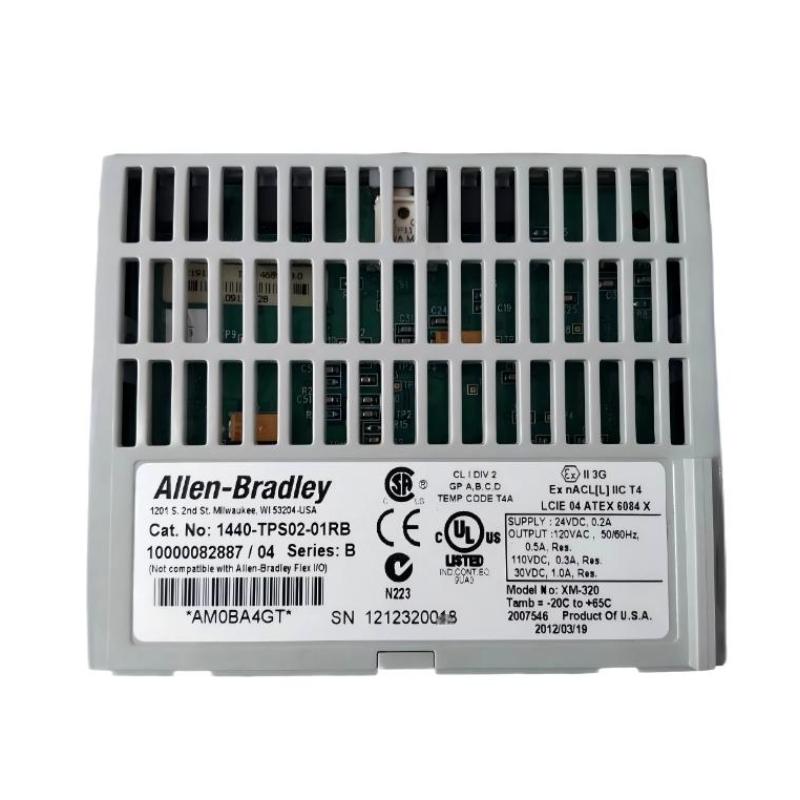

Allen Bradley 1440-TPS02-01RB Temperature Monitoring Module — Detailed Technical Overview

1. Product Overview

The Allen Bradley 1440-TPS02-01RB is a dual-channel temperature monitoring module designed for industrial condition monitoring and equipment protection systems. It is part of a modular architecture where measurement modules are used to continuously track key operating parameters and trigger alarms when limits are exceeded.

This module focuses on accurate temperature acquisition and processing, allowing operators to monitor critical assets such as motors, bearings, transformers, and process equipment. With two independent input channels, it supports simultaneous monitoring of multiple points or redundant sensing for increased reliability.

The unit integrates signal conditioning, alarm logic, and communication functions into a compact format, making it suitable for installation in control cabinets where real-time monitoring is required.

2. Brand Information

Brand: Allen Bradley

This brand is widely used in industrial automation systems and is recognized for delivering reliable and durable products for monitoring, control, and protection applications.

3. Series Information

Series: 1440 XM Series — Dynamic Measurement and Condition Monitoring

The 1440 XM series is designed for machine condition monitoring and predictive maintenance, offering modular solutions that measure physical parameters such as vibration, speed, and temperature.

Key characteristics of the series include:

• Modular design with interchangeable measurement modules
• Real-time monitoring and diagnostic capability
• Integration with industrial communication networks
• Alarm and protection functionality
• Flexible system expansion

The 1440-TPS02-01RB is specifically designed for temperature sensing and protection, forming an essential part of condition monitoring systems.

4. Technical Parameters

Main Specifications Table

5. Product Features

The 1440-TPS02-01RB is designed to provide precise and reliable temperature monitoring in industrial environments.

• Dual-channel input for monitoring multiple temperature points
• Supports both RTD and thermocouple sensors
• Wide temperature measurement range
• High measurement accuracy for critical applications
• Two configurable 4–20 mA analog outputs
• Integrated relay output for alarm signaling
• DeviceNet communication for system integration
• RS-232 interface for configuration and diagnostics
• Programmable alarm thresholds and logic
• Electrical isolation for improved signal integrity

These features enable accurate and reliable monitoring of temperature-sensitive equipment.

6. Product Applications

This module is used in a wide range of industrial applications where temperature monitoring is essential.

Typical applications include:

• Motor and bearing temperature monitoring
• Transformer and electrical equipment protection
• Process control systems
• Industrial automation lines
• Power generation systems
• Oil and gas installations
• HVAC and thermal systems

It is especially suitable for applications where temperature deviations can lead to equipment damage or process instability.

7. Product Advantages

Accurate Temperature Measurement

Provides reliable readings across a wide temperature range.

Dual-Channel Flexibility

Allows monitoring of two independent points or redundant sensing.

Advanced Alarm Capability

Supports configurable alarms to prevent equipment failure.

Strong Integration

Works seamlessly with industrial communication networks.

Reliable Operation

Designed for continuous use in demanding industrial environments.
