Allen Bradley 1440-TB-C Terminal Base — Detailed Technical Overview
1. Product Overview

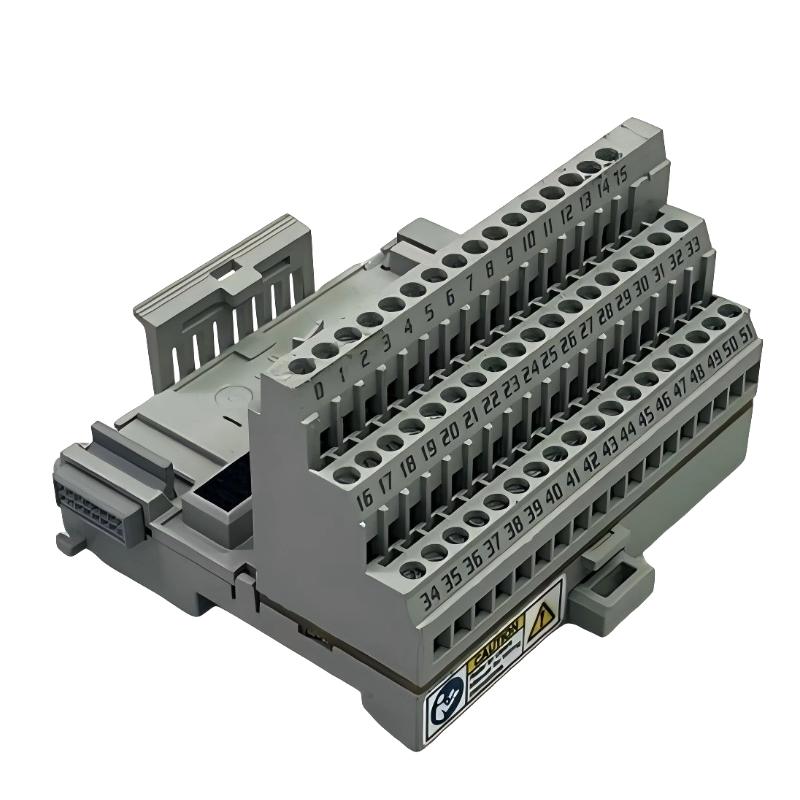

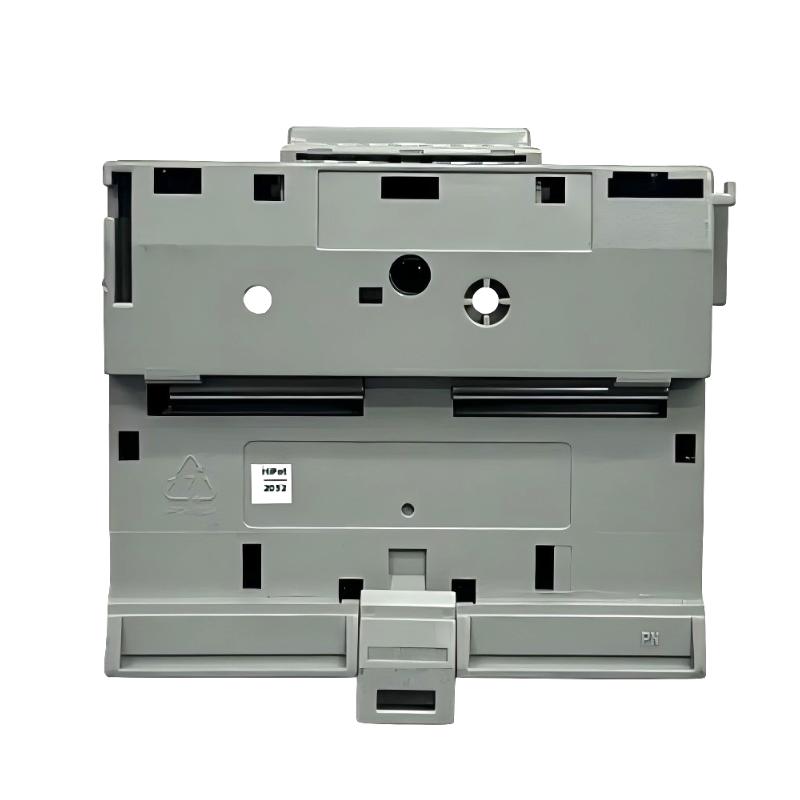

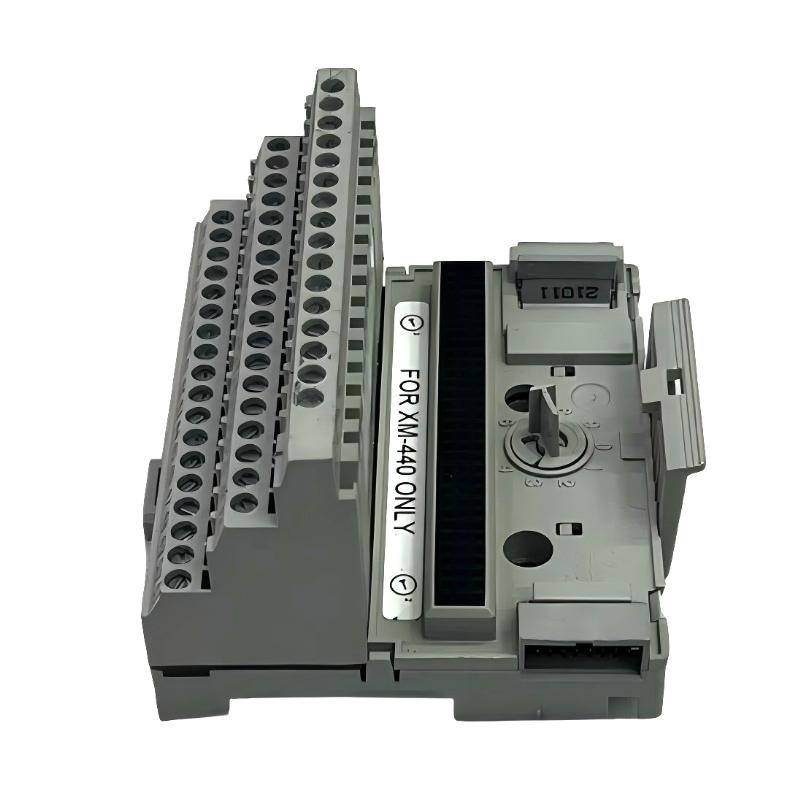

The Allen Bradley 1440-TB-C is a screw-clamp terminal base module designed for use within industrial dynamic monitoring systems. It serves as the physical and electrical interface between field wiring and XM series measurement modules, enabling structured connectivity and stable installation.
Unlike active monitoring modules, this unit does not perform measurement or signal processing. Instead, it provides a reliable wiring platform, allowing sensors, power supply, and communication lines to be connected efficiently. It is typically used with modules such as dynamic measurement or relay modules within the same system architecture.
The device features a compact DIN rail mountable design and screw clamp terminals, making it suitable for industrial environments where durability and secure connections are required.
2. Brand Information
Brand: Allen Bradley
This brand is widely used in industrial automation systems and is known for robust, long-life components that support control, monitoring, and power applications in demanding environments.
3. Series Information
Series: 1440 XM Series — Dynamic Measurement and Condition Monitoring
The 1440 XM series is designed for machine condition monitoring and protection, providing modular solutions for measuring speed, vibration, temperature, and other parameters.
Key characteristics of the series include:
- Modular structure with interchangeable components
- Real-time monitoring and diagnostics
- Integration with industrial communication networks such as DeviceNet
- Support for predictive maintenance strategies
- Expandable system architecture
The 1440-TB-C functions as a terminal base platform, enabling proper installation and connectivity of XM series modules.
4. Technical Parameters
Main Specifications Table
| Parameter | Value |
|---|---|
| Model | 1440-TB-C |
| Device Type | Terminal Base (Screw Clamp Type C) |
| Compatible Modules | XM Series (e.g., XM-124, relay modules) |
| Nominal Voltage | 24 V DC |
| Input Voltage Range | 21.6–26.4 V DC |
| Communication Interface | DeviceNet pass-through |
| Number of Connection Points | Multiple terminal connections |
| Terminal Type | Screw Clamp |
| Mounting Type | DIN Rail |
| Power Distribution | Up to 3 A via side connector |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5–95% (non-condensing) |
| Dimensions (W×H×D) | 98.4 × 95.3 × 57.2 mm |
| Weight (kg) | 0.30–0.50 |
Values are based on typical specifications for this model and class
5. Product Features
The 1440-TB-C is designed to provide a stable and efficient wiring interface for monitoring modules.
- Screw clamp terminals ensure secure and vibration-resistant connections
- Supports installation of a single XM series module
- Provides connection points for sensors, power input, and field devices
- Enables DeviceNet communication pass-through
- DIN rail mounting for quick installation and removal
- Compact design for space-saving panel layouts
- Robust construction suitable for industrial environments
- Simplifies system wiring and organization
- Supports modular system expansion
These features ensure reliable performance and ease of integration in industrial systems.
6. Product Applications
The 1440-TB-C is used in systems where machine monitoring and diagnostics are required.
Typical applications include:
- Rotating machinery monitoring (motors, pumps, turbines)
- Industrial automation systems
- Process control environments
- Power generation systems
- Oil and gas monitoring installations
- Manufacturing and production lines
It is especially suitable for applications requiring organized wiring and reliable module mounting.
7. Product Advantages
Secure Wiring Connection
Screw clamp terminals provide strong and stable electrical connections.
Modular Compatibility
Fully compatible with XM series modules, enabling flexible system design.
Easy Installation
DIN rail mounting simplifies installation and maintenance.
Reliable Performance
Designed for continuous operation in industrial environments.
Compact Structure
Efficient use of space in control cabinets.
8. Recommended Models — Same Series / Related Series
Table: 1440 XM Series and Related Modules
| Model | Type | Channels | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1440-SPD02-01RB | Speed Module | 2 | Speed Monitoring | 94 × 97 × 94 | 0.30 |
| 1440-VST02-01RA | Vibration Module | 2 | Vibration Monitoring | 94 × 97 × 94 | 0.32 |
| 1440-TPS02-01RB | Temperature Module | 2 | Temperature Monitoring | 94 × 97 × 94 | 0.28 |
| 1440-DYN02-01RJ | Dynamic Module | 2 | Multi-parameter Monitoring | 94 × 97 × 94 | 0.35 |
| 1440-TB-B | Terminal Base | 1 | Module Interface | 94 × 97 × 102 | 0.30 |
