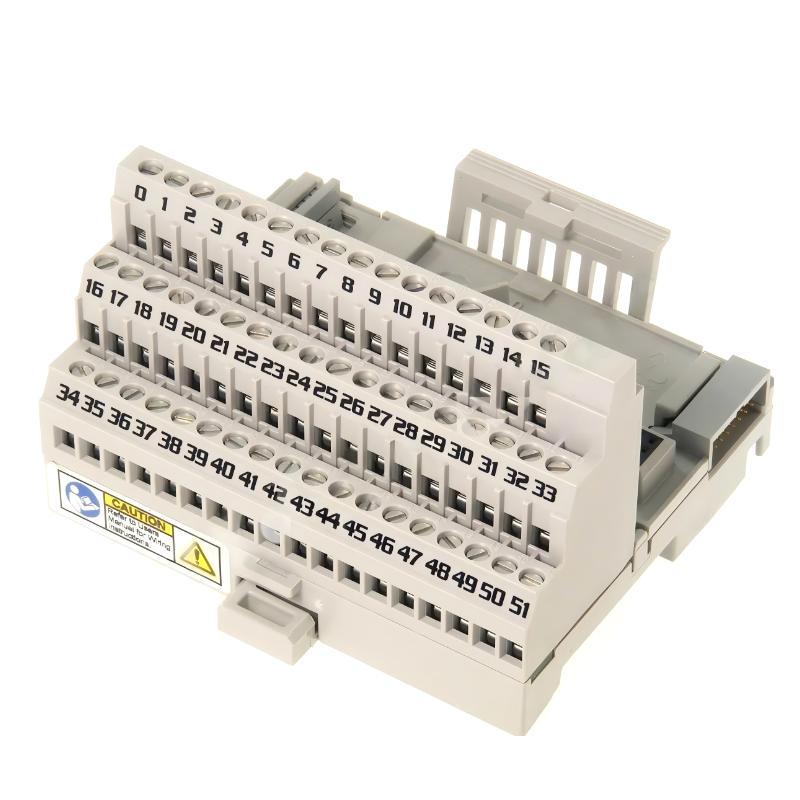

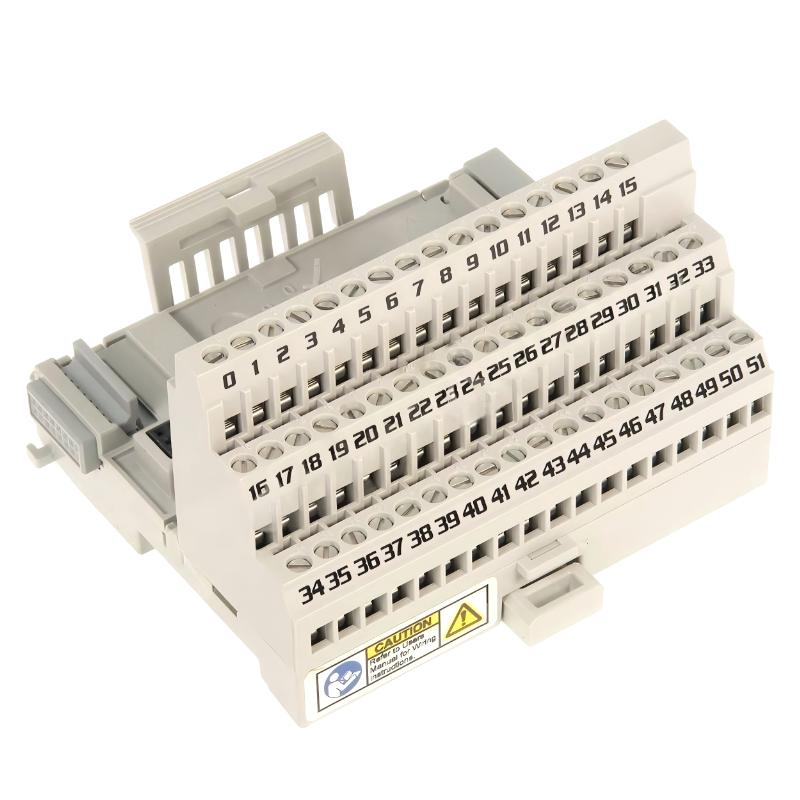

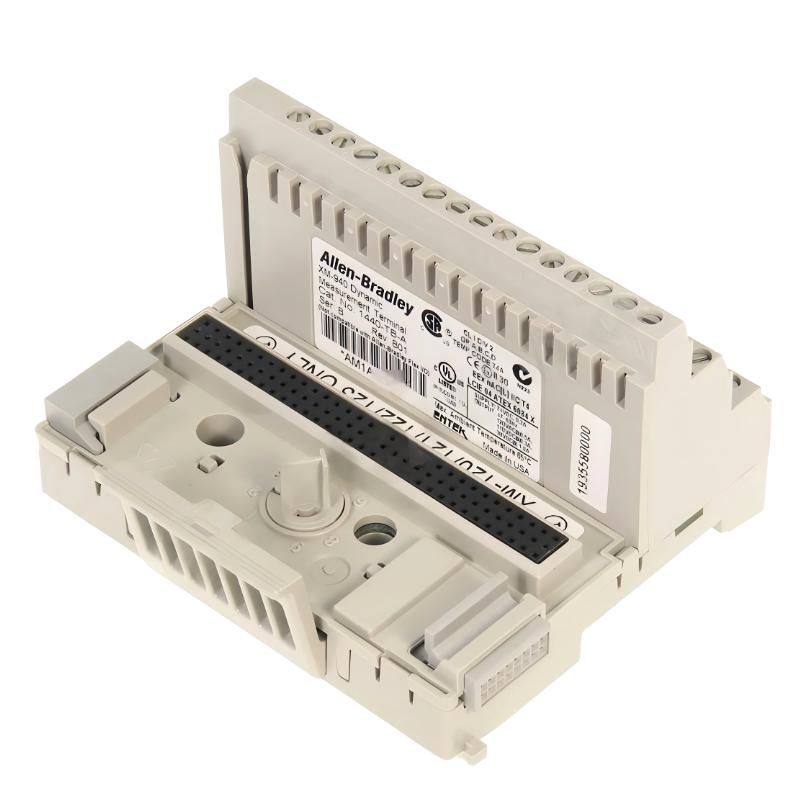

Allen Bradley 1440-TB-B Terminal Base — Detailed Technical Overview
1. Product Overview
The Allen Bradley 1440-TB-B is a terminal base unit designed for use with dynamic measurement modules, providing the physical mounting platform and electrical interface required for system integration. It is part of a modular architecture where intelligent monitoring modules are installed onto terminal bases to create a complete measurement and protection system.
Unlike active modules, this unit does not perform measurement or control functions. Instead, it acts as a connection hub, allowing field wiring, power input, signal routing, and communication interfaces to be organized efficiently.
The 1440-TB-B is designed for compatibility with XM series modules and is optimized for installations that require structured wiring, reliability, and ease of maintenance. Its DIN rail mounting format and compact footprint make it suitable for industrial control cabinets with limited space.
2. Brand Information
Brand: Allen Bradley
This brand is widely applied in industrial automation and is recognized for delivering robust components that integrate seamlessly into control, monitoring, and power systems.
3. Series Information
Series: 1440 XM Series — Dynamic Measurement and Condition Monitoring
The 1440 XM series is focused on machine condition monitoring and predictive maintenance, offering intelligent modules that measure parameters such as vibration, speed, and temperature.
Key characteristics of the series include:
- Modular design with interchangeable components
- Real-time monitoring and diagnostic capability
- Integration with industrial communication networks
- Support for predictive maintenance strategies
- Flexible system expansion
The 1440-TB-B functions as a terminal base platform, enabling XM modules to be installed and connected within this system.
4. Technical Parameters
Main Specifications Table
| Parameter | Value |
|---|---|
| Model | 1440-TB-B |
| Device Type | Terminal Base Module |
| Supported Modules | XM Series Modules |
| Number of Slots | 1 |
| Nominal Voltage | 24 V DC |
| Input Voltage Range | 21.6–26.4 V DC |
| Current Consumption | 200–350 mA |
| Power Distribution | Via side connector (up to 3 A) |
| Communication Support | DeviceNet pass-through |
| Relay Output Rating | 120 V AC / 0.5 A, 30 V DC / 1.5 A |
| Connection Type | Screw Clamp Terminal |
| Mounting Type | DIN Rail |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95% (non-condensing) |
| Dimensions (W×H×D) | 94 × 97 × 102 mm |
| Weight (kg) | 0.28–0.35 |
5. Product Features
The 1440-TB-B is designed to provide a stable and organized interface for monitoring modules.
- Provides secure wiring terminals for power and signal connections
- Supports installation of a single XM measurement module
- Enables structured cable management in control panels
- DIN rail mounting for quick installation and removal
- Screw clamp terminals for reliable electrical contact
- Side connector supports communication and power distribution
- Compatible with DeviceNet-based systems
- Robust construction for industrial environments
- Simplifies module replacement and system expansion
These features ensure consistent performance and ease of use in industrial monitoring systems.
6. Product Applications
The 1440-TB-B is used in systems where dynamic monitoring modules are required.
Typical applications include:
- Rotating equipment monitoring (motors, pumps, turbines)
- Industrial automation systems
- Process control installations
- Power generation facilities
- Oil and gas monitoring systems
- Manufacturing and production environments
It is especially suitable for applications requiring reliable module mounting and organized wiring infrastructure.
7. Product Advantages
Structured Integration
Provides a clean and organized interface for wiring and module installation.
Modular Flexibility
Allows easy addition or replacement of monitoring modules.
Reliable Electrical Connections
Ensures stable signal and power transmission.
Easy Maintenance
Simplifies troubleshooting and system upgrades.
Space Efficiency
Compact design fits well into industrial control cabinets.
8. Recommended Models — Same Series / Related Series
Table: 1440 XM Series and Related Modules
| Model | Type | Channels | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1440-SPD02-01RB | Speed Module | 2 | Speed Monitoring | 94 × 97 × 94 | 0.30 |
| 1440-VST02-01RA | Vibration Module | 2 | Vibration Monitoring | 94 × 97 × 94 | 0.32 |
| 1440-TPS02-01RB | Temperature Module | 2 | Temperature Monitoring | 94 × 97 × 94 | 0.28 |
| 1440-DYN02-01RJ | Dynamic Module | 2 | Multi-parameter Monitoring | 94 × 97 × 94 | 0.35 |
| 1440-TB-A | Terminal Base | 1 | Module Interface | 94 × 97 × 94 | 0.30 |
