Product Overview

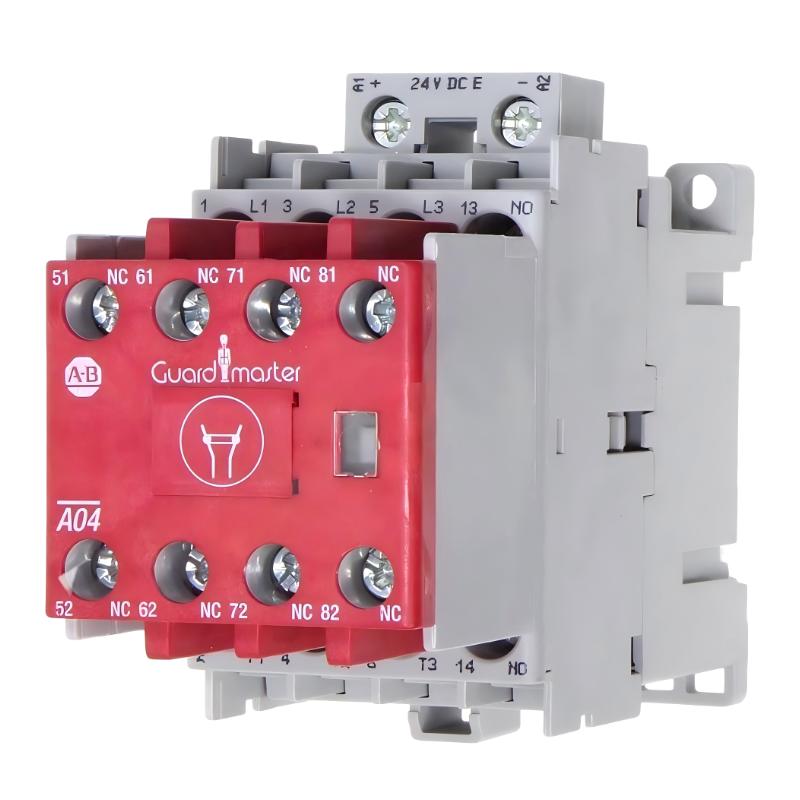

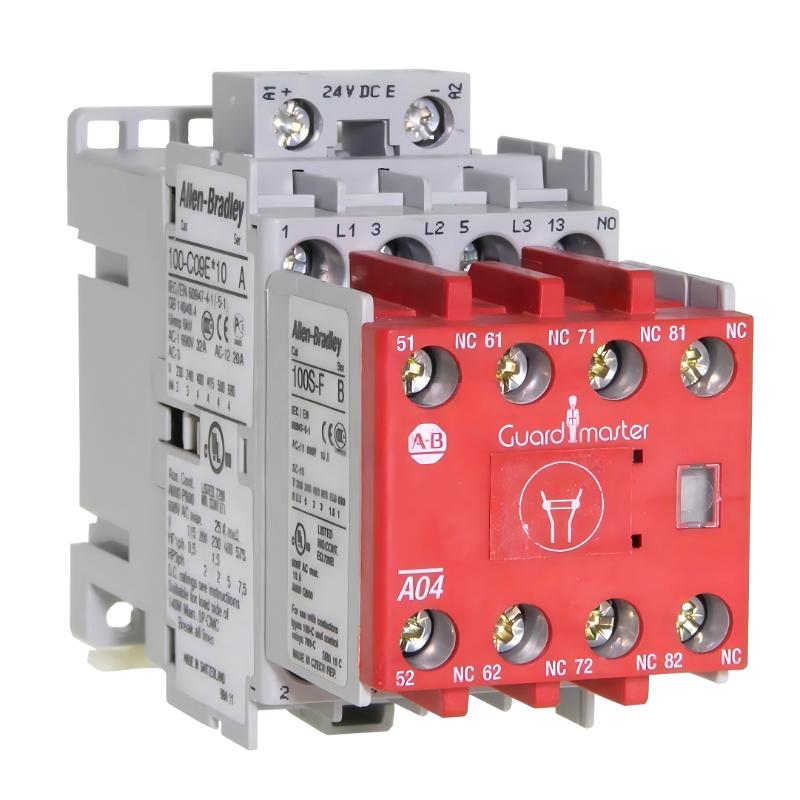

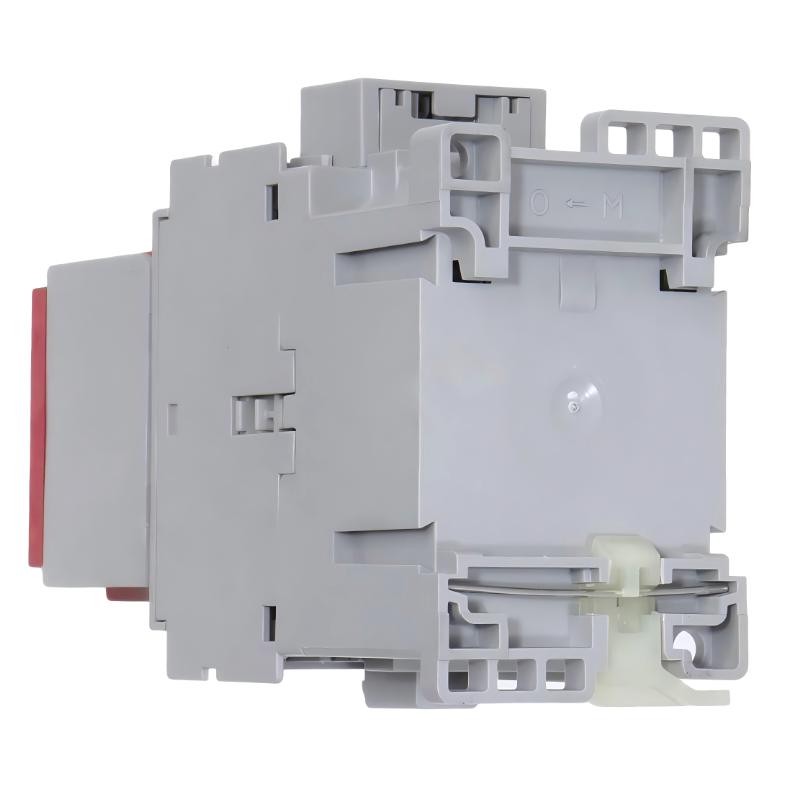

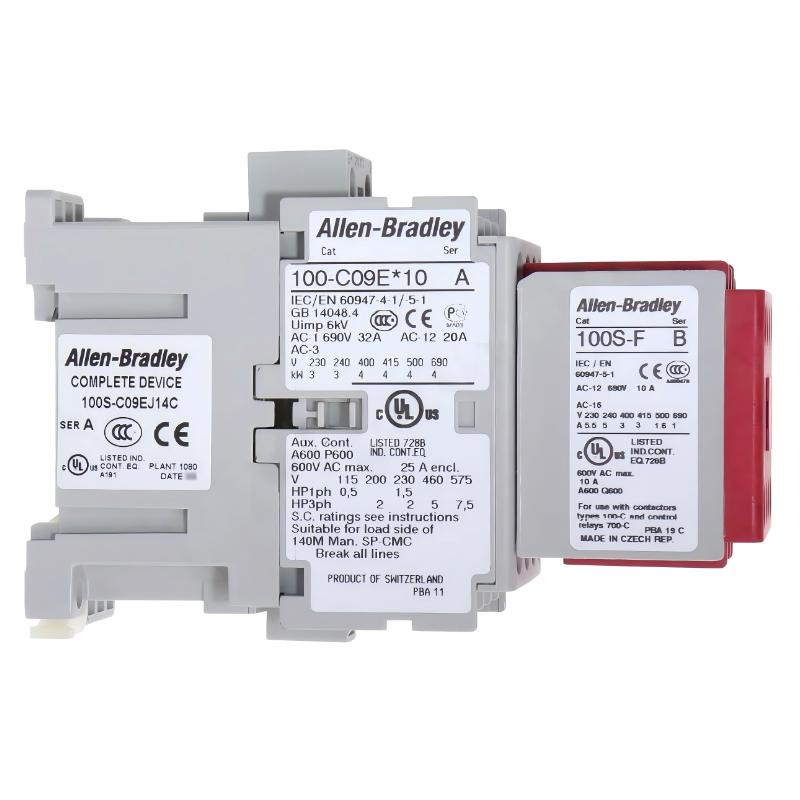

The Allen-Bradley 100S-C09EJ14C Safety Contactor is a compact industrial switching device designed for machine safety systems, motor control applications, and emergency stop circuits. It provides reliable electrical isolation and dependable switching performance for industrial automation environments where operational safety and equipment protection are essential.
As part of the Allen-Bradley safety contactor series, this model is engineered for integration into industrial control panels and automated machinery systems. Its compact structure and durable industrial-grade design make it suitable for continuous operation in demanding industrial applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 100S-C09EJ14C |
| Product Type | Safety Contactor |
| Function | Safety switching and motor control |
| Rated Current | 9 A |
| Coil Type | Electronic coil |
| Coil Voltage | 24 V DC |
| Main Contacts | 3 Normally Open (3 NO) |
| Auxiliary Contacts | 1 NO + 4 NC |
| Mounting Type | Panel mounting |
| Connection Type | Screw terminal |
| Dimensions | 119.5 × 45 × 105 mm |
| Weight | 0.5 kg |
| Housing Material | Industrial thermoplastic |
| Operating Environment | Industrial automation systems |
| Reliability | Continuous-duty industrial operation |
Function and Working Principle
The 100S-C09EJ14C Safety Contactor operates using an electromagnetic coil mechanism that controls the opening and closing of power contacts. When the control voltage energizes the coil, the main contacts close and allow electrical power to flow to connected equipment. When the coil is de-energized or a safety condition is triggered, the contacts open to disconnect power safely.
Its safety-oriented design supports reliable isolation during emergency stop conditions and machine shutdown operations.
This enables:
Reliable motor switching and isolation
Emergency stop integration
Machine safety interlocking
Industrial equipment protection
Stable control of industrial loads
The contactor is designed for dependable switching performance in industrial automation and machine safety systems.
Role in Industrial Control Systems
The 100S-C09EJ14C plays an important role in industrial safety applications, supporting:
Machine safety systems
Motor control circuits
Emergency shutdown systems
Industrial automation panels
Equipment isolation and protection
It helps improve operator safety while maintaining stable industrial production processes.
Industrial Applications
The Allen-Bradley 100S-C09EJ14C is widely used in:
Industrial automation systems
Manufacturing production lines
Packaging machinery
Conveyor systems
Robotics and motion control equipment
Motor control centers
Process control applications
It is especially suitable for applications requiring compact installation and reliable safety switching.
Installation and System Integration
Proper installation ensures reliable operational performance:
Mounted inside industrial control cabinets
Integrated with safety relays and PLC systems
Connected to emergency stop circuits
Requires proper overload protection
Should follow industrial electrical safety standards
Correct installation improves operational safety and long-term reliability.
Compatible System Components
The 100S-C09EJ14C typically works alongside:
Allen-Bradley safety relays
PLC automation systems
Industrial overload relays
Emergency stop pushbuttons
Machine safety controllers
Motor protection devices
These components together form a complete industrial machine safety solution.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 100S-C12 Series | Safety Contactor | Higher current capacity | Heavy-duty motors |
| 100S-C23 Series | Safety Contactor | Larger power switching | Industrial machinery |
| Siemens SIRIUS Contactors | Industrial Contactor | Compact modular structure | Factory automation |
| Schneider TeSys Contactors | Safety Switching Device | Reliable industrial control | Process systems |
| ABB AF Series Contactors | Industrial Motor Contactor | Efficient coil technology | Automation systems |
Key Advantages
Compact industrial design
Reliable safety switching performance
Supports emergency shutdown systems
Suitable for industrial automation applications
Easy integration into control panels
Durable construction for continuous operation
Technical FAQs
What is the primary function of the 100S-C09EJ14C?
It provides safe electrical switching and isolation for industrial motors and machinery.
Where is this safety contactor commonly used?
It is commonly used in machine safety systems, motor control centers, and industrial automation equipment.
Why is a safety contactor important in industrial systems?
It helps safely disconnect power during emergency conditions and protects personnel and equipment.
Conclusion
The Allen-Bradley 100S-C09EJ14C Safety Contactor is a reliable and compact solution for industrial safety switching and motor control applications. Its durable construction, dependable switching performance, and compatibility with industrial automation systems make it suitable for a wide range of machine safety environments.
For engineers and maintenance professionals, it provides an effective way to improve operational safety, protect industrial equipment, and support stable automated production processes.
