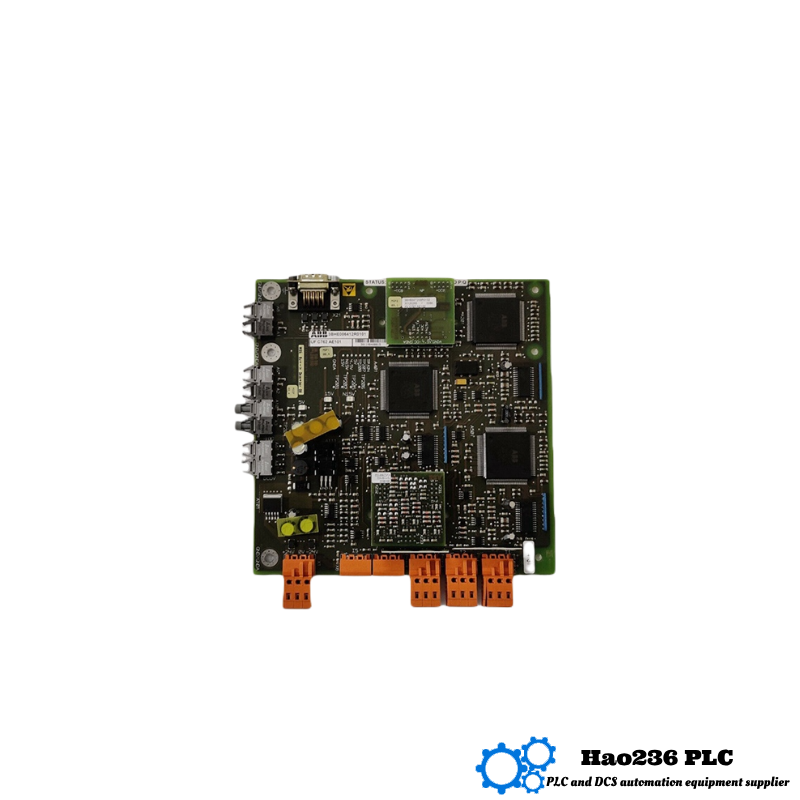

ABB UFC762AE101 (3BHE006412R0101)
Product Introduction
The ABB UFC762AE101 (3BHE006412R0101) is a high‑performance PROFIBUS DP Interface Module—including a coated CVMI printed circuit board—designed for seamless integration within ABB’s AC 800M or 800xA control systems. It enables robust field‑level communication between controllers and PROFIBUS DP devices such as sensors, actuators, and remote I/O units, featuring hot‑swappable capabilities for uninterrupted control architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | UFC762AE101 (3BHE006412R0101) |
| Protocol | PROFIBUS DP (IEC 61158/EN 50170) |
| Data Rate | Auto‑negotiating, 9.6 kbps to 12 Mbps |
| Max. Connected Devices | Up to 125 slaves per segment |
| Isolation | 500 V AC (between channel and backplane) |
| Power Supply | 24 V DC (via system backplane) |
| Operating Temperature | –40 °C to +70 °C |
| Relative Humidity | 5 % to 95 % (non‑condensing) |
| Shock Resistance | 50 g (11 ms half‑sine) |
| MTBF | Over 300,000 hours |
| Dimensions (L×W×H) | 140 × 61 × 199 mm |
| Weight | Approximately 0.3 kg |
Applications
-
Process Automation: Ensures deterministic and high‑speed communication in oil & gas safety systems, power plant controls, and chemical plants.
-
Manufacturing & Robotics: Syncs robotic assemblies and conveyor operations with tight timing and reliable data exchange.
-
Water & Utilities: Connects field devices such as VFDs and flow meters in pump stations and treatment plants, capable of operating reliably under high humidity.
-
Mining & Heavy Industry: Links vibration or diagnostic sensors to central control systems—even in rugged environments.
Key Advantages
-
High-Speed, Deterministic Communication: Supports cycle times ≤ 1 ms for up to 32 devices, ideal for real‑time control scenarios.
-
Robust Diagnostics and Redundancy: Built‑in self‑monitoring plus dual‑channel redundancy options enable effortless fault recovery and high availability.
-
Hot‑Swappable Design: Allows exchange or maintenance without shutting down the system, maximizing uptime.
-
Superior Isolation & Safety: With 500 V galvanic isolation, it protects the system against surges and ground loops.
-
Scalable Integration: Works natively with ABB’s Control Builder M software, simplifying engineering, provisioning, and upgrades.
Related Models (Same Series)
| Model | Description | Data Rate | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|---|
| UFC762AE101 | This model | 9.6 kbps–12 Mbps | 140×61×199 | 0.3 | Standard communication unit |
| UF C721 master pair | Redundant PROFIBUS DP master pair | Similar | Similar | Similar | High‑availability setup |
| CI854A Ethernet/IP | Ethernet/IP interface module | Ethernet/IP | Similar | Similar | Alternative communication |
| PM803F controller | AC 800M controller logic execution board | N/A | Larger frame | Heavier | Central control processor |
| TB820 termination board | Simplifies PROFIBUS cabling | N/A | Very compact | Very light | Cable terminations |
Popular Models (Same Brand ABB)
| Model | Description | Use Case | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| PM803F | AC 800M controller board | Core logic control | Modular rack size | ~1–2 kg |
| CI854A | Ethernet/IP interface module | Ethernet networking | Similar to UFC762 | ~0.3–0.5 |
| UF C765 AE102 | Another interface variant | Protocol flexibility | Similar size | Similar |
| UFC760 series modules | Various I/O and interface modules | Custom I/O needs | Varied | Varied |
| Power supply units (e.g. PP875) | System rack power modules | Power provisioning | Larger | Heavier |
FAQs (Q&A)
Q1: What communication protocol does this module use?
A1: It uses PROFIBUS DP, an established industrial field‑bus standard for automation.
Q2: How many slave devices can it support per segment?
A2: It can handle up to 125 PROFIBUS DP slave devices.
Q3: Is it hot‑swappable?
A3: Yes. It can be inserted or removed without shutting down the control system.
Q4: What level of electrical isolation does it provide?
A4: It provides 500 V AC galvanic isolation between the bus channel and backplane.
Q5: What is the supported temperature range?
A5: It operates between –40 °C and +70 °C reliably.
Q6: How fast is the data transfer?
A6: Speed ranges from 9.6 kbps to 12 Mbps, auto‑negotiated depending on network conditions.
Q7: What is the module’s MTBF?
A7: Mean Time Between Failures exceeds 300,000 hours – high reliability.
Q8: What are its physical dimensions and weight?
A8: It measures 140 × 61 × 199 mm and weighs approximately 0.3 kg.
Q9: Is this suited for hazardous or mission‑critical installations?
A9: Yes—optional ATEX/IECEx certification versions are available for explosion‑prone environments.
Q10: What redundancy options are supported?
A10: It supports dual‑channel redundancy—paired modules can fail over automatically without losing communication.
