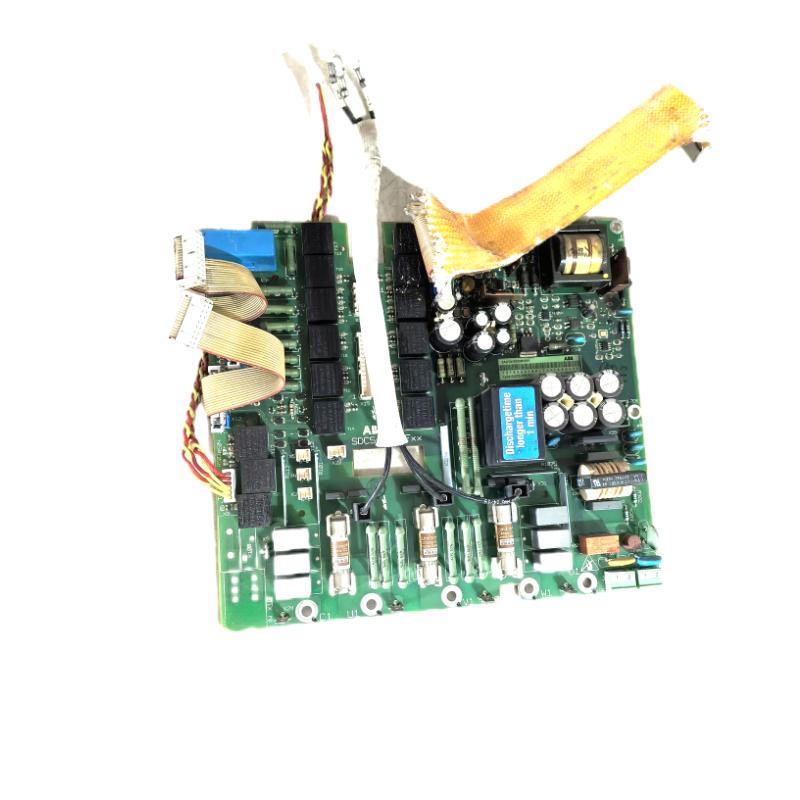

- Power Interface Board Drive Board
- Sweden
- 115 × 65 × 22 mm
- 0.34kg
- 3ADT316300R1501
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 59
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
The SDCS‑PIN‑F01 (3ADT316300R1501) is a field interface module for ABB drive systems. It provides precise pulse and analog signal input capabilities, enabling high-accuracy motor control and process feedback. Designed for industrial automation environments, it allows for seamless integration with ABB DCS series drives, supporting both standard and advanced sensor signals.
The module is engineered for reliable operation under harsh industrial conditions, including temperature extremes, vibration, and electrical noise. Its modular design ensures ease of replacement and minimal downtime during maintenance.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | SDCS‑PIN‑F01 (3ADT316300R1501) |
| Product Type | Field Interface Module |
| Function | Pulse and analog signal acquisition for motor control |
| Supported Signals | Pulse inputs, 4–20 mA, 0–10 V |
| Supply Voltage | 24 V DC |
| Mounting | Rack-mounted / Plug-in module |
| Dimensions (L × W × H) | 115 × 65 × 22 mm |
| Weight | 0.34 kg |
| Operating Temperature | –20 °C to +55 °C |
| Storage Temperature | –40 °C to +70 °C |
| Communication | Optional RS‑485 / MODBUS |
| Compatibility | ABB DCS series drives (DCS500/DCS600) |
Product Description
The SDCS‑PIN‑F01 is designed to enhance drive performance by capturing pulse and analog signals from sensors and feeding them accurately into the drive control system. It allows precise motor position, speed, and feedback control, reducing errors and improving process efficiency.
Its compact modular design simplifies installation, maintenance, and system upgrades. Industrial-grade components and protections ensure longevity and consistent performance, even in challenging environments.
Product Applications
-
Heavy machinery motor control
-
Industrial automation with precise feedback requirements
-
Pumps, compressors, and conveyor control
-
Retrofits and upgrades for DCS500/DCS600 systems
-
Marine and industrial plant automation requiring pulse or analog input
Product Advantages
-
High-precision pulse and analog input processing.
-
Supports multiple signal types (pulse, 4–20 mA, 0–10 V).
-
Reduces main controller load by offloading signal processing.
-
Rugged design for harsh industrial environments.
-
Easy plug-in replacement for minimal downtime.
-
Compact size for efficient installation.
-
Compatible with multiple DCS drive systems.
-
Ensures smooth motor operation and process control.
-
Low maintenance with long service life.
-
Optional communication interface (RS‑485/MODBUS).
Brand and Series
-
Brand: ABB
-
Series: DCS Drive Control Series (Field Interface Modules)
Related or Same-Series Models
| Model | Product Type | Main Function | Supply Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| SDCS‑PIN‑4B | Pulse/Analog Interface | Single encoder input | 24 V DC | 115×65×22 | 0.30 |
| SDCS‑PIN‑51 | Field Interface Module | Analog measurement | 24 V DC | 100×70×20 | 0.42 |
| SDCS‑PIN‑52 | Field Interface Module | Analog and digital signals | 24 V DC | 100×70×20 | 0.43 |
| SDCS‑PIN‑F02 | Field Interface Module | Multi-signal input | 24 V DC | 115×65×22 | 0.35 |
| SDCS‑PIN‑46 | Pulse Interface Module | Encoder input | 24 V DC | 115×65×22 | 0.33 |
Popular ABB Models
| Model | Product Type | Application | Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| ACS580-01-046A-4 | AC Drive | General speed control | 400 V AC | 370×203×200 | 8.2 |
| DCS800-S02-0050-05 | DC Drive | Heavy-duty DC motor | 500 V DC | 425×270×190 | 12.5 |
| ACS880-01-145A-3 | Industrial Drive | Precision control | 400 V AC | 540×270×245 | 15 |
| ACS355-03E-07A3-4 | Compact Drive | Light industry | 400 V AC | 125×70×130 | 1.2 |
| ACS150-03E-02A4-4 | Micro Drive | Small machine control | 400 V AC | 98×70×120 | 1 |
FAQ
Q1: What is the main function of SDCS‑PIN‑F01?
A1: It captures pulse and analog signals from sensors for accurate motor control.
Q2: Which drive series is compatible?
A2: Compatible with ABB DCS500 and DCS600 drives.
Q3: What signal types are supported?
A3: Pulse, 4–20 mA, and 0–10 V signals.
Q4: What is its weight and size?
A4: 0.34 kg; 115×65×22 mm.
Q5: Is it easy to replace?
A5: Yes, it uses a plug-in modular design for quick replacement.
Q6: What is the operating temperature range?
A6: –20 °C to +55 °C operating; –40 °C to +70 °C storage.
Q7: Does it have communication interfaces?
A7: Optional RS‑485 or MODBUS interfaces are supported.
Q8: How does it enhance system reliability?
A8: By isolating measurement and input tasks from the main drive controller.
Q9: Can it be used in retrofits?
A9: Yes, it is ideal for upgrading existing DCS500/DCS600 drives.
Q10: Are there any installation requirements?
A10: Ensure correct slot installation, proper supply voltage, and adequate cooling.
