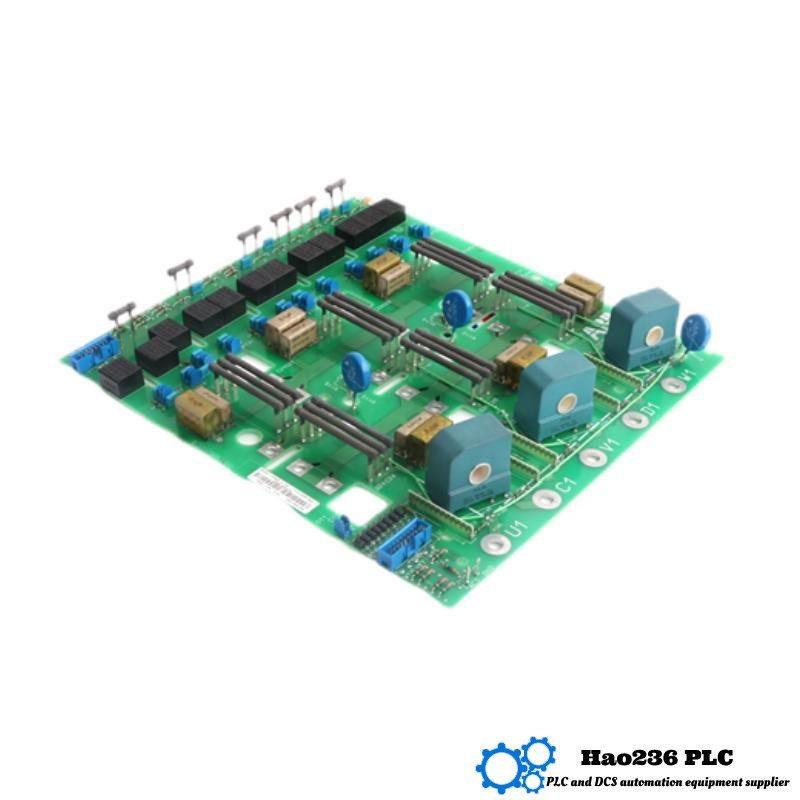

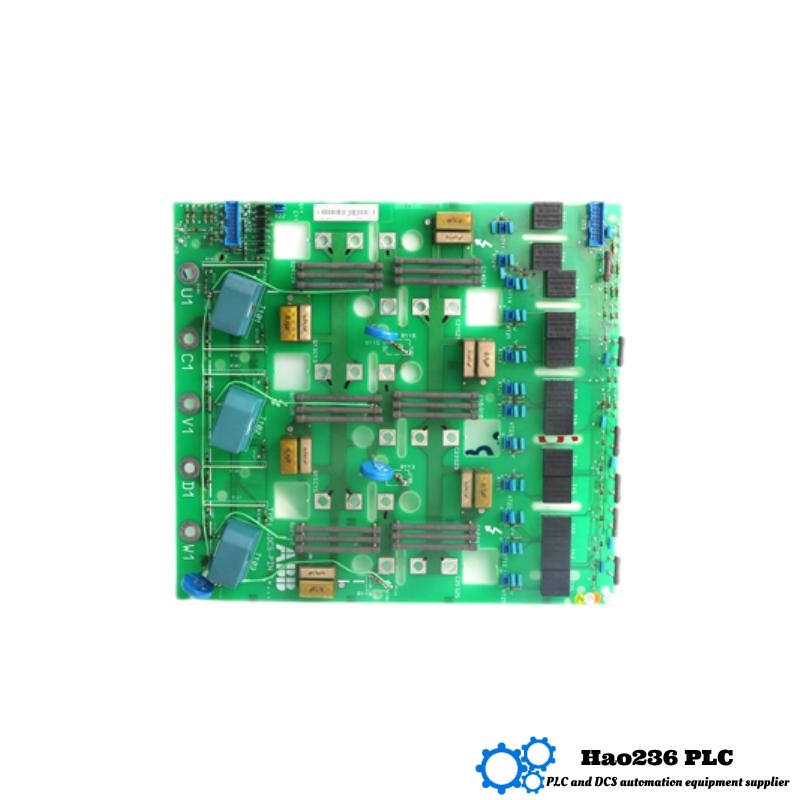

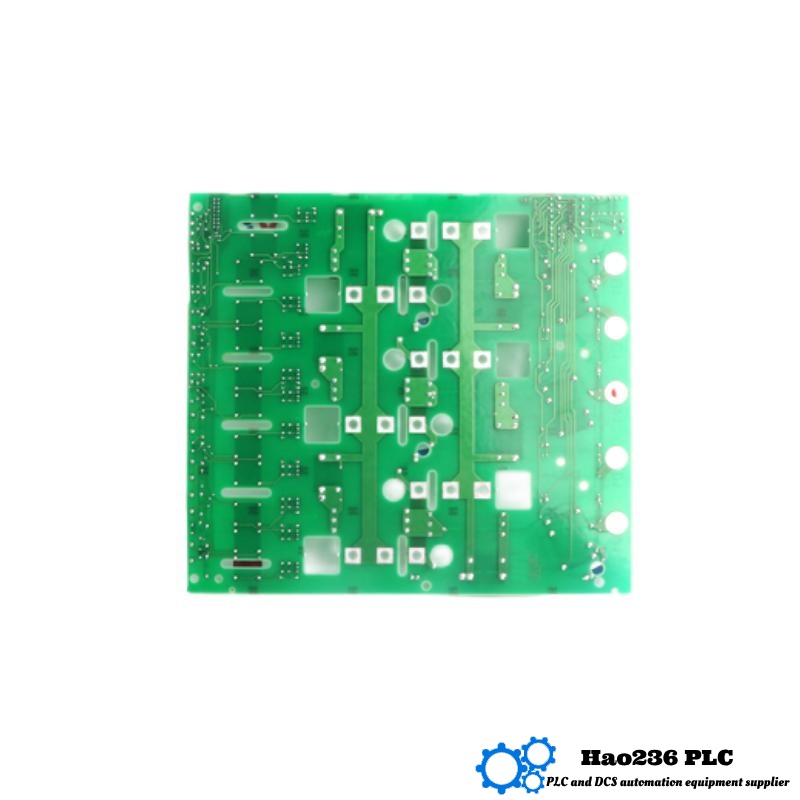

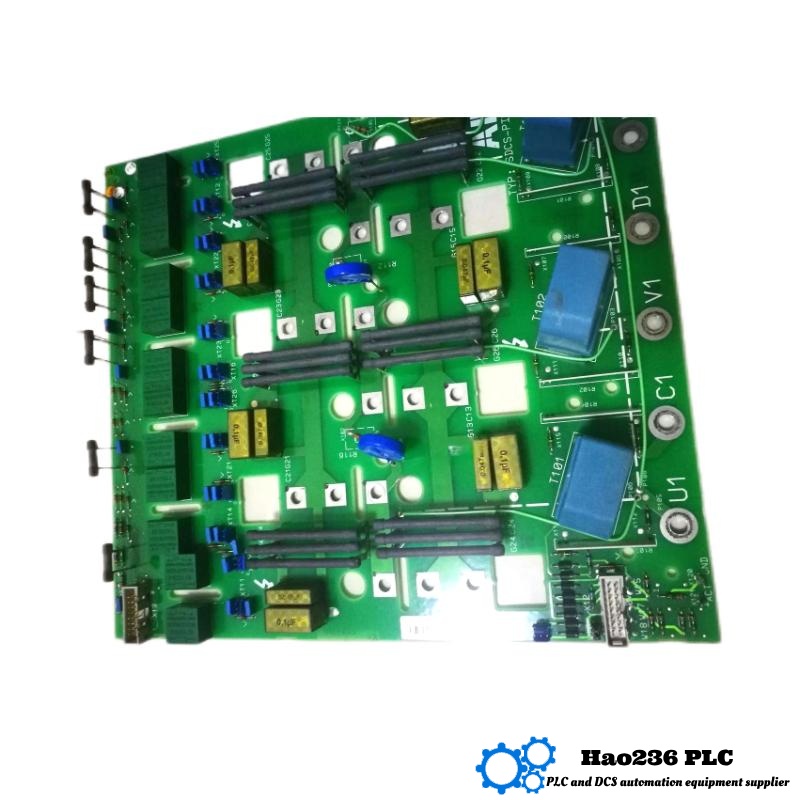

ABB SDCS-PIN-11 3ADT306100R0001 Power Interface Board
Product Overview
The ABB SDCS-PIN-11 (3ADT306100R0001) is a robust power interface board designed for ABB’s SDCS family within the System 800xA automation platform. It serves as the central power distribution and interface hub between the main power supply and various control and I/O modules. The PIN-11 board ensures stable, conditioned power delivery, protects downstream electronics from surges, and provides diagnostic feedback for preventive maintenance.
With precise engineering, the SDCS-PIN-11 is built to industrial-grade specifications, offering high reliability even under harsh environmental conditions. Its streamlined design simplifies installation in control cabinets, while built-in monitoring features facilitate rapid fault detection and system health assessment.
Applications
The SDCS-PIN-11 power interface board is employed across numerous sectors in which uninterrupted, clean power is vital:
-
Process Industries: Chemical, petrochemical, and refining plants use the PIN-11 to power critical control loops, ensuring process stability and safety.
-
Power Generation: Steam, gas, and hydroelectric power stations rely on this board to maintain reliable operation of turbine control systems and auxiliary equipment.
-
Oil & Gas: Upstream drilling rigs and downstream pipeline stations use the PIN-11 for dependable power routing to emergency shutdown systems and safety controllers.
-
Manufacturing: Automotive, food & beverage, and pharmaceutical plants integrate the PIN-11 for stable power to programmable controllers and I/O racks.
-
Water & Wastewater: Treatment facilities deploy the PIN-11 to ensure continuous power for pumps, valves, and monitoring instrumentation.
Key Advantages
-
Stable Power Distribution
The SDCS-PIN-11 delivers conditioned 24 V DC power to all downstream modules, minimizing voltage fluctuations that can disrupt sensitive control electronics. -
Compact Footprint
Measuring 265 x 282 mm, the board occupies minimal rack space, allowing for dense module configurations within control panels. -
Lightweight Construction
At just 0.422 kg, it eases handling and simplifies retrofit installations without imposing significant load on mounting hardware. -
Integrated Diagnostics
On-board LEDs and diagnostic interfaces provide real-time status of power lines and fault conditions, enabling rapid troubleshooting. -
Surge and Overcurrent Protection
Built-in protective circuits shield connected modules from voltage spikes and overcurrent events, enhancing overall system resilience. -
Seamless System Integration
Designed specifically for ABB’s System 800xA, the PIN-11 interfaces directly with SDCS backplanes and communicates status to the automation software.
Brand Information
ABB is a world leader in industrial automation and power technologies. Its System 800xA platform integrates control, safety, electrical, and communication sub-systems to deliver unified operational management. The SDCS series, including the PIN-11, embodies ABB’s commitment to reliability, scalability, and innovative diagnostics.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | SDCS-PIN-11 (3ADT306100R0001) |
| Module Type | Power Interface Board |
| Dimensions (W × H) | 265 × 282 mm |
| Weight | 0.422 kg |
| Input Voltage | 24 V DC |
| Power Output | 24 V DC to up to 16 downstream modules |
| Protection | Surge protection, overcurrent protection |
| Diagnostics | Status LEDs, fault flag outputs |
| Operating Temperature | –20 °C to +60 °C |
| Mounting | DIN-rail or panel mount |
| Communication | SDCS backplane bus for status reporting |
Recommended Related SDCS Series Models
| Model | Description | Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| SDCS-PIN-12 | Enhanced Power Interface Board | Power Interface Board | 265 × 282 | 0.450 |
| SDCS-PIN-13 | Redundant Power Interface Board | Power Interface Board | 265 × 282 | 0.460 |
| SDCS-IOB-22 | Multi-channel Digital I/O Board | I/O Module | 265 × 282 | 0.500 |
| SDCS-FEX-32B | Function Extension Module (Diagnostics) | Function Extension Module | 250 × 260 | 0.450 |
| SDCS-COM-8 | Multi-protocol Communication Module | Communication Module | 240 × 260 | 0.440 |
Popular ABB Models (Same Brand)
| Model | Description | Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| PM866K01 | AC 800M Controller CPU Module | Controller CPU | 186 × 214 × 39 | 1.1 |
| CI854AK01 | PROFIBUS-DP Communication Interface Module | Communication Module | 115 × 100 × 40 | 0.2 |
| AI810 | 8-Channel Analog Input Module | Analog Input Module | 119 × 106 × 26 | 0.2 |
| DI810 | 16-Channel Digital Input Module | Digital Input Module | 119 × 106 × 26 | 0.2 |
| DO810 | 16-Channel Digital Output Module | Digital Output Module | 119 × 106 × 26 | 0.2 |
FAQ (Frequently Asked Questions)
Q1: What is the primary role of the SDCS-PIN-11?
A1: It serves as a power interface board, distributing and conditioning 24 V DC to downstream SDCS modules and providing surge and overcurrent protection.
Q2: What are the physical dimensions of the SDCS-PIN-11?
A2: The board measures 265 × 282 mm (width × height).
Q3: How much does the SDCS-PIN-11 weigh?
A3: The module weighs 0.422 kg, facilitating easy installation and minimal rack load.
Q4: What input voltage does it require?
A4: The SDCS-PIN-11 operates on a 24 V DC input.
Q5: Does the PIN-11 provide diagnostic feedback?
A5: Yes, on-board LEDs and fault flag outputs report power status and fault conditions in real time.
Q6: What types of protection are built in?
A6: It includes surge protection and overcurrent protection to safeguard connected modules.
Q7: In what temperature range can the PIN-11 operate?
A7: It is rated for operation between –20 °C and +60 °C.
Q8: How is the board mounted?
A8: The SDCS-PIN-11 supports both DIN-rail and panel mounting options.
Q9: What systems is the PIN-11 compatible with?
A9: It is designed for ABB’s System 800xA SDCS series automation platform.
Q10: Can the PIN-11 handle redundant power inputs?
A10: For redundant configurations, ABB offers the SDCS-PIN-13 module which supports dual power feeds.
