Product Overview

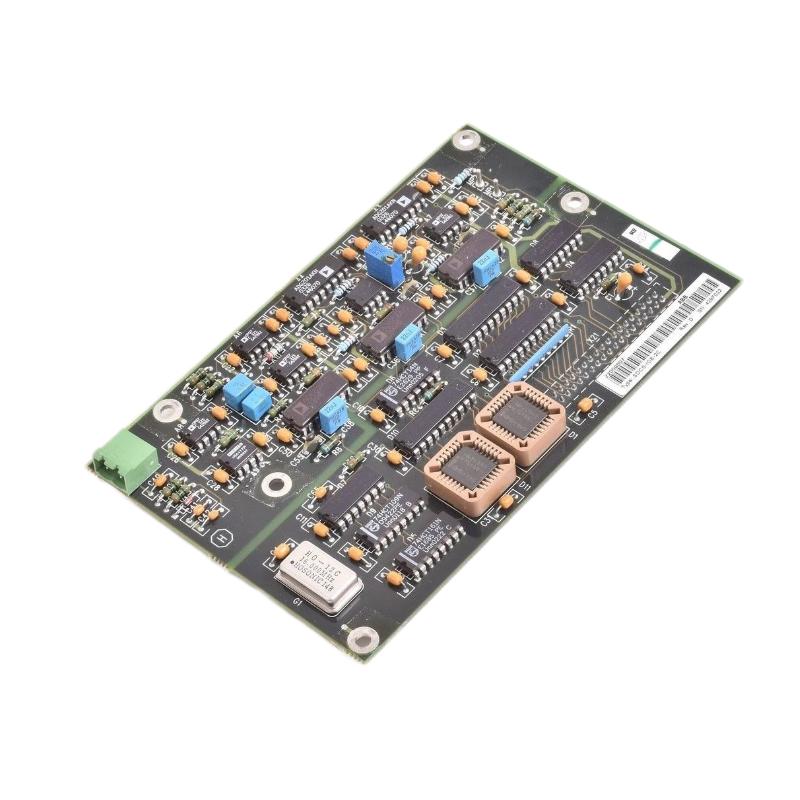

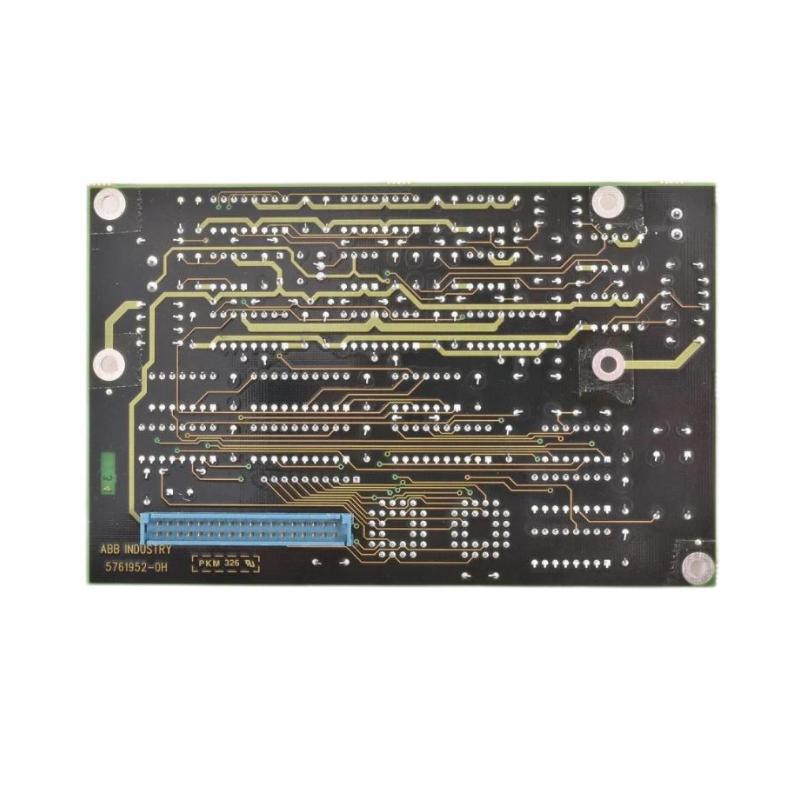

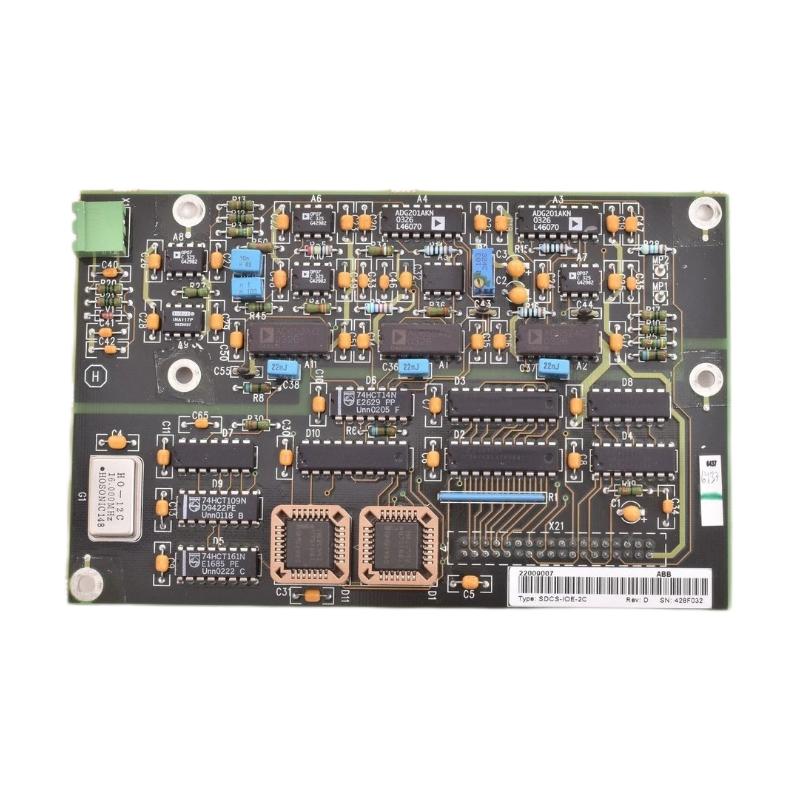

Model: SDCS‑IOE‑2C (Part No. 64018019)
This module is an I/O expansion and measurement unit within ABB’s DCS series. It is designed to extend the system’s input/output capability by connecting field sensors, actuators, and measurement devices to the DCS system. SDCS‑IOE‑2C provides reliable signal acquisition and processing, enhancing monitoring, control, and data exchange in industrial automation systems.
Product Specifications
| Parameter | Description |
|---|---|
| Model | SDCS‑IOE‑2C |
| Part Number | 64018019 |
| Product Type | I/O Expansion / Measurement Module |
| Brand | ABB |
| Series | DCS Control System Series (IOE Series) |
| Supply Voltage | 24 V DC nominal |
| Digital Input Channels | Multi-channel (approx. 8 or more) |
| Digital Output Channels | Multi-channel (approx. 8 or more) |
| Analog/Measurement Channels | Supports analog and digital signal acquisition |
| Isolation Voltage | Approx. 2,500 Vrms |
| Operating Temperature | –20 °C to +70 °C |
| Dimensions (W × H × D) | 180 mm × 180 mm × 100 mm (or 80 × 80 × 25 mm) |
| Weight (kg) | 0.20 kg |
| Mounting | Modular / DIN rail or control cabinet installation |
Product Description
The SDCS‑IOE‑2C module is a high-precision input/output expansion unit for industrial automation. Integrated into ABB’s DCS modular platform, it handles acquisition, isolation, processing, and transmission of signals from external devices.
Its compact design allows installation in space-limited control cabinets while providing additional measurement and control channels. SDCS‑IOE‑2C is ideal for connecting field sensors and actuators to a DCS system safely, with high accuracy and system reliability.
The module is designed for harsh industrial environments with wide operating temperature ranges, strong electrical isolation, and robust signal handling. It allows users to expand monitoring/control points without replacing the main controller, saving cost and downtime.
Applications
-
Auxiliary measurement and I/O expansion in industrial drive systems
-
Manufacturing automation lines in steel, pulp, chemical, or similar industries
-
Connecting sensors (temperature, pressure, current, voltage) and actuators to DCS
-
System retrofitting and upgrades to add monitoring/control points
-
Monitoring motor drives and power distribution systems
-
Space-limited control cabinets requiring small, flexible modules
-
Remote monitoring systems as a measurement interface for field signals
Advantages
-
High expansion capacity – Adds I/O and measurement channels easily
-
High measurement accuracy – Supports analog and digital signals
-
Compact and lightweight – Approx. 0.20 kg for tight installations
-
Modular integration – Fully compatible with ABB DCS systems
-
Electrical isolation – Ensures signal safety and industrial reliability
-
Cost-effective – Avoids replacing main controller
-
Harsh environment compatibility – Wide temperature range, industrial-grade design
-
Improved maintainability – Modular design, easy replacement and service
Brand
Brand: ABB
ABB is a global leader in automation and electrical control solutions. Its DCS platform offers modular, reliable, and long-term supported solutions for industrial drives. The SDCS series provides critical building blocks for modular system expansion.
Series
Series: DCS Control System Series (IOE Series)
The series includes modules for Control (CON), I/O Board (IOB), I/O Expansion (IOE), Measurement Interface (FIS), Excitation (FEX), etc. SDCS‑IOE‑2C belongs to the IOE expansion category, focusing on additional I/O and measurement channels.
Recommended Models
Same Series / Related Models
| Model | Description | Key Parameters |
|---|---|---|
| SDCS‑IOE‑1 | First-generation I/O expansion module | 24 V DC; 8 DI / 8 DO + 4 AI / 2 AO; 0.21 kg |
| SDCS‑IOE‑2 | Second-generation I/O expansion module | 24 V DC; 8 DI / 8 DO + analog channels; 0.21 kg |
| SDCS‑IOE‑3 | Mixed analog/digital expansion module | 16 DI / 16 DO + 8 AI / 4 AO; 0.25 kg |
| SDCS‑IOE‑4 | High-density I/O expansion | 32 DI / 32 DO + analog channels; 0.35 kg |
| SDCS‑IOB‑21 | Digital I/O interface board | 16 DI / 16 DO; 0.72 kg |
Popular ABB Models
| Model | Description | Key Parameters |
|---|---|---|
| ACS880‑01‑097A‑3 | High-performance AC drive | 75 kW; 400 V; 55 kg |
| DCS800‑S02‑0160‑05 | High-capacity DC drive | 160 A; 500 V; 48 kg |
| CI858A | Communication interface module | 24 V DC; 0.50 kg |
| PM865K01 | Control processor module | 32-bit CPU; 24 V DC; 0.55 kg |
| DSQC1047 | Automation control board | 24 V DC; 0.70 kg |
FAQ (10 Q&A)
Q1: What is the primary purpose of the SDCS‑IOE‑2C?
A1: It is an I/O expansion and measurement module that adds analog and digital channels to a DCS system.
Q2: What supply voltage does it require?
A2: 24 V DC nominal.
Q3: How heavy is the module and what are its dimensions?
A3: Approximately 0.20 kg; dimensions ~180 × 180 × 100 mm.
Q4: What signals are supported?
A4: Both analog and digital signals, providing flexible I/O.
Q5: Can it fit in a compact control cabinet?
A5: Yes, it is lightweight and compact.
Q6: Can it be used to retrofit an existing system?
A6: Yes, it expands functionality without replacing the main controller.
Q7: What is the operating temperature range?
A7: –20 °C to +70 °C.
Q8: How does it improve system reliability?
A8: Signal isolation, modular design, and accurate measurement channels enhance reliability.
Q9: How is it installed?
A9: Typically on a DIN rail or in a DCS rack.
Q10: Why choose this module over a full system replacement?
A10: Lower cost, minimal downtime, easy installation, and flexible I/O expansion.
