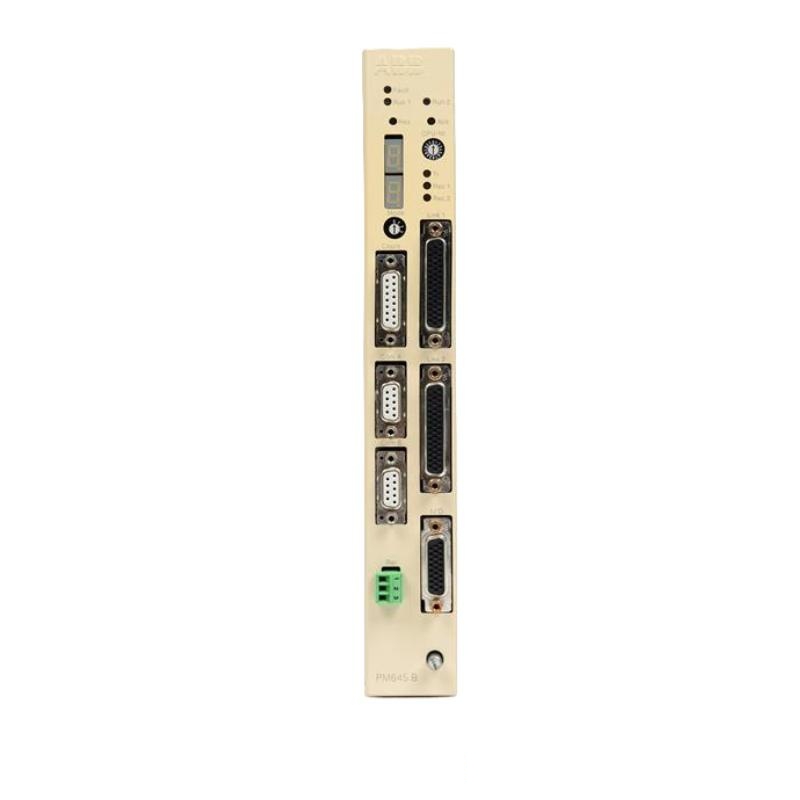

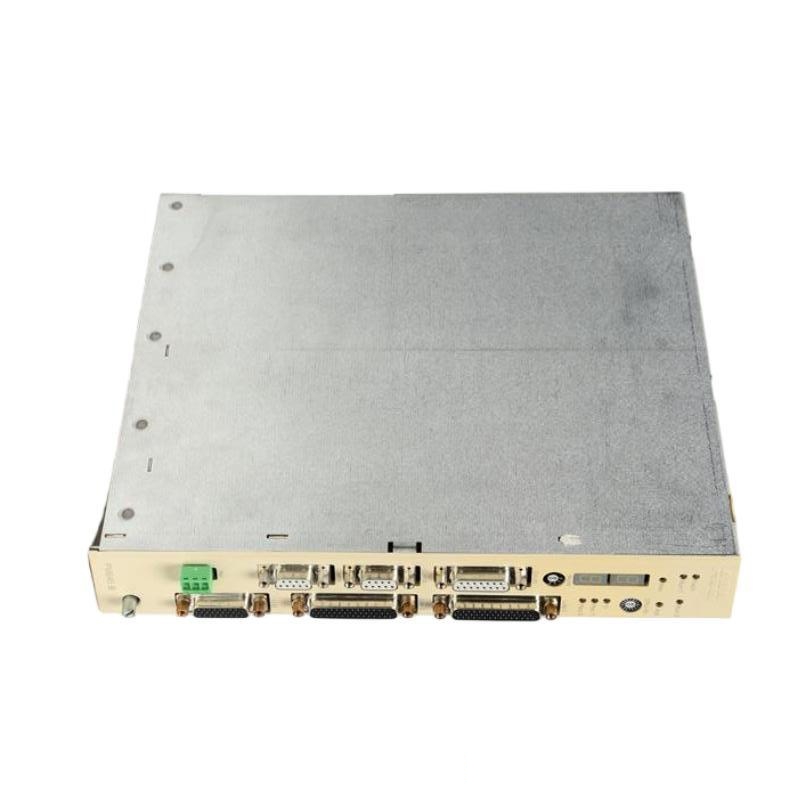

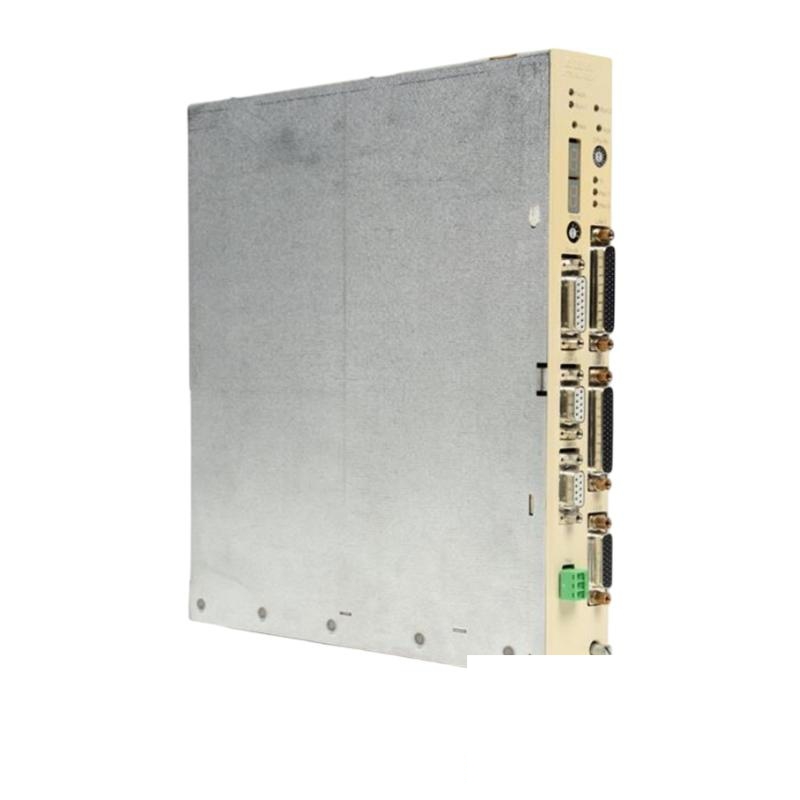

ABB PM645A 3BDS005799R1 CPU Processor Unit
Product Introduction
The ABB PM645A 3BDS005799R1 is a high-performance CPU processor unit designed for ABB AC800M and AC800PEC control systems. It is engineered to meet the demands of complex industrial automation processes, providing real-time control, data processing, and communication capabilities in a compact and efficient package. The PM645A is ideally suited for industries requiring high-speed data handling, such as power generation, chemical processing, oil and gas, and manufacturing.
The PM645A ensures seamless integration with other ABB control components and third-party devices, supporting Ethernet, Profibus DP, and Modbus communication protocols. This processor unit is designed to offer high scalability, supporting up to 8192 I/O points, making it an excellent choice for both small-scale and large-scale applications.
Product Specifications
| Parameter | Value |
|---|---|
| Dimensions | 252 × 273 × 40 mm |
| Weight | 1.75 kg |
| Processor | 32-bit ARM Cortex-M7 CPU |
| Communication | Ethernet, Profibus DP, Modbus |
| Operating Temperature | -20°C to +60°C |
| Power Supply | 24 V DC ± 20% |
| RAM | 512 MB |
| Program Memory | 256 MB |
| I/O Capacity | Up to 8192 I/O points |
| Diagnostic LEDs | Yes (for real-time monitoring) |
| Safety Certifications | UL, CE, RoHS |
Product Applications
The ABB PM645A CPU processor is widely used in industries that require precise automation control, including:
-
Power Generation: Ideal for managing turbines, generators, and transformers in power plants, ensuring efficient energy production and distribution.
-
Oil & Gas: Used in oil refineries, gas plants, and offshore platforms to control critical systems, ensuring safe and efficient extraction and processing operations.
-
Chemical Processing: The PM645A can control chemical reactors, mixers, and pumps, providing precise automation for complex chemical processes.
-
Manufacturing: Used for controlling assembly lines, robotic arms, and automated material handling, improving efficiency and reducing downtime in production environments.
-
Water Treatment: The PM645A is employed to control pumps, filters, and valves in water and wastewater treatment plants, maintaining a reliable and continuous flow of clean water.
Product Advantages
-
High-Speed Processing: The 32-bit ARM Cortex-M7 CPU provides superior processing capabilities for complex automation tasks, ensuring real-time control and high-speed data handling.
-
Flexible Communication Options: The PM645A supports Ethernet, Profibus DP, and Modbus communication protocols, ensuring seamless integration into various industrial networks.
-
Scalable I/O Capacity: With the ability to handle up to 8192 I/O points, the PM645A is adaptable to both small and large-scale systems, offering flexibility for different automation applications.
-
Reliability: Designed for continuous 24/7 operation in harsh industrial environments, the PM645A operates in temperatures ranging from -20°C to +60°C.
-
Real-Time Diagnostics: Equipped with LED status indicators, the PM645A allows for real-time monitoring and fault detection, enabling quick troubleshooting.
-
Compact Design: With dimensions of 252 × 273 × 40 mm and a weight of 1.75 kg, the PM645A is a compact solution for space-constrained installations.
Brand and Series
-
Brand: ABB
-
Series: AC800M Series
Recommended Models in the Same Series
| Model | Description | Weight | Dimensions | Key Feature |
|---|---|---|---|---|
| PM644A | High-performance CPU with extended I/O capacity | 1.80 kg | 260 × 280 × 45 mm | Dual Ethernet ports |
| PM641A | Compact CPU for smaller systems | 1.50 kg | 245 × 265 × 40 mm | Optimized for smaller setups |
| PM645B | Enhanced version with more memory and features | 1.85 kg | 252 × 273 × 40 mm | Increased program memory |
| PM640A | Budget-friendly CPU for small to medium systems | 1.60 kg | 250 × 270 × 42 mm | Ideal for cost-effective applications |
| PM648A | Advanced processor with higher processing power | 2.00 kg | 270 × 280 × 45 mm | High-end features for complex tasks |
Popular ABB Models
| Model Number | Parameters | Product Series | Application | Advantages |
|---|---|---|---|---|
| PM810V1 | 1 port, 10/100 Mbps | PM Series | Industrial Networking | Compact, reliable, cost-effective |
| PM810V2 | 2 ports, 100 Mbps | PM Series | Process Control Systems | Dual-port design, easy integration |
| PM820-1 | 2 ports, 1000 Mbps | PM Series | Factory Automation | High-speed communication, flexible |
| PM811V1 | 1 port, 10/100 Mbps | PM Series | Control Systems | Energy-efficient, space-saving |
| PM821-1 | 2 ports, 1000 Mbps | PM Series | Real-time Data Monitoring | High bandwidth, scalable solution |
Frequently Asked Questions (FAQ)
-
Q: What processor does the PM645A use?
A: The PM645A uses a 32-bit ARM Cortex-M7 processor, offering high processing performance. -
Q: How many I/O points can the PM645A handle?
A: The PM645A can handle up to 8192 I/O points, making it suitable for large-scale systems. -
Q: What is the power supply requirement for the PM645A?
A: The PM645A requires a 24 V DC ± 20% power supply. -
Q: What communication protocols are supported by the PM645A?
A: The PM645A supports Ethernet, Profibus DP, and Modbus communication protocols. -
Q: What is the operating temperature range of the PM645A?
A: The PM645A operates in the temperature range of -20°C to +60°C. -
Q: Does the PM645A have built-in diagnostics?
A: Yes, the PM645A is equipped with LED status indicators for real-time diagnostics and fault detection. -
Q: What is the memory capacity of the PM645A?
A: The PM645A comes with 512 MB of RAM and 256 MB of program memory. -
Q: Can the PM645A be used in large-scale systems?
A: Yes, the PM645A supports large-scale systems with up to 8192 I/O points. -
Q: What industries benefit from the PM645A?
A: The PM645A is suitable for industries such as power generation, chemical processing, oil and gas, manufacturing, and water treatment. -
Q: What certifications does the PM645A have?
A: The PM645A is certified with UL, CE, and RoHS compliance.
