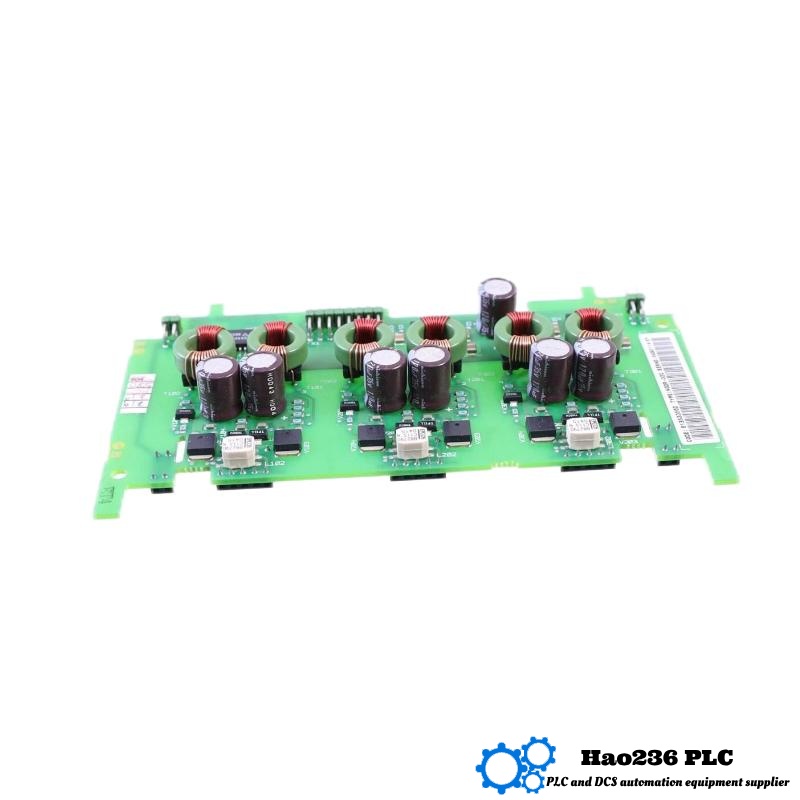

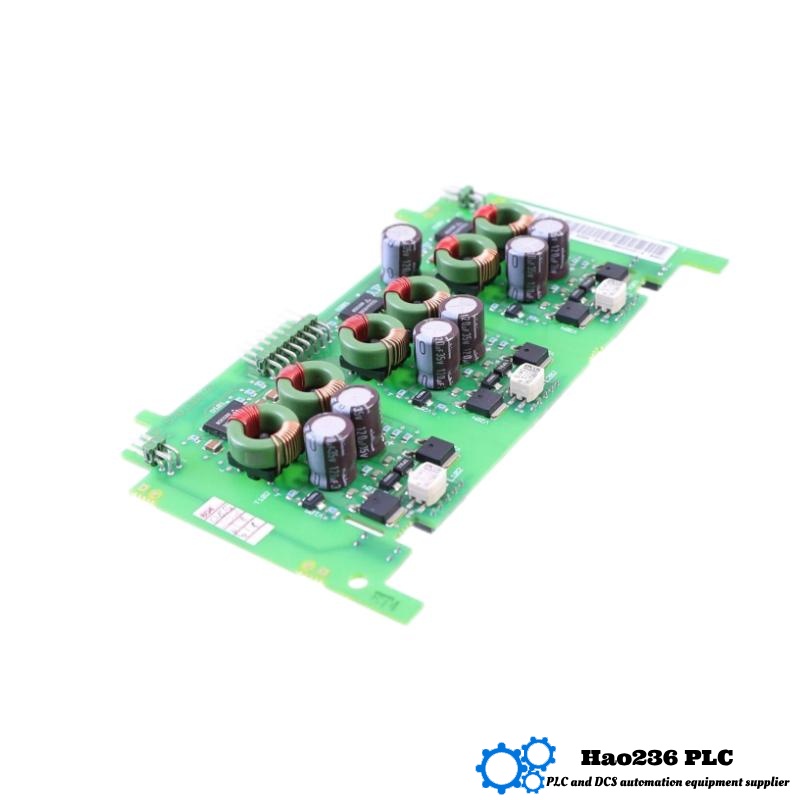

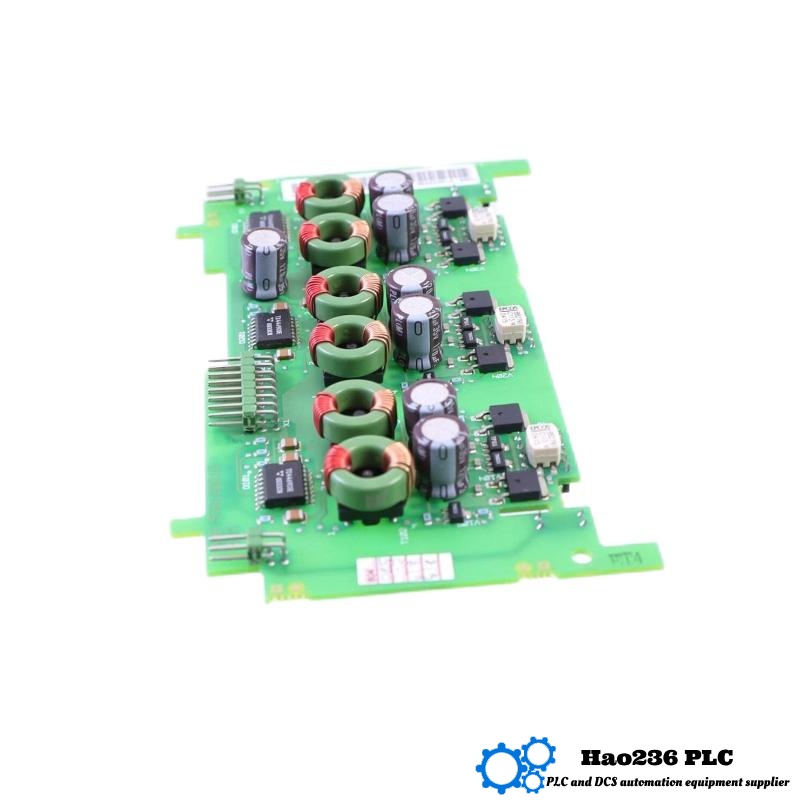

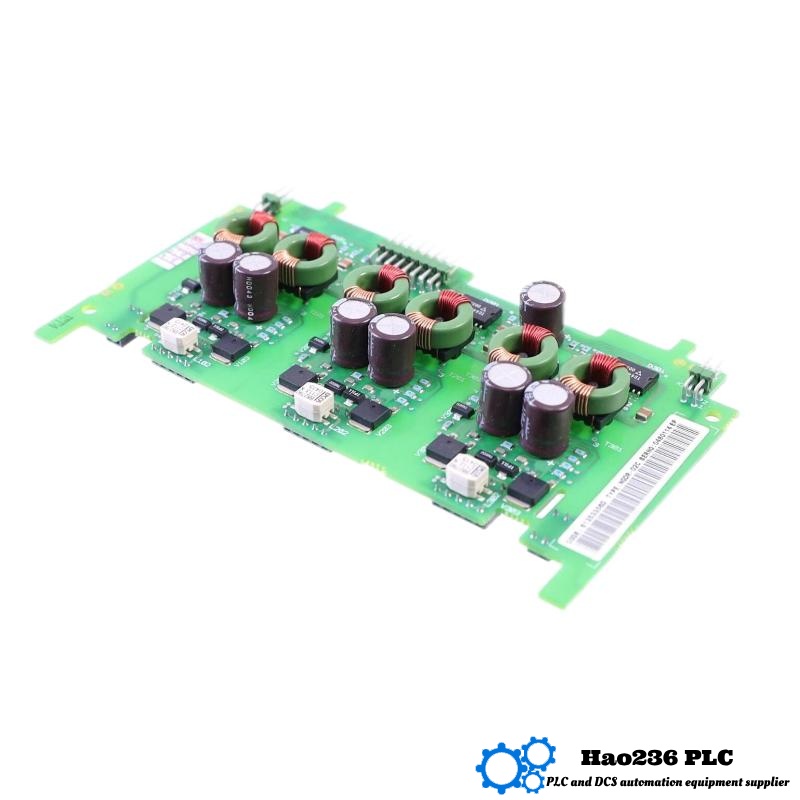

ABB NGDR-02C 61353356D Drive Board
Product Introduction
The ABB NGDR-02C 61353356D is a critical drive control board designed for the ACS600 series variable frequency drives (VFDs). It plays a pivotal role in regulating motor speed and torque by controlling the power electronics and interpreting control signals.
Built to ensure precision and reliability, this drive board offers smooth acceleration and deceleration, efficient energy usage, and robust fault detection. Its compact size (203.2 x 152.4 x 30 mm) and light weight (0.76 kg) allow for easy integration into various industrial drive cabinets and control panels.
The NGDR-02C 61353356D supports multiple industrial communication protocols, enabling seamless connection with automation systems. Its high-quality design reflects ABB’s commitment to durability, long service life, and operational excellence.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | NGDR-02C 61353356D |
| Dimensions | 203.2 x 152.4 x 30 mm |
| Weight | 0.76 kg |
| Operating Voltage | 24V to 48V DC input typical |
| Control Signals | Digital and analog inputs supported |
| Communication Protocols | Modbus, Profibus (optional) |
| Power Rating | Medium power drive applications |
| Mounting Method | DIN rail or panel mount |
| Operating Temperature | –10°C to +50°C |
| Protection Rating | IP20 (standard enclosure) |
Product Applications
The NGDR-02C 61353356D drive board is used in a variety of industrial and commercial applications, such as:
-
Controlling motors in conveyor systems for smooth and reliable transport of goods.
-
Pump and fan speed regulation in HVAC systems for optimized energy use.
-
Motor control in manufacturing equipment requiring precise speed and torque adjustments.
-
Water treatment plants for efficient and controlled pump operations.
-
Material handling machinery in logistics centers and warehouses.
-
Industrial automation lines requiring high-performance motor drives.
Product Advantages
-
Reliable Performance: Designed for continuous operation in industrial environments, minimizing downtime.
-
Compact & Lightweight: Facilitates easy installation and reduces space requirements in control panels.
-
Energy Efficient: Enables optimized motor control that reduces power consumption and operational costs.
-
Communication Flexibility: Supports multiple industrial communication standards for smooth integration.
-
Accurate Motor Control: Enhances motor response for smooth acceleration, deceleration, and load handling.
-
Ease of Maintenance: Modular design allows for quick board replacement and system troubleshooting.
Brand Information
-
Brand: ABB
-
Series: ACS600 Series
-
Company Profile: ABB is a globally recognized leader in industrial automation and power technologies. The company is known for innovative and reliable drive solutions that meet demanding industrial requirements.
Related Models in ACS600 Series
| Model Number | Dimensions (mm) | Weight (kg) | Power Range | Key Features |
|---|---|---|---|---|
| NGDR-01C 58976520 | 203.2 x 152.4 x 30 | 0.75 | Low to medium | Basic drive control with reliable performance |
| NGDR-03C 58976522 | 203.2 x 152.4 x 30 | 0.78 | Medium power | Improved diagnostics and signal processing |
| NGDR-04C 58976523 | 220 x 160 x 35 | 0.82 | Medium to high | Advanced communication options |
| NGDR-05C 58976524 | 220 x 160 x 35 | 0.85 | High power | High-speed processing for demanding tasks |
| NGDR-06C 58976525 | 240 x 180 x 40 | 0.90 | Very high power | Industrial robustness and extended temperature range |
Recommended ABB Popular Models (Other Series)
| Model Number | Product Type | Dimensions (mm) | Weight (kg) | Function Description |
|---|---|---|---|---|
| NBIO-21CU | Digital I/O Expansion Board | 195 x 135 x 28 | 0.65 | Provides extended digital input/output ports for drive systems, enhancing I/O capacity |
| NBRA-669C | Brake Resistor Adapter | 210 x 150 x 32 | 0.72 | Manages dynamic braking resistors and provides protection for drive braking circuits |
| NDBU-85 | Brake Unit Board | 180 x 130 x 35 | 0.70 | Controls braking energy during motor deceleration, improving safety and efficiency |
| NSIO-01C | Serial Interface Option | 170 x 120 x 30 | 0.60 | Offers serial communication capabilities (RS-232/RS-485) for drives and controllers |
| NDCO-31 | Control Interface Board | 200 x 145 x 33 | 0.74 | Used for advanced control logic interfacing within ACS600/800 drive systems |
FAQ (Q&A)
Q1: What is the primary function of the ABB NGDR-02C 61353356D drive board?
A1: It controls motor speed and torque by managing power electronics and interpreting control signals within the ACS600 drive system.
Q2: What are the size and weight of this drive board?
A2: The board measures 203.2 x 152.4 x 30 mm and weighs 0.76 kg.
Q3: Is this drive board compatible with other ABB drive series?
A3: It is primarily designed for the ACS600 series; compatibility with other series is limited and should be checked case-by-case.
Q4: What communication protocols does it support?
A4: It supports Modbus and optionally Profibus communication protocols.
Q5: What is the operating temperature range?
A5: It operates reliably between –10°C and +50°C.
Q6: How is the board installed?
A6: It can be mounted on DIN rails or directly on panels, depending on the setup.
Q7: Can the board be serviced or replaced easily?
A7: Yes, it has a modular design that facilitates quick replacement and maintenance.
Q8: Does it have built-in fault detection?
A8: Yes, it provides fault diagnostics to help identify common issues during operation.
Q9: Which motors is it compatible with?
A9: It is compatible with AC induction motors used in industrial applications.
Q10: Where can I obtain technical support and spare parts?
A10: ABB provides global technical support and authorized distributors offer spare parts.
