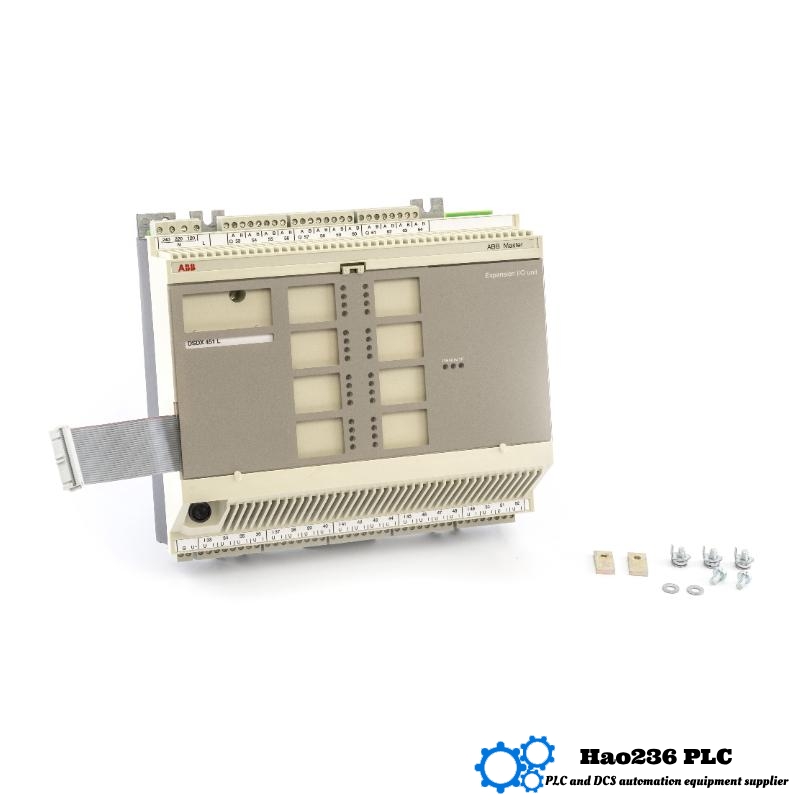

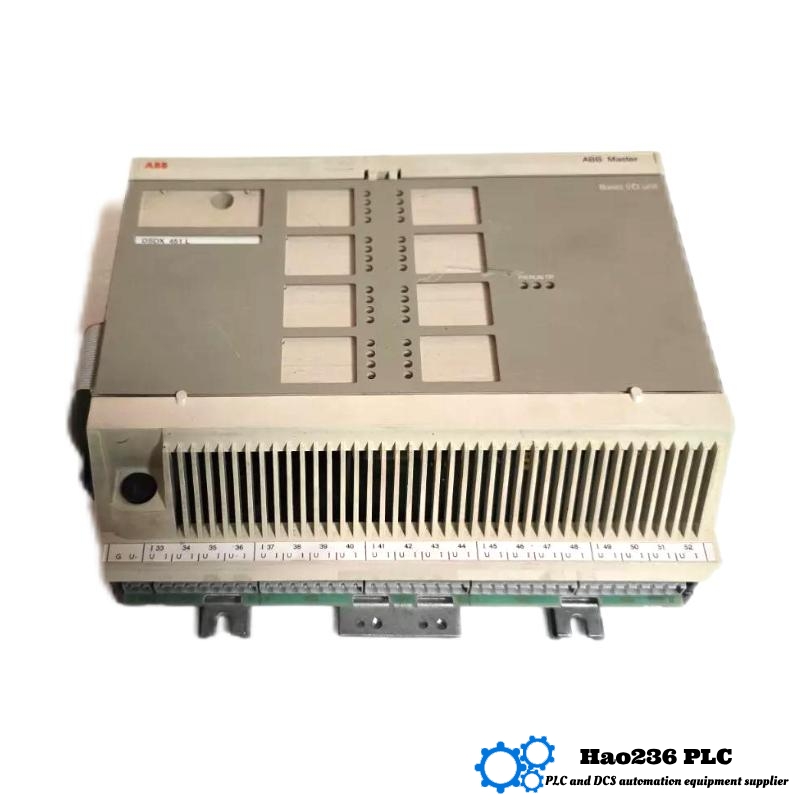

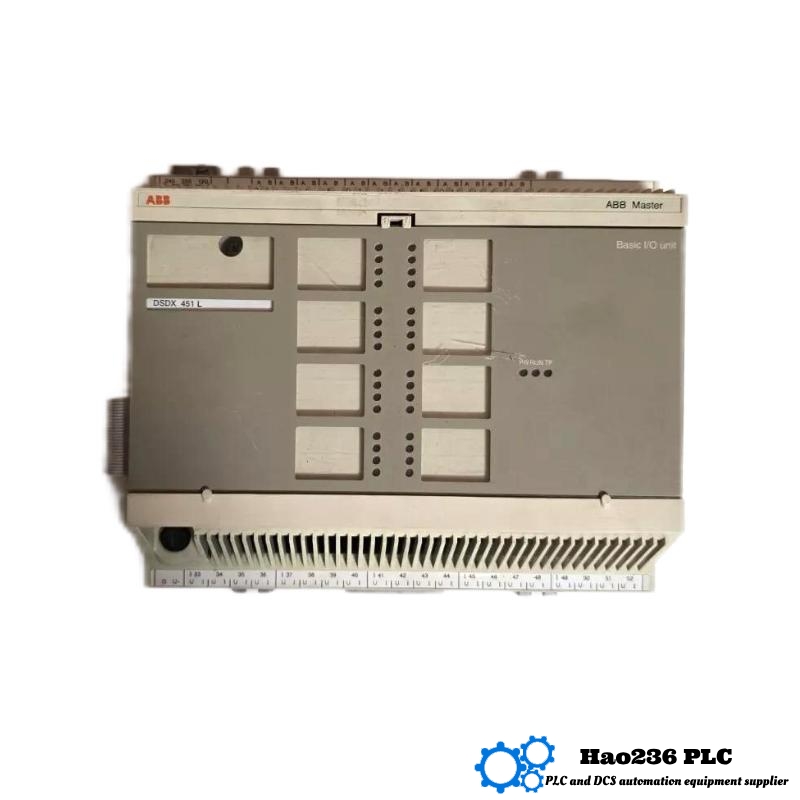

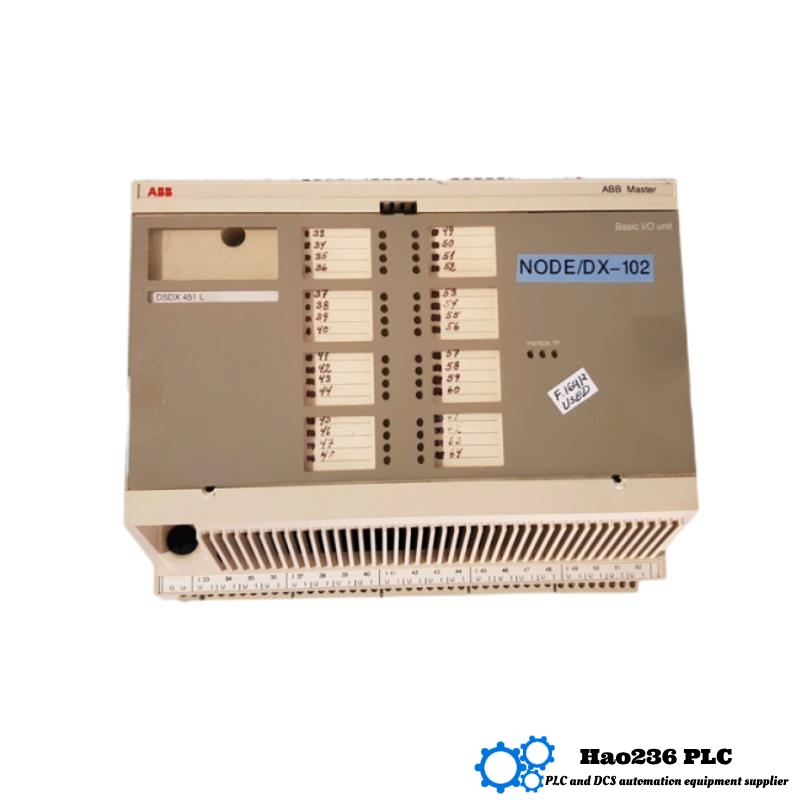

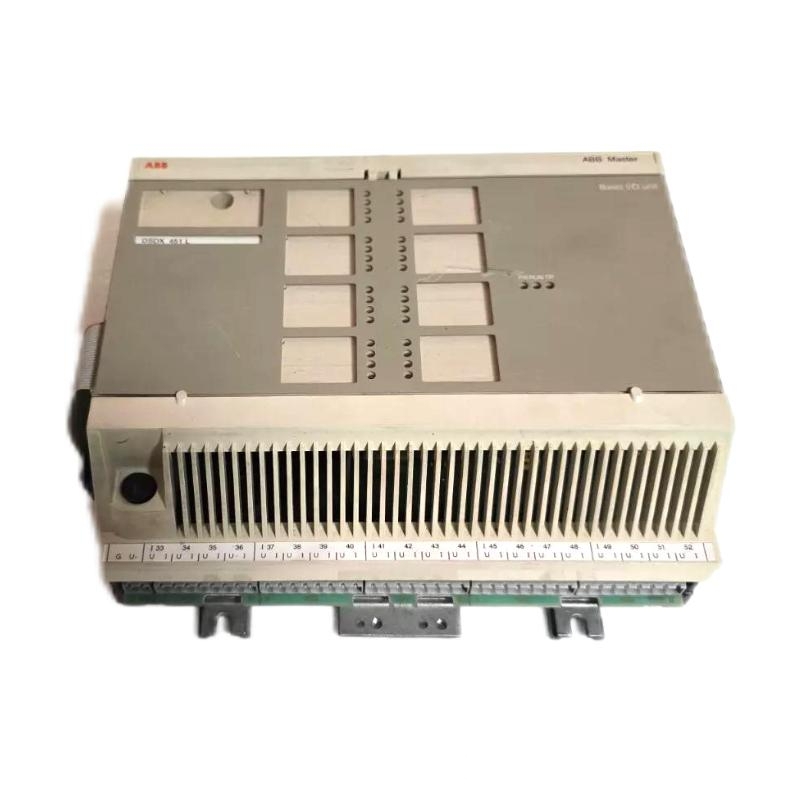

ABB DSDX 451L 5716075-AH Digital Input/Output Module
Product Introduction
The ABB DSDX 451L 5716075-AH is a high-precision digital input/output module designed for industrial control applications where reliability, robustness, and long-term performance are essential. This module is part of ABB’s DS series, known for its advanced automation capabilities and seamless integration within complex control systems. It supports both digital inputs and outputs, making it an all-in-one solution for signal processing in various control environments. Built with industrial-grade components and housed in a rugged casing, it ensures durability and stable performance in harsh conditions.
Applications
Power Generation Plants – Interfaces with digital sensors and relays for control and monitoring
Petrochemical and Oil & Gas Industries – Used in hazardous environments to manage digital switching operations
Manufacturing Automation – Controls factory equipment such as conveyors, robotic arms, and PLCs
Water Treatment Facilities – Manages pump operations, sensor feedback, and alarm signaling
Smart Infrastructure – Integrated into building automation systems for lighting, HVAC, and safety controls
Product Advantages
High Signal Integrity – Ensures precise digital signal processing with minimal noise
Compact Footprint – Dimensions of 250 x 220 x 100 mm, ideal for limited panel space
Heavy-Duty Design – Weighing 2.8 kg, built to endure vibration and industrial stress
Flexible I/O Support – Accommodates a wide range of input and output configurations
Easy Wiring – Simplified with plug-in terminal blocks and clearly labeled channels
Wide Compatibility – Easily integrates with ABB Symphony and Advant systems
Brand Information
ABB is a globally recognized leader in automation and power technologies, headquartered in Zurich, Switzerland. With over a century of innovation, ABB has consistently provided state-of-the-art industrial solutions, from robotics to process automation. The DSDX 451L module reflects ABB’s commitment to engineering excellence, safety, and performance, trusted across industries worldwide.
Product Parameters
| Parameter | Value |
|---|---|
| Module Type | Digital Input/Output |
| Dimensions | 250 x 220 x 100 mm |
| Weight | 2.8 kg |
| Operating Voltage | 24 V DC |
| Number of Inputs | 20 Digital Inputs |
| Number of Outputs | 16 Digital Outputs |
| Signal Type | Discrete Digital |
| Connectivity | Multi-position plug connectors |
| Mounting | DIN Rail |
| Operating Temperature | -20°C to 60°C |
Related Models in the Same Series or Similar Function
| Model | Dimensions | Weight | Description |
|---|---|---|---|
| DSDX 452L 5716075-BH | 250 x 220 x 100 mm | 2.9 kg | Extended digital outputs |
| DSDX 453L 5716075-CH | 250 x 220 x 100 mm | 3.0 kg | Enhanced input capacity |
| DSDX 450L 5716075-AJ | 250 x 220 x 100 mm | 2.7 kg | Compact variant with lower I/O |
| DSDX 454L 5716075-DJ | 250 x 220 x 100 mm | 3.1 kg | Designed for heavy-duty systems |
| DSDX 455L 5716075-EJ | 250 x 220 x 100 mm | 2.8 kg | Versatile I/O control module |
Popular ABB Models
| Model | Dimensions | Weight | Description |
|---|---|---|---|
| DSDX 170 5716075-AG | 180 x 150 x 70 mm | 1.2 kg | Compact and cost-effective digital I/O |
| DSDX 360 5716075-HG | 300 x 240 x 120 mm | 3.5 kg | High-performance industrial-grade module |
| DSDX 410 5716075-BG | 270 x 220 x 110 mm | 3.0 kg | Standard I/O for industrial applications |
| DSDX 120 5716075-CG | 200 x 180 x 90 mm | 2.3 kg | General-purpose I/O solution |
| DSDX 550 5716075-DG | 250 x 220 x 100 mm | 3.2 kg | Advanced features for process automation |
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the ABB DSDX 451L 5716075-AH?
A1: This module is used for managing digital input and output signals within industrial control systems, enabling real-time control and monitoring of equipment.
Q2: How many inputs and outputs does it support?
A2: The DSDX 451L supports 20 digital inputs and 16 digital outputs, making it suitable for a wide range of automation tasks.
Q3: Is it compatible with existing ABB control systems?
A3: Yes, it integrates seamlessly with ABB Symphony, Advant, and other compatible ABB DCS platforms.
Q4: Can the module operate in extreme temperatures?
A4: Yes, it is rated for operation in environments ranging from -20°C to 60°C, suitable for indoor and semi-outdoor conditions.
Q5: What kind of wiring interface does it use?
A5: It features multi-position plug connectors that simplify installation and ensure secure connections.
Q6: Is it suitable for high-vibration environments?
A6: Absolutely. The sturdy design and enclosure allow it to perform reliably in environments with mechanical stress and vibration.
Q7: What is the power requirement for this module?
A7: It operates on a standard 24 V DC power supply commonly used in control panels and automation systems.
Q8: How does the module help with fault detection?
A8: LED indicators provide real-time status of inputs and outputs, assisting in quick diagnostics and system troubleshooting.
Q9: Can it be integrated into a modular system?
A9: Yes, it is fully modular and can be used alongside other ABB DS series modules within a unified rack or panel.
Q10: What industries benefit most from this module?
A10: Power generation, petrochemical, water treatment, and manufacturing sectors benefit from its flexibility, reliability, and integration features.
