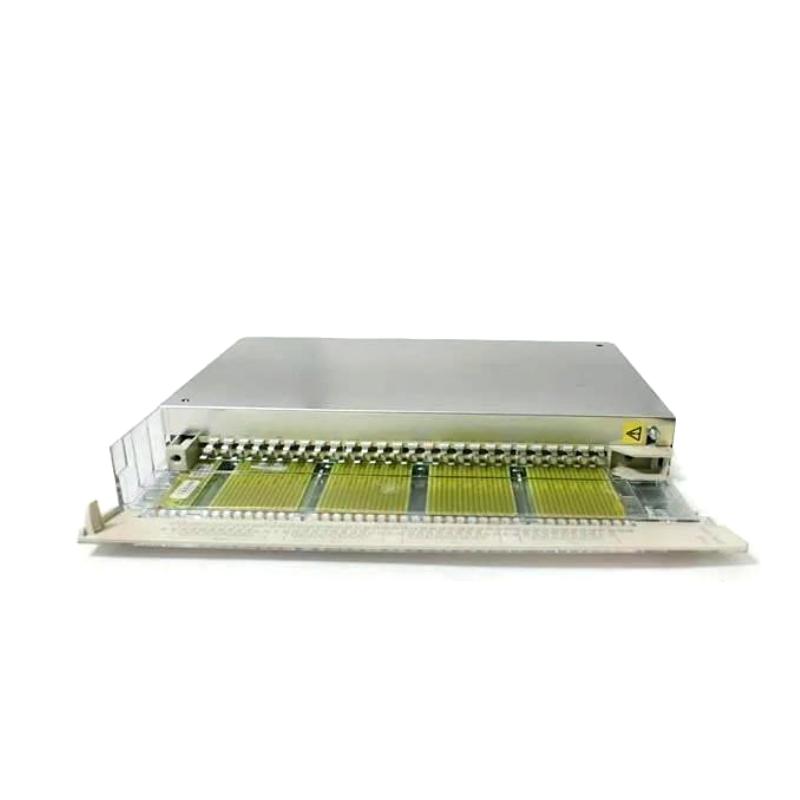

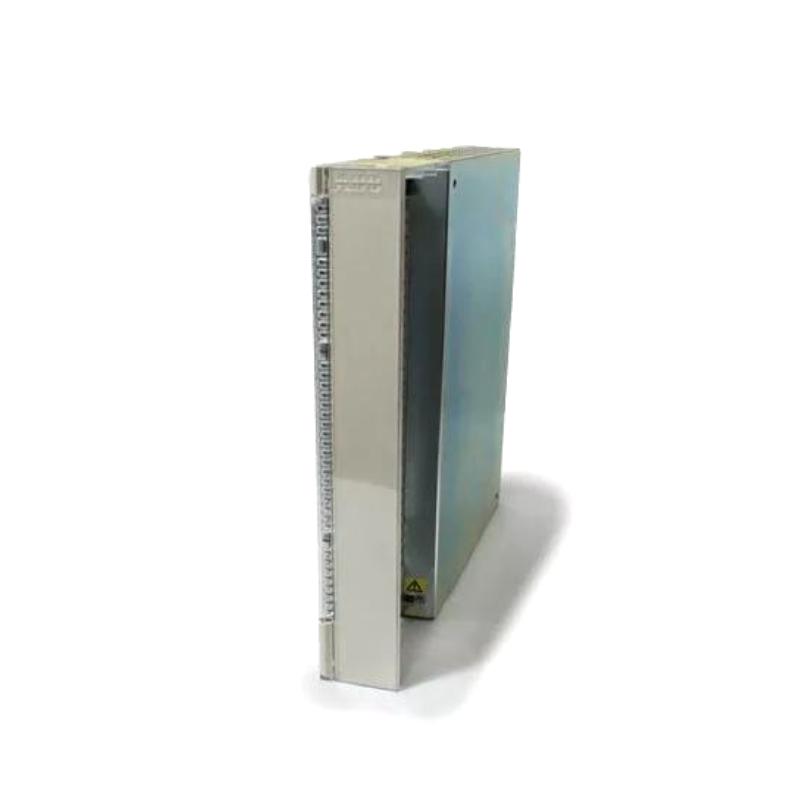

Product Overview: ABB DO620 (3BHT300009R1)
Product Introduction
The ABB DO620 is a digital output module designed for use in industrial automation systems, providing reliable and robust output control for a wide range of applications. It is part of the ABB I/O module family, known for its high performance and integration flexibility in industrial environments. The DO620 module is used to control digital devices such as motors, relays, actuators, and alarms, making it an essential component in automation and control systems.
The module offers easy installation, high-density outputs, and robust diagnostics features, making it a reliable choice for modern industrial applications where high performance is required.
Product Specifications
Below are the detailed specifications for the ABB DO620 digital output module:
| Parameter | Details |
|---|---|
| Model Number | 3BHT300009R1 |
| Number of Outputs | 32 Digital Outputs |
| Output Type | Transistor Output |
| Voltage Range | 24 V DC |
| Current Rating | 0.5 A per output (Maximum) |
| Output Indication | LED indicators for output status |
| Dimensions (L x W x H) | 180 mm x 120 mm x 85 mm |
| Weight | 1.6 kg |
| Operating Temperature | -10°C to +60°C |
| Operating Humidity | 5% to 95% RH (Non-condensing) |
| Mounting | DIN Rail Mountable |
| Certifications | CE, UL, RoHS |
Product Applications
The ABB DO620 digital output module is used in a variety of industrial automation applications, where controlling multiple devices is required. Key applications include:
-
Factory Automation: Used for controlling machines, production lines, and robotic arms. The DO620 module ensures smooth operation of automated manufacturing processes.
-
Process Control: Commonly used in process industries like chemical, oil and gas, and food processing to control devices such as pumps, valves, and actuators.
-
Building Automation: Used in smart building systems for controlling lighting, HVAC, and other environmental systems.
-
Energy Management: Useful in controlling circuit breakers, switches, and alarms in energy distribution systems.
-
Transport Systems: The DO620 is used in controlling traffic lights, gates, and security systems in transportation networks.
Product Advantages
The ABB DO620 offers several key advantages, including:
-
High Output Density: With 32 outputs, the DO620 allows users to control a wide array of devices from a single module, reducing space requirements and simplifying wiring in control panels.
-
Transistor Outputs: It features transistor outputs which are ideal for applications requiring high-speed switching and precise control.
-
LED Indicators: Each output has an integrated LED indicator to provide real-time feedback on the operational status of the output.
-
Wide Temperature Range: The DO620 operates in a temperature range of -10°C to +60°C, ensuring reliable performance in harsh industrial environments.
-
DIN Rail Mountable: The DO620 is easy to install in control cabinets with DIN rail mounting, streamlining setup and maintenance.
-
Certification Compliance: It is certified for use globally, with CE, UL, and RoHS certifications, ensuring the product meets international safety and environmental standards.
Product Brand and Series
-
Brand: ABB
-
Series: DO Series (Digital Output Modules)
Recommendations for Similar or Related Models
Here are five similar or related models in the DO Series or other digital output series:
| Model | Number of Outputs | Output Type | Voltage Range | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| DO610 | 16 | Relay Output | 24 V DC | 160 x 120 x 85 | 1.8 |
| DO620 | 32 | Transistor Output | 24 V DC | 180 x 120 x 85 | 1.6 |
| DO573 | 32 | Transistor Output | 24 V DC | 160 x 130 x 85 | 1.8 |
| DO574 | 16 | Relay/Transistor Output | 24 V DC | 140 x 120 x 75 | 1.4 |
| DO578 | 32 | Transistor Output | 24 V DC | 160 x 140 x 90 | 2.0 |
Popular ABB Models
Here are five other popular ABB models used in industrial automation:
| Model | Power Supply | I/O Configuration | Mounting Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| PM800 | 24 V DC | 12 Analog Inputs, 12 Outputs | DIN Rail Mount | 200 x 150 x 80 | 1.5 |
| S800 | 400 V AC | 16 Digital Inputs/Outputs | DIN Rail Mount | 250 x 200 x 100 | 2.5 |
| AC500 | 24 V DC | Flexible I/O Expansion | DIN Rail Mount | 300 x 250 x 150 | 3.0 |
| IRB 6700 | 400 V AC | Industrial Robot (Multiple I/Os) | Floor Mount | 1150 x 450 x 300 | 230 |
| ACS880 | 400 V AC | Variable Frequency Drive | Floor or Panel Mount | 400 x 300 x 200 | 9.5 |
FAQ (Frequently Asked Questions)
Q1: What is the ABB DO620 used for?
A1: The ABB DO620 is a digital output module used to control devices such as relays, actuators, motors, and alarms in industrial automation systems.
Q2: How many outputs does the DO620 have?
A2: The DO620 has 32 digital outputs that can be used to control various devices in industrial control applications.
Q3: What is the voltage range for the DO620?
A3: The DO620 operates with a nominal voltage of 24 V DC.
Q4: What is the weight of the DO620?
A4: The DO620 weighs 1.6 kg, which makes it relatively lightweight and easy to integrate into systems.
Q5: How is the DO620 mounted?
A5: The DO620 is designed to be DIN rail mountable, which is a standard for industrial control panels.
Q6: What type of outputs does the DO620 support?
A6: The DO620 uses transistor outputs, which provide fast switching and are suitable for controlling a variety of digital devices.
Q7: What is the operating temperature range for the DO620?
A7: The DO620 operates in temperatures ranging from -10°C to +60°C, making it suitable for use in a wide variety of industrial environments.
Q8: Does the DO620 have any certifications?
A8: Yes, the DO620 is CE, UL, and RoHS certified, meeting international standards for safety and environmental protection.
Q9: What is the current rating per output?
A9: The DO620 can handle up to 0.5 A per output, making it suitable for controlling a range of devices.
Q10: Can the DO620 be integrated with other ABB products?
A10: Yes, the DO620 can be easily integrated with other ABB automation systems, offering flexibility and scalability in complex industrial control applications.
