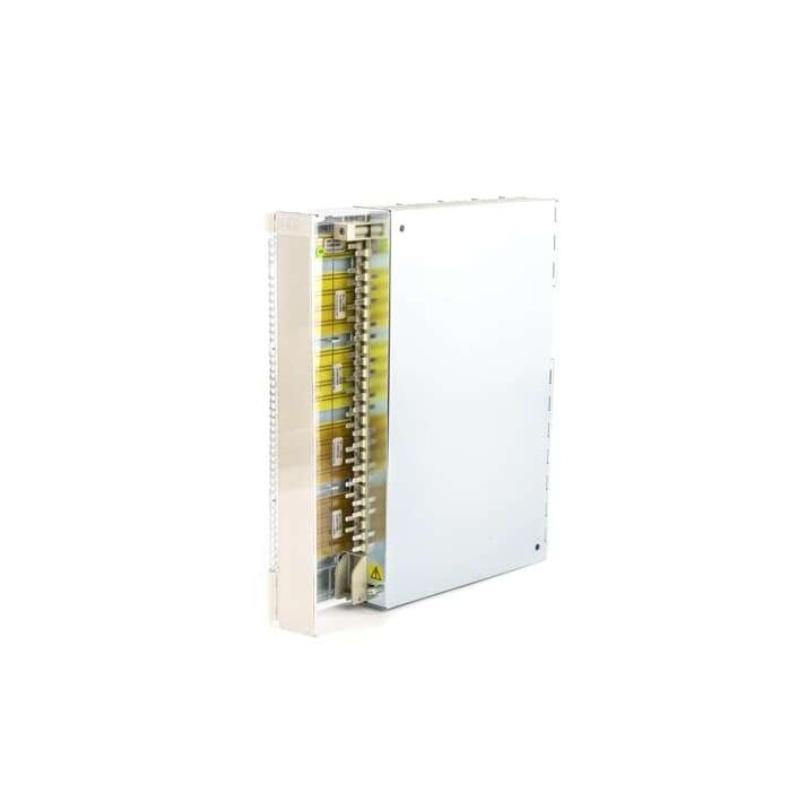

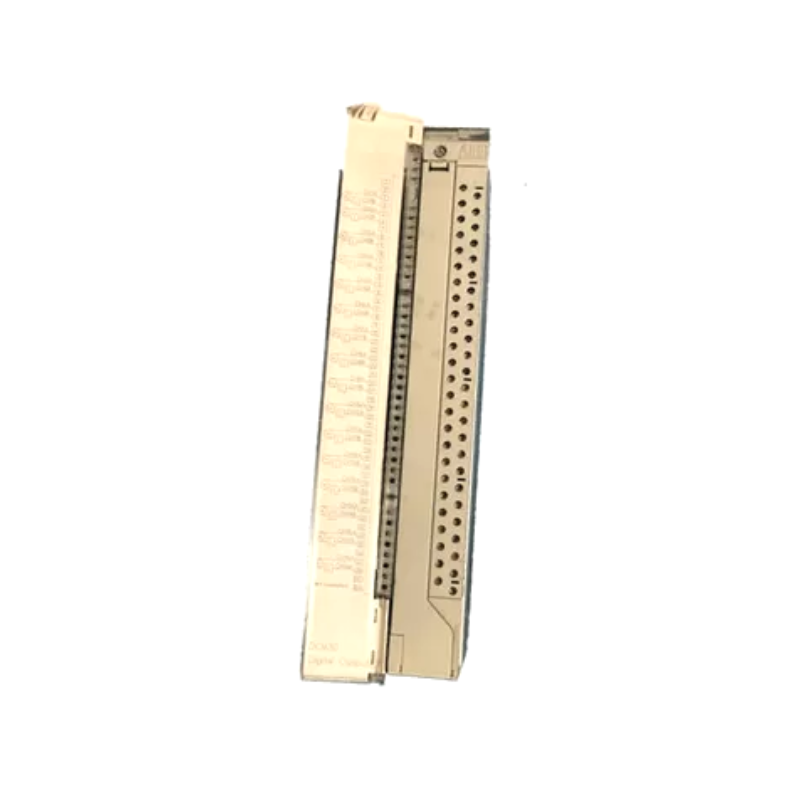

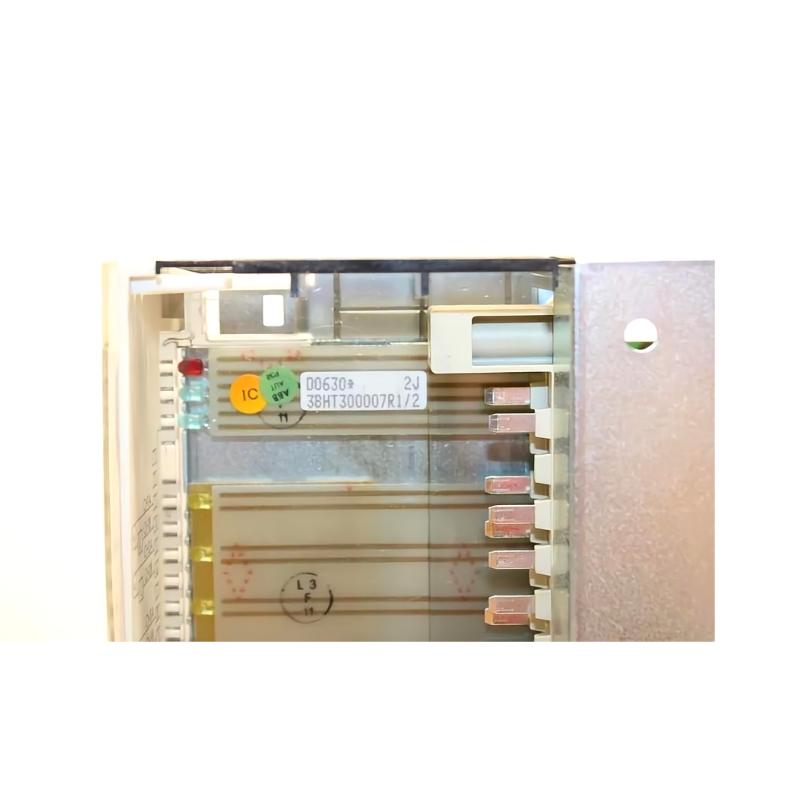

Product Overview: ABB DO630 (3BHT300007R1)
Product Introduction
The ABB DO630 is a digital output module designed for use in industrial automation systems. It is a high-performance device used to control a wide range of digital devices like motors, relays, actuators, alarms, and other electronic systems. The module features 32 digital outputs that can be used for various industrial control tasks. It is part of ABB’s renowned series of I/O modules that deliver superior reliability, flexibility, and high-speed switching for modern industrial automation systems.
This module is designed to operate in a wide temperature range and supports the high-speed switching necessary for complex automation tasks. It features LED indicators for real-time feedback on the operational status of each output, ensuring easier troubleshooting and monitoring during operation. Additionally, the DO630 is DIN rail mountable, offering ease of installation and integration into control systems.
Product Specifications
Below are the detailed specifications for the ABB DO630 digital output module:
| Parameter | Details |
|---|---|
| Model Number | 3BHT300007R1 |
| Number of Outputs | 32 Digital Outputs |
| Output Type | Transistor Output |
| Voltage Range | 24 V DC |
| Current Rating | 0.5 A per output (Maximum) |
| Output Indication | LED indicators for output status |
| Dimensions (L x W x H) | 180 mm x 120 mm x 85 mm |
| Weight | 1.7 kg |
| Operating Temperature | -10°C to +60°C |
| Operating Humidity | 5% to 95% RH (Non-condensing) |
| Mounting | DIN Rail Mountable |
| Certifications | CE, UL, RoHS |
Product Applications
The ABB DO630 digital output module is designed for use in various industrial applications where high-density and reliable control of devices is essential. Some key applications include:
-
Factory Automation: It is commonly used in manufacturing facilities to control production lines, robotic arms, and automated machinery.
-
Process Control: It can be applied in process industries such as chemicals, pharmaceuticals, and food processing to control pumps, valves, actuators, and other field devices.
-
Building Automation: The DO630 is ideal for controlling systems such as HVAC (Heating, Ventilation, and Air Conditioning), lighting, and access control in smart buildings.
-
Energy Management: It is used in energy management systems for controlling circuit breakers, switches, and alarms in electrical distribution networks.
-
Transport Systems: The DO630 is used in traffic control systems to manage devices like traffic lights, gates, and barriers.
Product Advantages
The ABB DO630 offers numerous advantages that make it a top choice for industrial automation:
-
High Output Density: The DO630 provides 32 digital outputs in one module, making it suitable for applications where multiple devices need to be controlled simultaneously.
-
Transistor Outputs: The module uses transistor outputs, which are ideal for high-speed switching applications, making it suitable for controlling relays, actuators, and alarms.
-
LED Indicators: Each output is equipped with LED indicators, providing visual feedback on the status of the outputs for easier monitoring and troubleshooting.
-
Wide Temperature Range: It can operate within a temperature range of -10°C to +60°C, making it versatile for use in different industrial environments.
-
DIN Rail Mounting: The DO630 is designed for DIN rail mounting, which simplifies the installation process and saves space in control panels.
-
Certification Compliance: The DO630 is CE, UL, and RoHS certified, ensuring it meets the necessary international standards for safety, performance, and environmental responsibility.
Product Brand and Series
-
Brand: ABB
-
Series: DO Series (Digital Output Modules)
Recommendations for Similar or Related Models
Here are five similar or related models in the DO Series or other digital output series:
| Model | Number of Outputs | Output Type | Voltage Range | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| DO610 | 16 | Relay Output | 24 V DC | 160 x 120 x 85 | 1.8 |
| DO620 | 32 | Transistor Output | 24 V DC | 180 x 120 x 85 | 1.6 |
| DO573 | 32 | Transistor Output | 24 V DC | 160 x 130 x 85 | 1.8 |
| DO574 | 16 | Relay/Transistor Output | 24 V DC | 140 x 120 x 75 | 1.4 |
| DO578 | 32 | Transistor Output | 24 V DC | 160 x 140 x 90 | 2.0 |
Popular ABB Models
Here are five other popular ABB models used in industrial automation:
| Model | Power Supply | I/O Configuration | Mounting Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| PM800 | 24 V DC | 12 Analog Inputs, 12 Outputs | DIN Rail Mount | 200 x 150 x 80 | 1.5 |
| S800 | 400 V AC | 16 Digital Inputs/Outputs | DIN Rail Mount | 250 x 200 x 100 | 2.5 |
| AC500 | 24 V DC | Flexible I/O Expansion | DIN Rail Mount | 300 x 250 x 150 | 3.0 |
| IRB 6700 | 400 V AC | Industrial Robot (Multiple I/Os) | Floor Mount | 1150 x 450 x 300 | 230 |
| ACS880 | 400 V AC | Variable Frequency Drive | Floor or Panel Mount | 400 x 300 x 200 | 9.5 |
FAQ (Frequently Asked Questions)
Q1: What is the ABB DO630 used for?
A1: The ABB DO630 is a digital output module that is used for controlling various industrial devices such as motors, relays, actuators, and alarms in automation systems.
Q2: How many outputs does the DO630 have?
A2: The DO630 has 32 digital outputs that can be used for controlling a wide range of devices in industrial automation.
Q3: What is the voltage range for the DO630?
A3: The DO630 operates with a nominal voltage of 24 V DC.
Q4: What is the weight of the DO630?
A4: The DO630 weighs 1.7 kg, making it relatively lightweight and easy to install in control panels.
Q5: How is the DO630 mounted?
A5: The DO630 is designed to be DIN rail mountable, which is a standard mounting method in industrial control systems.
Q6: What type of outputs does the DO630 use?
A6: The DO630 uses transistor outputs, which are suitable for applications requiring high-speed switching and precise control.
Q7: What is the operating temperature range for the DO630?
A7: The DO630 can operate in temperatures ranging from -10°C to +60°C, making it suitable for use in harsh industrial environments.
Q8: Does the DO630 have certifications?
A8: Yes, the DO630 is CE, UL, and RoHS certified, ensuring compliance with international safety and environmental standards.
Q9: What is the current rating per output?
A9: The DO630 can handle up to 0.5 A per output, making it capable of controlling various industrial devices.
Q10: Can the DO630 be integrated with other ABB products?
A10: Yes, the DO630 is designed to be easily integrated with other ABB automation products, ensuring scalability and flexibility in complex control systems.
