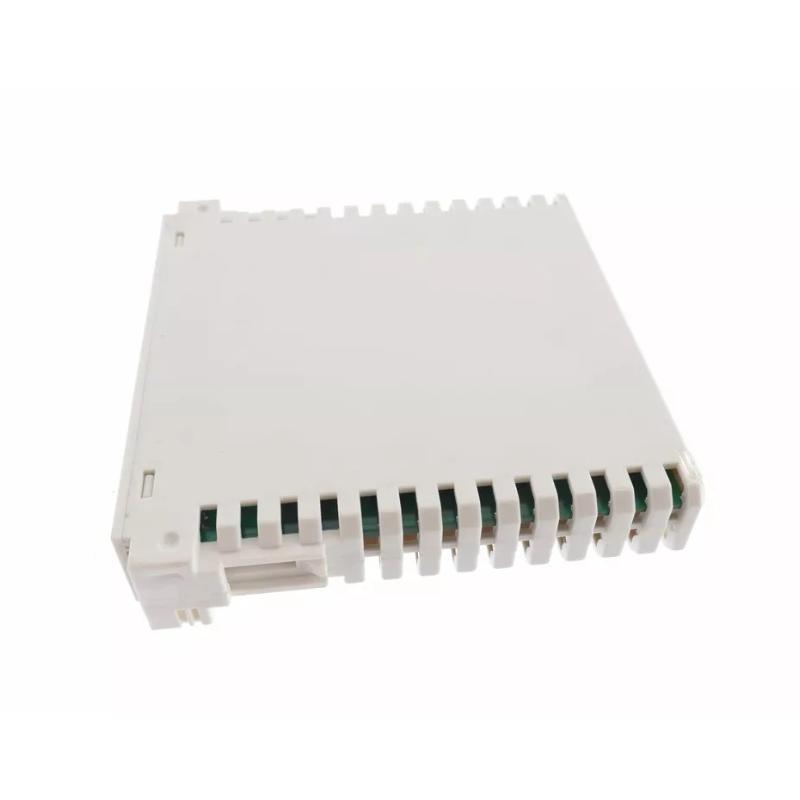

Product Overview: ABB DO910 / DO910B (D04-B) (3KDE175322L9100)
Product Introduction
The ABB DO910 (also known as DO910B (D04-B)) is a digital output module designed for use in industrial automation and control systems. This module is specifically engineered to handle high-demand applications where precise control of external devices such as actuators, relays, alarms, and other equipment is necessary. The DO910 offers highly reliable and flexible solutions for controlling a variety of digital outputs, making it an essential component in industrial control panels.
The DO910 features a robust construction, designed for easy integration into various automation environments. It is capable of providing reliable digital signals to control multiple devices simultaneously, with excellent safety features to protect both the module and the devices it controls. With advanced technology and high output density, this product is tailored for systems that require high-speed, high-precision digital switching.
Product Specifications
Below are the detailed specifications for the ABB DO910 module:
| Parameter | Details |
|---|---|
| Model Number | 3KDE175322L9100 |
| Module Type | Digital Output Module |
| Number of Outputs | 16 Digital Outputs |
| Output Type | Transistor Output |
| Voltage Range | 24 V DC (Nominal) |
| Current Rating | 0.5 A per output (Max) |
| Output Indication | LED indicators for output status |
| Dimensions (L x W x H) | 140 mm x 120 mm x 75 mm |
| Weight | 1.4 kg |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 5% to 95% RH (Non-condensing) |
| Mounting | DIN Rail Mountable |
| Certifications | CE, UL, RoHS |
Product Applications
The ABB DO910 digital output module is designed for use in various industries that require reliable control of digital outputs in automation systems. Its primary applications include:
-
Industrial Automation: It can be used to control motors, relays, and actuators in automated production lines and machinery.
-
Process Control Systems: The DO910 is ideal for controlling valves, pumps, and other devices in chemical, petrochemical, and pharmaceutical processes.
-
Building Management Systems (BMS): The module is used for controlling lighting, HVAC systems, and access controls in commercial buildings.
-
Energy Distribution: The DO910 is useful in electrical distribution networks for controlling circuit breakers, alarms, and other protective devices.
-
Transport & Traffic Systems: It is used in the control of traffic signals, railway signaling, and other transport infrastructure applications.
Product Advantages
The ABB DO910 offers several advantages that make it an excellent choice for industrial applications:
-
High Output Density: The DO910 offers 16 digital outputs in a compact form factor, making it ideal for applications with multiple control points.
-
Reliable Switching: With transistor outputs, the module can handle high-speed switching, making it suitable for controlling relays, actuators, and other devices that require precise digital signals.
-
Real-Time Status Feedback: The module includes LED indicators for each output, allowing for easy monitoring of the output status during operation.
-
Wide Operating Temperature: The DO910 operates within a temperature range of -10°C to +55°C, ensuring reliable performance in a variety of environments.
-
Easy Integration: With DIN rail mounting, the module is easy to install and integrate into existing industrial control systems, saving valuable space in control panels.
-
Compliance with Standards: The DO910 complies with international safety and environmental standards, including CE, UL, and RoHS, ensuring its reliability and safety in global applications.
Product Brand and Series
-
Brand: ABB
-
Series: DO Series (Digital Output Modules)
Recommendations for Similar or Related Models
Here are five similar or related models from the DO Series or other relevant digital output series:
| Model | Number of Outputs | Output Type | Voltage Range | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| DO910B (D04-B) | 16 | Transistor Output | 24 V DC | 140 x 120 x 75 | 1.4 |
| DO920 | 32 | Transistor Output | 24 V DC | 200 x 160 x 100 | 2.0 |
| DO960 | 32 | Relay Output | 24 V DC | 180 x 150 x 90 | 1.9 |
| DO950 | 8 | Transistor Output | 24 V DC | 130 x 100 x 80 | 1.2 |
| DO900 | 16 | Relay Output | 24 V DC | 140 x 120 x 75 | 1.4 |
Popular ABB Models
Here are five other ABB models used in industrial automation and control:
| Model | Power Supply | I/O Configuration | Mounting Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| PM860 | 24 V DC | 8 Analog Inputs, 16 Outputs | DIN Rail Mount | 190 x 150 x 80 | 1.5 |
| AC500 | 24 V DC | Flexible I/O Expansion | DIN Rail Mount | 300 x 250 x 150 | 3.0 |
| S800 | 400 V AC | 16 Digital Inputs/Outputs | DIN Rail Mount | 250 x 200 x 100 | 2.5 |
| IRB 6700 | 400 V AC | Industrial Robot (Multiple I/Os) | Floor Mount | 1150 x 450 x 300 | 230 |
| ACS880 | 400 V AC | Variable Frequency Drive | Floor or Panel Mount | 400 x 300 x 200 | 9.5 |
FAQ (Frequently Asked Questions)
Q1: What is the ABB DO910 used for?
A1: The ABB DO910 is a digital output module used in industrial automation systems to control devices such as motors, relays, actuators, and alarms.
Q2: How many outputs does the DO910 have?
A2: The DO910 has 16 digital outputs that can be used for controlling multiple industrial devices.
Q3: What is the voltage range for the DO910?
A3: The DO910 operates with a 24 V DC voltage range, which is common for many industrial control systems.
Q4: What is the weight of the DO910?
A4: The DO910 weighs 1.4 kg, making it a lightweight module for easy installation in control panels.
Q5: How is the DO910 mounted?
A5: The DO910 is designed to be DIN rail mountable, allowing for easy and space-efficient installation.
Q6: What type of outputs does the DO910 use?
A6: The DO910 uses transistor outputs, ideal for high-speed switching and control of industrial devices.
Q7: What is the operating temperature range for the DO910?
A7: The DO910 can operate in temperatures ranging from -10°C to +55°C, suitable for a wide range of industrial environments.
Q8: Does the DO910 have certifications?
A8: Yes, the DO910 is CE, UL, and RoHS certified, ensuring compliance with international safety and environmental standards.
Q9: What is the current rating per output?
A9: The DO910 can handle up to 0.5 A per output, which is sufficient for controlling many types of industrial devices.
Q10: Can the DO910 be integrated with other ABB products?
A10: Yes, the DO910 is compatible with other ABB automation products, allowing for seamless integration into industrial control systems.
