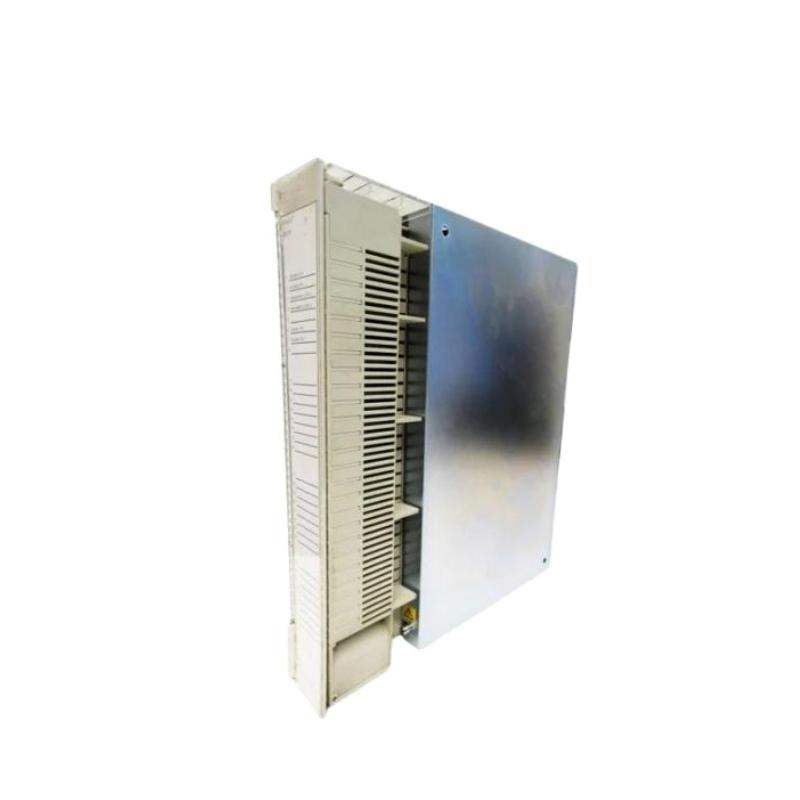

Product Overview: ABB DO610 (3BHT300006R1 & 3BHT300006R1/C)
Product Introduction
The ABB DO610 is a highly efficient digital output module designed for modern industrial automation systems. This module is part of the ABB I/O family, known for its high reliability and versatility in a wide range of applications. The DO610 allows you to control digital devices such as relays, actuators, motors, and alarms, enabling seamless integration into complex industrial control systems.
With flexible configuration options and robust performance, the DO610 is ideal for environments where high-density output control is essential. It is built to handle a wide range of voltages and currents, making it a reliable choice for demanding applications.
Product Specifications
Here are the detailed specifications for the ABB DO610 module:
| Parameter | Details |
|---|---|
| Model Number | 3BHT300006R1 / 3BHT300006R1/C |
| Number of Outputs | 16 Digital Outputs |
| Output Type | Relay Output |
| Voltage Range | 24 V DC |
| Current Rating | 2 A per output (Maximum) |
| Output Indication | LED indicators for output status |
| Dimensions (L x W x H) | 160 mm x 120 mm x 85 mm |
| Weight | 1.8 kg |
| Operating Temperature | -10°C to +60°C |
| Operating Humidity | 5% to 95% RH (Non-condensing) |
| Mounting | DIN Rail Mountable |
| Certifications | CE, UL, RoHS |
Product Applications
The ABB DO610 digital output module is commonly used in industrial automation systems for controlling a wide range of devices. Here are some of its primary applications:
-
Factory Automation: The module is ideal for controlling automated machines, conveyors, and robotic systems, making it essential for modern manufacturing processes.
-
Process Control: It is widely used in chemical plants, refineries, and power generation stations for controlling valves, pumps, and other industrial devices.
-
Building Automation: The DO610 module can be used in controlling HVAC systems, lighting systems, and security systems in commercial buildings.
-
Energy Management: In energy production and distribution systems, the module controls devices such as circuit breakers, alarms, and other power control equipment.
-
Transport Systems: This module is useful in controlling gates, traffic lights, and other digital control devices used in transportation networks.
Product Advantages
The ABB DO610 offers numerous advantages for industrial applications:
-
High Output Density: With 16 digital outputs, it allows you to control a wide variety of devices from a single module, saving space and simplifying wiring in control panels.
-
Relay Output Type: The module uses relay outputs, which are suitable for controlling higher-power devices and systems that require robust switching capabilities.
-
Flexible Configuration: The DO610 is designed to handle a wide range of digital devices, from simple relays to complex actuators, offering versatility in industrial applications.
-
LED Status Indicators: Each output has a built-in LED indicator to provide real-time feedback, which helps with diagnostics and troubleshooting.
-
Compact and Durable: The module is compact and operates in a wide temperature range of -10°C to +60°C, making it durable enough for harsh industrial environments.
-
International Certifications: It is CE, UL, and RoHS certified, ensuring compliance with international standards for safety and environmental protection.
Product Brand and Series
-
Brand: ABB
-
Series: DO Series (Digital Output Modules)
Recommendations for Similar or Related Models
Here are five similar or related models in the DO Series or other digital output series:
| Model | Number of Outputs | Output Type | Voltage Range | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| DO570 | 16 | Relay Output | 24 V DC | 150 x 120 x 80 | 1.5 |
| DO573 | 32 | Transistor Output | 24 V DC | 160 x 130 x 85 | 1.8 |
| DO574 | 16 | Relay/Transistor Output | 24 V DC | 140 x 120 x 75 | 1.4 |
| DO576 | 8 | Relay Output | 24 V DC | 120 x 120 x 60 | 1.2 |
| DO578 | 32 | Transistor Output | 24 V DC | 160 x 140 x 90 | 2.0 |
Popular ABB Models
Here are five other popular ABB models used in industrial automation:
| Model | Power Supply | I/O Configuration | Mounting Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| PM800 | 24 V DC | 12 Analog Inputs, 12 Outputs | DIN Rail Mount | 200 x 150 x 80 | 1.5 |
| S800 | 400 V AC | 16 Digital Inputs/Outputs | DIN Rail Mount | 250 x 200 x 100 | 2.5 |
| AC500 | 24 V DC | Flexible I/O Expansion | DIN Rail Mount | 300 x 250 x 150 | 3.0 |
| IRB 6700 | 400 V AC | Industrial Robot (Multiple I/Os) | Floor Mount | 1150 x 450 x 300 | 230 |
| ACS880 | 400 V AC | Variable Frequency Drive | Floor or Panel Mount | 400 x 300 x 200 | 9.5 |
FAQ (Frequently Asked Questions)
Q1: What is the ABB DO610 used for?
A1: The ABB DO610 is a digital output module used to control digital devices such as motors, relays, actuators, and alarms in industrial automation systems.
Q2: How many outputs does the DO610 have?
A2: The DO610 has 16 digital outputs that can be used to control a variety of devices.
Q3: What is the voltage range for the DO610?
A3: The DO610 operates at a nominal voltage of 24 V DC.
Q4: What is the weight of the DO610?
A4: The DO610 weighs 1.8 kg, making it lightweight and easy to install.
Q5: How is the DO610 mounted?
A5: The DO610 is DIN rail mountable, which makes it suitable for easy installation in control panels.
Q6: What types of outputs does the DO610 support?
A6: The DO610 supports relay outputs, which are capable of controlling high-power devices and providing robust switching performance.
Q7: What is the operating temperature range for the DO610?
A7: The DO610 operates in temperatures ranging from -10°C to +60°C, making it suitable for a wide range of industrial environments.
Q8: Does the DO610 have any certifications?
A8: Yes, the DO610 is CE, UL, and RoHS certified, meeting international safety and environmental standards.
Q9: What is the current rating per output?
A9: The DO610 can handle up to 2 A per output, making it capable of controlling high-current devices.
Q10: Can the DO610 be integrated with other ABB products?
A10: Yes, the DO610 is designed to integrate seamlessly with other ABB automation solutions, providing a flexible control platform for industrial automation.
