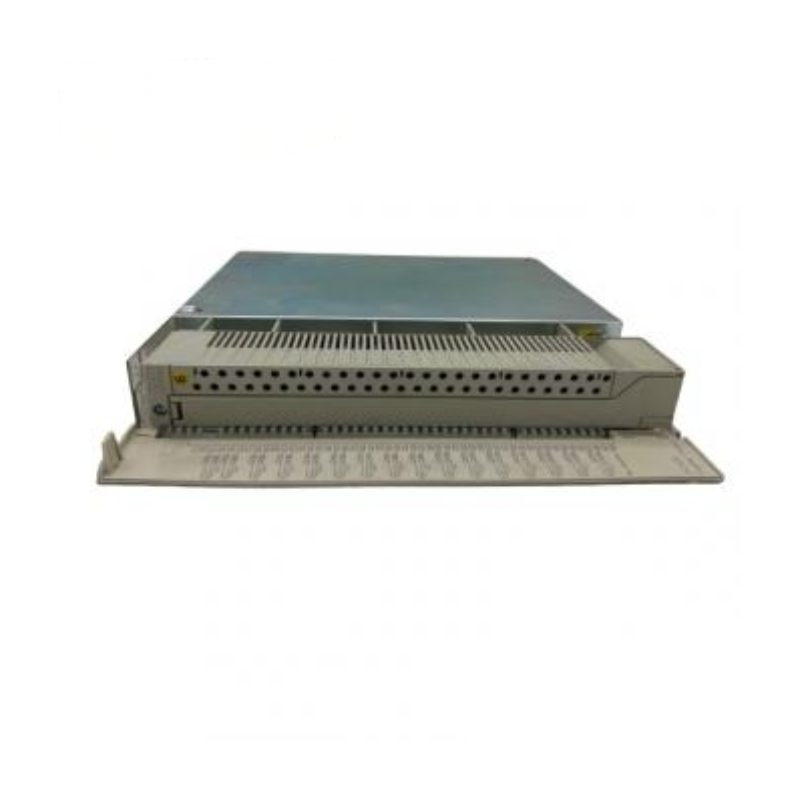

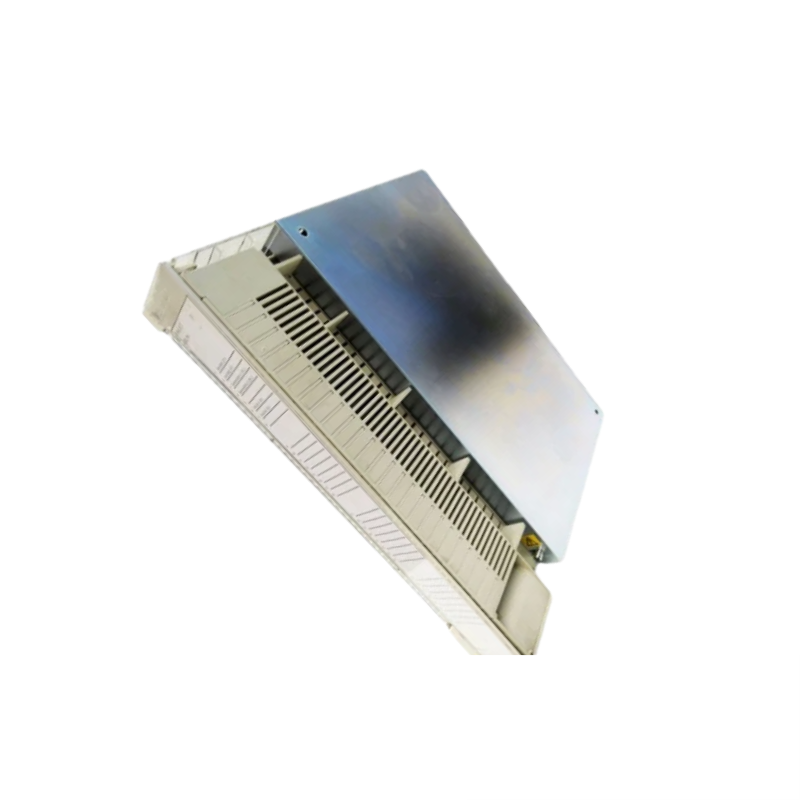

ABB DO630 3BHT300007R1 Digital Output Module
Product Overview
The ABB DO630 3BHT300007R1 is a robust 8-channel digital output module designed for use within the ABB S800 I/O system, specifically suited for applications requiring higher output current and industrial-grade reliability. This module outputs 24 V DC signals to field devices and is capable of handling demanding loads such as solenoids, motors, and heavy-duty relays.
With high-performance sourcing outputs and short-circuit protection, the DO630 ensures dependable operation in both discrete and continuous control environments. It features status indication LEDs for each output channel, enabling easy diagnostics and fast maintenance response. As part of ABB’s modular AC 800M and System 800xA architecture, it offers scalable integration and ensures long-term performance even in harsh industrial settings.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | DO630 3BHT300007R1 |
| Function | Digital Output Module |
| Number of Output Channels | 8 |
| Output Signal | 24 V DC Sourcing |
| Max Output Current/Channel | 2 A |
| Total Output Current | 8 A |
| Output Delay | < 1 ms |
| Protection Features | Short-circuit and overload protection |
| Channel Status Indication | LED for each output |
| Power Consumption | Approx. 6 W |
| Isolation | Optical isolation |
| Operating Temperature | -25°C to +70°C |
| Mounting Type | DIN rail / Backplane mount |
| Dimensions (W × H × D) | 252 × 273 × 40 mm |
| Weight | 1.32 kg |
| Compatible System | ABB AC 800M / S800 I/O |
| Brand | ABB |
| Product Series | S800 I/O Series |
Product Applications
-
Power Generation: Drives turbine actuators, breaker controls, and high-current switching systems.
-
Oil & Gas Automation: Controls solenoid valves, ignition units, and gas flow regulation equipment.
-
Metals & Mining: Activates motors, conveyor systems, and hydraulic control blocks in rugged environments.
-
Water and Wastewater Plants: Powers high-current valves and pump relays in distributed treatment systems.
-
Transportation Infrastructure: Operates large control signals for lighting, barrier gates, and industrial alarms.
Product Advantages
-
High Current Capability: Each output can deliver up to 2 A, suitable for heavy-duty applications.
-
Reliable Field Isolation: Ensures electrical separation between channels and system electronics.
-
Comprehensive Protection: Integrated safeguards against overload and short-circuits improve system longevity.
-
Efficient Troubleshooting: LED indicators on each channel help technicians quickly identify faults.
-
Seamless ABB Integration: Easily deployable with ABB’s System 800xA and AC 800M for enhanced scalability and control.
Brand and Product Series
-
Brand: ABB
-
Series: S800 I/O Series
The S800 I/O Series is ABB’s flagship modular I/O system offering high flexibility, distributed architecture, and advanced diagnostics for process control environments.
Recommended Related Models (Same Series or Function)
| Model | Description | Channels | Output Type | Weight |
|---|---|---|---|---|
| DO620 | 16-Channel Digital Output Module | 16 | 24 V DC | 1.2 kg |
| DO815 | 32-Channel Digital Output Module | 32 | 24 V DC | 1.1 kg |
| DO814 | 8-Channel Relay Output Module | 8 | Relay | 1.2 kg |
| DI820 | 8-Channel Digital Input Module (Isolated) | 8 | 24 V DC Input | 0.8 kg |
| AI810 | 8-Channel Analog Input Module | 8 | 4–20 mA / 0–10 V | 0.85 kg |
Popular ABB Modules (Same Brand)
| Model | Description | Dimensions (mm) |
|---|---|---|
| DX522 | Digital input module, 16-channel, 24 VDC, non-isolated | 130 x 100 x 40 |
| DX561 | Digital input module, 16-channel, 24 VDC, isolated | 130 x 100 x 42 |
| DX571 | Digital input module, 32-channel, 24 VDC, high-density | 130 x 100 x 45 |
| DX581 | Digital input module, 64-channel, compact design | 130 x 100 x 47 |
| DX551 | Digital input module, 16-channel, redundancy supported | 130 x 100 x 42 |
Frequently Asked Questions (FAQ)
Q1: What is the ABB DO630 used for?
A1: It provides 8 high-current 24 V DC outputs for controlling heavy-duty field devices such as relays and actuators.
Q2: What is the maximum current per channel?
A2: Each channel supports up to 2 A of output current.
Q3: Is this module protected against overloads?
A3: Yes, it includes short-circuit and overload protection features.
Q4: Can I use the DO630 with the AC 800M system?
A4: Yes, it is fully compatible with AC 800M and integrates with System 800xA.
Q5: Does the module provide isolation between channels?
A5: Yes, optical isolation is provided between channels and system circuits.
Q6: How do I know the output status?
A6: Each channel has an LED indicator that displays its ON/OFF status.
Q7: What voltage level is required for output operation?
A7: The module outputs 24 V DC sourcing signals.
Q8: Can it be DIN rail mounted?
A8: Yes, the module supports DIN rail or backplane mounting.
Q9: What is the operating temperature range?
A9: It operates reliably in environments ranging from -25°C to +70°C.
Q10: What are the dimensions and weight of the module?
A10: The module measures 252 × 273 × 40 mm and weighs approximately 1.32 kg.
