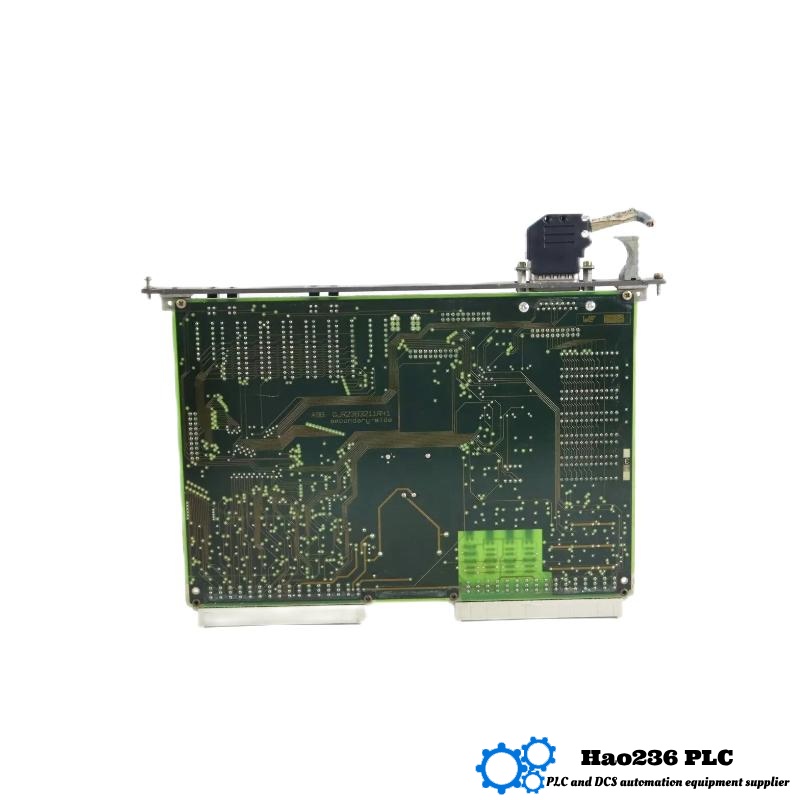

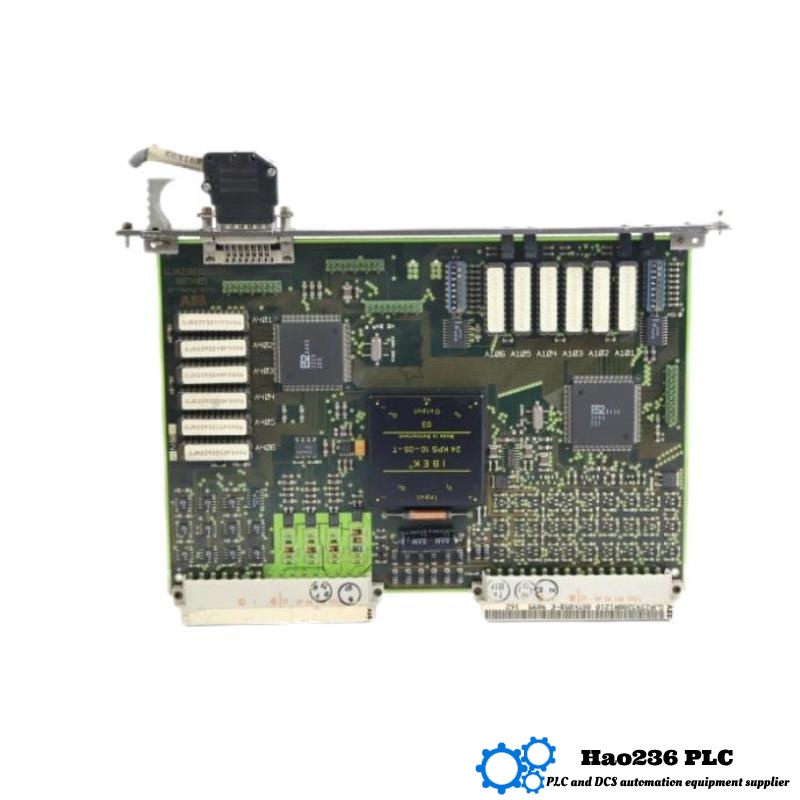

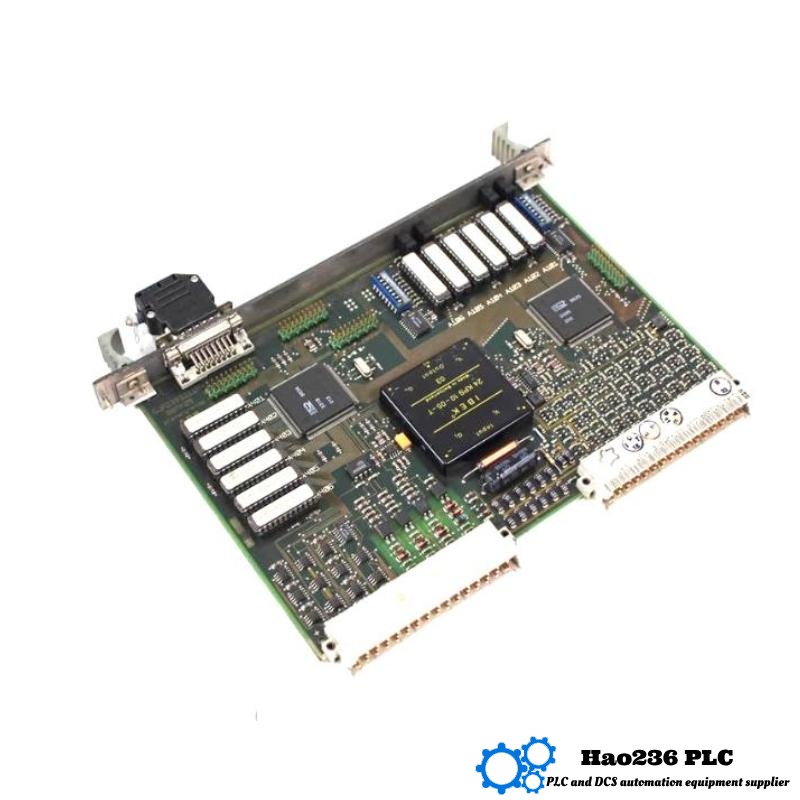

ABB 88TK05B-E GJR2393200R1210 Bus Coupler Module
Product Introduction
The ABB 88TK05B-E GJR2393200R1210 is a reliable and high-performance bus coupler module designed to facilitate communication between different devices in industrial automation systems. This module ensures seamless data exchange by connecting various control systems or networked devices, enhancing the flexibility and performance of complex industrial applications. It plays a critical role in maintaining stable and high-speed communication within distributed systems.
Designed with a compact form factor of 71 x 133 x 211 mm and a weight of 0.74 kg, the 88TK05B-E is built for integration in space-constrained environments while maintaining efficient performance. The module features a versatile design capable of supporting various communication protocols, making it an essential component for industrial control, automation, and process monitoring systems.
The 88TK05B-E is engineered to provide robust communication in demanding industrial environments, ensuring reliability and scalability as part of ABB’s advanced industrial solutions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 88TK05B-E GJR2393200R1210 |
| Module Type | Bus Coupler Module |
| Dimensions (W × H × D) | 71 x 133 x 211 mm |
| Weight | 0.74 kg |
| Power Supply | 24 V DC |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Communication Protocols | Supports various communication protocols |
| Data Transmission Speed | Up to 1 Mbps |
| Connector Type | DB9, Terminal Block |
| Mounting | DIN rail or panel mount |
| Input Voltage Range | 20–30 V DC |
| Certification | CE, UL, CSA |
Product Applications
The ABB 88TK05B-E bus coupler module is designed for integration in a variety of applications across different industries, such as:
-
Industrial Automation: Facilitates communication between various control systems and remote devices, ensuring real-time data transfer for continuous monitoring and control in manufacturing plants.
-
Process Control Systems: Used to integrate field devices with supervisory control systems (SCADA), improving process reliability and flexibility in industries such as chemicals, pharmaceuticals, and oil & gas.
-
Energy Management Systems: Enables communication between power management systems and remote telemetry devices, providing real-time data on grid status, power distribution, and substation monitoring.
-
Building Automation Systems (BMS): Connects the central control systems with distributed building devices, including HVAC, lighting, and security systems for centralized monitoring and management.
-
Utilities and Infrastructure: Communicates between central control systems and remote field units in water treatment plants, waste management facilities, and renewable energy systems.
Product Advantages
-
Compact and Robust Design: With dimensions of 71 x 133 x 211 mm and a weight of 0.74 kg, the module is designed to be compact yet robust, offering efficient integration without occupying too much space.
-
Flexible Communication: Supports a variety of communication protocols, ensuring compatibility with different industrial systems and easy integration with ABB automation solutions.
-
High Data Throughput: Capable of supporting data transfer speeds of up to 1 Mbps, ensuring fast and reliable communication across the network.
-
Wide Operating Temperature Range: With an operating temperature range of -20 °C to +60 °C, the module is built to perform reliably in harsh industrial environments.
-
Easy Installation: The module can be easily mounted on DIN rail or panel, offering flexible installation options to meet the needs of various system architectures.
-
Built-in Diagnostics: Features diagnostic LEDs for monitoring power status, data transmission activity, and fault conditions, ensuring ease of maintenance and reduced downtime.
-
Industrial Certifications: The module is CE, UL, and CSA certified, ensuring compliance with high standards for safety, performance, and quality in industrial applications.
Brand Information
-
Brand: ABB
ABB is a global leader in automation, offering advanced industrial solutions that enhance productivity, efficiency, and sustainability. ABB’s products are used worldwide across a broad range of industries, including power, industrial automation, robotics, and process control.
Recommended Models from ABB (Related Models)
| Model Number | Description | Data Rate | Dimensions (mm) | Weight (kg) | Primary Use |
|---|---|---|---|---|---|
| 88TK05B-E GJR2393200R1211 | Bus Coupler Module | Up to 1 Mbps | 71 x 133 x 211 | 0.74 | High-performance bus coupling |
| 88FV01 GJR2332300R0200 | Master Station Modem | 1200 bps to 38.4 kbps | 230 x 120 x 35 | 0.75 | Used for central communication |
| 88FV02 GJR2332300R0300 | Slave Station Modem | Up to 38.4 kbps | 230 x 120 x 35 | 0.75 | Connects remote devices to central control |
| 88FT05 GJR2393100R1200 | Master Station Modem | 1200 bps to 38.4 kbps | 198 x 261 x 40 | 0.5 | Used in industrial communication systems |
| 88FT07 GJR2393100R1400 | Industrial Modem | 1200 bps to 38.4 kbps | 198 x 261 x 40 | 0.5 | Rugged communication for industrial setups |
Popular ABB Communication Modules
| Model Number | Description | Data Rate | Dimensions (mm) | Weight (kg) | Primary Use |
|---|---|---|---|---|---|
| 88TK05B-E GJR2393200R1210 | Bus Coupler Module | Up to 1 Mbps | 71 x 133 x 211 | 0.74 | High-speed bus coupling for automation |
| 88FV01F GJR2332300R0100 | Master Station Modem | 1200 bps to 38.4 kbps | 90 x 45 x 66 | 0.35 | Compact solution for communication |
| 88FT05 GJR2393100R1200 | Master Station Modem | 1200 bps to 38.4 kbps | 198 x 261 x 40 | 0.5 | Used in process and plant communication |
| 88FV01 GJR2332300R0200 | Master Station Modem | 1200 bps to 38.4 kbps | 230 x 120 x 35 | 0.75 | Master communication module |
| 88FT06 GJR2393100R1201 | Dual-Channel Master Modem | 1200 bps to 38.4 kbps | 198 x 261 x 40 | 0.6 | Dual-channel communication for redundancy |
Frequently Asked Questions (FAQ)
Q1: What communication protocols are supported by the 88TK05B-E?
A1: The module supports RS-232 and RS-485 communication protocols for versatile network setups.
Q2: What is the maximum data transmission speed?
A2: The module supports data transmission speeds of up to 1 Mbps.
Q3: What are the dimensions and weight of the module?
A3: The module measures 71 x 133 x 211 mm and weighs 0.74 kg.
Q4: What power supply does the module require?
A4: It requires a 24 V DC power supply with an input voltage range of 20–30 V DC.
Q5: Can the module be installed on a DIN rail?
A5: Yes, the module is designed for DIN rail or panel mounting, offering installation flexibility.
Q6: What is the operating temperature range for the module?
A6: The module operates within a temperature range of -20 °C to +60 °C.
Q7: Does the module include built-in diagnostic features?
A7: Yes, it has diagnostic LEDs for monitoring power, data transmission, and fault conditions.
Q8: What certifications does the 88TK05B-E hold?
A8: The module is certified by CE, UL, and CSA, ensuring compliance with industrial safety and quality standards.
Q9: What industries commonly use this bus coupler module?
A9: It is commonly used in industries like automation, energy management, building automation, and SCADA systems.
Q10: Is this module compatible with other ABB products?
A10: Yes, the module integrates seamlessly with ABB’s range of automation systems and communication devices.
