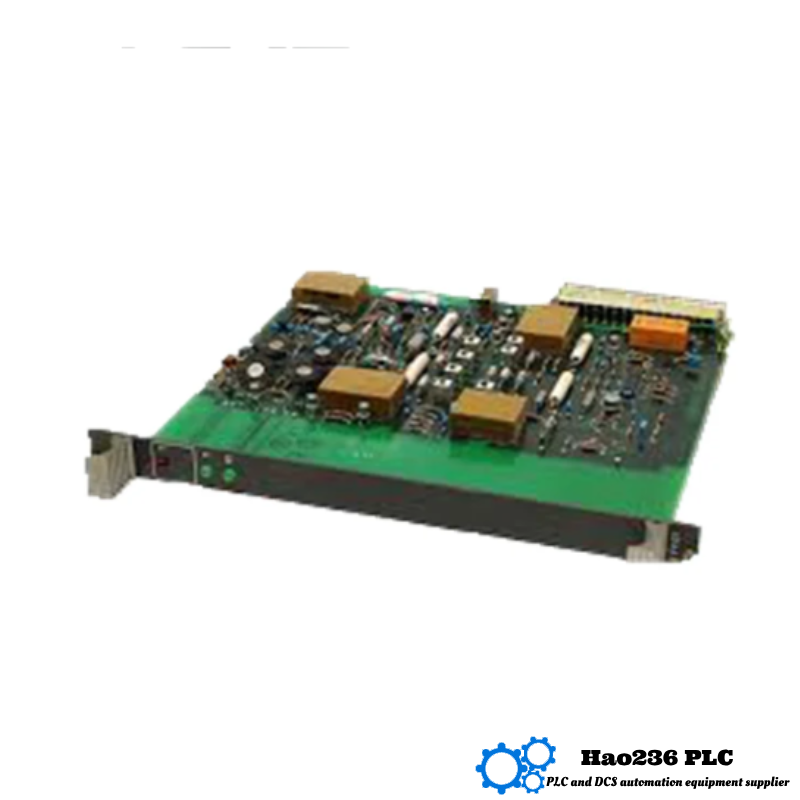

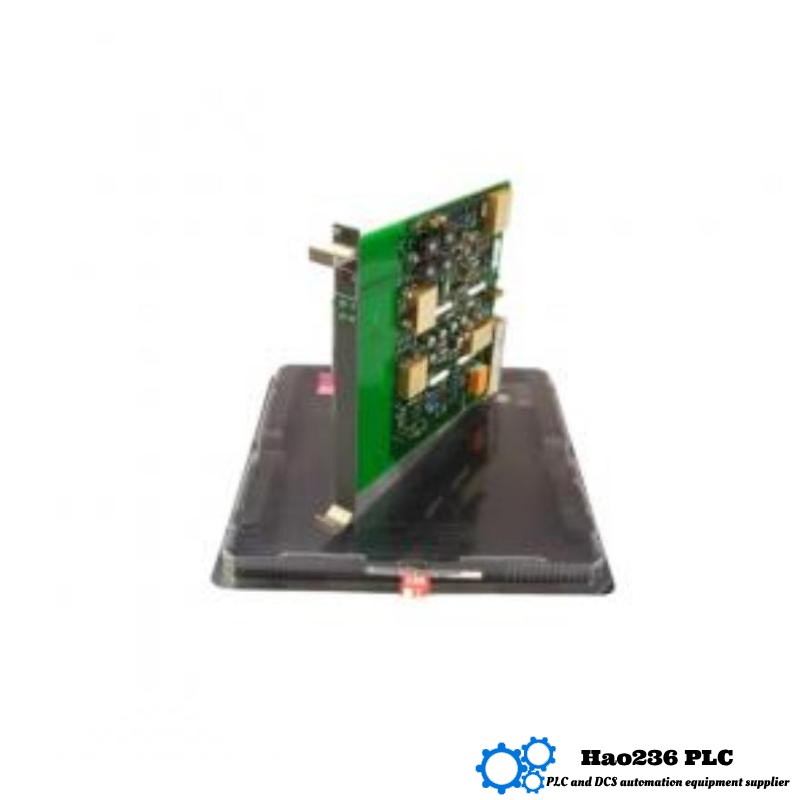

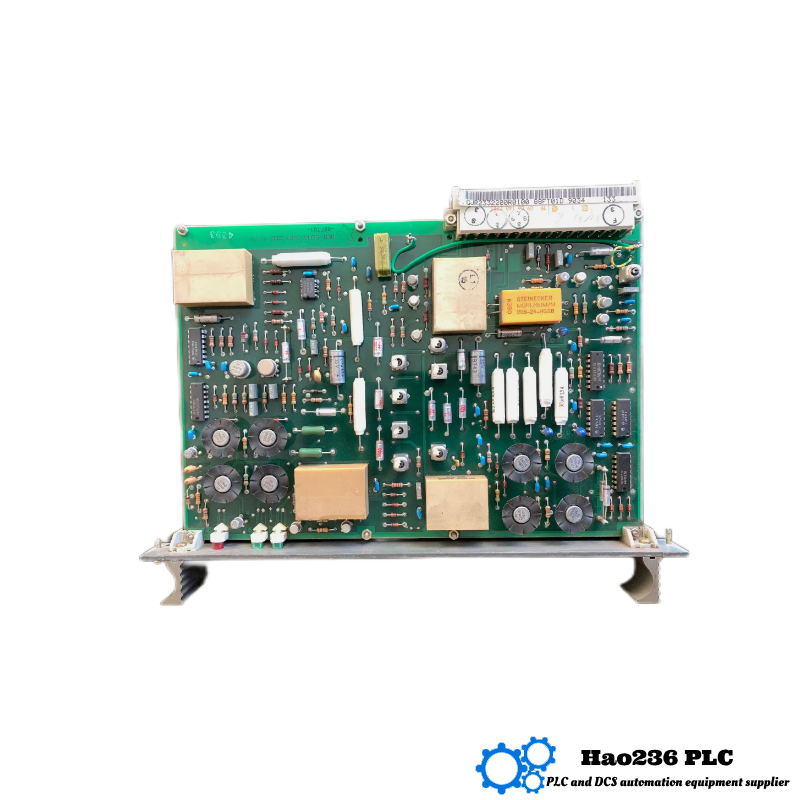

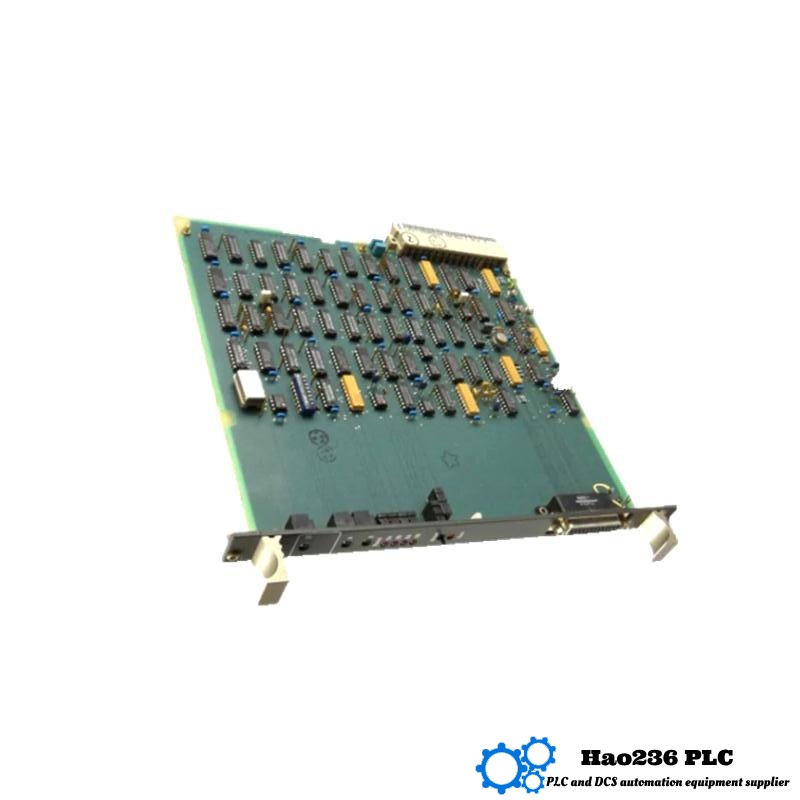

ABB 88FV01F GJR2332300R0100 Master Station Modem Module
Product Introduction
The ABB 88FV01F GJR2332300R0100 is a compact master station modem module designed for efficient and reliable communication in industrial automation and control systems. This module ensures robust data transmission between a central control station and remote devices over serial communication lines. It is essential for applications in distributed control systems (DCS) and supervisory control and data acquisition (SCADA) systems, providing real-time data exchange in industrial environments.
With its small form factor and lightweight construction, measuring 90 x 45 x 66 mm and weighing 0.35 kg, this module is suitable for integration in control panels and cabinets where space is limited. The module supports RS-232 and RS-485 communication protocols, making it versatile and capable of handling different network configurations, including point-to-point and multi-drop setups. It operates over a wide temperature range, making it ideal for various industries, from manufacturing to energy management.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 88FV01F GJR2332300R0100 |
| Module Type | Master Station Modem |
| Dimensions (W × H × D) | 90 x 45 x 66 mm |
| Weight | 0.35 kg |
| Power Supply | 24 V DC |
| Communication Protocols | RS-232, RS-485 |
| Data Transmission Speed | 1200 bps to 38.4 kbps |
| Connector Type | DB9 male and terminal block |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Mounting | DIN rail or panel mount |
| Input Voltage Range | 20–30 V DC |
| Certifications | CE, UL, CSA |
| Diagnostics | Status LEDs for power, TX/RX activity, fault |
Product Applications
The 88FV01F GJR2332300R0100 modem module is used in various applications such as:
-
Distributed Control Systems (DCS): Enables communication between central control stations and remote I/O devices across large industrial plants.
-
SCADA Systems: Facilitates remote monitoring and control of critical processes in industries like water treatment, oil & gas, and power generation.
-
Factory Automation: Provides serial communication for remote controllers, sensors, and actuators in automated production lines.
-
Energy and Utilities: Links remote substation equipment to central control systems for continuous monitoring of power distribution networks.
-
Building Automation: Connects building management systems with HVAC, lighting, and security devices for improved facility control.
Product Advantages
-
Ultra-Compact Design: At only 90 x 45 x 66 mm and 0.35 kg, it’s ideal for installations with limited space in control panels and cabinets.
-
Flexible Communication: Supports both RS-232 (point-to-point) and RS-485 (multi-drop) communication protocols, allowing compatibility with various industrial setups.
-
High Data Transfer Rate: Capable of data transmission speeds from 1200 bps to 38.4 kbps, ensuring timely and reliable communication across the network.
-
Built-in Diagnostics: Features status LEDs that provide real-time monitoring of power, transmission activity, and any fault conditions, helping to minimize downtime.
-
Wide Temperature Range: Operates efficiently from -20 °C to +60 °C, making it suitable for demanding environments such as manufacturing plants and outdoor installations.
-
Seamless Integration: Can be easily mounted on a DIN rail or directly on a panel for straightforward installation.
-
Robust and Durable: Certified with CE, UL, and CSA for industrial safety and reliability, ensuring the module performs under tough conditions.
Brand Information
-
Brand: ABB
ABB is a global leader in industrial automation, providing innovative solutions for power and automation across various sectors. The 88FV01F modem is part of ABB’s comprehensive line of communication solutions for industrial and process control systems.
Recommended Models from ABB (Related Models)
| Model Number | Description | Data Rate | Dimensions (mm) | Weight (kg) | Primary Use |
|---|---|---|---|---|---|
| 88FV01 GJR2332300R0200 | Master Station Modem | 1200 bps to 38.4 kbps | 230 x 120 x 35 | 0.75 | Similar master station communication |
| 88FV02 GJR2332300R0300 | Slave Station Modem | 1200 bps to 38.4 kbps | 230 x 120 x 35 | 0.75 | Slave device communication |
| 88FT05 GJR2393100R1200 | Master Station Modem | 1200 bps to 38.4 kbps | 198 x 261 x 40 | 0.5 | High-range communication |
| 88FT06 GJR2393100R1201 | Dual-Channel Master Modem | 1200 bps to 38.4 kbps | 198 x 261 x 40 | 0.6 | Dual-channel redundant communication |
| 88FT07 GJR2393100R1400 | Industrial Modem | 1200 bps to 38.4 kbps | 198 x 261 x 40 | 0.5 | Rugged design for industrial environments |
Popular ABB Communication Modules
| Model Number | Description | Data Rate | Dimensions (mm) | Weight (kg) | Primary Use |
|---|---|---|---|---|---|
| 88FV01F GJR2332300R0100 | Master Station Modem | 1200 bps to 38.4 kbps | 90 x 45 x 66 | 0.35 | Compact master station communication |
| 88FV01 GJR2332300R0200 | Master Station Modem | 1200 bps to 38.4 kbps | 230 x 120 x 35 | 0.75 | Standard master station communication |
| 88FT05 GJR2393100R1200 | Master Station Modem | 1200 bps to 38.4 kbps | 198 x 261 x 40 | 0.5 | Reliable long-distance communication |
| 88FV02 GJR2332300R0300 | Slave Station Modem | 1200 bps to 38.4 kbps | 230 x 120 x 35 | 0.75 | Remote device communication |
| 88FT06 GJR2393100R1201 | Dual-Channel Master Modem | 1200 bps to 38.4 kbps | 198 x 261 x 40 | 0.6 | Redundant communication setup for critical applications |
Frequently Asked Questions (FAQ)
Q1: What mounting options are available for the 88FT01?
A1: It supports both DIN rail and panel mounting, offering flexibility in control cabinet layouts.
Q2: Can the module handle both current and voltage signals?
A2: Yes, it conditions 4–20 mA and 0–10 V signals, as well as NPN/PNP digital inputs.
Q3: What level of surge protection does the 88FT01 provide?
A3: It features transient voltage suppression up to 1 kV to protect against EMI and lightning spikes.
Q4: How does the module achieve signal isolation?
A4: It offers 2,500 V optical isolation between I/O channels and ground, preventing ground loops and noise.
Q5: What temperature range can the 88FT01 operate in?
A5: It operates reliably between –20 °C and +70 °C, suitable for most industrial environments.
Q6: Is routine calibration required for the 88FT01?
A6: No routine calibration is needed; the module is factory-calibrated and maintains accuracy over time.
Q7: How are I/O devices connected to the module?
A7: Connections are made via screw terminals for quick wiring of sensors, transducers, and actuators.
Q8: Does the 88FT01 work with ABB’s fieldbus systems?
A8: Yes, it integrates seamlessly with ABB’s DCS and fieldbus platforms, including support for HART and Foundation fieldbus via companion modules.
Q9: What certifications does this module carry?
A9: The module is CE- and UL-listed, and complies with RoHS environmental directives.
Q10: What support does ABB provide for installation and troubleshooting?
A10: ABB offers comprehensive documentation, application notes, and global technical support for installation, configuration, and diagnostics.
